8.4" to 12.1" screen replacement

[Toperz]

Hey guys. I have problem to find screen module(silver box) everywhere I looked is ac/heat module. Those parts listed in past are discontinued and it says its replaced with screen only now.
I'm gonna move from 8.4" non-navi to 12"non-navi.
Thanks

Sent from my SM-N986U using Tapatalk



[Bsaylor]

Hey guys. I have problem to find screen module(silver box) everywhere I looked is ac/heat module. Those parts listed in past are discontinued and it says its replaced with screen only now.
I'm gonna move from 8.4" non-navi to 12"non-navi.
Thanks

Sent from my SM-N986U using Tapatalk

68317978AL - Ram Radio. Multi media | Factory Chrysler Parts, Bartow FL

Genuine Ram Part # 68317978AL - Radio. Multi media. Fits 1500. Ships from Factory Chrysler Parts, Bartow FL

www.factorychryslerparts.com

Sent from my iPhone using Tapatalk



[Toperz]

68317978AL - Ram Radio. Multi media | Factory Chrysler Parts, Bartow FL

Genuine Ram Part # 68317978AL - Radio. Multi media. Fits 1500. Ships from Factory Chrysler Parts, Bartow FL

www.factorychryslerparts.com

Sent from my iPhone using Tapatalk

What is difference between those? Price of course but what is the rest.(specifically 12"). Is those saying up to 10/2019 or11/2019 gonna work in 2021 Ram?

2020 RAM 1500 Big Horn Crew Cab 3.6L V6 4WD Radios.

Diagram of OEM Radios. Contains 20 parts priced between $0.50 and $1,115.55. Fits 2020 RAM 1500 Big Horn Crew Cab 3.6L V6 4WD.

www.factorychryslerparts.com

Thanks



[Cmassey31099]

So the last thing I’m waiting on (the bezel) is coming in the new few days. I have the module, screen, rubber top piece, LVDS cable, repinned hookup, gateway bypass, and Bluetooth OBDii. Is there like a written step by step somewhere on exactly how to do the replacement? Thanks


Sent from my iPhone using Tapatalk



[MannymanX]

So the last thing I’m waiting on (the bezel) is coming in the new few days. I have the module, screen, rubber top piece, LVDS cable, repinned hookup, gateway bypass, and Bluetooth OBDii. Is there like a written step by step somewhere on exactly how to do the replacement? Thanks


Sent from my iPhone using Tapatalk

Install:

OBD instructions: https://5thgenrams.com/community/threads/8-4-to-12-1-screen-replacement.2344/post-222608



[Cmassey31099]

How have you all programmed using AlphaOBD? Did you use windows? Your android phone? iPhone?
Anyone try using windows through a MacBook?
I only have iOS products so I may need to get something alphaOBD can work with.


Sent from my iPhone using Tapatalk



[Jimmy07]

How have you all programmed using AlphaOBD? Did you use windows? Your android phone? iPhone?
Anyone try using windows through a MacBook?
I only have iOS products so I may need to get something alphaOBD can work with.


Sent from my iPhone using Tapatalk

You can use Jscan if all you have is iOS. It has the same settings needed to change as AlfaOBD.



[Toperz]

Hello all.
Did anybody successfully swapped units in 2021 BigHorn? If yes please pm me.

Thanks

Sent from my SM-N986U using Tapatalk



[MannymanX]

Hello all.
Did anybody successfully swapped units in 2021 BigHorn? If yes please pm me.

Thanks

Sent from my SM-N986U using Tapatalk

Basically all of us are BH and Laramie owners.........



[Cmassey31099]

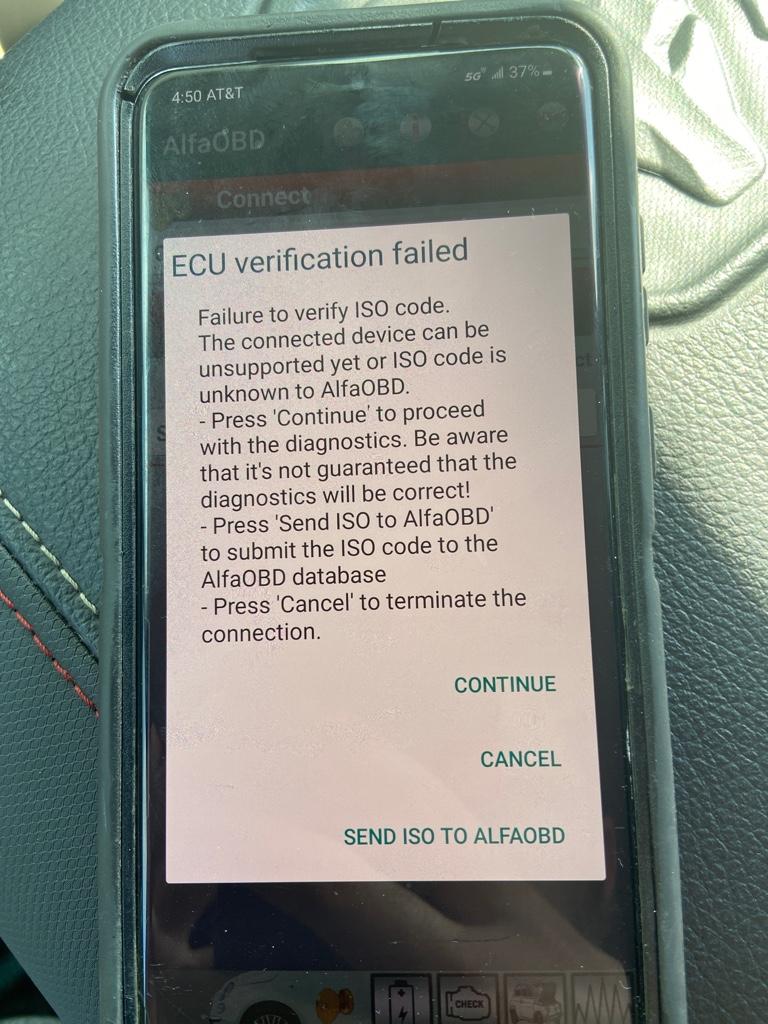

So I am using android version alfaobd.. do I have to put my truck in Acc or run? I keep getting this error when I try to connect to the BCM


Sent from my iPhone using Tapatalk



[Jimmy07]

So I am using android version alfaobd.. do I have to put my truck in Acc or run? I keep getting this error when I try to connect to the BCM


Sent from my iPhone using Tapatalk

Ignition off, acc, or run- it doesn’t matter. Just click continue.



[Cmassey31099]

I tried that. Still the same message


Sent from my iPhone using Tapatalk



[Jimmy07]

I tried that. Still the same message


Sent from my iPhone using Tapatalk

Just click continue when you get that message



[Cmassey31099]

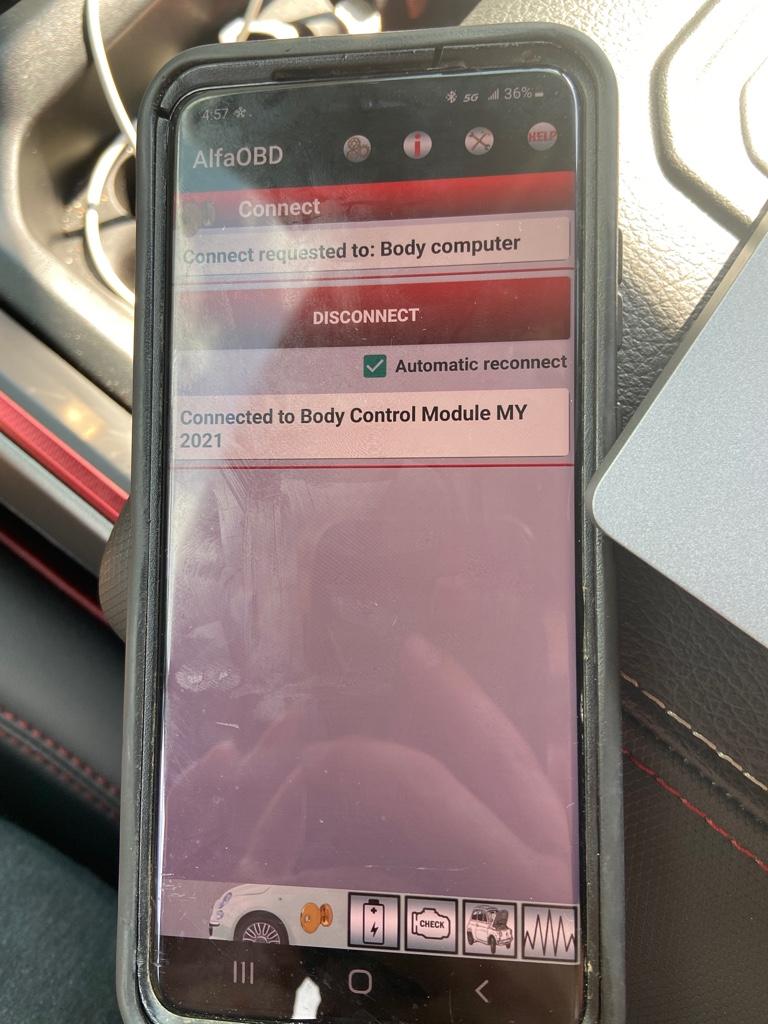

Where would I go from here?

Sent from my iPhone using Tapatalk



[Jimmy07]

Where would I go from here?

Sent from my iPhone using Tapatalk

The normal steps- car with hood open > car configuration change > find the settings that you need to change.



[Cmassey31099]

Ok so I made the changes. My truck has been off the whole time. What’s next?


Sent from my iPhone using Tapatalk



[Cmassey31099]

I see the buttons on the new screen lighting up but nothing on the screen.. do I have to pull a fuse to let it reset or?


Sent from my iPhone using Tapatalk



[MannymanX]

I see the buttons on the new screen lighting up but nothing on the screen.. do I have to pull a fuse to let it reset or?


Sent from my iPhone using Tapatalk

Unplug the battery and let it sit for a few minutes... After you reconnect it, it might take a few hours for all the feature to come back live on the screen, but you should get a display on the screen.



[Cmassey31099]

Everything seems good. Putting the screen into the bezel.. looks like I need 7 screws to attached the screen with the bezel.. anything cheap I can go get tonight? What did you guys use


Sent from my iPhone using Tapatalk



[MannymanX]

Everything seems good. Putting the screen into the bezel.. looks like I need 7 screws to attached the screen with the bezel.. anything cheap I can go get tonight? What did you guys use


Sent from my iPhone using Tapatalk

Yes, I went to Lowes and got a pack of 8 - M5 screws for the screen. just make sure they are short enough...
