8.4" to 12.1" screen replacement

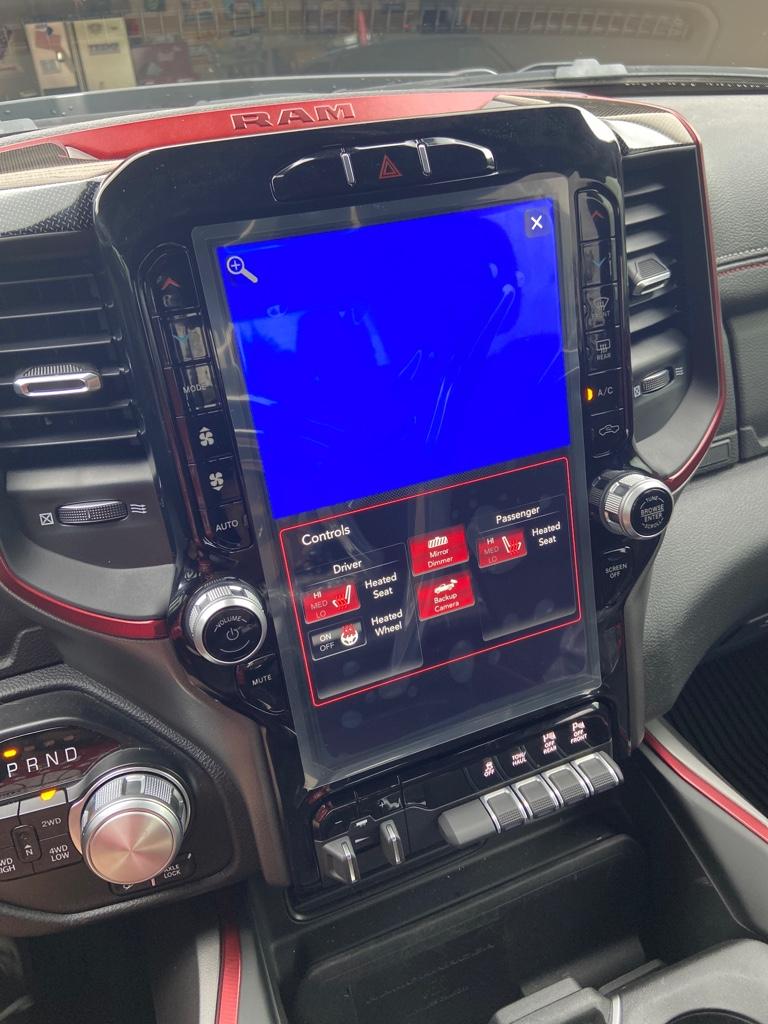

I really appreciate everyone with help. Everything seems to be working except my backup camera is just blue.. any body know what could be happening?



After looking into it further the screen isn’t recognizing the truck going into reverse, so my backup camera doesn’t even come up when I’m in reverse


Sent from my iPhone using Tapatalk

Last edited:
Basically all of us are BH and Laramie owners.........
So far I've seen 2019-2020 Rams and based on that there are different radio modules than for 2021, just want to make sure that I spend $900 instead $600 or $500 for something I can not return or exchange.

So far I've seen 2019-2020 Rams and based on that there are different radio modules than for 2021, just want to make sure that I spend $900 instead $600 or $500 for something I can not return or exchange.
@Jimmy07 would probably be able to confirm 2021 compatibility...

I really appreciate everyone with help. Everything seems to be working except my backup camera is just blue.. any body know what could be happening?



After looking into it further the screen isn’t recognizing the truck going into reverse, so my backup camera doesn’t even come up when I’m in reverse


Sent from my iPhone using Tapatalk

Back up camera still blue.. when I put it in reverse it doesn’t even come up I have to go in through the app to pull it up. Any suggestions on what to try?


Sent from my iPhone using Tapatalk

Back up camera still blue.. when I put it in reverse it doesn’t even come up I have to go in through the app to pull it up. Any suggestions on what to try?


Sent from my iPhone using Tapatalk
I'd say it's not plugged right... make sure all the connections in the back are good...

I'd say it's not plugged right... make sure all the connections in the back are good...

Unplugged my battery and seeing if that helps.. next step will be to check the connections, everything else works.. any idea which wire is the camera connection?


Sent from my iPhone using Tapatalk

Unplugged my battery and seeing if that helps.. next step will be to check the connections, everything else works.. any idea which wire is the camera connection?


Sent from my iPhone using Tapatalk
I can't remember the color but it's one of the individual plugs... It's not part of a set of wires...

Back at it again today trying to figure out the blue screen on the backup camera.. went back into alfa and tried activating and deactivating again. Pulled fuse f44 and put it back and hoping everything comes through.

Pulled my BCM if anyone sees anything wrong


So far I've seen 2019-2020 Rams and based on that there are different radio modules than for 2021, just want to make sure that I spend $900 instead $600 or $500 for something I can not return or exchange.

So I have a 2021 Rebel with 8.4 non nav. I purchased everything and got everything hooked up. Everything worked except my backup camera which wouldn’t come on if I put it in reverse, the only way I could pull it up is manually through the app screen and when I would get it on it would just be blue. It turns out there is different modules for 19-20 and 21s. I purchased 68317978AL which is for 19-20s. The correct part is 68472372AE if you have a 21. Hope this helps anyone in the future if they do this and not make the same mistake I did.


Sent from my iPhone using Tapatalk

Hey guys I just wanted to confirm that you can buy the 12” radio module from MOPAR now. I ordered mine through MoparFactoryParts and go it today.


Attachments

  • A1C3647F-0057-4BE8-8549-E29C70788C6B.jpeg
    127.2 KB · Views: 70
Hey everyone, I'm new to the Forum and to RAM in general...just got a 2021 Big Horn Hemi Etorque Crew Cab with the 8.4" screen and regretted not getting the 12", so I bought what I believe are all the main hardware supplies needed to replace it, based on what I've read here...can anyone take a look at my order list to verify my sanity? Also, need to review the forum for programming options. Any suggestions? 12inRadioRAM.JPG

Hey everyone, I'm new to the Forum and to RAM in general...just got a 2021 Big Horn Hemi Etorque Crew Cab with the 8.4" screen and regretted not getting the 12", so I bought what I believe are all the main hardware supplies needed to replace it, based on what I've read here...can anyone take a look at my order list to verify my sanity? Also, need to review the forum for programming options. Any suggestions? View attachment 103609

Same numbers I have as well. Did you already buy the module? Trying to find one at a reasonable price for the 2021.

Same numbers I have as well. Did you already buy the module? Trying to find one at a reasonable price for the 2021.
Do you mean the part that goes behind the screen and provides most of the functionality? If yes, that's the "Radio. MULTI Media." 68472372AE part...from what I've read, 2021's require that one.

Yeah it's on the pic, was $902; the most expensive part of all!

Okay thanks. Yea it's pricey for sure lol. I'm trying to find one at a decent price. I might have to wait until prices come down some since they are new. Would be nice to just get the complete system from someone but the 2021 module is harder come by at this time it seems. Good luck installing your system. Let us know if everything worked out.
