Revel Performance lift links for air ride suspension

[Jeffslonghorn]

What ride mode is your truck in in these photos? Thx


Sent from my iPad using Tapatalk



[barakutha]

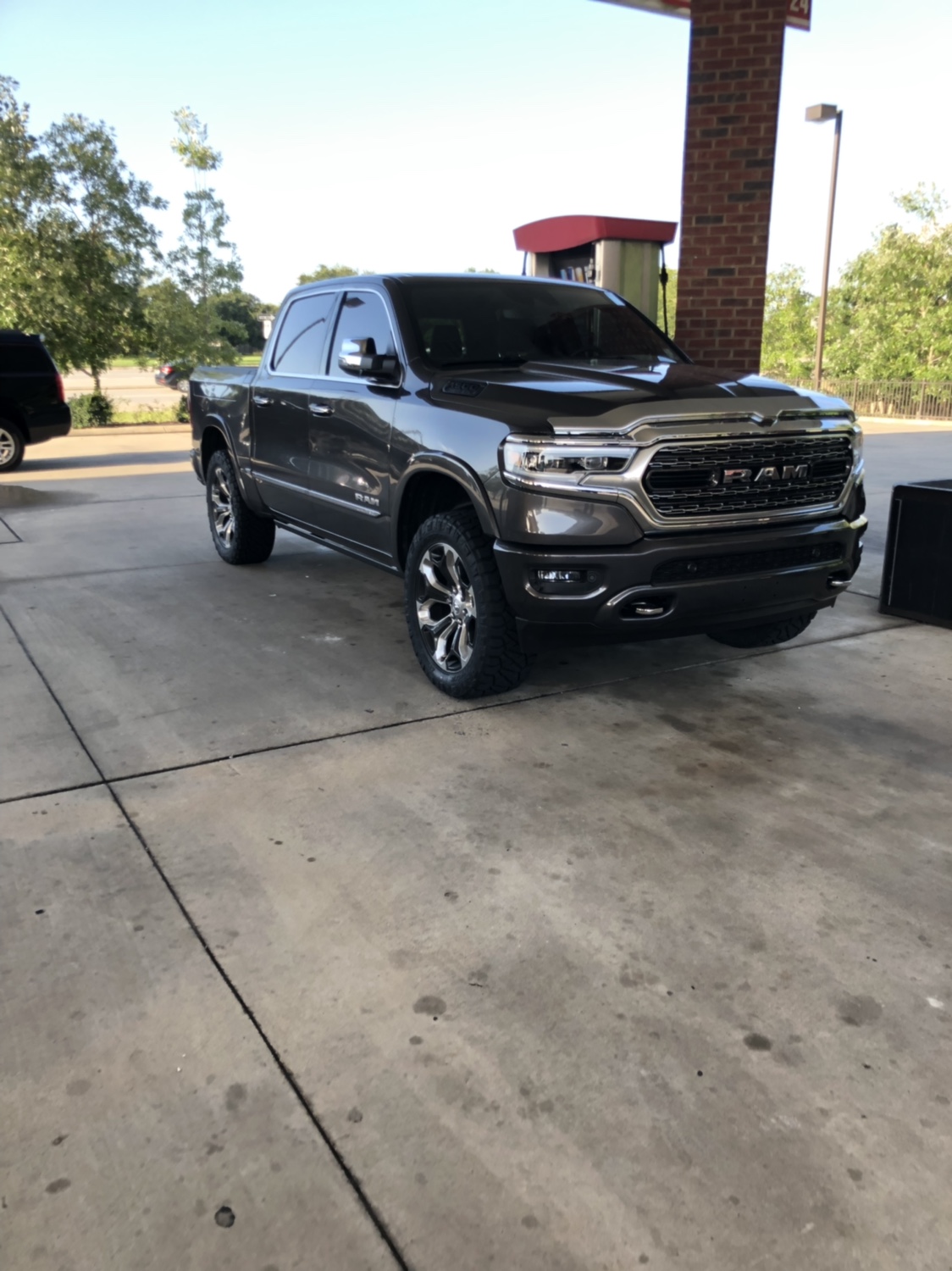

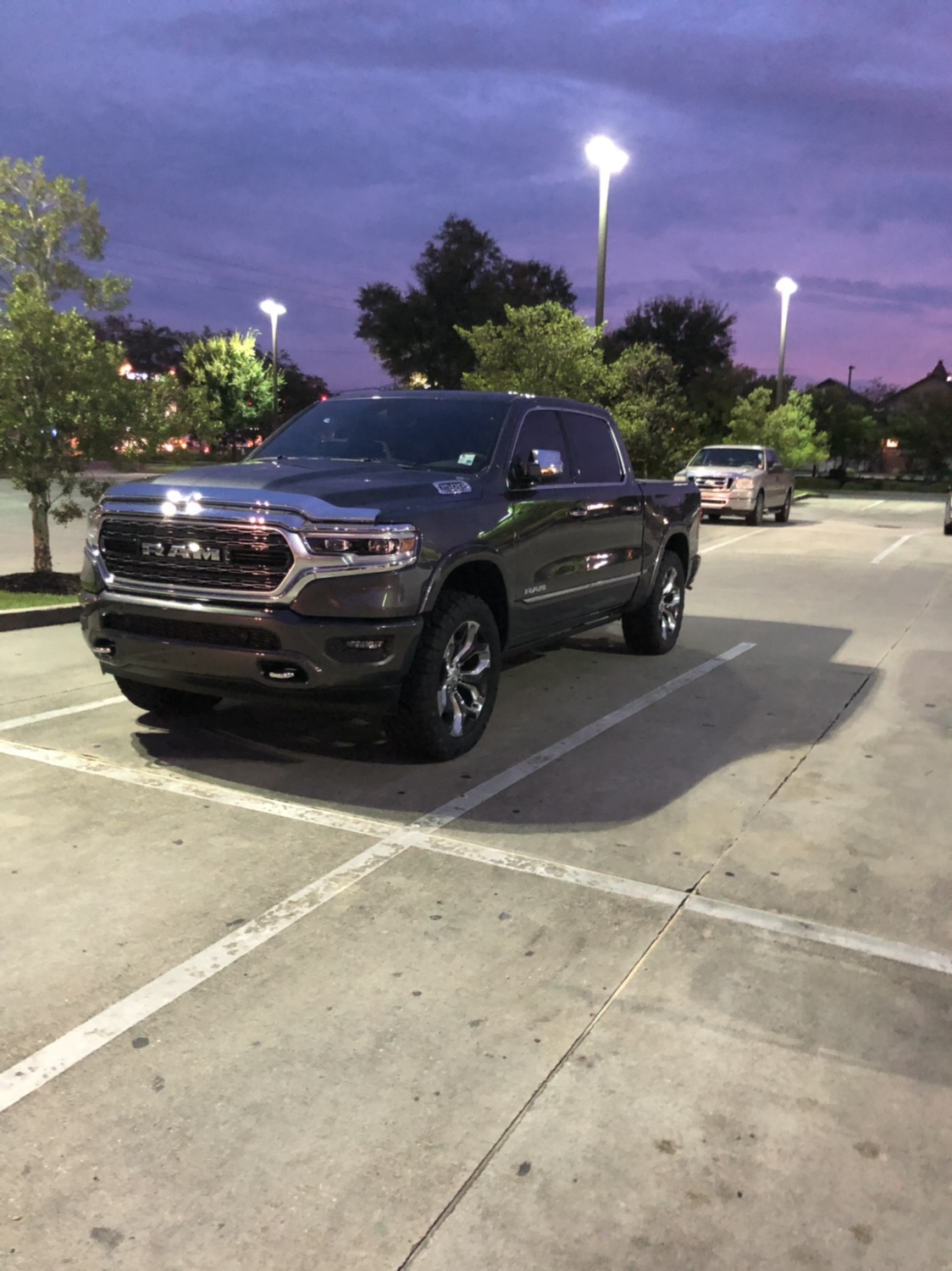

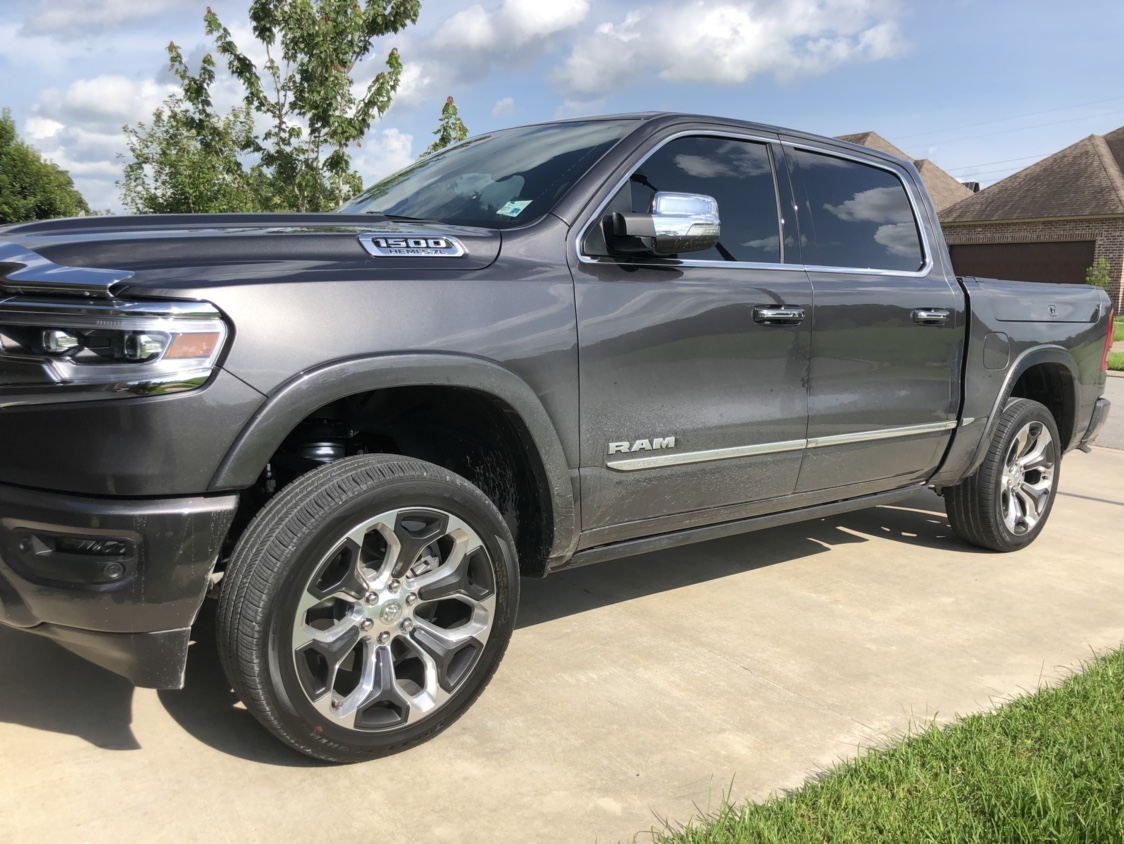

Normal height, leveled, factory tires

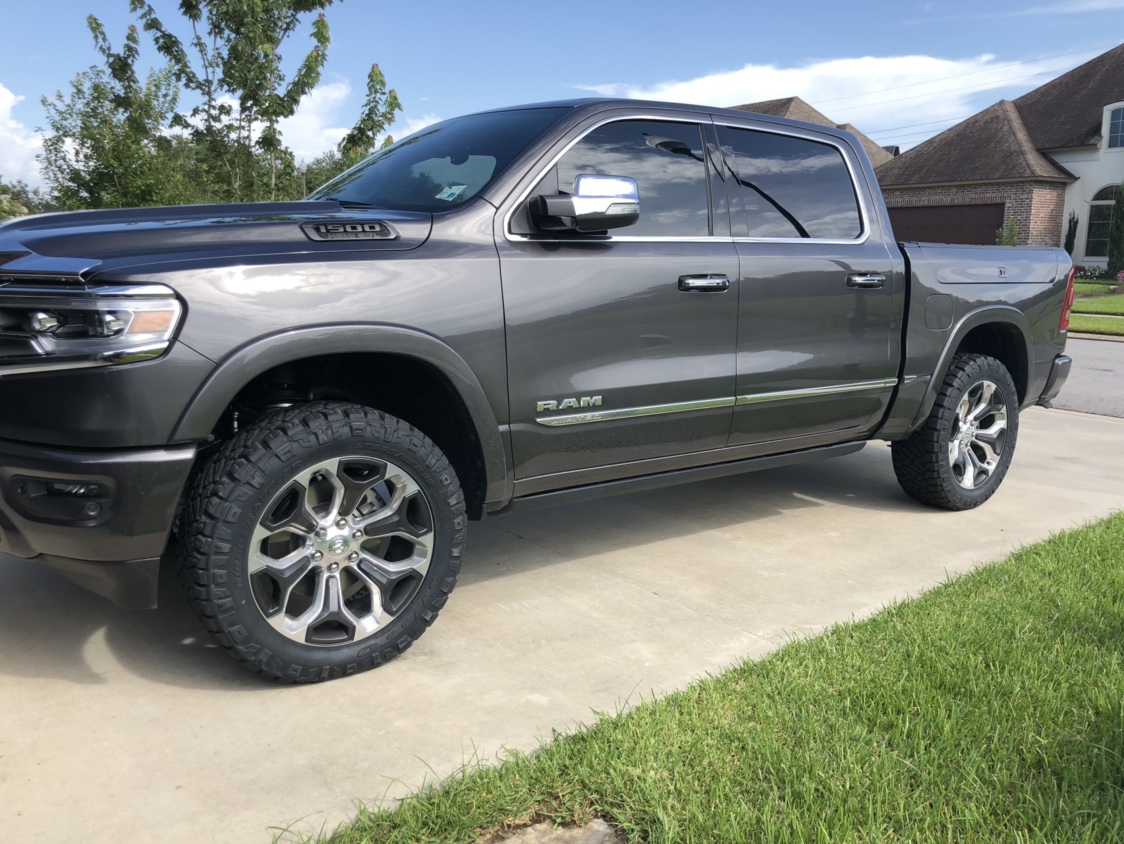

Aero on the ridge grapplers

Normal on the RGs

Sent from my iPhone using Tapatalk



[bgmshrm]

Normal height, leveled, factory tires

Aero on the ridge grapplers

Normal on the RGs

Sent from my iPhone using Tapatalk

What size tires did you go with ? they dont look any bigger.



[barakutha]

What size tires did you go with ? they dont look any bigger.

New 285/55r22
Old 285/45r22


Sent from my iPad using Tapatalk



[bgmshrm]

New 285/55r22
Old 285/45r22


Sent from my iPad using Tapatalk

Ok must just be the 22 inch wheel illusion



[drrxnupe]

Has anybody just done the rear links to level out their Ram?



[Jeffslonghorn]

Thank you for the extra photos and lift modes. Much appreciated.


Sent from my iPad using Tapatalk



[rsmeanie]

Has anybody just done the rear links to level out their Ram?

Yes, I bought the front and rear links. Raised the front and lowered the rear a little.


Sent from my iPhone using Tapatalk



[Bay Area RAM]

For the front links what are you guys spacing them out at ? I read somewhere that 2.25 inches eye to eye and I did that and it leveled the truck nicely but rides pretty rough. Also lost OR2 as a result getting a payload error when I try it.

I’m getting my daystar spacers installed next week.... just trying to dial it in ahead of time and wondering what everyone is running them at.



[barakutha]

For the front links what are you guys spacing them out at ? I read somewhere that 2.25 inches eye to eye and I did that and it leveled the truck nicely but rides pretty rough. Also lost OR2 as a result getting a payload error when I try it.

I’m getting my daystar spacers installed next week.... just trying to dial it in ahead of time and wondering what everyone is running them at.

With the front links and spacers, my front was lifted a total of 1.25 inches for an overall rake of 0.5. Trial and error

Sent from my iPad using Tapatalk



[natew51]

For the front links what are you guys spacing them out at ? I read somewhere that 2.25 inches eye to eye and I did that and it leveled the truck nicely but rides pretty rough. Also lost OR2 as a result getting a payload error when I try it.

I’m getting my daystar spacers installed next week.... just trying to dial it in ahead of time and wondering what everyone is running them at.

I measured mine in mm's and so you are at about 57mm right now. I initially went 66mm if I remember right. I believe stock links were 71mm. I wanted a bit more lift so I believe I went 60mm now...I can double check this for you.

You should get your ride quality back when you install the Daystars. Right now i have a slight rake, but didnt want to have issues with the different height settings and so not pushing the limits.



[Bay Area RAM]

I measured mine in mm's and so you are at about 57mm right now. I initially went 66mm if I remember right. I believe stock links were 71mm. I wanted a bit more lift so I believe I went 60mm now...I can double check this for you.

You should get your ride quality back when you install the Daystars. Right now i have a slight rake, but didnt want to have issues with the different height settings and so not pushing the limits.

Great. Thank you.... I’m ok losing OR2. I’ll have to try to dial it down a notch when i put the spacers in.



[Bay Area RAM]

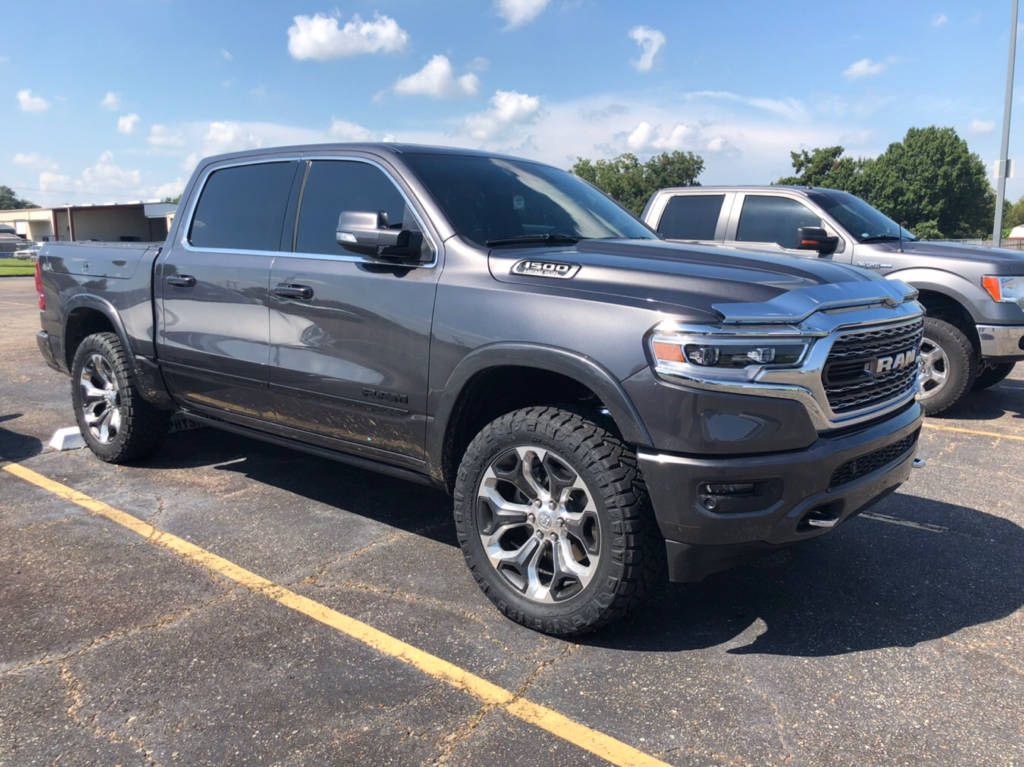

Done !!! Drove it home over 50 miles on a mountain road and it drove like riding on a pillow.... so happy to have my air ride back and all modes work just fine. I’ll post some better pics and measurements tomorrow. 20x9 RBP rims with zero offset, 295/60r20 Toyo AT’s, revel links with daystar spacers.



[drrxnupe]

Can someone post a link to the correct Daystar spacers for '19 Ram



[barakutha]

Daystar, Dodge Ram 1500 2.5" Leveling Kit, fits 2009 to 2017 4WD, all transmissions, all cabs KC09113BK, Made in America https://www.amazon.com/dp/B001GH1NHU/ref=cm_sw_r_cp_api_i_zV1IDbKJ0AHWT

Sent from my iPhone using Tapatalk

2019 Limited 4x4 with ramboxes, no etourque
- Borla cat-back touring with resonator
- 20% ceramic tint all around and pano
- Leveled with Daystar spacers and revel links (0.5in rake)
- Nitto ridge grapplers 285/55r22 (34.6x11.7)



[drrxnupe]

Will your truck still go into entry/exit mode? I use this quite a bit for loading/unloading stuff.

Normal height, leveled, factory tires

Aero on the ridge grapplers

Normal on the RGs

Sent from my iPhone using Tapatalk



[rsmeanie]

Will your truck still go into entry/exit mode? I use this quite a bit for loading/unloading stuff.

I have the Revel links and Daystar spacers and all modes work as normal. No issues at all.



[barakutha]

Will your truck still go into entry/exit mode? I use this quite a bit for loading/unloading stuff.

Yup, no problems at all


Sent from my iPhone using Tapatalk



[plimmy]

Normal height, leveled, factory tires

Aero on the ridge grapplers

Normal on the RGs

Sent from my iPhone using Tapatalk

Hi, newbie here. Do you just need front daystar spacers and rear revel lowering links? Or do you need all the revel links front and rear?



[barakutha]

Hi, newbie here. Do you just need front daystar spacers and rear revel lowering links? Or do you need all the revel links front and rear?

Daystar front spacers
Revel links front only


Sent from my iPhone using Tapatalk
