I got my Revel links this week so I have my Saturday project ready to go. I want to raise the front but also lower the back a little. From the instructions, it looks like I need to shorten the links, front and rear to accomplish this. Correct?


thcmas35

Tracking order
Tracking order
Messages
237
Reaction score
171
Points
43
Location
MN
I got my Revel links this week so I have my Saturday project ready to go. I want to raise the front but also lower the back a little. From the instructions, it looks like I need to shorten the links, front and rear to accomplish this. Correct?
Agree - that is correct


rsmeanie

Active Member
Messages
180
Reaction score
348
Points
63
Location
Bay Area, CA
Just installed the links and I'm very happy with the outcome. I raised the front and lowered the rear. Went through all 5 settings and no error codes. I'm happy with the ride in Normal but I have the Daystar spacers and will eventually install them as well. Overall I'm very satified.


Attachments

Chippy

Well-Known Member
Messages
369
Reaction score
408
Points
63
I really don’t get the lower the rear thing but each to there own man


cipherbreak

Active Member
Messages
83
Reaction score
44
Points
18
Go with 35x12.5s. I went with the Toyo RTs due to the treadwear warranty and overall performance but the Nittos are very nice as well. Toyo and Nitto are sister companies.


barakutha

Well-Known Member
Messages
251
Reaction score
361
Points
63
Front spacers and links go on Monday morning.. then it's time to decide on a 22" tire


Sent from my iPhone using Tapatalk


barakutha

Well-Known Member
Messages
251
Reaction score
361
Points
63

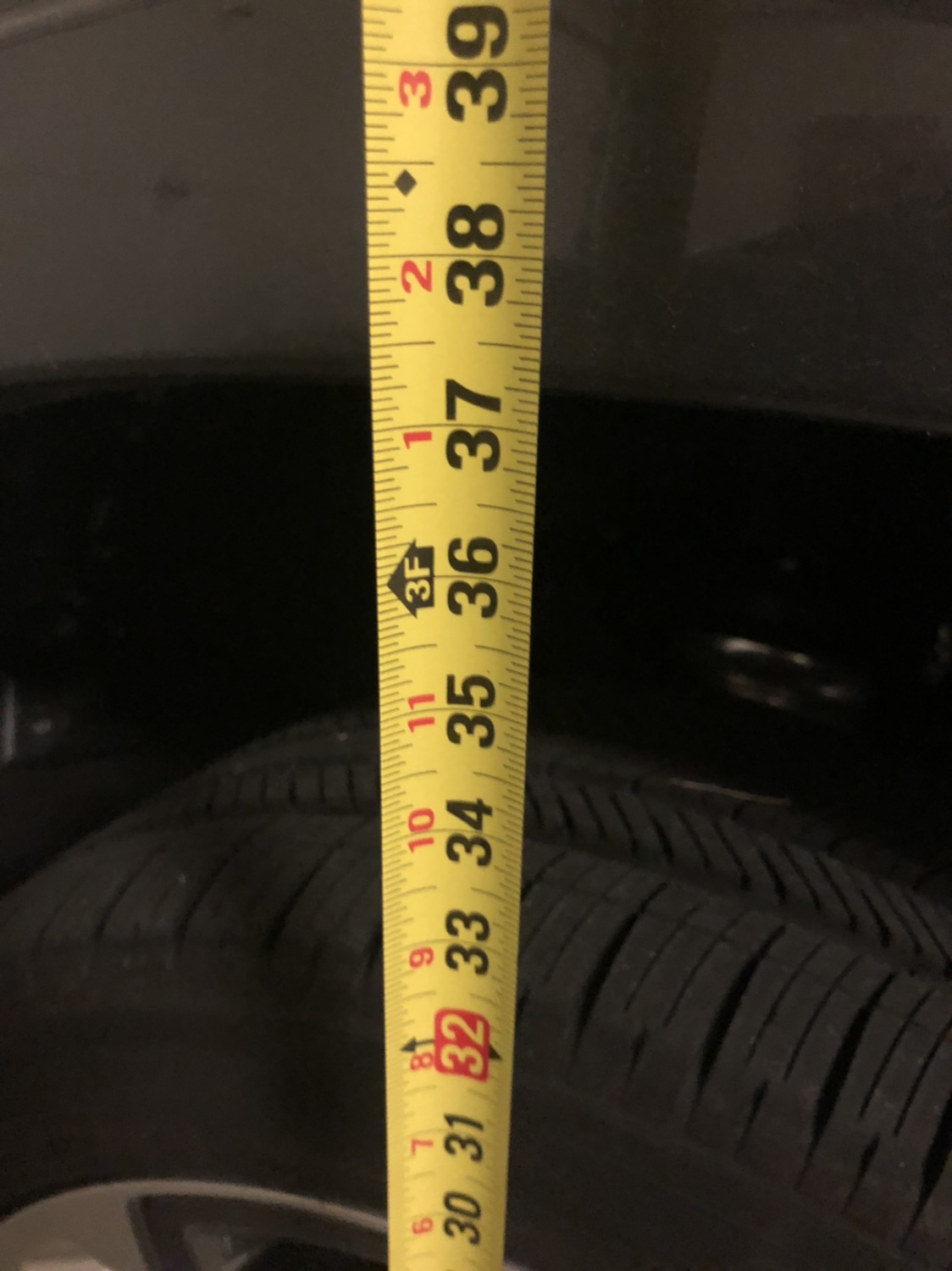

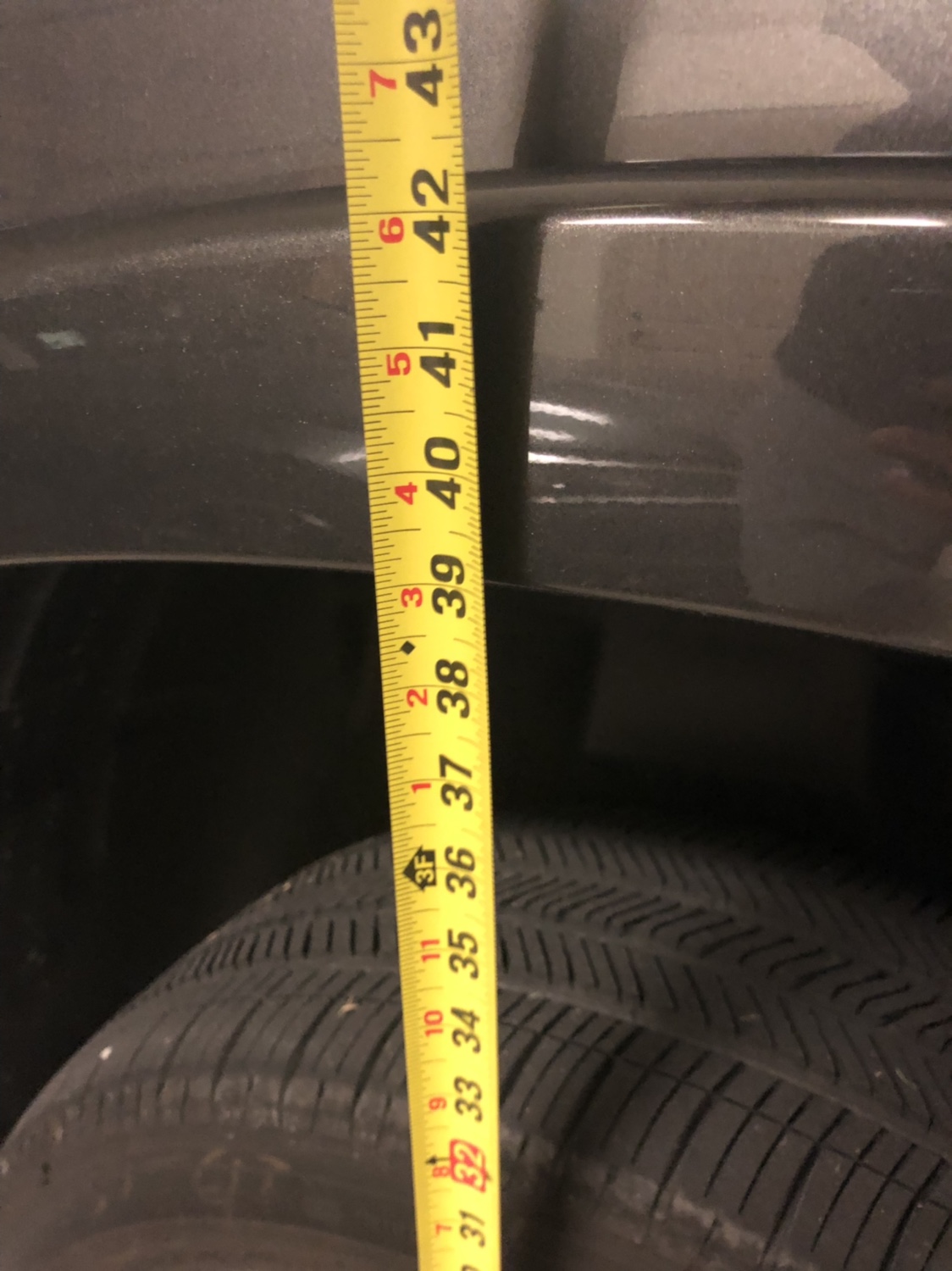

Pre-op front and rear, normal ride height, stock 22s.. about 37.25 and 39




Sent from my iPhone using Tapatalk


rsmeanie

Active Member
Messages
180
Reaction score
348
Points
63
Location
Bay Area, CA

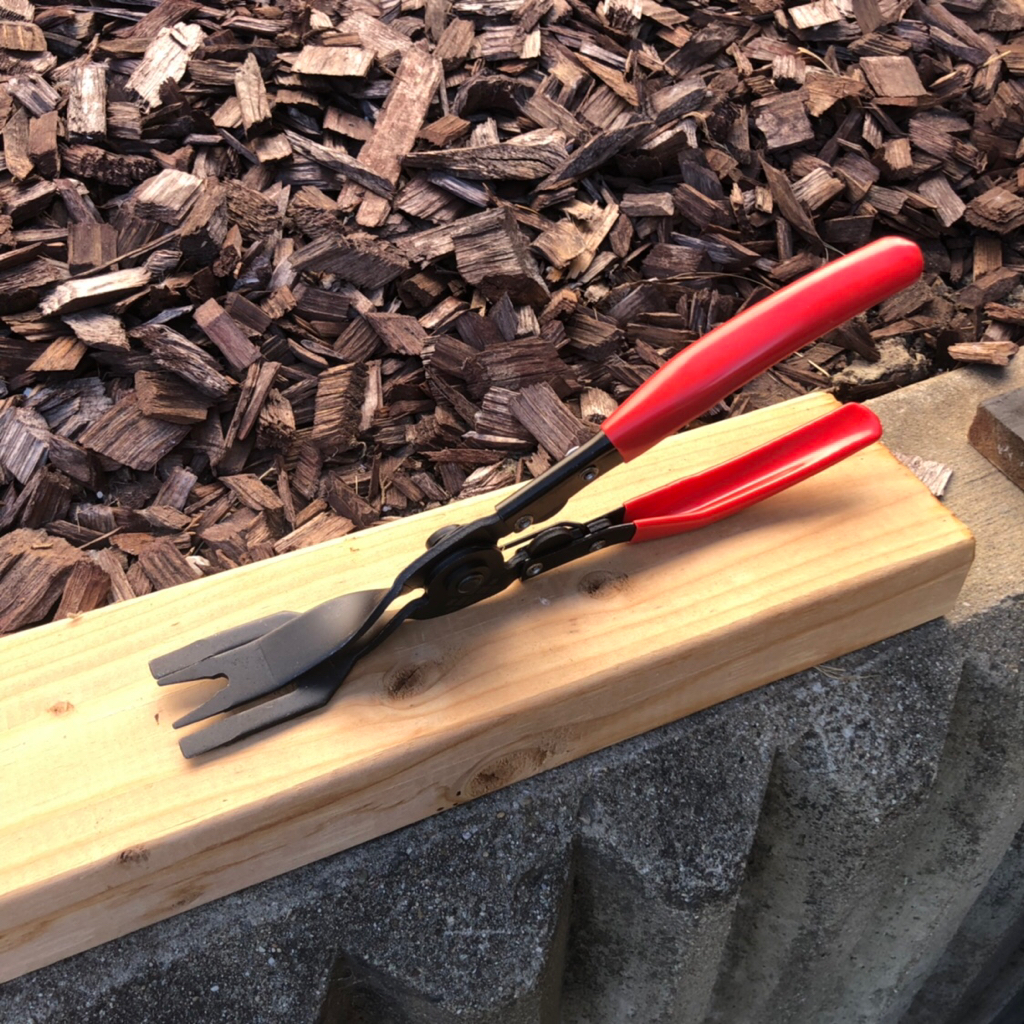

Btw, I know most people have been using a large screwdriver to pop off the links but if you have a tool like this, it makes things super easy and you’re less likely to break something.




Sent from my iPhone using Tapatalk


barakutha

Well-Known Member
Messages
251
Reaction score
361
Points
63
It's decision time and I need yalls advise. If I use the Daystar spacers and front revel links to raise the front 1.5 inches, would I be able to go with the 285/55r22s (34.6x11.7) ridge grapplers?
I'm ok with light trimming


Sent from my iPhone using Tapatalk

Last edited:

Jhaney

Active Member
Messages
49
Reaction score
10
Points
8
Just installed the links and I'm very happy with the outcome. I raised the front and lowered the rear. Went through all 5 settings and no error codes. I'm happy with the ride in Normal but I have the Daystar spacers and will eventually install them as well. Overall I'm very satified.
Did you tweak them or installed them as they were set? That’s exactly the look I’m after.


rsmeanie

Active Member
Messages
180
Reaction score
348
Points
63
Location
Bay Area, CA
Did you tweak them or installed them as they were set? That’s exactly the look I’m after.
I had an idea of how much to shorten them based on the discussions here and they shipped close to it so I popped them on as is and it worked out great. I might raise the rear a touch but I'm pretty happy where she sits right now. Here's a better pic than the last one.



Jhaney

Active Member
Messages
49
Reaction score
10
Points
8
I had an idea of how much to shorten them based on the discussions here and they shipped close to it so I popped them on as is and it worked out great. I might raise the rear a touch but I'm pretty happy where she sits right now. Here's a better pic than the last one.

View attachment 33108
Nice. Think I’ll order a set and try them. Any member discounts out there or cheaper places to buy other than their website?


Jmaloneydo

Active Member
Messages
27
Reaction score
17
Points
3

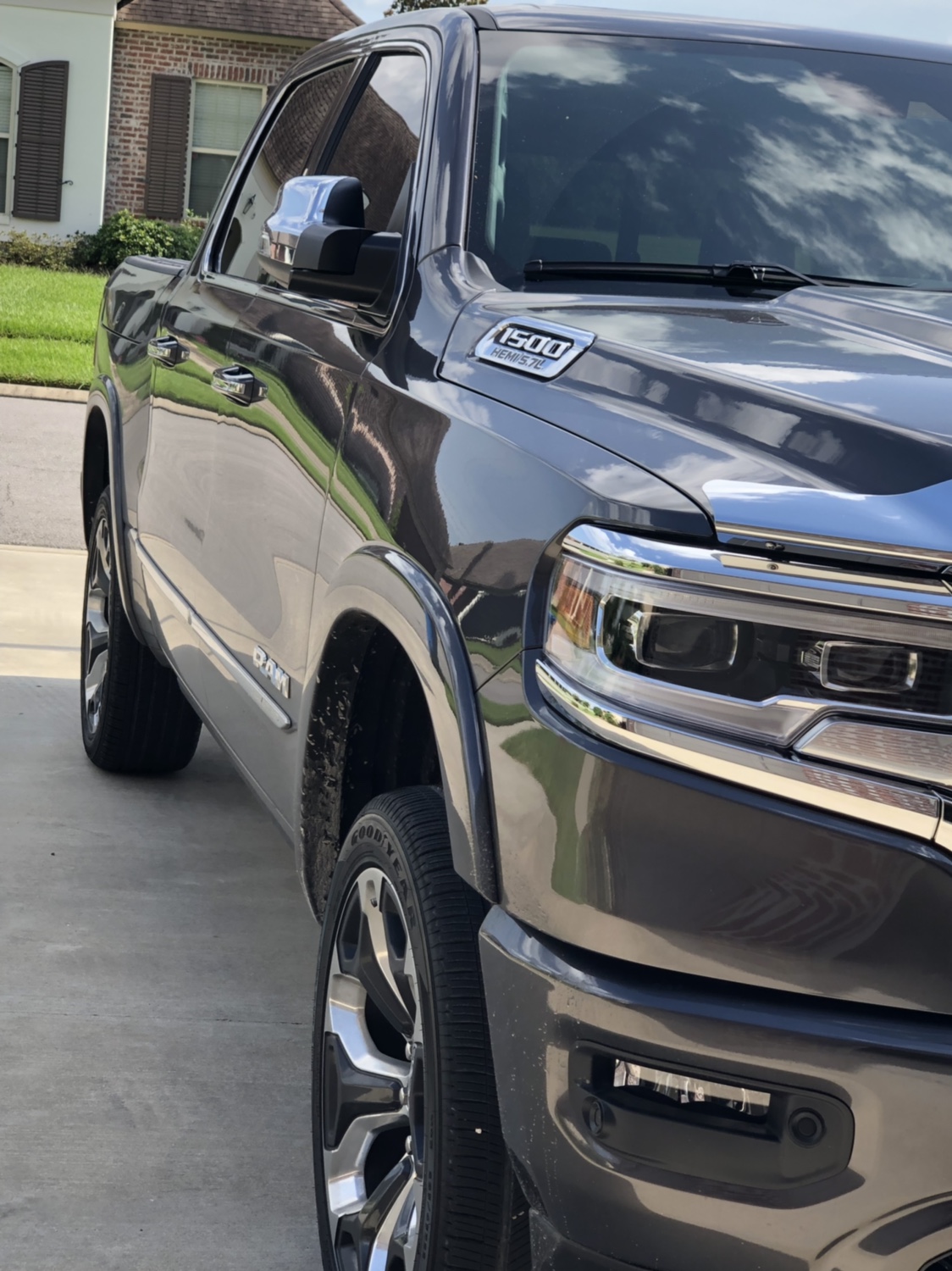

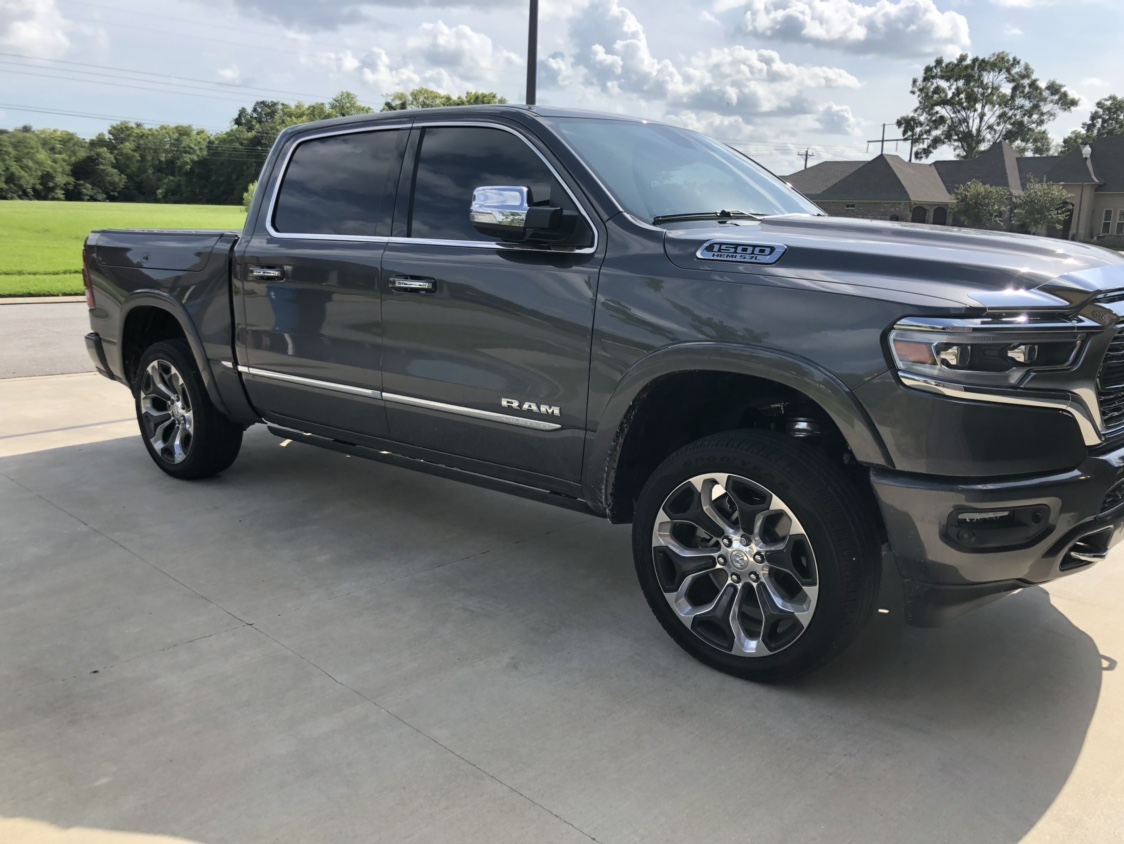

Installed today. Front Daystar spacers and revel links. Time to go tire shopping





Sent from my iPhone using Tapatalk
Did you install the Daystar spacers yourself or have them done at a shop? What was the cost to get that done if you don't mind my asking. Thanks.


Sent from my SM-G950U using Tapatalk


barakutha

Well-Known Member
Messages
251
Reaction score
361
Points
63
Did you install the Daystar spacers yourself or have them done at a shop? What was the cost to get that done if you don't mind my asking. Thanks.


Sent from my SM-G950U using Tapatalk
Went to a local shop recommended by another place that didn't work on air suspension. Charged $300 for installing front links, spacers and rear sway.. great deal IMO


Sent from my iPhone using Tapatalk
