Revel Performance lift links for air ride suspension

[Raminit]

Very nice!



[Jeffslonghorn]

Thank you for the info. Your truck looks awesome.


Sent from my iPad using Tapatalk



[natew51]

Thank you for the info. Your truck looks awesome.


Sent from my iPad using Tapatalk

Thanks Guys...always makes me nervous tearing into a brand new truck and you never know what exactly the final outcome will be till you're done, but pleased w the outcome!

If I can be of any further assistance, don't hesitate to reach out.



[Jeffslonghorn]

Is your truck pictures taken with air in normal or lowered entry exit mode?


Sent from my iPad using Tapatalk



[natew51]

Is your truck pictures taken with air in normal or lowered entry exit mode?


Sent from my iPad using Tapatalk

Picture is in normal mode. Factory front links are 71mm center to center. It says 5mm shorter links will raise it 3/4 to 1". I went 8mm shorter with my setting. So I still have a slight rake but like the stance. I could go more, but I think I'm going to leave it exactly where it is at.



[The2ndlife]

Installed Daystar level kit and Revel links today. So far so good! View attachment 31376 View attachment 31377

did you do it yourself? or did you hire a tech?



[natew51]

did you do it yourself? or did you hire a tech?

Myself and Buddy of mine from work. We did my 2013 as well which was a standard setup. Other than the air line needing to be detached...it was basically the same thing.

In all honesty, this was far easier, just because we were working with all brand new parts vs my 2013 that had 50K before we did the work.



[natew51]

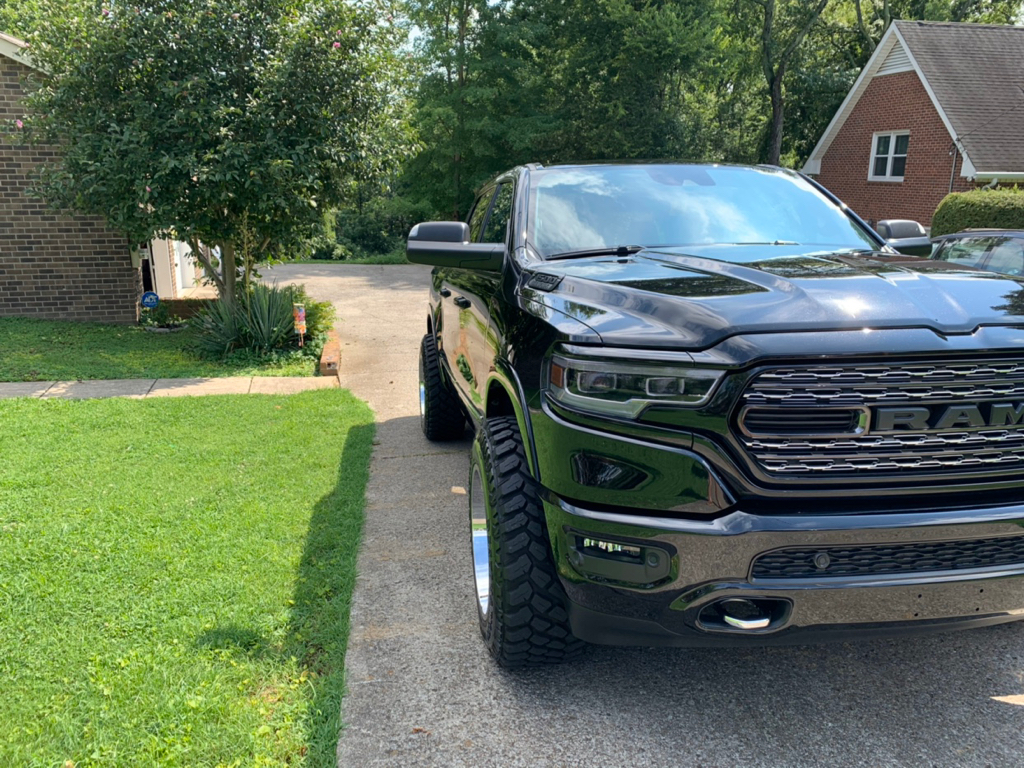

Photo after tint was installed today. If anyone lives in the Minneapolis area and looking for tint or wrapping....a huge shout out to Rob @ Bings...stand up guy that does outstanding work! We ordered in wrap for the grill as well, but hasn't come in yet....that will be the last thing to do and then just enjoy it!



[thcmas35]

Photo after tint was installed today. If anyone lives in the Minneapolis area and looking for tint or wrapping....a huge shout out to Rob @ Bings...stand up guy that does outstanding work! We ordered in wrap for the grill as well, but hasn't come in yet....that will be the last thing to do and then just enjoy it!

View attachment 31629

Yep I am looking. Just got a quote today. I'll reach out to him. Thanks!



[cipherbreak]

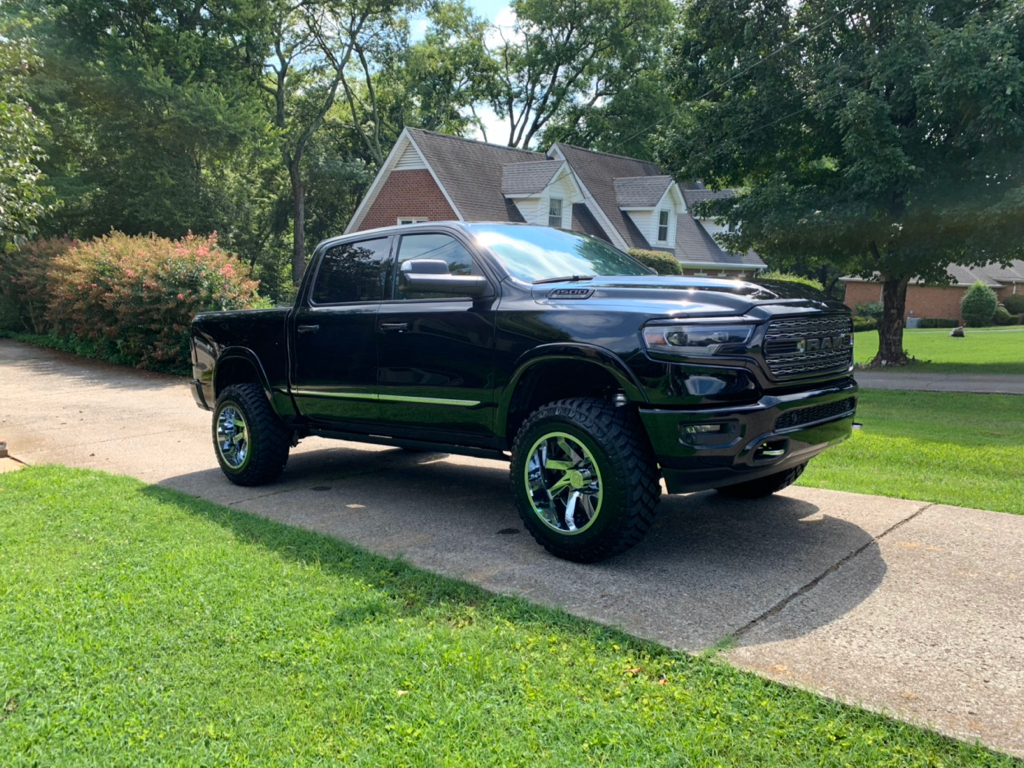

I made my own links to level the front. It still has a slight rake of exactly 1” but I am satisfied with the look and all modes work with no errors. I added the Daystar spacers at the same time and did not experience any change in the performance or feel of the suspension.



[natew51]

I made my own links to level the front. It still has a slight rake of exactly 1” but I am satisfied with the look and all modes work with no errors. I added the Daystar spacers at the same time and did not experience any change in the performance or feel of the suspension.

What size tire are you running? I wanted to go w Toyo RT's but they didnt offer a 33x12.5 in a 22 when I was shopping.

Your truck looks outstanding!



[cipherbreak]

What size tire are you running? I wanted to go w Toyo RT's but they didnt offer a 33x12.5 in a 22 when I was shopping.

Your truck looks outstanding!

Thank you.

35x12.5



[natew51]

Thank you.

35x12.5

Dang...for real...I was nervous to jump up to the 35's. Was concerned about rubbing issues. Did you have to do any modifications in the wheel well or was the level enough to give you what you needed for a free range of motion?



[Nucdancer01]

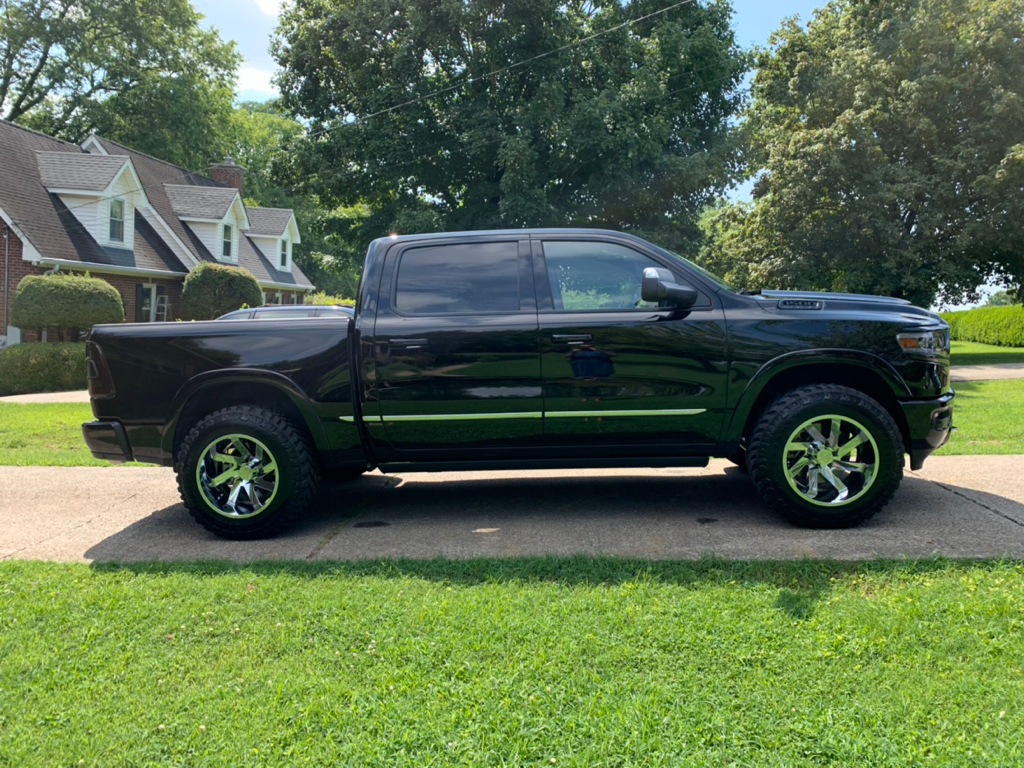

Homemade links, daystar spacer, 35-12.50, 20x12, -51mm offset. Trimming required. OR1 maxes out height, only used when in TIGHT parking lots.. OR2 off limits (payload limited), usually drive around in AERO.

Sent from my iPhone using Tapatalk



[Raminit]

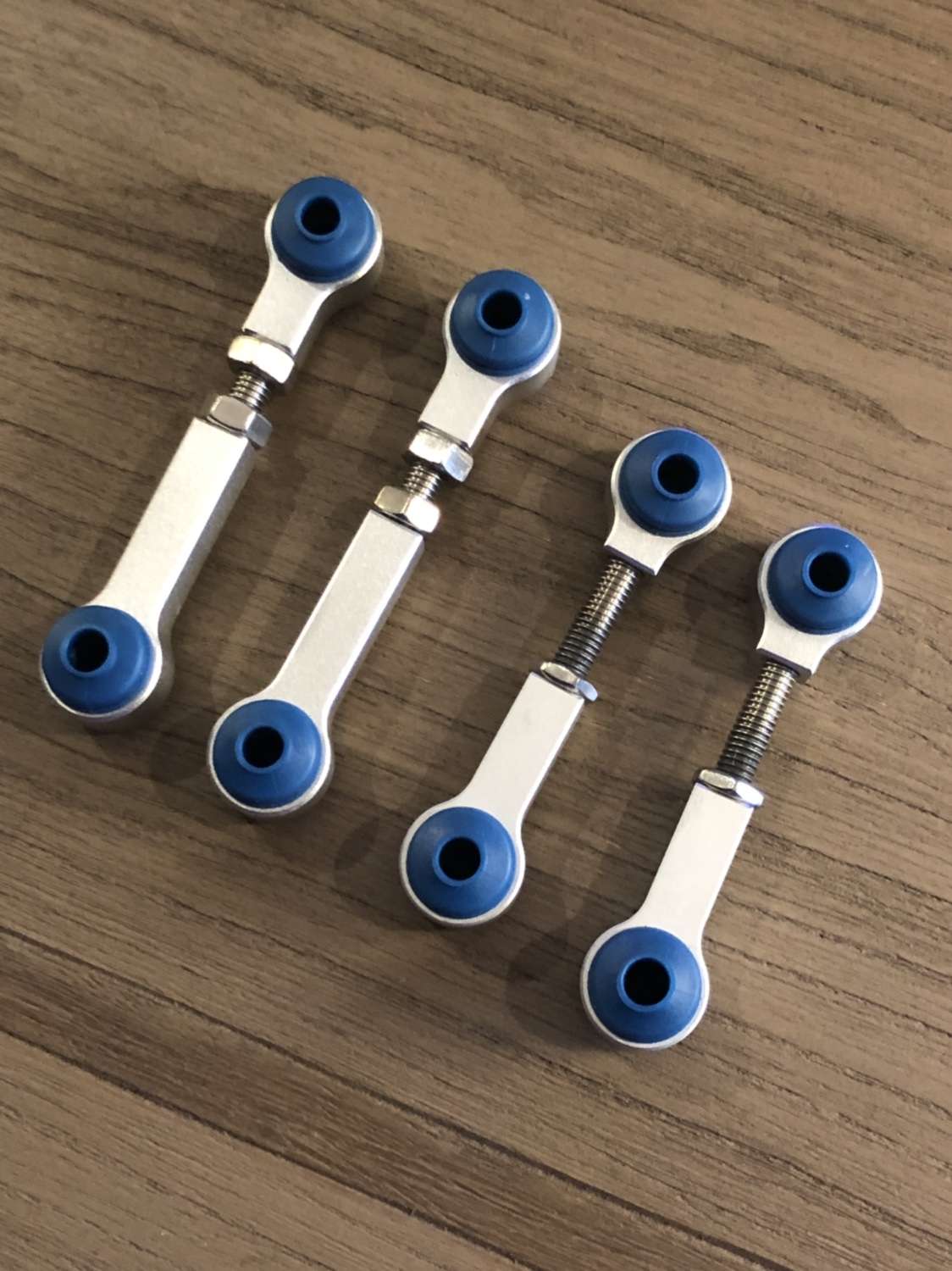

I used the other links and slightly customized with studs. Also running pro comps but 35x12.5s on -12 wheels. Just did the splash guard mod and no clearance issues in any mode.

I ended up not liking the bumpy ride and added a Daystar spacer, this brought back to stock ride if not better!

Link to other post.

www.linksforram.com

View attachment 17288
View attachment 17289

I just got these in the mail and ran out to the driveway to pop them in.
I popped a stock link off and couldn’t get the new one on. Is there a trick to it.



[barakutha]

Daystar spacers come in tomorrow. I'm gonna take my time to find the right place to do the install and throw on some 33s, maybe 35s.

I have a limited with air suspension and stock 22s.. Would yall recommend a spacer for the rims?

Sent from my iPhone using Tapatalk



[bgmshrm]

33 would look way too small . 285/65r22 would work great without a spacer



[barakutha]

33 would look way too small . 285/65r22 would work great without a spacer

Any specfic tire you recommend?


Sent from my iPhone using Tapatalk



[thcmas35]

Any specfic tire you recommend?


Sent from my iPhone using Tapatalk

I like my 33's. I like a wider tire also. Mine measure 33x12.5. Offset or wheel spacer might be better if you want to go wider tire. I have a +1 offset which compares to +19 stock, so my stance is ~.75" wider on each side. I went as big as I could without getting to a heavy/rough LT tire. Details on my set up in my signature.
The calculator on wheel-size dot com helps a lot in before/after comparisons.



[bgmshrm]

Any specfic tire you recommend?


Sent from my iPhone using Tapatalk

Nitro ridge grapplers
