8.4" to 12.1" screen replacement

Toperz

5thGenRams Supporter
Site Supporter
Joined
Apr 21, 2021
Messages
49
Reaction score
8
Location
Stratford, CT
Hi, yes, in this menu, If I switch from US to metric, or metric to US, it does change from metric to US correctly, or vice versa, but the change only apply on the cluster, the Nav still stay in US.
Strange. Mine switches everything. Maybe you should leave switched to metric for couple days and will update.

Sent from my SM-N986U using Tapatalk


Martin_

Member
Joined
Oct 28, 2021
Messages
7
Reaction score
1
Strange. Mine switches everything. Maybe you should leave switched to metric for couple days and will update.

Sent from my SM-N986U using Tapatalk
I think this is what I will do, one thing at a time and time to everything to settle. Thanks for your help.


356super

Member
Joined
Aug 23, 2021
Messages
18
Reaction score
1
Hi. I’m looking at getting the parts for this conversion. I’ve read almost every post in this thread and I made a parts list with everything I think I need. Just looking for some confirmation.

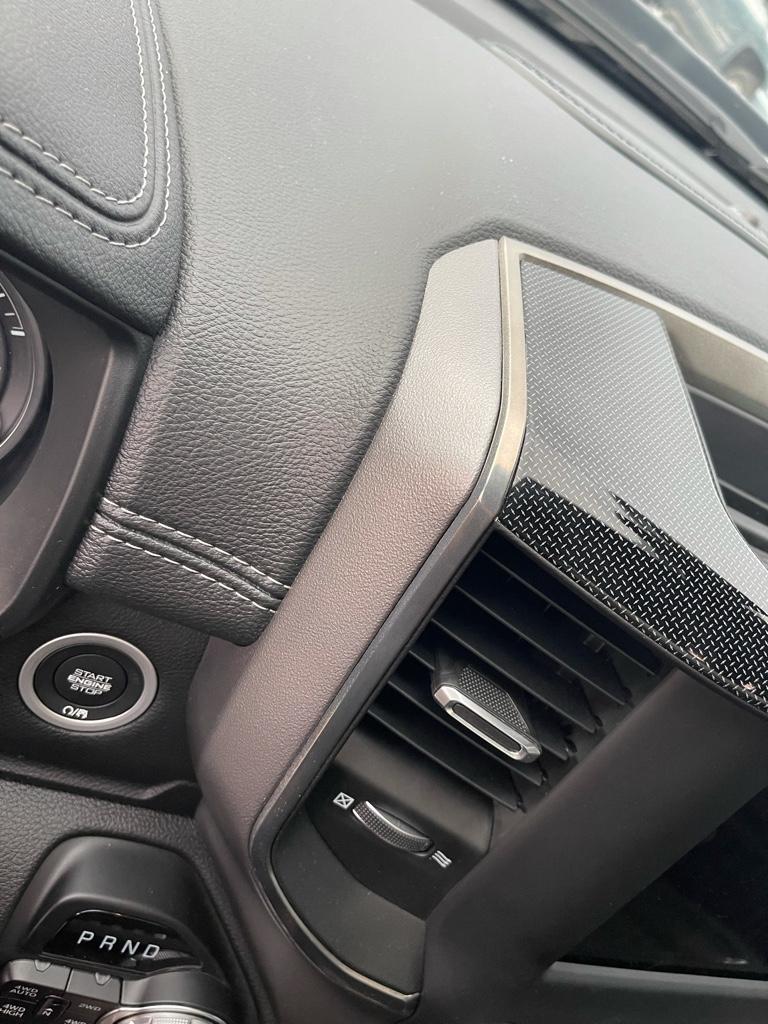

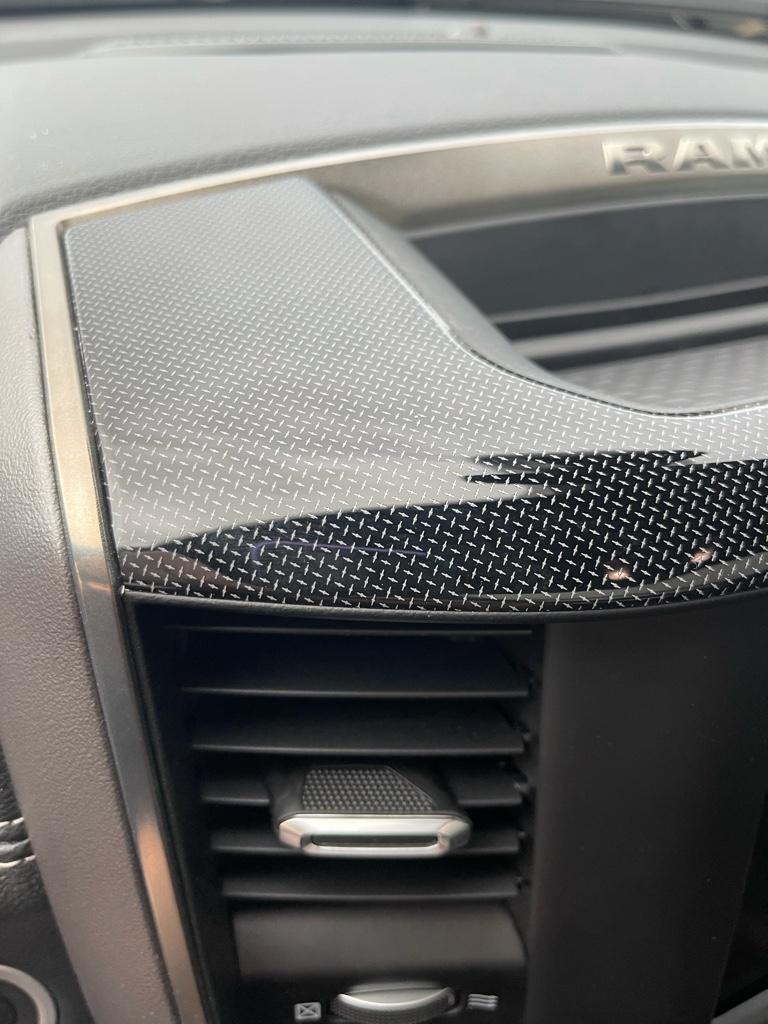

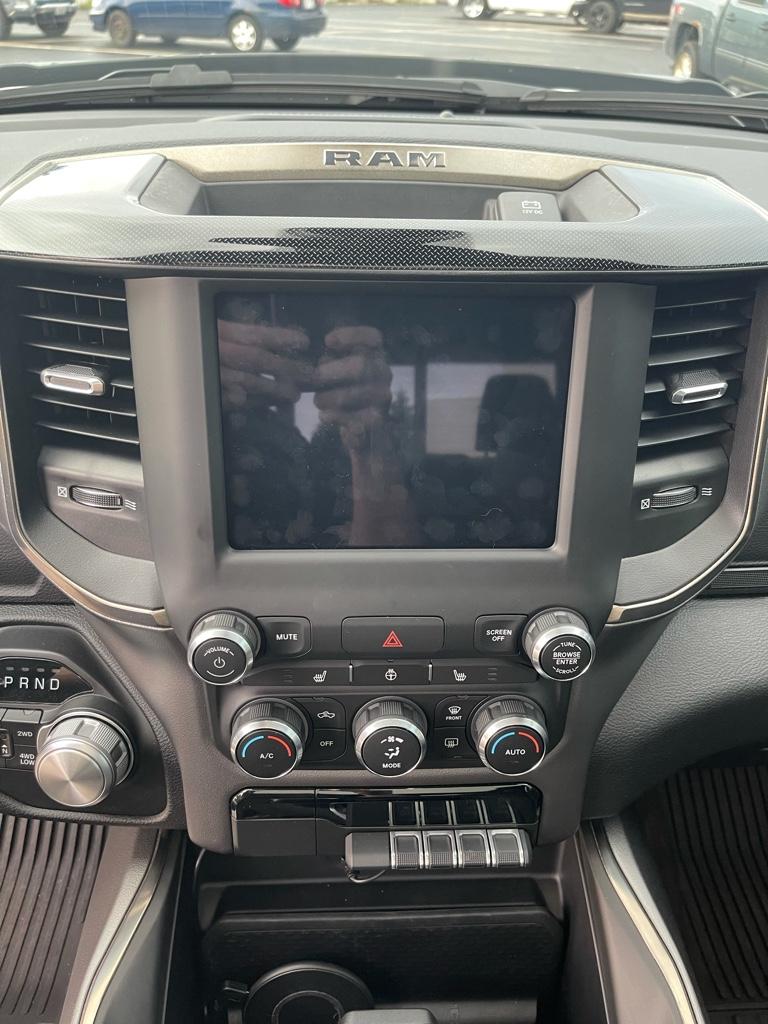

My truck is a 2020 Sport with dual auto climate without lane assist. I think I chose the correct center stack. It has a build date of 02/20 so I think I chose the right radio module. What’s hard to tell is the radio bezel style. Mine is like a gray/dark gray outer with this gloss black diamond plate look on top. I attached pictures of it. Im not 100% sure on the bezel.

List:

68420967AC - center stack (only hazard on top)

6MB16TX7AA - storage bin mat

68429169AE - radio module gray box (2020 Sport, build date 02/20)

68082364AC - lvds cable

6UV473X9AB or AA - radio bezel
6UV481X7AB or AA - radio bezel
(2020 Sport)

- Will re-pin connector
- Already have AlfaOBD and Bluetooth scanner
- Will order this cable for bypass - https://amzn.to/39yXOtu

I think that’s it.

Thank you,





Sent from my iPhone using Tapatalk
Hey Travis, Did you install mopar power running boards yourself?


Yellotsacul

Active Member
Joined
Dec 1, 2018
Messages
26
Reaction score
10
Has anyone found the part number for the new 12" uconnect 5 module so we can test it out to see if an upgrade is possible?

Sent from my SM-N986U1 using Tapatalk


Bram2019

Well-Known Member
Joined
Nov 3, 2018
Messages
385
Reaction score
142
This is the number for the Uconnect 5 series 12 inch radio module. 2022 model year Ram 1500
68504644AB

Last edited:

Claytonp23

New Member
Joined
Nov 4, 2021
Messages
2
Reaction score
0
I do have that part figured out. The connector that has nowhere to go needs can hi, can low,power and ground that you can either pull from the HVAC harness or from the back of the radio/ . The issue is that the other functions not working. I tried the same upgrade and I was able to get everything turned on but the climate controls would not work and I have to believe that the earlier post was right, that it could be something with the auto climate or something like that. The infotainment guy did seem to figure it out but they want 4k for it!! yikes!
So Im stuck right now also .
Just curious if you ever got this figured out I have a 2021 1500 bighorn with manual temp control and the climate control will not work


Martin_

Member
Joined
Oct 28, 2021
Messages
7
Reaction score
1

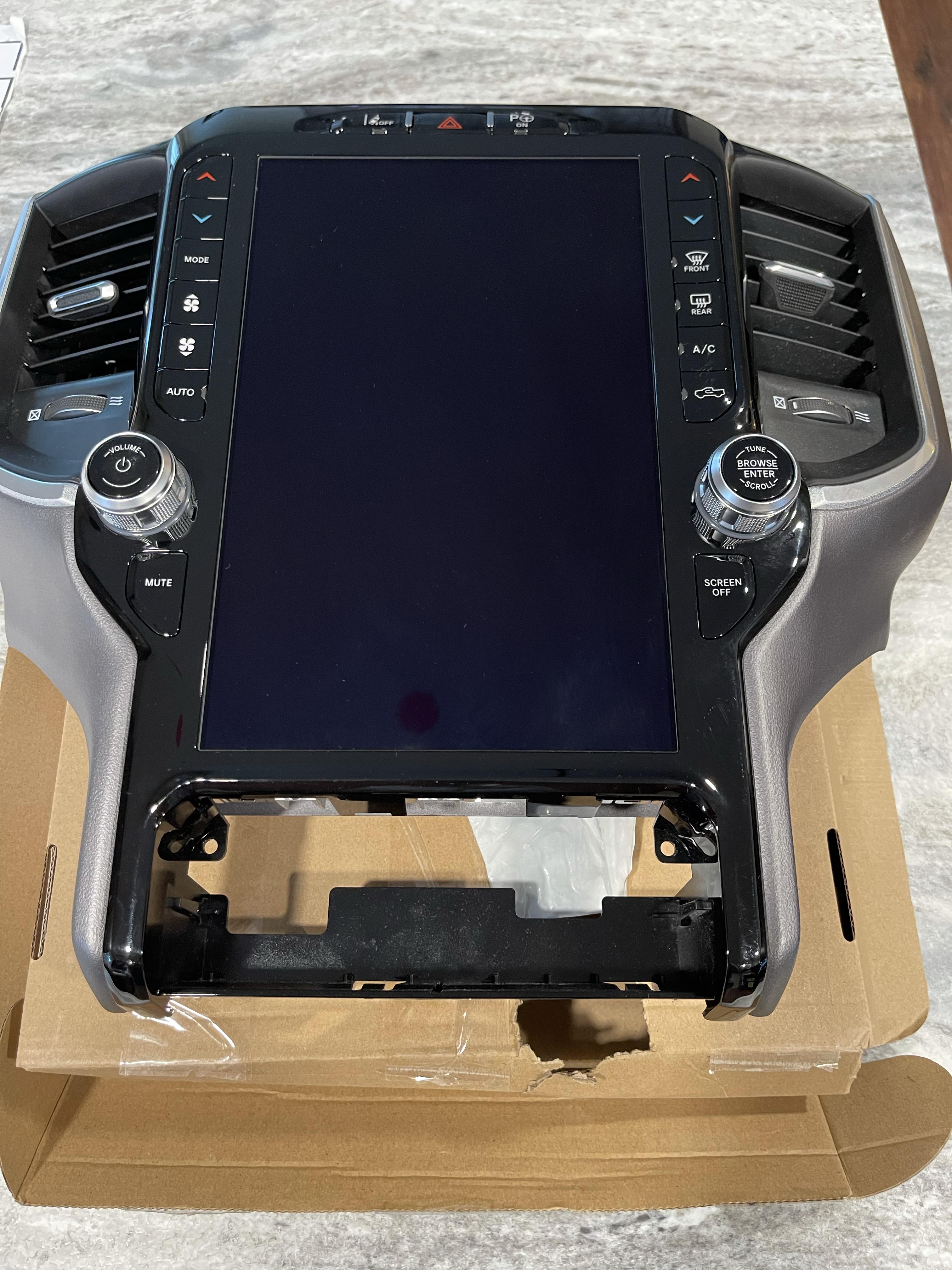

I have a friend who want to do the 12inch conversion, we have sourced some parts, but before to buy them, is all the 12inch screen are universal or you need to buy the specific one for each module part number?


Toperz

5thGenRams Supporter
Site Supporter
Joined
Apr 21, 2021
Messages
49
Reaction score
8
Location
Stratford, CT
I have a friend who want to do the 12inch conversion, we have sourced some parts, but before to buy them, is all the 12inch screen are universal or you need to buy the specific one for each module part number?
I think screens are universal but differences are with buttons on top next to hazard switch like Line Keep Assisting and Auto Parking.

Sent from my SM-N986U using Tapatalk


Martin_

Member
Joined
Oct 28, 2021
Messages
7
Reaction score
1
I think screens are universal but differences are with buttons on top next to hazard switch like Line Keep Assisting and Auto Parking.

Sent from my SM-N986U using Tapatalk
That make sense, my screen does have an traction control button next to the hazard that I don't use (does not work) as I already have that button right next to tow haul.


JB2004

New Member
Joined
Oct 28, 2021
Messages
3
Reaction score
0
Please could somebody check for 3 letters sale codes for the following head units:

68472364Ax
68472372Ax

68274235Ax
68274764Ax
68297276Ax
68297907Ax
68306402Ax
68472596Ax
68472642Ax
68497060Ax
68461698Ax
68429174Ax

Thank you in advance,
John

Nobody knows?


Saez9025

Member
Joined
Sep 15, 2020
Messages
5
Reaction score
2
I read a lot of the comments on this page when I was trying to upgrade from the 8.4 non-nav to the 12 inch. For those of you trying to do the same, I want to say MVI Inc (look them up in Youtube) sold me all the necessary parts and software needed for me to do the self install. I paid $2,700 plus $62 shipping. Now I have the 12 inch in my truck working flawlessly.


busa2009

Ram Guru
Joined
Jan 17, 2020
Messages
513
Reaction score
126
Location
Atlanta, Ga
I read a lot of the comments on this page when I was trying to upgrade from the 8.4 non-nav to the 12 inch. For those of you trying to do the same, I want to say MVI Inc (look them up in Youtube) sold me all the necessary parts and software needed for me to do the self install. I paid $2,700 plus $62 shipping. Now I have the 12 inch in my truck working flawlessly.

Hmm while everyone one here just about paid around 1600-1700 and you want them to pay $2700?


Sent from my iPhone using Tapatalk


kd908070

Active Member
Joined
Aug 1, 2021
Messages
64
Reaction score
22
Location
Oregon
I spend about $1250 for everything and it is working flawlessly. Just shop around.
Did you purchase it recently? Can you send me the links for the Screen and Head Unit? It's out of stock every where I have checked.


busa2009

Ram Guru
Joined
Jan 17, 2020
Messages
513
Reaction score
126
Location
Atlanta, Ga
I spend about $1250 for everything and it is working flawlessly. Just shop around.

I just don’t think they have that type of patience no way possible I’m paying $2700 or $4000 like another company wants


Sent from my iPhone using Tapatalk
