8.4" to 12.1" screen replacement

[dougstheman86]

What next @Jimmy07? lol


Sent from my iPhone using Tapatalk



[Jimmy07]

What next @Jimmy07? lol


Sent from my iPhone using Tapatalk

The only last thing I can think of right now is, upload your current BCM dump so I can see. Make sure you read the BCM system status and let it completely populate before you upload it, so I can see all the ECU qualifications and bussed inputs/outputs.



[dougstheman86]

Are you able to view it in post 597?


Sent from my iPhone using Tapatalk



[Jimmy07]

Are you able to view it in post 597?


Sent from my iPhone using Tapatalk

Yes, but I’d like to see the current, as of this moment, log.
And, right after you upload that one (with the key in run position), upload another one after reading the system status with the key in the off position.



[dougstheman86]

Ok, I’ll get that now.


Sent from my iPhone using Tapatalk



[dougstheman86]

Trying to figure out how to do it on this android app. It keeps pulling up my log from yesterday


Sent from my iPhone using Tapatalk



[Jimmy07]

Trying to figure out how to do it on this android app. It keeps pulling up my log from yesterday


Sent from my iPhone using Tapatalk

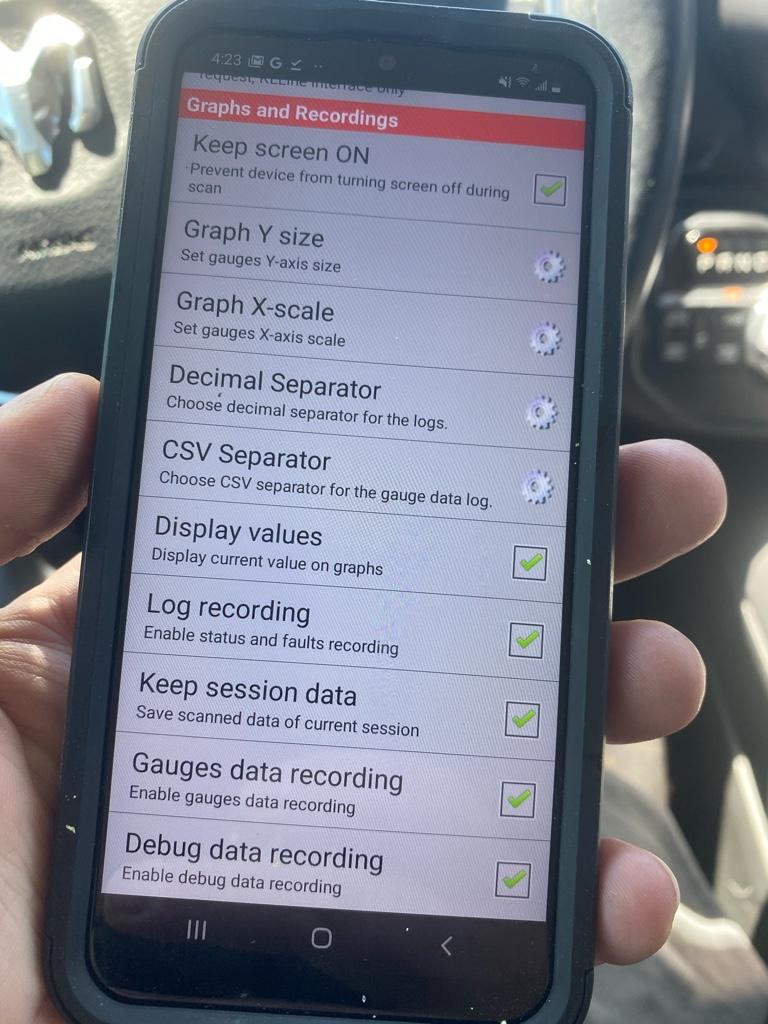

In settings up top, make sure log recording and keep session data are checked



[dougstheman86]

How do I make it read? This page?

Sent from my iPhone using Tapatalk



[dougstheman86]

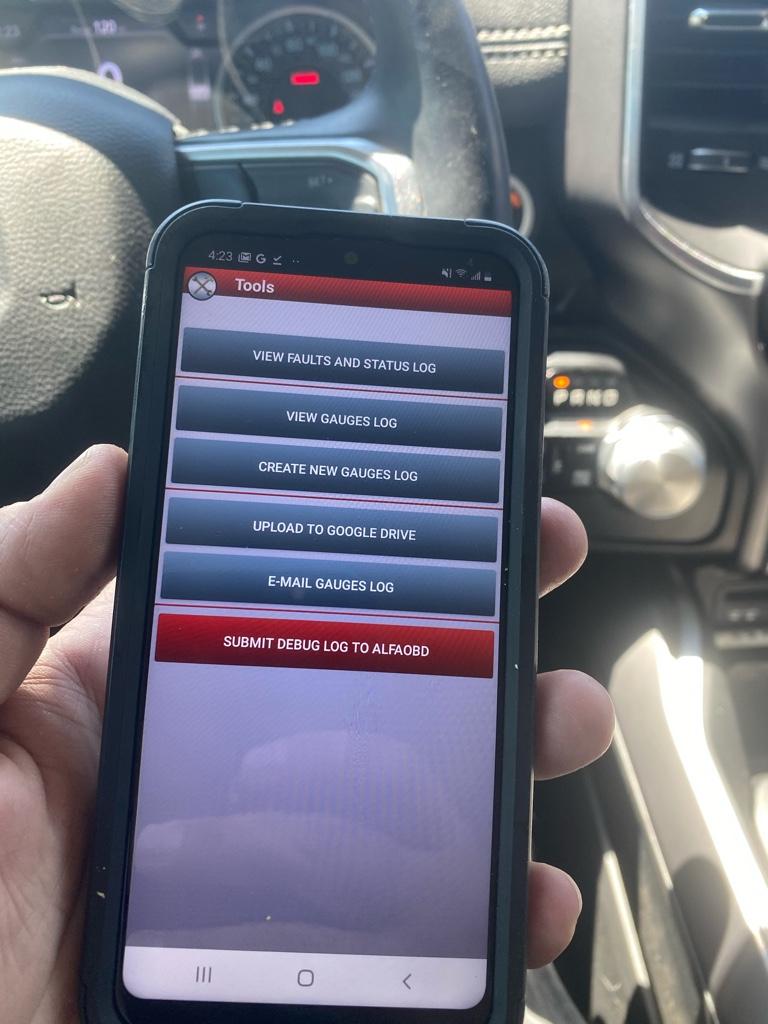

Every time I hit view faults and status log it pulls the log up from yesterday


Sent from my iPhone using Tapatalk



[Jimmy07]

Every time I hit view faults and status log it pulls the log up from yesterday


Sent from my iPhone using Tapatalk

First you need to connect to the BCM with the ignition in run. Then select the battery icon on the lower right. Then select read system status. Let the list fully populate (might take a minute or so). Then select tools up top. Upload to google drive. Upload faults and status log. Select body_chrysler_info. Share that one here.
Then do the same process, but with the ignition off.



[dts828]

Can anyone take a picture of where the fuse box is on their truck? I’ve looked under the dash and there is nothing


Sent from my iPhone using Tapatalk

2500 doesn't have interior fuse box, only one under hood.



[MannymanX]

And also 2500 has the SGW Module behind the cluster which suckkssssssss



[Bram2019]

Every time I hit view faults and status log it pulls the log up from yesterday


Sent from my iPhone using Tapatalk

You have the security gateway permanently bypassed. Is that correct?



[dougstheman86]

Yes


Sent from my iPhone using Tapatalk



[Bram2019]

Yes


Sent from my iPhone using Tapatalk

Most likely that is the problem. The bcm looks for the security gateway. If it does not see it, it should throw a U0001 code in the bcm which knocks out the radio most likely. The gateway is the device that the bcm goes through to communicate to the radio. It appears the radio pin out is correct. It appeared you set the bcm properly. I would try and reconnect the security gateway bus wires back to stock. Pull the battery cable for 30 minutes. Reconnect, turn the key on and hopefully it works. I did the same install for a guy I know. I used a bypass dongle to bypass the gateway. Once I was done with everything I reinstalled the gateway back to stock and everything worked. That is also the reason you saw the gateway disabled when you looked at the screen on your phone. Give it a shot. I think it will work. may require a few key cycles



[dougstheman86]

Disconnect the battery or pull the fuse? Because I was told not to do the battery because other issues could present themselves....


Sent from my iPhone using Tapatalk



[MannymanX]

Disconnect the battery or pull the fuse? Because I was told not to do the battery because other issues could present themselves....


Sent from my iPhone using Tapatalk

Just drive the car for 10 minutes, shut it off and open the door. This should be enough for the changes to take place.



[dougstheman86]

And @Jimmy07, as stupid as this sounds it keeps pulling yesterday’s data no matter what I do man


Sent from my iPhone using Tapatalk



[dougstheman86]

Taking off my bypass now


Sent from my iPhone using Tapatalk



[dougstheman86]

The Bypass is taken off and back to stock, disconnected the battery, waiting 30 mins now
