Ultimate OBD JScan Thread

[theblet]

Themes are under display options on the 12* screen

Ok I don’t have this, all good. Thanks



[Draken]

Can anyone clear up what bypass cable I’ll need for a 2500? I have a 22 Ram 2500 and have seen some back and forth on the red cable (mentioned in the thread from Amazon) compared to the type of cable connecting behind the headlight switch.
Thanks!



[HSKR R/T]

Can anyone clear up what bypass cable I’ll need for a 2500? I have a 22 Ram 2500 and have seen some back and forth on the red cable (mentioned in the thread from Amazon) compared to the type of cable connecting behind the headlight switch.
Thanks!

Probably get better answers on the HD Rams forum, but the red cable won't work well for you as the SGW is located behind rhenfushe cluster, and not down by kick pacnel like on the 1500s



[1BADRAMLIMITED]

Can anyone clear up what bypass cable I’ll need for a 2500? I have a 22 Ram 2500 and have seen some back and forth on the red cable (mentioned in the thread from Amazon) compared to the type of cable connecting behind the headlight switch.
Thanks!

Good old’ YouTube University!

Security Module Bypass | KaodTech

Will Ship 3-5 Business Days after OrderIf you have a 2018+ RAM and would like to perform diagnostics or make changes to the modules of your truck using tools like AlfaOBD or AutoEngenuity, this bypass is for you.Does this allow access to all modules?It has been tested connecting to the BCM and...

www.kaodtech.com



[Draken]

thanks for the replies, I was hoping @Jimmy07 would come in and comment since I’m pretty sure he’s on the Cummins forum too. I’ve known of the kaod cable but figured there had to be cables out there that weren’t $50+



[Brutal_HO]

Can anyone clear up what bypass cable I’ll need for a 2500? I have a 22 Ram 2500 and have seen some back and forth on the red cable (mentioned in the thread from Amazon) compared to the type of cable connecting behind the headlight switch.
Thanks!

The 12+8 cable or any other that has the block connectors for the SGM will require you to remove the EVIC from the dash to install.

Do not subject yourself to that BS.

Get the proper cable that connects to the CAN-C and CAN-IHS blocks behind the headlight switch.

AlfaOBD

Has anyone played with AlfaOBD on their 2019 HD's yet? I'm curious if anything is accessible to "change" and if it just works. There is lots of different info out there on other forums, but i haven't found anything in regards to the 2019's. EDIT: AlfaOBD does work, here is the what is needed...

hdrams.com



[S4ndM4n]

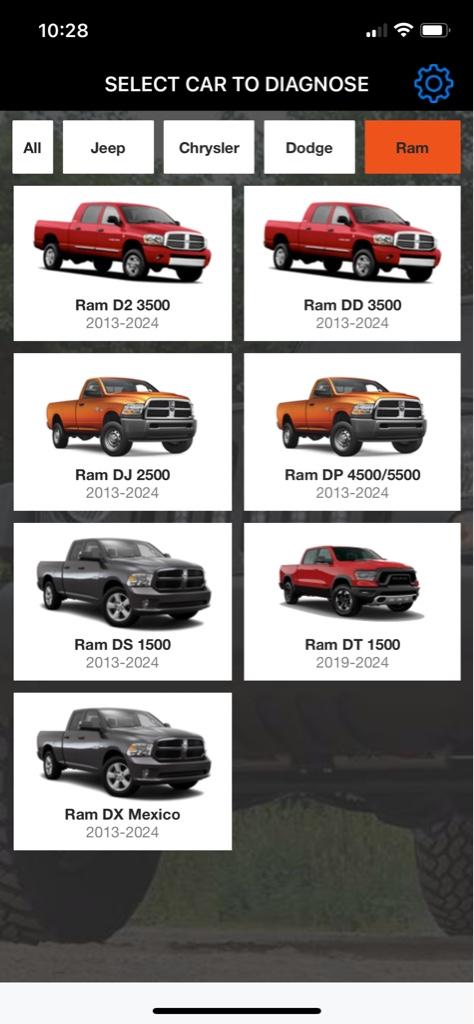

Does it matter which model 1500 you use for adaptation, Ram DS, or Ram DT? What's the difference?

Sent from my iPhone using Tapatalk



[jimothy]

Does it matter which model 1500 you use for adaptation, Ram DS, or Ram DT? What's the difference?

Sent from my iPhone using Tapatalk

If you’ve got a 2019+ 1500, non-Classic, then select DT. DT is the 5th Gen, DS is 4th Gen (which includes the Classic).



[Brutal_HO]

DS is the "Classic" 1500 (4th Gen).
DT is the current 5th Gen 1500
Not sure why they continue to show pickup beds on the C&C trucks. DD/DF are 3500 Chassis cab and DP are 4500/5500 Chassis cab.



[S4ndM4n]

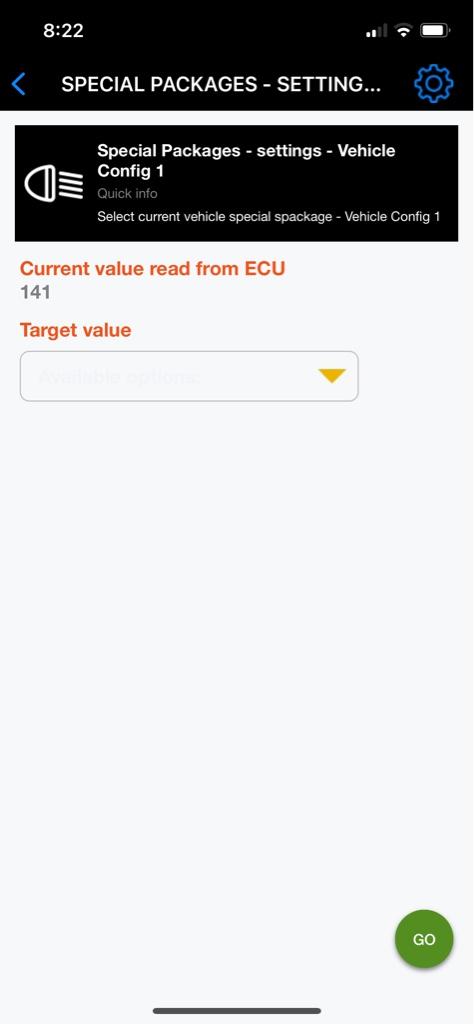

Any idea what Special Packages does? Mine is set to Laramie, my truck is indeed a Laramie, but what all does this control? TIA


Sent from my iPhone using Tapatalk



[S4ndM4n]

How about this one? The options were like off and red, I think.


Sent from my iPhone using Tapatalk



[21white]

Just swapped out my halogen lights on my 21 2500 to oem Laramie LED housings, what setting do I need to change in the JScan app to enable the signature lights on all the time?



[HSKR R/T]

Just swapped out my halogen lights on my 21 2500 to oem Laramie LED housings, what setting do I need to change in the JScan app to enable the signature lights on all the time?

Go to hdrams.com and ask there. This is a 1500 group



[gskowronek]

Played around a little bit this morning. I turned the fog lights on with the high beams. I configured the brake light alternate blinking with turn signal (haven't checked that yet).

I was also messing around with the daytime running lights. In the end I ended up turning them off via the screen settings because I like the look of the halo lights.


Probably will mess around with the demo area and see what else I can do. Lots of things to mess with. Seat belt chime, horn going off with remote start…. Not sure where to go?

what you mean by: I configured the brake light alternate blinking with turn signal (haven't checked that yet).



[theblet]

what you mean by: I configured the brake light alternate blinking with turn signal (haven't checked that yet).

I believe he is talking about my post here:

Post in thread 'Ultimate OBD JScan Thread'

Mar 10, 2024

Brake light alternate blinking with turn signal:

Turn ignition to run with engine OFF

Adaptation > Lights conversion US-Euro > Separated Lightning Brake/Stop Lamp Dropout

Change to “Deactivated”

Hit GO

Once applied, turn ignition to off. Leave vehicle and close all doors.

Make sure key is far away from vehicle so the modules can completely go to sleep.

Wait 10 minutes.

Done.

• theblet

•



[1BADRAMLIMITED]

is there any way to set a lo/ med / hi for the steering wheel heater? or lower the threshold for how warm it gets?



[HSKR R/T]

is there any way to set a lo/ med / hi for the steering wheel heater? or lower the threshold for how warm it gets?

Yes to both. As long as you aren't on the newest application version for UC4, if you have UC4. You can change the steering wheel material and also go to a high/low, or high/med/low with alfaObd settings.



[1BADRAMLIMITED]

Yes to both. As long as you aren't on the newest application version for UC4, if you have UC4. You can change the steering wheel material and also go to a high/low, or high/med/low with alfaObd settings.

CAN IT BE DONE ON JSCAN I DO NOT USE ALFA



[Brutal_HO]

CAN IT BE DONE ON JSCAN I DO NOT USE ALFA

Dude, please turn off your caps lock.



[1BADRAMLIMITED]

Dude, please turn off your caps lock.

Dude why does it bother you that much?
