How to: Add Adaptive Cruise Control, Lane assist, FCW & Auto Hi-beam to Ram 1500

vincentw56

Spends too much time on here
Joined
Aug 5, 2020
Messages
3,074
Reaction score
2,184
I just transplanted the switch into my 21 TRX trying to figure out what I need to do next. Wish I new a dealer who could add the sales code to my VIN vcan it be done remotely? I have Alpha OBD from my 2018 but no security bypass not sure if the tazer DT will work with that as a bypass anyone know? From what I read this can also enable lane assist? From what I've been told I already have all the other modules installed.



Attachments​

You can't use the Tazer DT. You will need a security bypass and AlfaODB to enable the settings.


Dusm

Member
Joined
Mar 11, 2021
Messages
20
Reaction score
9
I thought I read somewhere that the tazer DT would work as a security bypass for alpha OBD? I have the bypass for my 2018 PW will that work on a 21?


Jimmy07

Honorary Site Supporter
Site Supporter
Joined
Apr 11, 2019
Messages
1,986
Reaction score
2,152
I thought I read somewhere that the tazer DT would work as a security bypass for alpha OBD? I have the bypass for my 2018 PW will that work on a 21?
You have two methods at your disposal- the tazer will be the bypass since it replaces the security gateway module, and a bypass cable from a 2018 HD Ram will work on DT Rams since they use the same junction block connectors- the canbus junction blocks are in the vicinity of the security gateway module.


Dusm

Member
Joined
Mar 11, 2021
Messages
20
Reaction score
9
Per @gmenarvino you guys with TRXs have the correct HCU and ABS Module. So for you, all you should need to change is the ACC Switch:
ACC Button - 68309592AD SWITCH. Speed Control. Right. = $57.05

I haven't done this yet, should be sometime this week, so I will defer to @gmenarvino and @Jimmy07 for the correct changes in AlphaOBD, but I believe you need to change the following:

Cruise Control Present: No
Type of adaptive Cruise Control (ACC) system present: ACC with stop and go
ACC Adaptive Cruise Control: Not enabled
ACC/DASM Adaptive Cruise Control/Driver Assistance Module: Enabled


I think that is right but I defer to the experts and the guys that have completed this so far. @Stepanchina @tdb0021 @MayhemMOORE @vincentw56 are all guys that have done it and @Jimmy07 is the SME with Alpha...but I would defer to all those guys before you go with what I say...

You have two methods at your disposal- the tazer will be the bypass since it replaces the security gateway module, and a bypass cable from a 2018 HD Ram will work on DT Rams since they use the same junction block connectors- the canbus junction blocks are in the vicinity of the security gateway module.

Jimmy07 Are these the correct changes I need to make on to my BCM? I hooked up alpha OBD and got ISO not found but read not needed for Ram?​

Thanks


Jimmy07

Honorary Site Supporter
Site Supporter
Joined
Apr 11, 2019
Messages
1,986
Reaction score
2,152

Jimmy07 Are these the correct changes I need to make on to my BCM? I hooked up alpha OBD and got ISO not found but read not needed for Ram?​

Thanks
Yes, just click continue when you get that message.


Skddmorse

Member
Joined
Jul 28, 2021
Messages
13
Reaction score
2

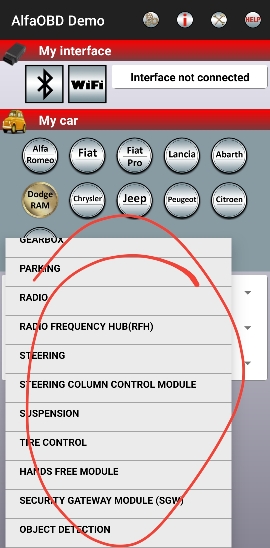

Which one of these do I go into for the ACC items.


Sent from my SM-G998U using Tapatalk


Dusm

Member
Joined
Mar 11, 2021
Messages
20
Reaction score
9
Switch is enabled now to test it on the highway.
Changes I made were
Cruise Control Present: No
Type of adaptive Cruise Control (ACC) system present: ACC with stop and go
the other options weren't there and my regular cruise still works


Skddmorse

Member
Joined
Jul 28, 2021
Messages
13
Reaction score
2
Switch is enabled now to test it on the highway.
Changes I made were
Cruise Control Present: No
Type of adaptive Cruise Control (ACC) system present: ACC with stop and go
the other options weren't there and my regular cruise still works
Let us know if it works.

Sent from my SM-G998U using Tapatalk


Dusm

Member
Joined
Mar 11, 2021
Messages
20
Reaction score
9
It shows up on the screen but doesn't hold any cruise distance. Probably some more settings I need look at.


Skddmorse

Member
Joined
Jul 28, 2021
Messages
13
Reaction score
2
It shows up on the screen but doesn't hold any cruise distance. Probably some more settings I need look at.
The instructions show that these need changed.

You need to enable/disable the following:
Auto Highbeam: Yes
Cruise Control Present: No
Collision Mitigation System Present: Yes
Forward Collision Warning Present: Yes
Lane Departure Warning Present: Yes
Full Speed Range Forward Collision Warning Plus System: Yes
Type of adaptive Cruise Control (ACC) system present: ACC with stop and go
Auto High Beam Module Location: IRCM
Forward Collision Warning CSM Present: Feature 2 – 3 Option
Forward Collision Mitigation Braking CSM Present: No
Auto High Beam CSM Present: Yes
Lane Departure Torque CSM Present: Yes
Lane Departure Warning CSM Present: Yes
LDW On/Off CSM Present: No
Forward Collision Warning (FCW) Switch CSM Present: No
Forward Collision Warning Single Setting (Warning and Brake) CSM Present: Yes
ACC Adaptive Cruise Control: Not enabled
ACC/DASM Adaptive Cruise Control/Driver Assistance Module: Enabled

Sent from my SM-G998U using Tapatalk


Dusm

Member
Joined
Mar 11, 2021
Messages
20
Reaction score
9
I don't have all those options on my menu
I spent alot of time going through the whole list looking especially for:
ACC Adaptive Cruise Control: Not enabled
ACC/DASM Adaptive Cruise Control/Driver Assistance Module: Enabled


JCTruckee

New Member
Joined
Jul 31, 2021
Messages
2
Reaction score
0
This is overwhelming...

Kudos to all of you guys going through all the trouble to get ACC. I cannot believe the amount of work and money you guys are putting in.

I've read through SO MANY pages of this blog, can't really find the answer to my problem (yet) so figure I'd ask...

I am just about to buy a 2021 Ram. It unfortunately lacks ACC (which I love it in my current vehicle). But, it already comes with:

* Level 1 Safety Group
- Pedestrian Emergency Breaking
- Advanced Break Assist
- Full Speed Forward Collision Warning Plus
- Lane Keep Assist - IT DOES come with the hard LKA button on the center console

This is the window sticker: https://www.jeep.com/hostd/windowsticker/getWindowStickerPdf.do?vin=1C6SRFBT3MN731059

Since it appears it already comes with all the required sensors, is THE ONLY thing I need the ACC module for the steering wheel and to activate it via alfaobd?

I truly appreciate any help!

Thanks!

Joe

Last edited:

St-na

Well-Known Member
Joined
Dec 6, 2020
Messages
378
Reaction score
215
Location
Houston
This is overwhelming...

Kudos to all of you guys going through all the trouble to get ACC. I cannot believe the amount of work and money you guys are putting in.

I've read through SO MANY pages of this blog, can't really find the answer to my problem (yet) so figure I'd ask...

I am just about to buy a 2021 Ram. It unfortunately lacks ACC (which I love it in my current vehicle). But, it already comes with:

* Level 1 Safety Group
- Pedestrian Emergency Breaking
- Advanced Break Assist
- Full Speed Forward Collision Warning Plus
- Lane Keep Assist - IT DOES come with the hard LKA button on the center console

This is the window sticker: https://www.jeep.com/hostd/windowsticker/getWindowStickerPdf.do?vin=1C6SRFBT3MN731059

Since it appears it already comes with all the required sensors, is THE ONLY thing I need the ACC module for the steering wheel and to activate it via alfaobd?

I truly appreciate any help!

Thanks!

Joe
Based on Your window sticker, You would need for ACC:
68436462AJ1MODULE. Anti-Lock Brake System.
68415320AA1HYDRAULIC CONTROL UNIT. Anti-Lock Brake System.
68309592AD 1SWITCH. Speed Control. Right.
I am almost sure, and it was confirmed in this thread, that You truck is equipped with the different parts, only 2021TRX owners are lucky guys, who has correct ABS installed from the factory. You can confirm it easily by calling any Mopar supplier or asking Your dealer. Give them Your VIN and You will know part numbers on Your truck.

Last edited:

xJudge21x

Member
Joined
Dec 15, 2020
Messages
22
Reaction score
16
I don't have all those options on my menu
I spent alot of time going through the whole list looking especially for:
ACC Adaptive Cruise Control: Not enabled
ACC/DASM Adaptive Cruise Control/Driver Assistance Module: Enabled
I think its under Veh Config 7 and then down in P/T Chassis Net

Did you upload your log to Google Drive? It's much easier to search in there...


vincentw56

Spends too much time on here
Joined
Aug 5, 2020
Messages
3,074
Reaction score
2,184
I think its under Veh Config 7 and then down in P/T Chassis Net

Did you upload your log to Google Drive? It's much easier to search in there...
I just use the search function in AlfaODB. I just typed in ACC and you get all the configs that have that in the name.


JCTruckee

New Member
Joined
Jul 31, 2021
Messages
2
Reaction score
0
Based on Your window sticker, You would need for ACC:
68436462AJ1MODULE. Anti-Lock Brake System.
68415320AA1HYDRAULIC CONTROL UNIT. Anti-Lock Brake System.
68309592AD 11SWITCH. Speed Control. Right.
I am almost sure, and it was confirmed in this thread, that You truck is equipped with the different parts, only 2021TRX owners are lucky guys, who has correct ABS installed from the factory. You can confirm it easily by calling any Mopar supplier or asking Your dealer. Give them Your VIN and You will know part numbers on Your truck.
Thank you ver much @Stepanchina I think I'm pulling the trigger today.


Skddmorse

Member
Joined
Jul 28, 2021
Messages
13
Reaction score
2
I don't have all those options on my menu
I spent alot of time going through the whole list looking especially for:
ACC Adaptive Cruise Control: Not enabled
ACC/DASM Adaptive Cruise Control/Driver Assistance Module: Enabled
Did you get this to work yet?

Sent from my SM-G998U using Tapatalk
