Does anyone know where a ignition fuse would be in the engine bay box im hooking up the DRL i know the black to ground red to battery and grey to ignition...just trying to figure out where a ignition spot would be



[RAM Patriot]

Does anyone know where a ignition fuse would be in the engine bay box im hooking up the DRL i know the black to ground red to battery and grey to ignition...just trying to figure out where a ignition spot would be

Short Answer: F60

When I ordered the AlphaRex PRO-Series Headlights, I noticed that they did not have any installation instructions posted on there website. So I contacted the Tech Support at AlphaRex. They told me to use the F66 fuse. Which is valid for the 4thGenRams but not the 5thGenRams. After he told me that he did not know which fuse to tap, he said that I could wire it to any 10 Amp - 20 Amp fuse that would come on with the starter.

When I saw that the fuse that was on the pigtail for the DRL's was a 15 AMP fuse I went with a 15-20 Amp fuse. I tested the fuse box with my Multi-Meter to figure out which one I could use that would only turn on when the truck was running. Most of the fuses had power all of the time. The only one that I could find was a F60 Fuse : ECM / PCM / ACT Short Running Valve.

Since this is a critical fuse I decided to use a fuse tap so that the tap was clean.
Our trucks use the Micro 2 Fuse
You can pick one up here: https://smile.amazon.com/gp/product/B01LFXA5YQ/ref=ppx_yo_dt_b_asin_title_o01_s00?ie=UTF8&psc=1

Here are some pics of the install:



[busa2009]

Short Answer: F60

When I ordered the AlphaRex PRO-Series Headlights, I noticed that they did not have any installation instructions posted on there website. So I contacted the Tech Support at AlphaRex. They told me to use the F66 fuse. Which is valid for the 4thGenRams but not the 5thGenRams. After he told me that he did not know which fuse to tap, he said that I could wire it to any 10 Amp - 20 Amp fuse that would come on with the starter.

When I saw that the fuse that was on the pigtail for the DRL's was a 15 AMP fuse I went with a 15-20 Amp fuse. I tested the fuse box with my Multi-Meter to figure out which one I could use that would only turn on when the truck was running. Most of the fuses had power all of the time. The only one that I could find was a F60 Fuse : ECM / PCM / ACT Short Running Valve.

Since this is a critical fuse I decided to use a fuse tap so that the tap was clean.
Our trucks use the Micro 2 Fuse
You can pick one up here: https://smile.amazon.com/gp/product/B01LFXA5YQ/ref=ppx_yo_dt_b_asin_title_o01_s00?ie=UTF8&psc=1

Here are some pics of the install:

Thanks I appreciate your response and helping out as well. I just started probing with my power probe geez this saved some time


Sent from my iPhone using Tapatalk



[busa2009]

Interesting the wiring is for day light running lights but mine are coming without because it’s selected in the settings

Sent from my iPhone using Tapatalk



[shbates1969]

This was after using the remote start prior to unlocking the truck. I leave the dial in the “Auto” position and once I unlock it then the headlights illuminate


Sent from my iPhone using Tapatalk

Thank you for letting me know that. I feel better already. These are the brightest headlights I have ever seen in my life. The highbeams really blew my mind when I turned them on. I am so glad I changed the halogen to the LED. Man what a difference.


Sent from my iPhone using Tapatalk



[shbates1969]

Would you happen to know if I could take the halogen bulbs that came with the AlphaRex headlights and put them in my fog lights?


Sent from my iPhone using Tapatalk



[busa2009]

Would you happen to know if I could take the halogen bulbs that came with the AlphaRex headlights and put them in my fog lights?


Sent from my iPhone using Tapatalk

no because they are H7 your fogs are H11



[Mpickwith]

Would you happen to know if I could take the halogen bulbs that came with the AlphaRex headlights and put them in my fog lights?


Sent from my iPhone using Tapatalk

No the AlphaRex are H7 and your fogs I believe are H11. I put the MoriMoto fog lights in and couldn’t be happier with the color and cut off on them. World of difference driving at night now


Sent from my iPhone using Tapatalk



[busa2009]

Im curious if you have the light set to auto then they work as normal Im trying to figure out why I should hook up the wiring harness.. My DRL are working just fine with setting in the dash turned on



[RAM Patriot]

Im curious if you have the light set to auto then they work as normal Im trying to figure out why I should hook up the wiring harness.. My DRL are working just fine with setting in the dash turned on

The DRL's will come on at 50% power when the headlights are on. (without wiring the DRL's)

If you want the DRL's to be true Daytime Running Lights when the headlights are off, you will need to wire the harness to the battery and the gray wire to the F60 fuse tap.

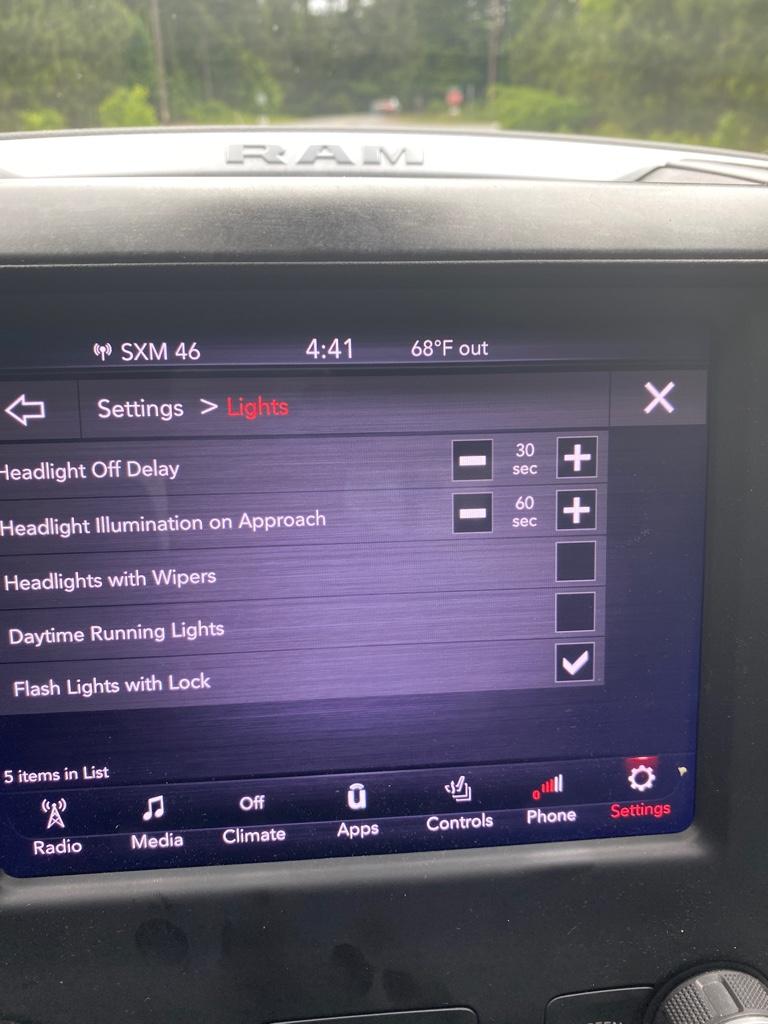

Leave the UConnect Daytime Running Light option to off or your headlights will be on all the time at half power.



[Sebass85]

Yes, You have to pull the factory fuse and put it in the load side of the fuse tap then put the fuse for the headlights DRL in the second slot.

The fuse taps came with 5 amp fuses. The fuse I’ve tapped is a 10amp. Does it have to match the original, or can I use the 5 amp fuse the tap came with? Sorry, don’t know much about electrical. Thanks



[busa2009]

One side seems brighter the driver low beam/daylight

Sent from my iPhone using Tapatalk



[RAM Patriot]

When I ordered the AlphaRex PRO-Series Headlights, I noticed that they did not have any installation instructions posted on there website. So I contacted the Tech Support at AlphaRex. They told me to use the F66 fuse. Which is valid for the 4thGenRams but not the 5thGenRams. After he told me that he did not know which fuse to tap, he said that I could wire it to any 10 Amp - 20 Amp fuse that would come on with the starter.

When I saw that the fuse that was on the pigtail for the DRL's was a 15 AMP fuse I went with a 15-20 Amp fuse. I tested the fuse box with my Multi-Meter to figure out which one I could use that would only turn on when the truck was running. Most of the fuses had power all of the time. The only one that I could find was a F60 Fuse : ECM / PCM / ACT Short Running Valve.

Since this is a critical fuse I decided to use a fuse tap so that the tap was clean.
Our trucks use the Micro 2 Fuse
You can pick one up here: https://smile.amazon.com/gp/product/B01LFXA5YQ/ref=ppx_yo_dt_b_asin_title_o01_s00?ie=UTF8&psc=1

Here are some pics of the install:

The fuse taps came with 5 amp fuses. The fuse I’ve tapped is a 10amp. Does it have to match the original, or can I use the 5 amp fuse the tap came with? Sorry, don’t know much about electrical. Thanks

One side seems brighter the driver low beam/daylight

Sent from my iPhone using Tapatalk

If you look at the pigtail you will see that it came with a 15 AMP in-line fuse. (This tells you that it requires 15 amps to work properly)

So, if you tapped a 5 amp or 10 amp fuse your DRL's will be under powered. You will have to tap a 15 amp or 20 amp fuse for them to work properly.

That is the reason that I used F60. It is a 20 amp fuse that can be stepped down to 15 amps. So I put the original 20 amp fuse back in and another 20 amp fuse in the second tap.
The pigtail in-line 15 amp fuse then steps it down to 15 amps for the DRL's to work properly and at the proper brightness for both units. (7.5 amps + 7.5 amps = 15 amps)

F60 only comes on when the ignition is on or the truck is running; iif you want to stay in the engine compartment and not tap into the cab behind the firewall.



[busa2009]

Mine is working normal as expected. Awesome. I may have to adjust them here and there though. My question is does it really matter as to how the led are turned in the housing?


Sent from my iPhone using Tapatalk



[RAM Patriot]

Mine is working normal as expected. Awesome. I may have to adjust them here and there though. My question is does it really matter as to how the led are turned in the housing?


Sent from my iPhone using Tapatalk

I'm not sure that I understand your question LED turned in the housing. Are you talking about replacing the halogen bulbs with LED.

If so it all depends on the LED that you put in. Some people say that it works better one way than the other. you will just have to play with them and also make sure the polarity is right.



[shbates1969]

No the AlphaRex are H7 and your fogs I believe are H11. I put the MoriMoto fog lights in and couldn’t be happier with the color and cut off on them. World of difference driving at night now


Sent from my iPhone using Tapatalk

Where is the best place to order the H11.? I would like to try them,sounds awesome. Can I run led in my fog lights?


Sent from my iPad using Tapatalk



[Sebass85]

What’s the trick to adjusting the passenger headlamp....not sure how to get a wrench or screwdriver in there. My light is way too low.



[busa2009]

Where is the best place to order the H11.? I would like to try them,sounds awesome. Can I run led in my fog lights?


Sent from my iPad using Tapatalk

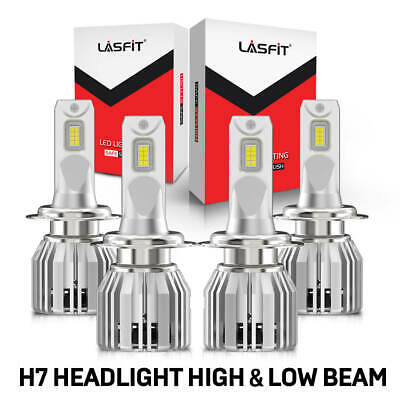

4x LASFIT H7 LED Headlight Bulbs Combo Real 5000LM 50W Xenon White Super Bright | eBay

Find many great new & used options and get the best deals for 4x LASFIT H7 LED Headlight Bulbs Combo Real 5000LM 50W Xenon White Super Bright at the best online prices at eBay! Free shipping for many products!

www.ebay.com

Sent from my iPhone using Tapatalk



[Moe1962]

What’s the trick to adjusting the passenger headlamp....not sure how to get a wrench or screwdriver in there. My light is way too low.

Take the filter air box out and you have room to adjust the passenger light.



[Sebass85]

Take the filter air box out and you have room to adjust the passenger light.

Thanks I’ll try that
