8.4" to 12.1" screen replacement

[Jimmy07]

In AlfaOBD, instead of selecting body computer to connect to, select radio navigator module 2017. Connect to it, and select the faults and status log tab. Select read system ID, and that will reveal the radio module part number.
Trust me, you’ll choose the 8.4 UAX selection pictured.

Strike that above. If you’re using the kaodtech style bypass, you won’t be able to connect to the radio module. You have to pull the radio and get the part number off the Module, and you need the serial number off the module anyway.



[Emarkowski24]

But still use the UAX 8.4 from the website correct?



[Jimmy07]

But still use the UAX 8.4 from the website correct?

Yes, or just type the part number directly in their search box once you have it



[Emarkowski24]

This is off the side of the module



[Jimmy07]

This is off the side of the module

There’s a different sticker on another side with the part number and serial number



[busa2009]

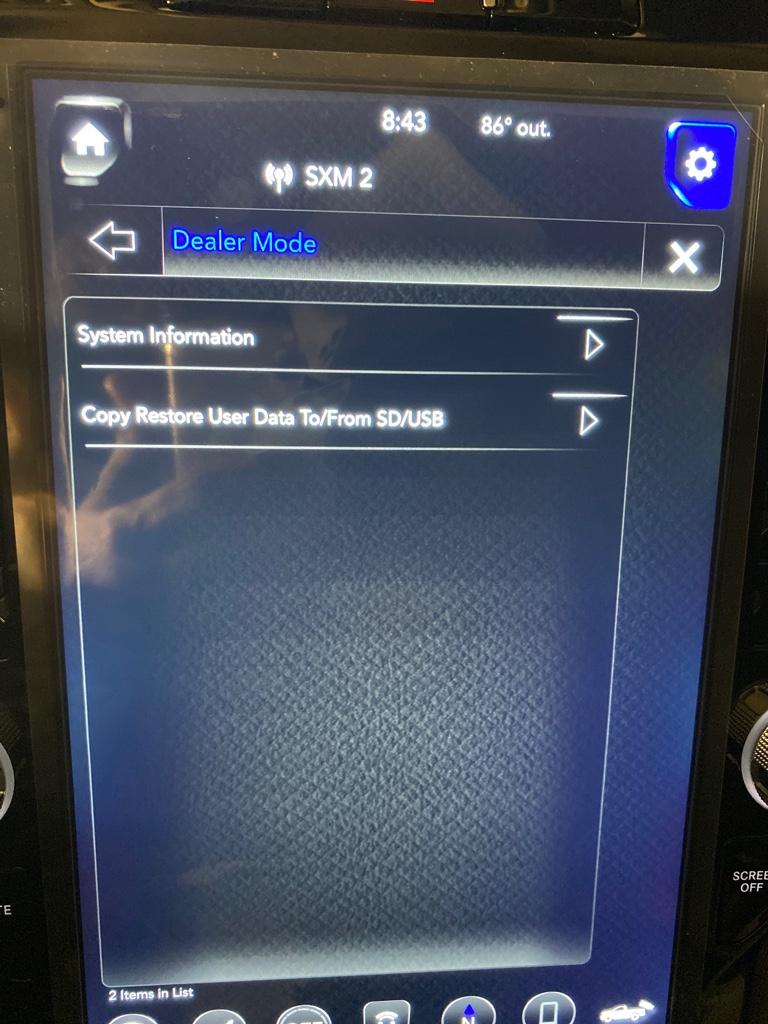

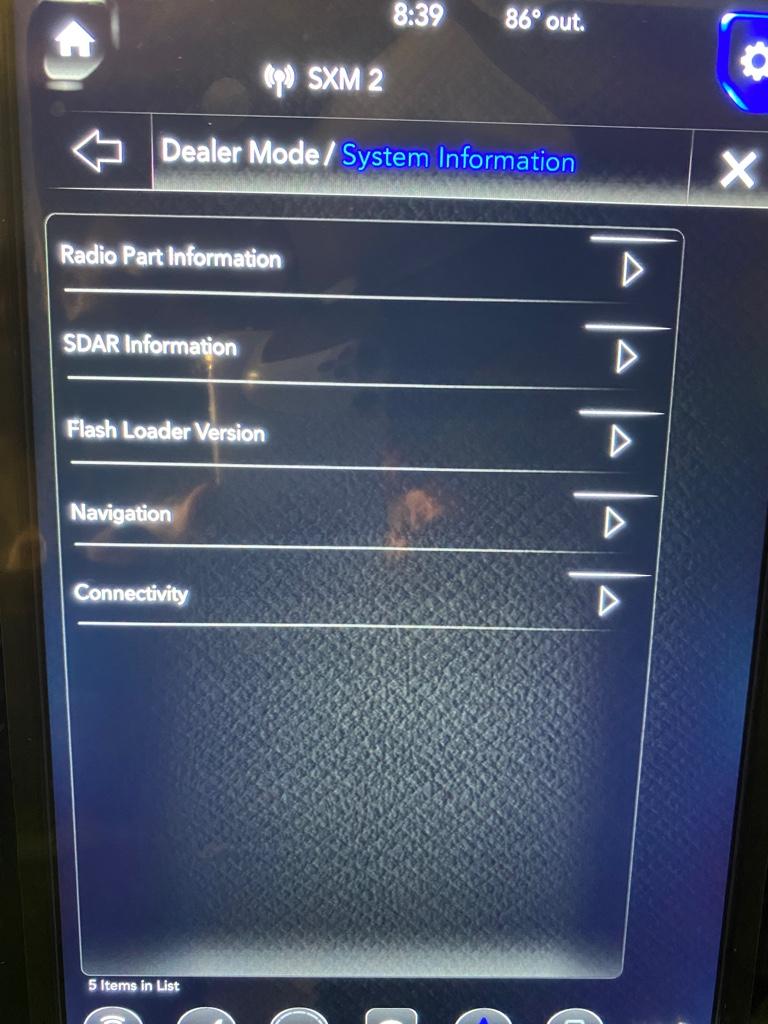

I’m at stand still with radio code but if anyone want to get in dealer mode go to home screen and touch both bottom corners at same time

Sent from my iPhone using Tapatalk



[Emarkowski24]

I actually contacted the guy who sold it to me and he put the number on top duhhhh hahaha thank you though anyway and thank you so much for your help with everything just need to figure out the AC controls and we are all set.



[Emarkowski24]

Any idea for the AC? This is the screen I’m getting and I go in and check vehconfig3-HVAC configuration and change it to dual zone and get no success



[Jimmy07]

Any idea for the AC? This is the screen I’m getting and I go in and check vehconfig3-HVAC configuration and change it to dual zone and get no success

It’ll eventually start working. It takes time and drive cycles for the radio module to pull all the BCM settings.



[Emarkowski24]

Thanks man working all good! I’d have to say the install it self was the easiest part the whole changing the settings was the hardest since I’ve never done anything like that but this forum and you guys are what gave me the confidence to do it myself. A couple hours and a hundred questions later we are all good. If anyone is thinking of doing this upgrade don’t be afraid and good luck finding the parts! Thank you again.



[jeffauclair]

I have to say Jimmy07 is the MVP of the week.



[busa2009]

I have to say Jimmy07 is the MVP of the week.

Fo shizzy damn I know I’ve got on his nerves


Sent from my iPhone using Tapatalk



[busa2009]

Well I had passenger seat heated it’s gone the dual zone I had before isn’t working correctly and sync controls isn’t working either


Sent from my iPhone using Tapatalk



[busa2009]

well i make changes and im still having to pull the radio fuse to get the radio to come back on im using windows



[busa2009]

seems like all things are working normal...geez i got a ton of free stuff with this unit it was actually new...



[busa2009]

Anyone having issues with Bluetooth my phone isn’t seeing the uconnect


Sent from my iPhone using Tapatalk



[Bram2019]

seems like all things are working normal...geez i got a ton of free stuff with this unit it was actually new...

What did you get. Just curious



[busa2009]

What did you get. Just curious

Have gaurdian also but they won’t let me connect it though due to my vin


Sent from my iPhone using Tapatalk



[Bram2019]

Have gaurdian also but they won’t let me connect it though due to my vin


Sent from my iPhone using Tapatalk

Thats fantastic. Is your module UAX or UCX. The UCX is Canadian



[busa2009]

Thats fantastic. Is your module UAX or UCX. The UCX is Canadian

Nope it’s uax
