Tire/Wheel Dilemma for New Limited
- Thread starter Savagescott
- Start date
OUscott1
Active Member

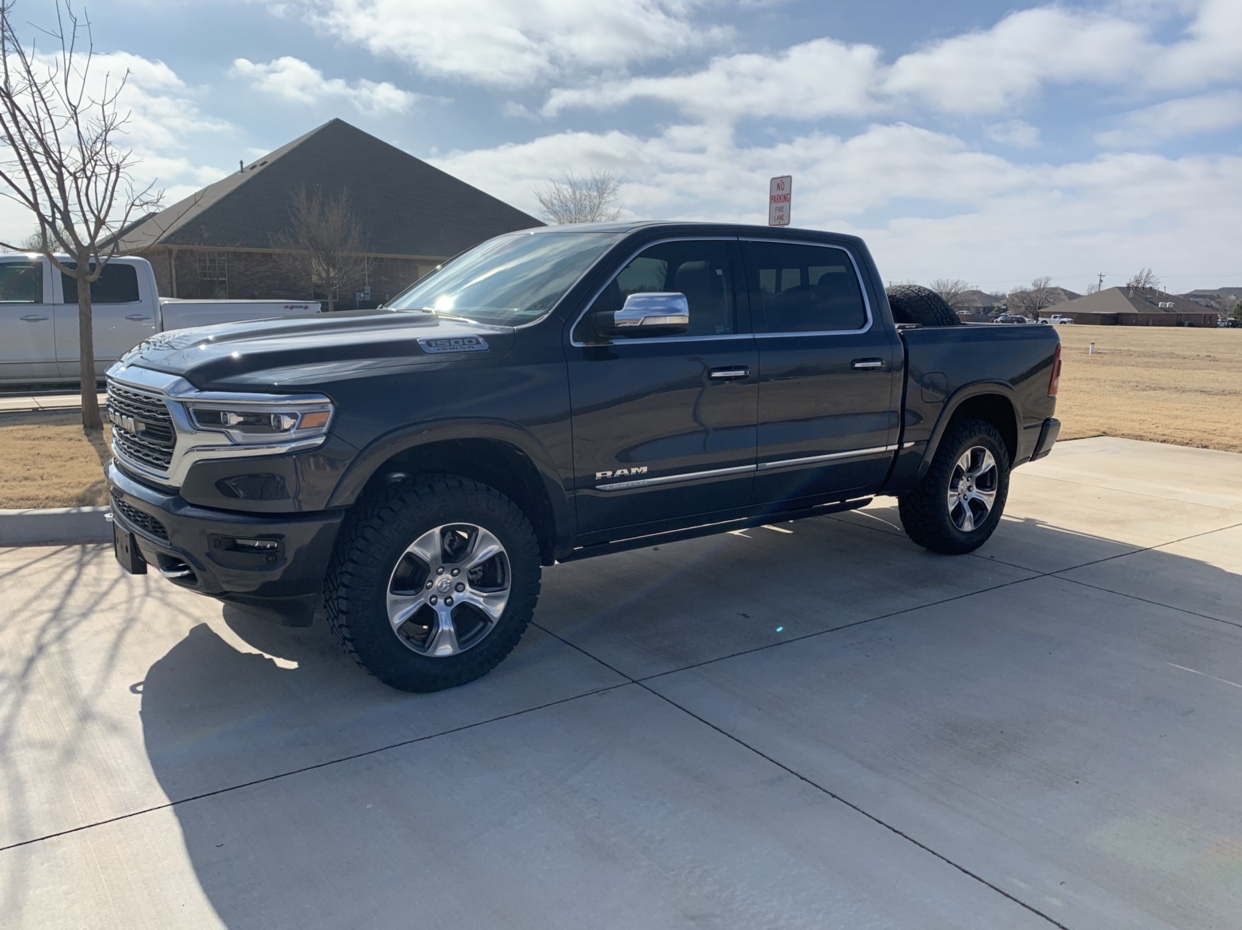

Today I had 35/11.50/20 Nitto Ridge Grapplers put on my Limited with stock 20s. Zero cutting and no rubbing at full lock in forward or reverse. I have the Revel Performance leveling links, but tomorrow I’m having a traditional leveling kit install on top of the air suspension and using longer links to adjust my air suspension sensors. I’m hoping this will bring back the stock ride quality.
Sent from my iPhone using Tapatalk
Sent from my iPhone using Tapatalk
Last edited:
Savagescott
Active Member
- Joined
- Sep 7, 2018
- Messages
- 139
- Reaction score
- 32
- Points
- 28
- Age
- 58
Today I had 35/11.50/20 Nitto Ridge Grapplers put on my Limited with stock 20s. Zero cutting and no rubbing at full lock in forward or reverse. I have the Revel Performance leveling links, but tomorrow I’m having a traditional leveling kit install on top of the air suspension and using longer links to adjust my air suspension sensors. I’m hoping this will bring back the stock ride quality.
Sent from my iPhone using Tapatalk
What ride difference are you noticing with the links? How do you like the grapps? Ride? Road noise?
Can you explain more about the level kit you’re having installed?
OUscott1
Active Member
Since installing the leveling links last week, I noticed it rode very harsh. Essentially the links put me at Off Road 2 while the truck actually thinks it’s sitting in Normal ride height. My stock tires were the Falken at/3 275/55/20 and weighed 41 lbs/tire. After installing the Nittos, I’ve noticed the truck did smooth out considerably but I’m attributing that to the weight and sidewalk of the new tires. The 35/11.50/20 weighs in at 71 lbs/tire.
The Revel links come as two sets. The back links are longer and since I didn’t use them to lift the truck, only level, I will use them after having the traditional level installed to correct for the sensor travel on the air suspension.
Pre Nittos is was sitting at 39.5 front and 39.75 back and now I’m sitting at almost dead level at 41 ground to center of wheel well. I can’t prove this but I feel like the truck is constantly adjusting the bags and leveling itself. Just my opinion.
Sent from my iPhone using Tapatalk
The Revel links come as two sets. The back links are longer and since I didn’t use them to lift the truck, only level, I will use them after having the traditional level installed to correct for the sensor travel on the air suspension.
Pre Nittos is was sitting at 39.5 front and 39.75 back and now I’m sitting at almost dead level at 41 ground to center of wheel well. I can’t prove this but I feel like the truck is constantly adjusting the bags and leveling itself. Just my opinion.
Sent from my iPhone using Tapatalk
Savagescott
Active Member
- Joined
- Sep 7, 2018
- Messages
- 139
- Reaction score
- 32
- Points
- 28
- Age
- 58
So what other level kit are you installing?
Do you have a Pic directly from the side?
OUscott1
Active Member

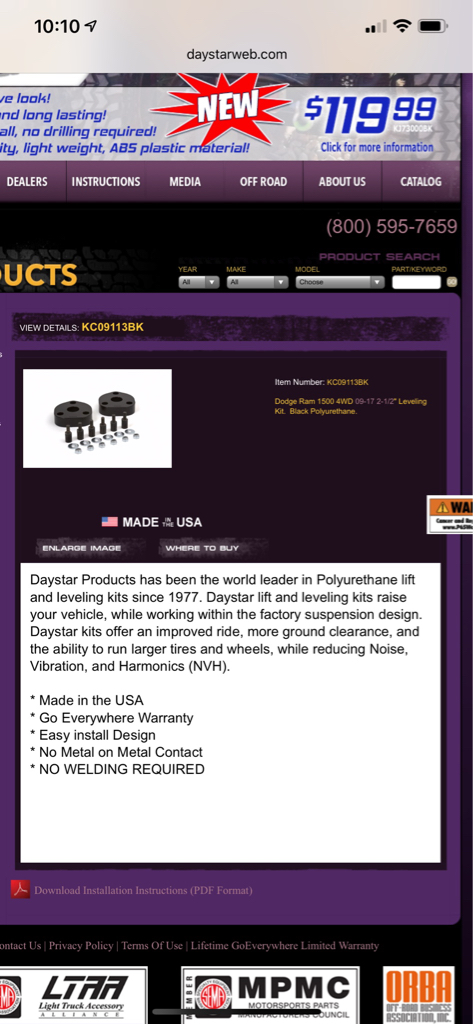

I’ll confirm the exact kit in the morning but I’m pretty sure this is what is going on.
I can post some more detailed pics tomorrow after install. The shop quoted me 3 hours of install time due to the fact they’ve never done a level on air suspension before and they want be extremely careful when disconnecting and reconnecting the the air line that’s on top of the strut.
Sent from my iPhone using Tapatalk
I can post some more detailed pics tomorrow after install. The shop quoted me 3 hours of install time due to the fact they’ve never done a level on air suspension before and they want be extremely careful when disconnecting and reconnecting the the air line that’s on top of the strut.
Sent from my iPhone using Tapatalk
Savagescott
Active Member
- Joined
- Sep 7, 2018
- Messages
- 139
- Reaction score
- 32
- Points
- 28
- Age
- 58
I’ll confirm the exact kit in the morning but I’m pretty sure this is what is going on.
I can post some more detailed pics tomorrow after install. The shop quoted me 3 hours of install time due to the fact they’ve never done a level on air suspension before and they want be extremely careful when disconnecting and reconnecting the the air line that’s on top of the strut.
Sent from my iPhone using Tapatalk
There’s a YouTube of a guy installing the same kit (I think) but not on a 2019. But I keep hearing the parts are the same. Very much looking forward to seeing and hearing about it tomorrow!
RiverRacerX
Active Member
- Joined
- Oct 15, 2018
- Messages
- 90
- Reaction score
- 135
- Points
- 33
- Age
- 53
33x12.5x20's on 20x9 +18 XD wheels
Savagescott
Active Member
- Joined
- Sep 7, 2018
- Messages
- 139
- Reaction score
- 32
- Points
- 28
- Age
- 58
I’ll confirm the exact kit in the morning but I’m pretty sure this is what is going on.
I can post some more detailed pics tomorrow after install. The shop quoted me 3 hours of install time due to the fact they’ve never done a level on air suspension before and they want be extremely careful when disconnecting and reconnecting the the air line that’s on top of the strut.
Sent from my iPhone using Tapatalk
How did the install go?
Savagescott
Active Member
- Joined
- Sep 7, 2018
- Messages
- 139
- Reaction score
- 32
- Points
- 28
- Age
- 58
No doubt there are others out here as anxious as you are!
OUscott1
Active Member

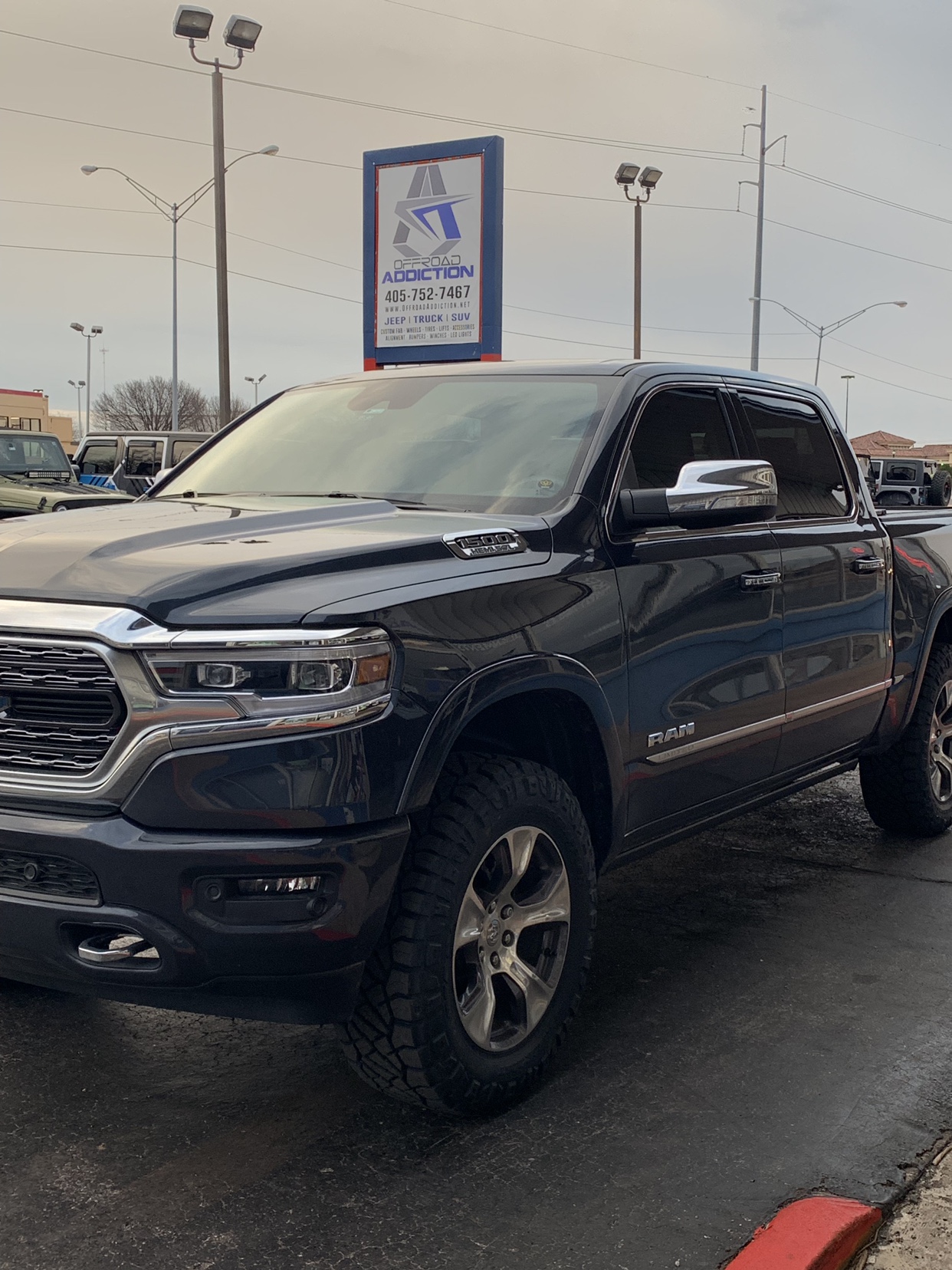

Go figure! It’s pouring down rain and windy here. I was able to get a pic before the weather started though.
All 5 suspension settings are working properly and the ride is night and day better. Since this was the 1st go around with the local shop, it took them a little time to fine tweak the links for a level stance after installing the traditional leveling kit. The tech told me he finally went with 2 1/4” spacing on the Revel Performance links to bring the truck to level.
Weather permitting, I will get you some detailed pics tomorrow when I recalibrate the speedometer. I ordered the Rough Country speedometer calibrater and it was in the mailbox when I got home.
Sent from my iPhone using Tapatalk
All 5 suspension settings are working properly and the ride is night and day better. Since this was the 1st go around with the local shop, it took them a little time to fine tweak the links for a level stance after installing the traditional leveling kit. The tech told me he finally went with 2 1/4” spacing on the Revel Performance links to bring the truck to level.
Weather permitting, I will get you some detailed pics tomorrow when I recalibrate the speedometer. I ordered the Rough Country speedometer calibrater and it was in the mailbox when I got home.
Sent from my iPhone using Tapatalk
Good info, awaiting more pics and any other details on the install. I bet @Accountant and a few others would be interested to hear about this!Go figure! It’s pouring down rain and windy here. I was able to get a pic before the weather started though.
All 5 suspension settings are working properly and the ride is night and day better. Since this was the 1st go around with the local shop, it took them a little time to fine tweak the links for a level stance after installing the traditional leveling kit. The tech told me he finally went with 2 1/4” spacing on the Revel Performance links to bring the truck to level.
Weather permitting, I will get you some detailed pics tomorrow when I recalibrate the speedometer. I ordered the Rough Country speedometer calibrater and it was in the mailbox when I got home.
Sent from my iPhone using Tapatalk
fact mechanic
Active Member
- Joined
- Jul 16, 2018
- Messages
- 93
- Reaction score
- 77
- Points
- 18
Agreed. Need a ton more info about this. Looks great!
OUscott1
Active Member
I was able to get some pics today after calibrating my speedometer with the Rough Country calibrator. This has been a process but thanks to all on the forum who have posted their trial and errors. Without this info sharing, I would still be sitting stock and thinking about a work around.
I started off by ordering the Revel Performance Leveling Links. After tweaking them, I was able to get a significant amount of front lift but immediately threw a Suspension error message. Dialed the links down a bit and got the error to go away.
Unfortunately this compromised the ride quality more than I was willing to accept. Decided to go ahead and get the new rubber anyhow and eventually decided on the Nitto Ridge Grapplers in 35x11.50x20. This alone added an immediate upgraded look to the truck and somewhat brought back the ride quality.
Yesteday, I finally had my local offroad shop install the Daystar polyurethane leveling kit that is suggested for a 2018 non air suspension Ram. This took quite a while since they had never ventured down this rabbit hole. Well, I'm here to say it was worth the wait. The ride quality is as soft as the day I took delivery. Here are the updated pics in all modes.
Entry/Exit
Aero
Normal
Off Road 1
Off Road 2
I started off by ordering the Revel Performance Leveling Links. After tweaking them, I was able to get a significant amount of front lift but immediately threw a Suspension error message. Dialed the links down a bit and got the error to go away.
Unfortunately this compromised the ride quality more than I was willing to accept. Decided to go ahead and get the new rubber anyhow and eventually decided on the Nitto Ridge Grapplers in 35x11.50x20. This alone added an immediate upgraded look to the truck and somewhat brought back the ride quality.
Yesteday, I finally had my local offroad shop install the Daystar polyurethane leveling kit that is suggested for a 2018 non air suspension Ram. This took quite a while since they had never ventured down this rabbit hole. Well, I'm here to say it was worth the wait. The ride quality is as soft as the day I took delivery. Here are the updated pics in all modes.
Entry/Exit
Aero
Normal
Off Road 1
Off Road 2
Savagescott
Active Member
- Joined
- Sep 7, 2018
- Messages
- 139
- Reaction score
- 32
- Points
- 28
- Age
- 58
Thank you for posting all of this. It is such great news!
What tips, advice or “gotchas” did you hear from the shop? Would love to give my guys a little heads-up.
OUscott1
Active Member
If you decide to go down the same road:
1. My links are set at 2.25” center to center at the female openings
2. Put vehicle in “Jack Mode” then disconnect battery prior to disconnecting the air line on top of the suspension.
Other than those 2 items, everything else was fairly straight forward.
Sent from my iPhone using Tapatalk
1. My links are set at 2.25” center to center at the female openings
2. Put vehicle in “Jack Mode” then disconnect battery prior to disconnecting the air line on top of the suspension.
Other than those 2 items, everything else was fairly straight forward.
Sent from my iPhone using Tapatalk
Is there a way to get some pictures of the spacers from inside the wheel well? Are you still using the links and just in the front? Rear is still completely stock?
Savagescott
Active Member
- Joined
- Sep 7, 2018
- Messages
- 139
- Reaction score
- 32
- Points
- 28
- Age
- 58
Were you able to you use the front links from the revel kit or did you have to use the rear to get longer?
You mentioned to shop took longer than expected to install the daystar kit. Was there anything in particular that gave them problems ?
OUscott1
Active Member
It’s really hard to see but they’re in there.
What took longer than expected was due to the minimal experience they’ve had with the air suspension as a whole. Also took time to guess and check the length of the links to get level. I was able to use the front links only and couldn’t use the back ones because they couldn’t adjust down to the size needed to get truck level.
Sent from my iPhone using Tapatalk
What took longer than expected was due to the minimal experience they’ve had with the air suspension as a whole. Also took time to guess and check the length of the links to get level. I was able to use the front links only and couldn’t use the back ones because they couldn’t adjust down to the size needed to get truck level.
Sent from my iPhone using Tapatalk
