Laramie Ambient Lighting Question

[Wirerat]

The ambient lighting doesn't mean much to me. I just noticed, with this truck, there is a lot.

Same here. I keep ambient lighting turned off or very dim most the time.

Don't even need the interior lights enabled either when the fire of a thousands suns beams from the touch screen at shutdown.



[PM-Performance]

The ambient lighting doesn't mean much to me. I just noticed, with this truck, there is a lot.

It does to me when I paid for it. Id have to doublecheck, but I think it was part of the packages I paid for



[Hawkeye16]

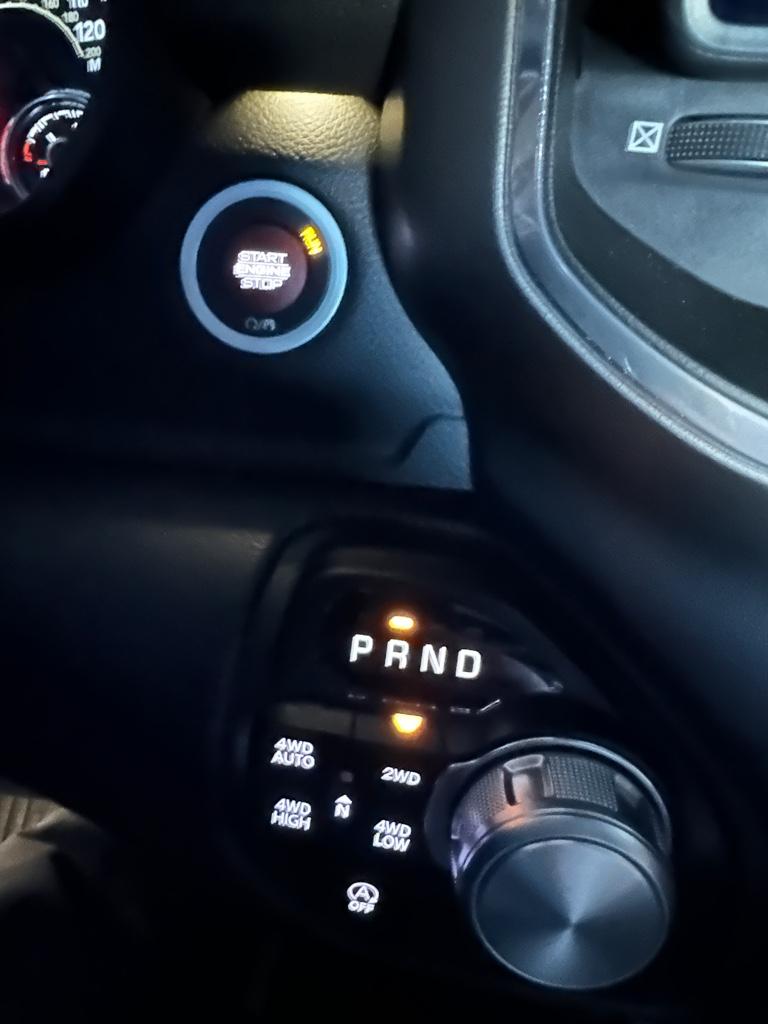

I noticed the other day when I turned the ambient lighting dial all the way up (until it stops), that it turns off the backlighting on the 4wd buttons.



One notch below the top setting and the backlighting of 4WD, 2WD, HIGH, LOW all light up.

Is that normal?



[ferraiolo1]

I’ve never noticed that


Sent from my iPhone using Tapatalk



[Hawkeye16]

I’ve never noticed that


Sent from my iPhone using Tapatalk

Does your's work like that?



[ferraiolo1]

I usually keep mine full bright and haven’t noticed the 4wd lights turning off


Sent from my iPhone using Tapatalk



[ferraiolo1]

Does your's work like that?

Drove my truck for the first time in a while. Full bright on the lighting

Sent from my iPhone using Tapatalk



[GorillaHemi]

I know this is an older post, but is there a way to get the ambient lighting to stay on all the time without dimming the dash lights? I'm pretty sure I have both wheels next to my light switch.

I have a 22 Laramie, and I'm considering getting the Paragoptics kit. Does it add the missing LED lights that Ram left off the trucks? I have AlfaOBD already, so I'm good on that.



[brental1]

Not sure on the 21's but some Laramies I've seen in the past had the connectors but the lights themselves werent there. So they order all 3 light housings and installed them without issue. easiest way to check is to pop out the drivers air vent and check to see if the connector is taped to the harness. Myself I have a Lonestar I added the Limited dash and wanted everything functioning my truck did not have the connectors so I made my own out of a door ambient light harness the connections are the same as the dash lights. Worked perfectly.. You dont have to remove the dash to add the harness..View attachment 103767View attachment 103768

I robbed the ambient harness from a donor IP harness. It has 6 female terminals. I know where 5 go-- 3 for the added ambient lights in the IP; 2 for the courtesy/ambient lights under the IP (footwell), and one male for pin 20A of XY370, 21 pin (for power). So I'm clear on all that. However, I can't find a home for the 6th female terminal in the harness. Do you know where it goes? Thanks, Brent



[brental1]

So I installed the missing ambient lights in the dash yesterday and wish I wouldn't have wasted my time. All the plugs were there but they were VERY well hidden. The left side one was a PIA to find. On mine it was taped to the main harness and completely wrapped up but it was in the part of the harness that is behind the instrument cluster and the wire was sandwiched between the dash and a brace. I had to remove the instrument cluster and a couple of screws behind the cluster in order to pull out the dash enough to free the wire after getting it cut out of where it was taped inside of the harness. The harness for the light above the glove box was actually taped inside of the main harness but down towards the floor. Unplugging the 8.4 was a pain because the antennae leads were not long enough to pull the unit out far enough to actually see behind it. You had to work blind to unplug them but once they were unplugged you could pull the unit out far enough to work comfortably on the rest of the connectors. The lighting itself is underwhelming.

I should have listened to you. But, I had the harness and decided to do it. The one over the glove box is nice; but the 2 on each side of the cluster are worthless. I saw in FM45's write up that he reformed the two trim pieces. If the plant had to do this, that's probably why the option was discontinued.



[brental1]

You don't have to remove the glovebox. it will slide in. It is a PIA to get though. It will take a few times to get the angle just right so it won't pop out on you while you're putting it in. Once it's in it won't pop out on you though.

I tried sliding it it; but decided to remove the glove boxes--just a bunch of screws. Once I understood how the light tube is secured (the tab on the end of the tube has to go past the "ear" molded into the IP) I might have been able to manipulate it in.



[brental1]

Finished....I couldn't half *** it. I removed the
upper and lower glove box. Made getting to the harness plug and installing the glove box light a breeze.

Overall results...meh. I'm in the camp of don't bother with this mod.

View attachment 122333
Much easier to get at the plug behind the cluster with the water removed.
View attachment 122334

And the results.

View attachment 122335
View attachment 122336

I agree. I like the one over the glove box; but the two on either side of the cluster are not much. I saw in FM45's write up about reforming the trim pieces to allow more light to come through. I can't imagine the plant did any finessing like that..



[brental1]

The standard courtesy system in the Ram uses halogen bulbs, the upgrade Led system uses three wires to power the 2 led package. --- one for courtesy the other ambient..

-=FM45=-

I robbed the IP ambient light wires from the donor harness and rebuilt them into my truck. Added the 3 IP lights, replaced the footwell lights and replaced the headlamp switch (2 wheels and rear fog light function--I'm optimistic). Did the Alfa changes

ECUConfig 4: Ambient Dimmer: No => Yes

CBC Config I/O: Ambient Light Dimmer Wheel Input Present: No => Yes

Cust.Set.Menu 1:Ambient Dimmer CSM Present: No => Yes

Everything works; but I have a curiosity question. The panel lamps, including cluster, dim with one wheel. The footwell and IP ambient dim with the other. However the small light in the overhead console stays constant. It's not a problem; but wondering why is doesn't dim when its connected to the same WT/GR as the footwell and IP ambient lights.



[billfraley]

Since nobody posted this info in this thread, 68291943AC is the part number for the middle door pocket ambient lighting lamp. I just found out yesterday, as I was installing the Paragoptics LED lighting upgrades, that I am missing this lamp in the passenger rear door. I have completely retrofitted the TRX interior, including door panels, and only this one rear door panel did not have this lamp. The wiring is there though. I need the housing so I will order this part to finish my ambient retrofit.

FYI, Paragoptics may be expensive, but they are well made parts. The lights are much brighter. They also provided me with the rear door harnesses out of their full BigHorn kit. I replaced both front doors with upgraded OEM harnesses for other features, so I only needed the rear doors. My truck had the ambient wiring all the way up to the door already. I suspect if you have the dual light footwell LEDs then you will also have this wiring already there. Even the rear underseat lights were wired already on my BigHorn Level 2. I simply had to pin the white/green to the correct Pin 5 at the door jamb and run the harness through the door.
