Wheel Spacers

[Jeeper]

Anyone have an idea how much my tires will be outside of the fenders if I go with 1.5" front and 2" rear? Stock Sport (night editon style) rims with 35x11.5x20 Nitto RG.

I am under the impression that the stock rims are 19mm offset, with a 2" wheel spacer will that make my offset now -31.8mm?

Just trying to get an idea of where my tires will sit in relation to the Bushwacker Pocket Flares that I just bought.

After getting the flares yesterday and just holding them against my truck loosely (still have the stock and weathertech mudflaps on) seems it may look funny if I don't bring the rims out. I don't really want any poke I still want them under the flares. Or slight outside like no more then a 1/4"

Also, from my reading 1.5" front and my 35x11.5 I shouldn't have any rubbing issues while also having the Mopar lift with the added ORP spring up front?

2"

Sent from my SM-G781W using Tapatalk



[Jeeper]

That's weird, bora says NOT to use locktite or it will void the warranty. Wander why the difference with spidertrax?

from years of experience running lots of spacers on Jeeps and fairly severe offroading and rock crawling I have always used red loctite when installing spacers.

Sent from my SM-G781W using Tapatalk



[Gandalfgrey]

That's weird, bora says NOT to use locktite or it will void the warranty. Wander why the difference with spidertrax?

I wouldn’t know but ran the spidertax and never had any issues every suspension bolt i took off my Jeep i put blue locktite on & marked the bolt head.



[Gandalfgrey]

from years of experience running lots of spacers on Jeeps and fairly severe offroading and rock crawling I have always used red loctite when installing spacers.

Sent from my SM-G781W using Tapatalk

You are right Spidertax said used Red locktite but i later used blue.



[19BlueStreakSport]

I'm running 2" have just an ever so slight rub only on drivers side while full crank in reverse only....not concerned at all

Sent from my SM-G781W using Tapatalk

Looks good.

Is your truck lifted?
Stock rims?
Tire measurements?
Any cutting needed?
Did you use 2.5 rears to even out your front to back?


Also any other pictures from multiple angles?

Thanks a bunch.

Thanks.



[19BlueStreakSport]

I've ordered 1.5 KSP from Amazon because they can be here by Saturday. I figured it would be a good idea to order so I can see how exactly my rims will sit with the Bushwackers with 1.5.

I will probably send them back and order the Bora's just because I want the front and back to be the same distance out from the fenders.

I know some have said 1/4 and some 1/2 different between front and back.

Who knows I may like the KSP and keep them. We will see. I hope to test fit both the KSP spacers and Bushwackers this weekend to see how it looks.



[paulmarsh22]

This is with 1.5" up front and 2" in the rear. The front track is already .4" wider than the rear stock. These are 295/55R22 (basically 35x12.5) on the stock black 22" rims (22x9 ET 19)



[19BlueStreakSport]

This is with 1.5" up front and 2" in the rear. The front track is already .4" wider than the rear stock. These are 295/55R22 (basically 35x12.5) on the stock black 22" rims (22x9 ET 19)

Thanks. So really if you wanted the front and back to be completely even you'd want .25" bigger on each side.

So say 1.75 front and 2" rear or 2" front and 2.25" rear.

What I don't want to end up with is tires 1" under the flares as it may look weird. I also don't want to rub.

I think the Bushwacket flares provide about 2" of coverage outside of the fender. My tires currently (which are 35x11.5 Nitto RG) stick out ever so slightly in the front.

I don't mind if the tires are about 1/4 to 1/2 inside of the flares. That won't look off putting. I'm def against them sticking out of the flares, I don't want rocks, dirt etc flying all over my truck. 1/4 outside would be max.

Anyhow I'll have a better idea once I get these 1.5 KSP and test fit the flares. See what that looks like. Then I'll go from there.



[19BlueStreakSport]

I know I'll end up measuring anyhow but I'm curious because I read this in another thread. A guy put the large ones on front and smaller on the rear. He stated that with the lift that the tires would have moved inward because the a-arms are no longer flat, that would have an upward angle with the lift. Thus, pulling your wheel further in. Makes sense.

By chance has anyone with a lift measure?

I've got the Mopar Lift with ORP springs. With the suspension and tires I got 5" of lift. Makes me wonder. Anyhow I guess I'll be taking a level and tape measure to see how far the tires are from the fenders on front and back. See which one has a longer measurement, that part would theoretically be the one that will need the smaller spacer.



[Jeeper]

Looks good.

Is your truck lifted?
Stock rims?
Tire measurements?
Any cutting needed?
Did you use 2.5 rears to even out your front to back?


Also any other pictures from multiple angles?

Thanks a bunch.

Thanks.

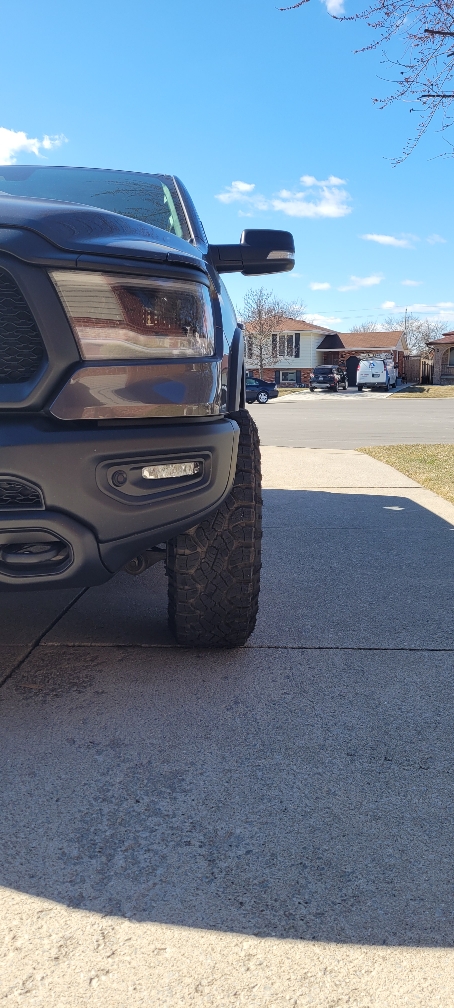

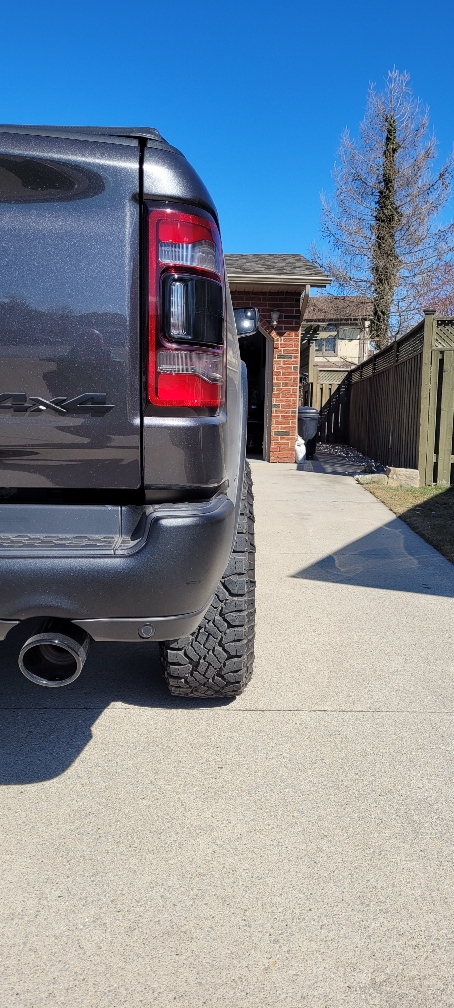

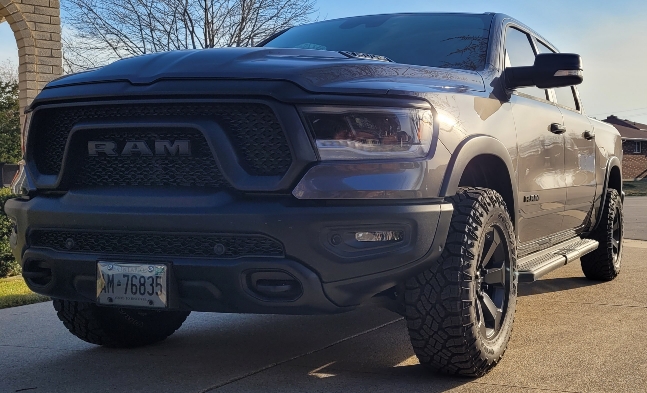

no lift
stock Rebel wheels/tires
non air ride
went with 2" all 4 corners. looks great in my opinion
very very minor rub drivers side rear of front fender liner...nothing to even worry about....only occurs if I am full lock in reverse left turn

Sent from my SM-G781W using Tapatalk



[Jeeper]

no lift
stock Rebel wheels/tires
non air ride
went with 2" all 4 corners. looks great in my opinion
very very minor rub drivers side rear of front fender liner...nothing to even worry about....only occurs if I am full lock in reverse left turn

Sent from my SM-G781W using Tapatalk

I'll take some better angle shots later today

Sent from my SM-G781W using Tapatalk



[Gandalfgrey]

I've ordered 1.5 KSP from Amazon because they can be here by Saturday. I figured it would be a good idea to order so I can see how exactly my rims will sit with the Bushwackers with 1.5.

I will probably send them back and order the Bora's just because I want the front and back to be the same distance out from the fenders.

I know some have said 1/4 and some 1/2 different between front and back.

Who knows I may like the KSP and keep them. We will see. I hope to test fit both the KSP spacers and Bushwackers this weekend to see how it looks.

That is my plan i needed spacers sooner so i was gonna use KSP until boras came but i am more than pleased with the quality of KSP



[19BlueStreakSport]

Well I measured my track. First I went from center of tire to center of tire. And double checked with outside tire to outside tire. Seems as though the lift brought the front in 1/2" (1/4 per side).. So front and back is the same.

So I have 2 options. 2" all the way around, but tires will be in about 1" of the pocket fenders on the rear and flush in front. Or 2" front and 2.5" rear both front and back will be equal and back will be about 1/5 further out. I think option 2 will look the best.

For some reason Bushwacker front flares cover 2" and rear 2.6" even thought vehicles have a wider front track.



[paulmarsh22]

Well I measured my track. First I went from center of tire to center of tire. And double checked with outside tire to outside tire. Seems as though the lift brought the front in 1/2" (1/4 per side).. So front and back is the same.

So I have 2 options. 2" all the way around, but tires will be in about 1" of the pocket fenders on the rear and flush in front. Or 2" front and 2.5" rear both front and back will be equal and back will be about 1/5 further out. I think option 2 will look the best.

For some reason Bushwacker front flares cover 2" and rear 2.6" even thought vehicles have a wider front track.

Just be aware 2" up front will introduce rubbing



[Jeeper]

Just be aware 2" up front will introduce rubbing

2" all around...the very minor rub isn't even worth batting an eye over imo

Sent from my SM-G781W using Tapatalk



[19BlueStreakSport]

2" all around...the very minor rub isn't even worth batting an eye over imo

Sent from my SM-G781W using Tapatalk

Full crank rub I'm not concerned, heat gun and reshape if it becomes annoying.

Rub on normal turns would be troublesome.

I've heard some without rubbing at all with 2" and others with rubbing.



[paulmarsh22]

Full crank rub I'm not concerned, heat gun and reshape if it becomes annoying.

Rub on normal turns would be troublesome.

I've heard some without rubbing at all with 2" and others with rubbing.

In normal mode, I don't get full turn rub. Only when the wheel is halfway turned it catches the rear plastic wheel well liner. So it happened on normal turns before I reshaped it. Guess it all depends on the tires you choose too.



[Sorceress21]

We also can't forget about Aero Mode for us Air Ride folk and also en-route suspension travel. Obviously we can't completely gauge fitment based on a truck sitting motionless in our driveway without considering suspension travel. You have bigger tires or a stock set with an offset on that stock rig with no lift and you hit a big enough pot hole or rock at the right speed with just the right angle of turn on the wrong day with bad luck and you could possibly do a bit of damage.

Likely? Nahhh, "possible"? Something to consider. Weird stuff like that has been known to happen but then again so does winning the lottery, LOL. I personally have an, ahem, zero rub policy. Learned my lesson on that one years ago with 98' TJ and 35s. I won't bore you all with the details of my stupidity.



[NewLove]

Scored a set of 18” Mopar Beadlocks and 1.5” Wheel spacers. I’m in between 35x12.50 or 285/75?.. Was leaning towards the 285/75’s and using the wheel spacers for a more aggressive stance. Yet if I’m going to use the spacers anyway, should I just go with 35x12.50 and the spacers (to clear UCA’s)?..

Only thing is if I don’t like the spacers with the 285/75 I wouldn’t have clearance problems. If I go with 35x12.50’s I’m definitely locked in with using spacers because of clearance issues.


Sent from my iPhone using Tapatalk



[Jeeper]

Scored a set of 18” Mopar Beadlocks and 1.5” Wheel spacers. I’m in between 35x12.50 or 285/75?.. Was leaning towards the 285/75’s and using the wheel spacers for a more aggressive stance. Yet if I’m going to use the spacers anyway, should I just go with 35x12.50 and the spacers (to clear UCA’s)?..

Only thing is if I don’t like the spacers with the 285/75 I wouldn’t have clearance problems. If I go with 35x12.50’s I’m definitely locked in with using spacers because of clearance issues.


Sent from my iPhone using Tapatalk

I would do 1.5" spacers and 285/75. Nice stance, little less contact patch, little more clearance. Visually they will look like 35's.

Sent from my SM-G781W using Tapatalk
