Icon Vehicle Dynamics Vs. King Coilovers

[Roaminglost]

i also came across this yesterday.
says 3" for the rebel...

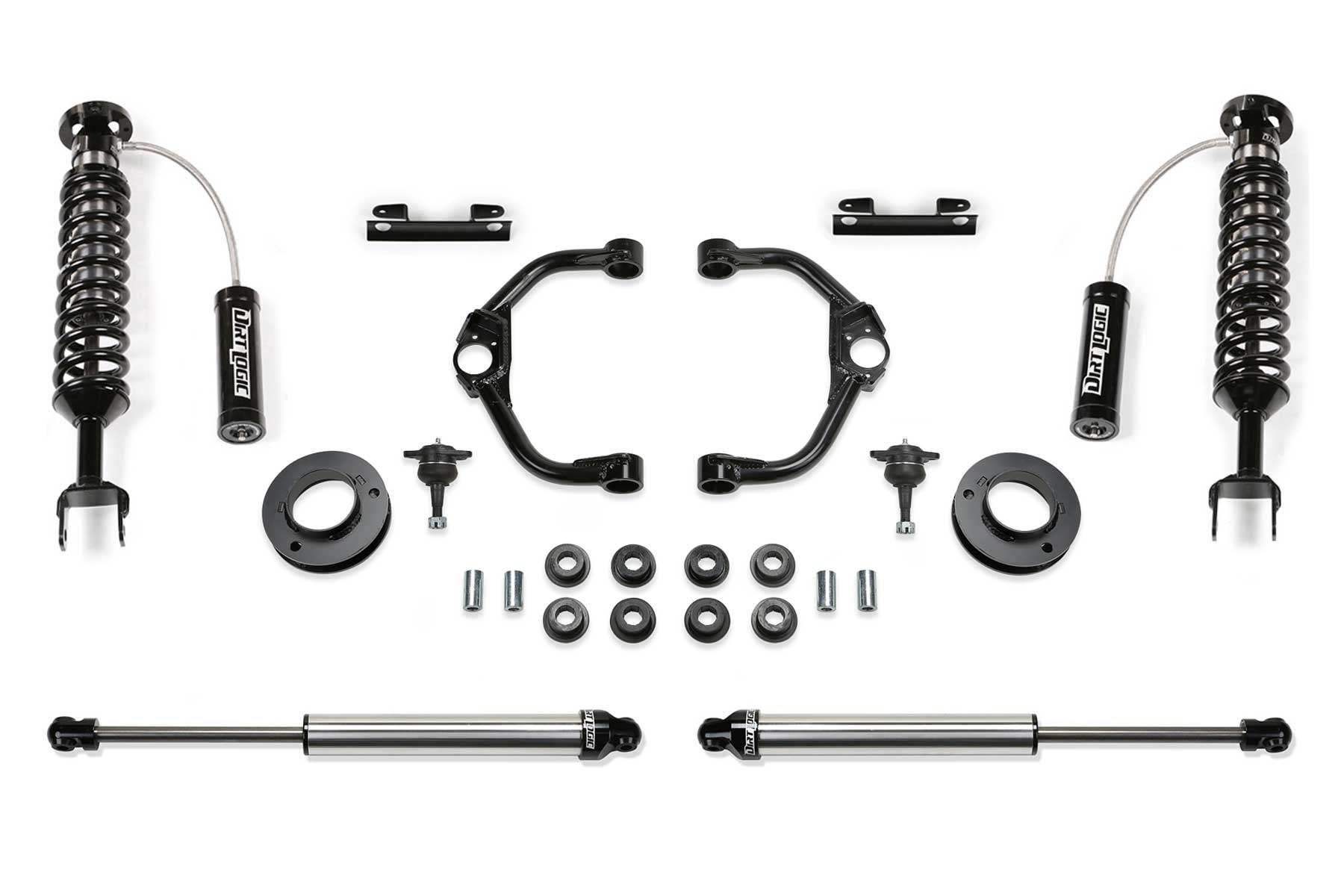

3" Ball Joint UCA Lift Kit w/ Front Dirt Logic 2.5 Resi Coilovers & Rear Dirt Logic 2.25 Shocks - K3170DL

The mild lift height from this 3" ball joint uca is subtle yet gives the vehicle a commanding stance without over doing it.

fabtechmotorsports.com



[ironking]

i also came across this yesterday.
says 3" for the rebel...

3" Ball Joint UCA Lift Kit w/ Front Dirt Logic 2.5 Resi Coilovers & Rear Dirt Logic 2.25 Shocks - K3170DL

The mild lift height from this 3" ball joint uca is subtle yet gives the vehicle a commanding stance without over doing it.

fabtechmotorsports.com

Hmm... good find. If Icon isn’t willing to do anything, I may give these a try.


Sent from my iPhone using Tapatalk



[DeDax]

I saw that as well. The only thing that concerns me with this and the BDS/Fox set up is the lack of rear springs? I wonder why the don't include rear springs at that level of upgrade? I wonder how my non-ORP springs would work in conjunction with a set up like that.



[ironking]

Talked to Icon again. They’re telling me now that their site/advertisements have a misprint. It should state up to 2”, not 2.5. Thus with the Rebel, you may/should only get up to 1”, before taking in to account the variations in vehicle heights from the manufacture. Meaning there are slight variations in height on the same models. This would explain the stockish rake that I have. Again, rides great, just wish I had another inch up front (no pun intended).


Sent from my iPhone using Tapatalk



[SoCalBogey]

That’s kind of a bummer to hear, did you net any lift at all in the front? Also, did you use the Icon rear springs? I think I saw they are supposed to get you a 1.5” lift, which I’m assuming would net .5” on the Rebel.



[ironking]

That’s kind of a bummer to hear, did you net any lift at all in the front? Also, did you use the Icon rear springs? I think I saw they are supposed to get you a 1.5” lift, which I’m assuming would net .5” on the Rebel.

Hard to tell. Don’t have real good measurements from stock. May e an inch all around. Yes, the stage 5 is front coil overs, rear shocks, rear springs, and uca’s.


Sent from my iPhone using Tapatalk



[SoCalBogey]

Well thanks for the info on the system.... I’m about 50/50 on pulling the trigger in the stage 5 or waiting a couple months for Carli’s kit.



[ironking]

Well thanks for the info on the system.... I’m about 50/50 on pulling the trigger in the stage 5 or waiting a couple months for Carli’s kit.

No problem. Honestly, I’d talk to Carli and see what they say. Their prior Gen kits didn’t yield but 2” in front and .75 in rear.

Side note, Icon did say for a normal Ram 1500, their kit would yield 2” up front. So you’d still have a little bit of rake. All personal preference.


Sent from my iPhone using Tapatalk



[Eltaco]

BDS / Fox released their 2020 suspension but its only a 1" over stock for rebels

SUSPENSION SYSTEMS

Leveling kits and up to 8 inch lift heights making room for larger wheels and tires Complete systems are engineered for high performance on and off-road use Heavy duty bracketry backed by the BDS No Fine Print Warranty Correct steering geometry for proper handling in any condition Vehicle tuned...

bds-suspension.com

Those FOX 2.5” coil overs with adjustable resis look legit... but wow, $2100 for the set and only 1” lift over stock ORP!

I’m sure they ride nice, but I don’t truly have a use for that much capability anymore now that I live in the midwest



[Roaminglost]

Those FOX 2.5” coil overs with adjustable resis look legit... but wow, $2100 for the set and only 1” lift over stock ORP!

I’m sure they ride nice, but I don’t truly have a use for that much capability anymore now that I live in the midwest

yeah i wouldn't say its worth the cost. my falcon level kit has been amazing for about half the price and i still fit 35s



[SoCalBogey]

I’ve ran full Icon setups on two other vehicles and have had nothing but good experiences with their products. I broke down and ordered the stage 5 kit for my 20’ Rebel.
They said I should expect to see at least 1” of lift out of the front on top of the factory 1” Rebel lift, and most likely be able to get 1.5”. I was told the rear springs should settle to a .5” lift over the rebel lift. Depending on the rake, I may just see how the full icon front works with the rebel rear springs and icon rear shocks. Parts are 4-6 weeks out.



[DRebel]

I’m looking forward to to testing my Fox out tomorrow with the factory control arms.



[Eltaco]

I’m looking forward to to testing my Fox out tomorrow with the factory control arms.

What was the part number on those? Last I looked, I didn’t see a Fox w resi Kit... but it’s been a few months now. Looks like it’ll be a nice setup!



[DRebel]

What was the part number on those? Last I looked, I didn’t see a Fox w resi Kit... but it’s been a few months now. Looks like it’ll be a nice setup!

Thanks, the part is 833-06-166 for the 2-3in and 833-06-165 for the 2in.


Sent from my iPhone using Tapatalk



[Zoompastu]

Did you take measurements? Looks like you got a fair amount of lift in the front.



[Roaminglost]

Thanks, the part is 833-06-166 for the 2-3in and 833-06-165 for the 2in.


Sent from my iPhone using Tapatalk

what did you do for the rear?



[DRebel]

what did you do for the rear?

I left it stock for now, but it still road good today.



[DRebel]

Did you take measurements? Looks like you got a fair amount of lift in the front.

I’m at 39in with the factory UCA and 2in setting.



[Eltaco]

I’m at 39in with the factory UCA and 2in setting.

Well, how does it compare to stock ride?



[DRebel]

Well, how does it compare to stock ride?

Street is really too much, hell my wife didn’t even notice nothing. But where it’s night an day is off road, no whoop issue on the beach hitting 30+ was like nothing. Next weekend I’m trying to hit come trails camping.
