Bilstein Availability

I've got a '19 Ram 1500 (no ORP) and I'm looking to lift 3.5". Currently my stock rake is 2 1/2". I would like to have slight rake if I were to pull a trailer. Would like to get the Bilstein 5100. What top hat would be best to pair to achieve the lift I want up front? What's a good UCA to get as well? What about the rear? Trying to get a better understanding of lifts/levels and suspension geometry.

bigdaddy said:
I've got a '19 Ram 1500 (no ORP) and I'm looking to lift 3.5". Currently my stock rake is 2 1/2". I would like to have slight rake if I were to pull a trailer. Would like to get the Bilstein 5100. What top hat would be best to pair to achieve the lift I want up front? What's a good UCA to get as well? What about the rear? Trying to get a better understanding of lifts/levels and suspension geometry.
Click to expand...
get the readylift 2" level kit...it comes with the tubular uca's and the tophat spacer...I paired that with the bilstein 6112s on the 5th clip position and added icon 1.5" rear lift springs and bilstein 5100 rear shocks...looks level but there is about 1/2" to 5/8" rake...able to fit 295/55r22 toyo open country at3 and just had to slightly modify wheelwells to avoid rubbing

Now I'm torn....when I originally decided to go this route for the lift, I was hunting the Bilstein 5100. Then they were on backorder. Then i was swayed to the Mopar 2" lift route, which is also on backorder (supposedly to those that place order 4/21 is the target date to get those kits out).

So seeing this, I'm wondering if I just go the Bilstein route vs. the Mopar 2" lift. Any opinions to share?


Those of you wanting 5100's just need to watch the front and rear set for a bit. They have restocked these 3 times in the past 3-4 days so its only a matter of time until you get a set. Good luck!

z0n3 said:
View attachment 88381

Those of you wanting 5100's just need to watch the front and rear set for a bit. They have restocked these 3 times in the past 3-4 days so its only a matter of time until you get a set. Good luck!
Click to expand...
Figures! As soon as I break and order the Eibachs, Bilstein is restocking the 5100s. What to do???

JbVt said:
Figures! As soon as I break and order the Eibachs, Bilstein is restocking the 5100s. What to do???
Click to expand...
Eibachs are still a very reputable shock company. I think I would stay the course with them since you have them ordered already. Plus you're not guaranteed to get those ever elusive 5100s!

jonnyrebel88 said:

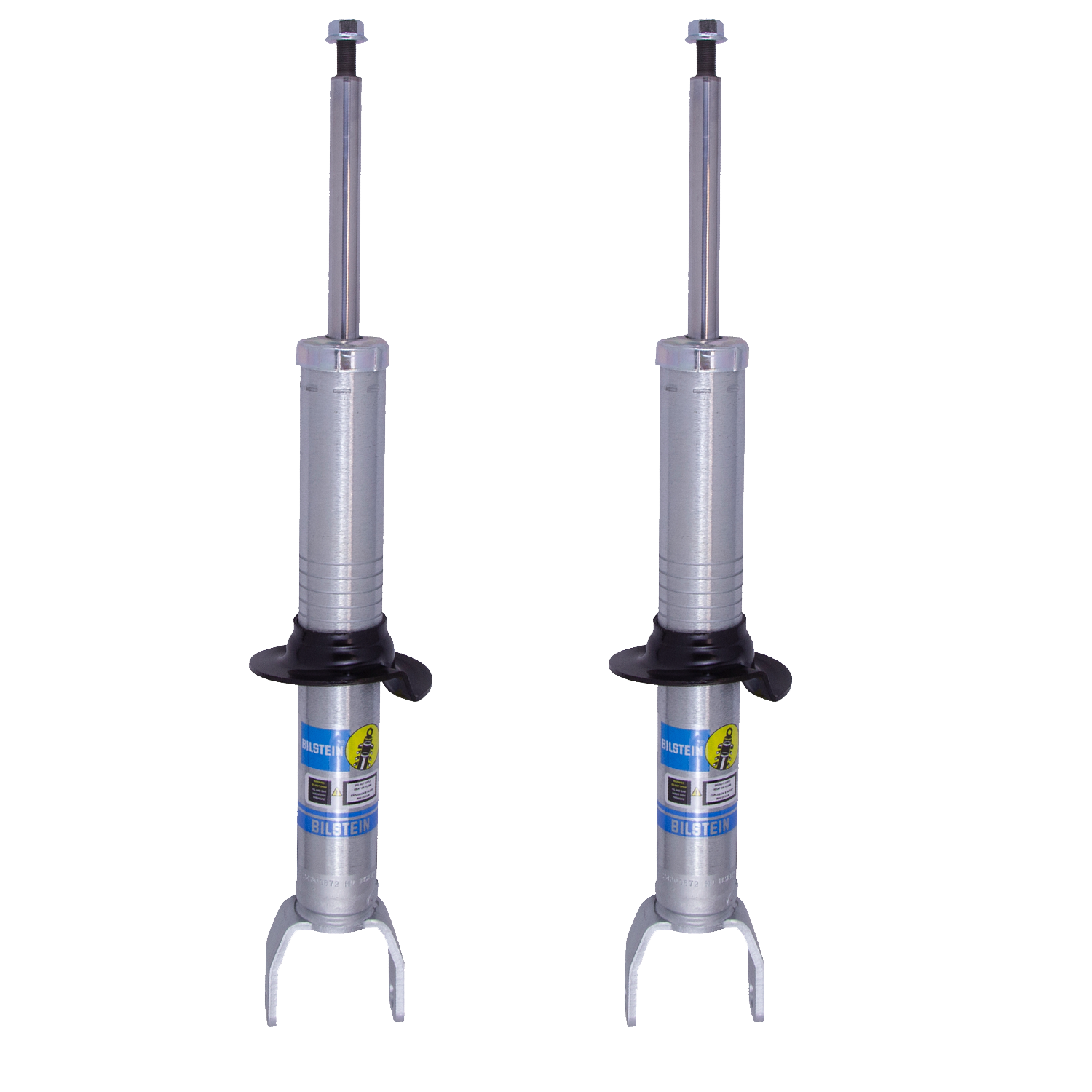

Bilstein B8 5100 0-2.6" Front Lift Adjustable Shocks for 2019-2024 Ram 1500 New body style

Bilstein B8 5100 0-2.6" Front Lift Adjustable Shocks for 2019, 2020, 2021, 2022, 2023, 2024 Ram 1500 New body style Part: 2x24-300872 (old: 2x24-232203) Nee
www.bilsteinlifts.com www.bilsteinlifts.com



Have gone on multiple times today, not in stock
Click to expand...
Damn, you're right. Once I tried adding them to my cart it updated and out of stock. Sorry brother. I will say, Eibachs are in stock and a touch cheaper. Ordered mine a few days ago. 🤷‍♂️

I might just do the ready lift control arms and spacer for the time being until they come back in stock, been looking at them anyway instead of the rough country ucas

jonnyrebel88 said:
I might just do the ready lift control arms and spacer for the time being until they come back in stock, been looking at them anyway instead of the rough country ucas
Click to expand...
They were in stock earlier today and I got a tracking number from the ones I ordered yesterday. Keep checking in the am, they seem to be adding some every day.

Part of my response/conversation with another member

I contacted Bilstein to check and they claim the springs with the ORP will work fine for what I want(level it) part number 24-232203 and the setting to use on the 5100 would be #5 setting. I plan on just doing the fronts at this point since I only do normal household moving of things now a days and very little towing. Bad news is that my installer went from 2 weeks back order, to "late July" back order. Bilstein claims it's Covid related since their workers can only work so many hours with their reduced staffing. I was trying to get a better timeline on shipment or buy them direct but that didn't happen. They actually said their shipments to fill orders are kind of "the luck of the draw". Not good news but at least it's an answer. I contacted 4WP to see if they had them in stock, and was told by 1 person they did. I called back once I retrieved my CC but the next person said they were on back order.. sooo........

Bustedgrills said:
get the readylift 2" level kit...it comes with the tubular uca's and the tophat spacer...I paired that with the bilstein 6112s on the 5th clip position and added icon 1.5" rear lift springs and bilstein 5100 rear shocks...looks level but there is about 1/2" to 5/8" rake...able to fit 295/55r22 toyo open country at3 and just had to slightly modify wheelwells to avoid rubbing
Click to expand...
Would I be able to achieve the same with getting the 5100 for the front instead of the 6112?

SurfRebel20 said:

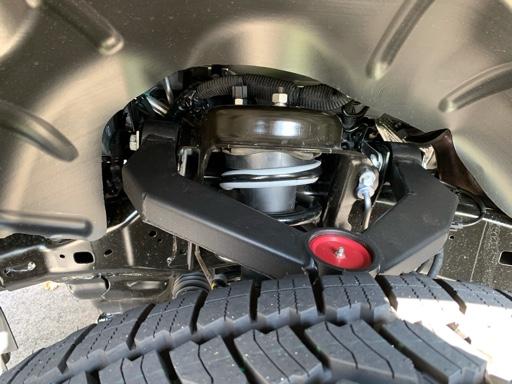

do you have any pics of the zone uca installed? haven't seen many of those.
Click to expand...





Sent from my iPhone using Tapatalk Pro

Bustedgrills said:
5th clip setting with the readylift tophat spacer and their tubular upper control arms...got almost exactly 3.5"lift in the front and 1.5" for the rear
Click to expand...
Is this what you ordered from ready lift?
www.readylift.com

2

2019-2021 Ram 1500 (including Rebel) 2WD/4WD 2 inch Leveling Kit w/ new Tubular Upper Control ArmsFor use on New body style Ram 1500 4WD. Not for use on classic body style Ram 1500. Also fits Rebel Edition Front strut extension leveling kit Not for use on air-suspension equipped trucks CNC...
www.readylift.com www.readylift.com

Ccm12 said:
Is this what you ordered from ready lift?
www.readylift.com

2

2019-2021 Ram 1500 (including Rebel) 2WD/4WD 2 inch Leveling Kit w/ new Tubular Upper Control ArmsFor use on New body style Ram 1500 4WD. Not for use on classic body style Ram 1500. Also fits Rebel Edition Front strut extension leveling kit Not for use on air-suspension equipped trucks CNC...
www.readylift.com www.readylift.com
Click to expand...
yes sir
