I don’t think that’s right

To the left of the ODB port and a little bit up in the dash are the 2 connectors you need to unplug and plug into the bypass. It isn't too hard to find. I can pull them out without having to look at them now. Just reach up under and pull them out.



[cskindt]

I don’t think that’s right

It's not. You don't need to remove any parts.

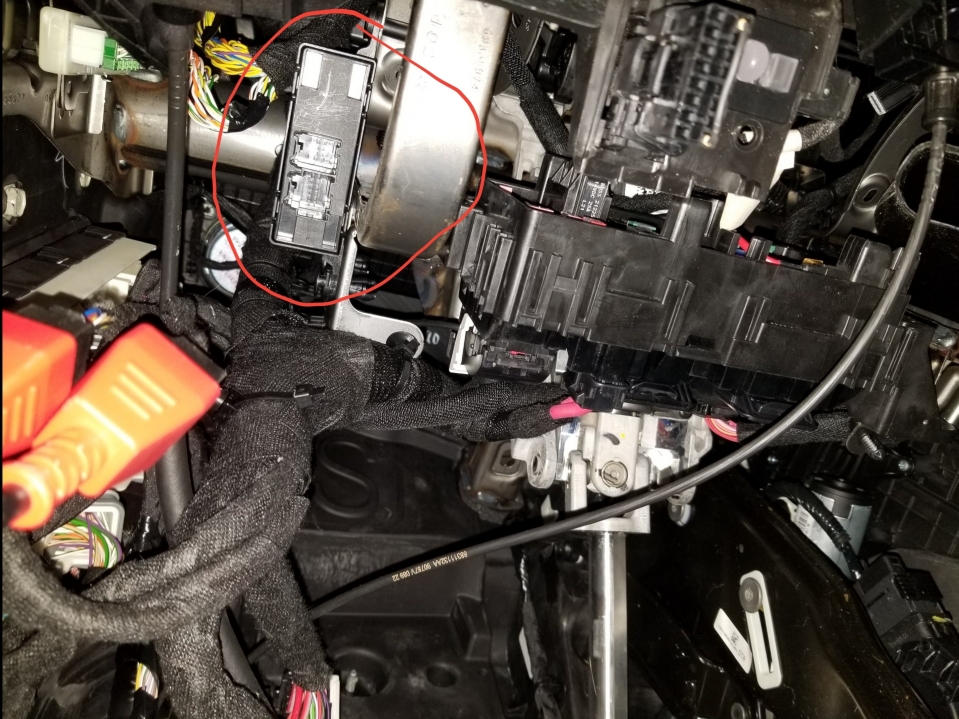

The circle is the security gateway you will bypass.



[combat grunt]

found this not sure if it will help



[HSKR R/T]

I’m trying to figure out how to connect this bypass cable to my ‘23 1500.
I have this bypass cable:
View attachment 152333
I have this OBD cable:
View attachment 152334
But when I look under the dash I don’t see anything much that looks like it fits the red cable female ends.

here are some pictures of the blocks and the OBD connector:
View attachment 152335 View attachment 152336 View attachment 152337

That's not a SGW bypass cable in your picture



[mainjet]

found this not sure if it will help

It's not. You don't need to remove any parts.

The circle is the security gateway you will bypass.

Thanks guys this picture and video will help. I should be able to find it with this. I appreciate the help



[Idahoktm]

I’m trying to figure out how to connect this bypass cable to my ‘23 1500.
I have this bypass cable:
View attachment 152333
I have this OBD cable:
View attachment 152334
But when I look under the dash I don’t see anything much that looks like it fits the red cable female ends.

here are some pictures of the blocks and the OBD connector:
View attachment 152335 View attachment 152336 View attachment 152337

You're looking at the wrong ports. This is what you're looking for.



[mainjet]

That's not a SGW bypass cable in your picture

Are you sure?



[vincentw56]

That's not a SGW bypass cable in your picture

Yes it is. Looks just like mine.



[HSKR R/T]

Are you sure?

Yes it is. Looks just like mine.

The ends don't look like the right size for SGW connectors.



[Kevinn]

Are you sure?

you have the correct bypass cables. It's the exact set I have and they fit fine.
i think what HSKR is referring to is maybe your third pic? shows green connectors, and yea thats not the security gateway module. Its the black box just next to those green connectors



[Brutal_HO]

I’m trying to figure out how to connect this bypass cable to my ‘23 1500.
I have this bypass cable:

I have this OBD cable:

But when I look under the dash I don’t see anything much that looks like it fits the red cable female ends.

here are some pictures of the blocks and the OBD connector:

The CAN blocks pictured only factor if using a different type bypasss cable TYPICALLY used on the heavy duty trucks.

The pics of the SGM shown in post #1906 are what you're looking for.

The HD SGM is not as accessible and is located behind the instrument cluster, hence the confusion for some. Since it's such a PITA to get to, we use a different bypass cable that plugs into the CAN bus blocks. ETA: Said cable can also be used on the 1500 if desired.



[mainjet]

View attachment 152355

The CAN blocks pictured only factor if using a different type bypasss cable on the heavy duty trucks.

The pics of the SGM shown in post #1906 are what you're looking for.

The HD SGM is not as accessible and is located behind the instrument cluster, hence the confusion for some. Since it's such a PITA to get to, we use a different bypass cable that plugs into the CAN bus blocks.

Thanks for the explanation. I had seen the green blocks circled in another post so I thought that’s where they were but it didn’t look right. But I knew I had seen the other correct cable being plug in somewhere before also. Searching on here for a common question sometimes is pretty hard to find what you’re looking for.

But I got some good answers and good pictures now and I don’t think I’ll have any trouble when I go back to try again.



[Darksteel165]

The ends don't look like the right size for SGW connectors.

Because it's not. That's just an odb2 splitter cable.



[HSKR R/T]

Because it's not. That's just an odb2 splitter cable.

Which isn't a "bypass"



[vincentw56]

Because it's not. That's just an odb2 splitter cable.

Which isn't a "bypass"

I'm not sure how you can tell from the connectors. Even zooming in, doesn't give a good look. Guess, he'll find out did sure when he tries it.



[HSKR R/T]

I'm not sure how you can tell from the connectors. Even zooming in, doesn't give a good look. Guess, he'll find out did sure when he tries it.

Knowing how small the actual SGW connectors are, it's not difficult.



[vincentw56]

Knowing how small the actual SGW connectors are, it's not difficult.

Well, I KNOW how they look because I have one.



[MannyN]

Her is the right cable.

Amazon.com: Cable Adaptor Replacement for Chrysler -12+8 Cable Connector for Autel MaxiSys MS908 MS906S 908S MS905 : Automotive

Buy Cable Adaptor Replacement for Chrysler -12+8 Cable Connector for Autel MaxiSys MS908 MS906S 908S MS905: Code Readers & Scan Tools - Amazon.com ✓ FREE DELIVERY possible on eligible purchases

www.amazon.com



[Jimmy07]

Alright, before we have a full blown Abbott & Costello routine going on about bypasses, I’ll show the different types of bypasses that can be used, and how they’re used.

There are three basic types that can be used, and they all work between the 1500’s and heavy duty rams. Because of the location of the security gateway module on the HD Rams being behind the instrument cluster, Type 3 below is the easiest and most commonly used on those trucks.

Type 1) This one plugs into the two security gateway module connectors, and CREATES A NEW BYPASSED OBD port that the interface plugs into:

Below, you can see the security gateway module with its connectors plugged in like normal. Then a pic of those connectors disconnected from the gateway, and plugged into the red bypass:




Type 2) This would be the bypass “block”, such as the ECRI, infotainment, Z automotive, etc. The tazer would also fall under this type of bypass. Same concept as type 1, except once you plug the security gateway connectors into it, you will plug the interface into the original OBD port:



Type 3) This is a bypass that doesn’t use the security gateway module connectors at all, but rather, plugs into the OBD port, and it’s pigtail has two connectors that plug directly into the canbus blocks, effectively bypassing the security gateway. The interface will plug into the OBD port on the end bypass cable:



ALL of these are effective gateway bypasses, and NONE of them are OBD splitters.



[mainjet]

Hey guys, I don't like to come on here and ask questions and then turn around and act like I know everything. But having said that, I believe I have the correct cable from my research. this is the one that I bought:

Amazon.com

If I'm wrong then I'm wrong. I'm usually not but as we all know, there is a first time for everything
