AlfaOBD

You need a security bypass as well:
www.infotainment.com

2018+ FCA Security Gateway Module Bypass Module

Beginning with model years 2018 and above Chrysler – Dodge- Jeep – RAM – Fiat vehicles are equipped with a new device called a security gateway module. The purpose of this module is to prevent CAN bus hacking over the 3G or LTE network. Infotainment.com alongside OBD Genie temporarily utilizes...
www.infotainment.com www.infotainment.com

Since the dealer is useless in enabling the tailgate ajar warning on my truck I am looking into purchasing AlfaOBD to do it myself. Does anyone in Canada have a recommendation for the bypass module/cable and Bluetooth adapter for an android device?

Sascwatch said:
Since the dealer is useless in enabling the tailgate ajar warning on my truck I am looking into purchasing AlfaOBD to do it myself. Does anyone in Canada have a recommendation for the bypass module/cable and Bluetooth adapter for an android device?
Click to expand...

I would also like to know which bluetooth adapter for laptop works. I do not have any android device.

ram1500L said:
I would also like to know which bluetooth adapter for laptop works. I do not have any android device.
Click to expand...

The OBDLink MX+ and a Windows version of AlphaOBD. If the (Windows) laptop has BT or you add a BT dongle, it will work.

Any warning light we can turn on dashboard for rambox? I had something stuck and it didn’t close. I realize when I got on Highway it popped up. It would be great to get a alert on dashboard that box is open.

Does anyone know if you need to change the combo rear brake light and cargo lamp to LED when installing them? Or will they work?

Shives said:
Does anyone know if you need to change the combo rear brake light and cargo lamp to LED when installing them? Or will they work?
Click to expand...
You don’t have to, but it will certainly help, because that setting disables the PWM. Most LED replacements come built to overcome PWM, but if you get a set that has separate resistors or “error canceller” boxes, they won’t be needed with this setting enabled.

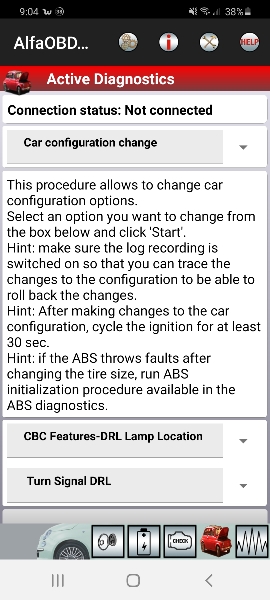

I just got the bypass and obd module today. Changed my tire size to fix the speedo. I also want to set the DRL to be the park lamp/turn signal. This is the settings I changed, not sure if its right. It didn't change ot on the truck. The next setting down was DRL dropout, and have no idea what that is.

Sent from my SM-G988U using Tapatalk

Last edited:
In reference above, my turn signals have switchback bulbs. White, then amber when flashing. Setting them as drl had them on, but lit up in amber instead of white.

Sent from my SM-G988U using Tapatalk

2020Big4x4Horn said:
In reference above, my turn signals have switchback bulbs. White, then amber when flashing. Setting them as drl had them on, but lit up in amber instead of white.

Sent from my SM-G988U using Tapatalk
Click to expand...
This is because the DRL location being used is the turn signal circuit, so the amber part of the bulb will be illuminated for DRLs. There is no such setting to make the park lamp circuit the DRL location. The only way to make those switchback bulbs use the white as DRL is to use the dedicated DRL wires and run them to the switchback bulb’s parking lamp circuit with diodes.
DRL dropout is when the DRL shuts off on the side of the vehicle when that turn signal is being used.

Jimmy07 said:
This is because the DRL location being used is the turn signal circuit, so the amber part of the bulb will be illuminated for DRLs. There is no such setting to make the park lamp circuit the DRL location. The only way to make those switchback bulbs use the white as DRL is to use the dedicated DRL wires and run them to the switchback bulb’s parking lamp circuit with diodes.
DRL dropout is when the DRL shuts off on the side of the vehicle when that turn signal is being used.
Click to expand...
Makes sense. It's not worth the trouble doing all that, I thought it'd look cool though.

Sent from my SM-G988U using Tapatalk

Does anyone know if the alpha OBD or any of these programmer deals can turn on the factory alarm? I've been told that they can I've also been told that the dealer can turn it on but they usually will not? Not really interested in this programmer for anything except turn on the factory alarm if it's there? I do not plan to modify this truck at all it's a 2020 Rebel 5.7 e torque quad cab

Thanks !d

Last edited:
2020 Rebel said:
Does anyone know if the alpha OBD or any of these programmer deals can turn on the factory alarm? I've been told that they can I've also been told that the dealer can turn it on but they usually will not? Not really interested in having to need this programmer for anything except turn on the factory alarm if it's there as I do not plan to modify this truck at all it's a 2020 Rebel 5.7 e torque quad cab

Thanks !d
Click to expand...
Yes, it can be turned on with AlfaOBD.

Can the tazer dt also be used as a bypass?


Sent from my iPad using Tapatalk

seribralcrow said:
Can the tazer dt also be used as a bypass?


Sent from my iPad using Tapatalk
Click to expand...
yes it can. I just use mine as a bypass last week. but unmarry it from the truck before you use it as a by pass. per Z Automotive. I can send the email where i asked them the same question 2 weeks ago.

Looking at doing the following adjustments with AlphaOBD and curious if they are doable.

Did we figure out if we can setup auto-fold mirrors on exit/entry?
Turn off Seat Belt Warning
Keep Fog lights on all times
Anything special with adjusting tire sizes?
