My understanding is the uConnect will only accept one analog camera input on the back. That’s why I used the switcher. So, I think your logic seems correct. I will say this, if you go with the same switcher I did then there are some things to be aware of. The directions are very misleading. First off, you obviously need to power and ground the switcher through a switched 12v input. Where it gets tricky is the inputs. I ran my cargo cam on input one and the camera itself is powered by a switched 12v power source.
This is where it got tricky, input one through four all have a positive and negative wire to activate them. For input one, I just had to tie into the positive switched power. Input two, even though it doesn’t say this requires a negative input. So I used input three for my front cam. Again, I just used the positive wire. It’s really weird because I am not used to only hooking positive and negative wires but this switcher requires an either/or and not both or it wont work. Took some time to figure it out. Let me know if you have questions but in my install I am using input 1 and 3. I skipped input two as I didn’t want to do a negative input or I would have had to rewire my relay setup. Not really a big deal but, I basically had to forget most of what I know of 12v wiring for this thing.

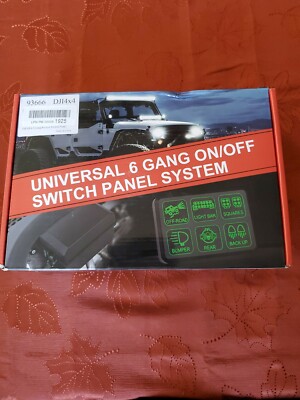

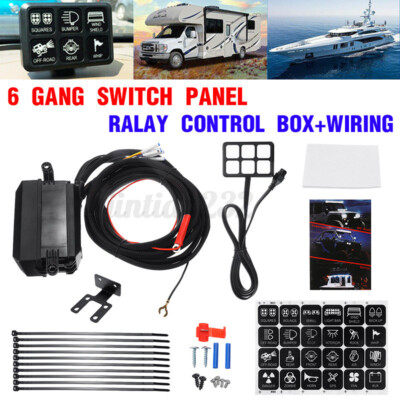

As far as switch legends, are you going with the same switch? The stock version of what I had has green LED’s and my labels would look very weird on the stock one. If you leave the LEDs green you’d likely want different colored labels than what I went with. I was lucky and have a friend that is a mad genius with electrical components and I had him alter the board to white LEDs as I hated the green. That said, if you’re still interested in new labels I can certainly ask my wife what she’d charge. I know she would need what you’d want on them and what colors you need. Take care and let me know if you have any other questions.
