Want to Upgrade Harman Kardon System Bass Easiest Way?

Joined
Nov 20, 2018
Messages
19
Reaction score
4
I Want to Upgrade the Harman Kardon System subwoofer bass the easiest way possible to at least get a moderate noticeable improvement? I just got my truck I really like the HK system I just wish there was a little more bass in the system more like my factory challenger HK system had. Maybe Simply polyfill or plug and play just Subwoofer swap in same box factory amp setup? Appreciate the help!


Buz

Well-Known Member
Joined
Sep 18, 2020
Messages
469
Reaction score
336
Ok, I'm really starting to think a fix was applied to the HK system.
Most people with the HK system can't put the EQ bass slider higher than -6 without it becoming too boomy.
Where is your Bass EQ slider set that you want more bass?

Joined
Nov 20, 2018
Messages
19
Reaction score
4
Ok, I'm really starting to think a fix was applied to the HK system.
Most people with the HK system can't put the EQ bass slider higher than -6 without it becoming too boomy.
Where is your Bass EQ slider set that you want more bass?
I just recently got my truck, and it’s set at +5 on the Bass EQ and it’s not “boomy” at all, it’s surprisingly no better than my factory Alpine was in my 2017 Ram 2500. I’m surprised because I remember reading on the forums that the bass was very notable on the HK system? Some people said even too much so.


vincentw56

Ram Guru
Joined
Aug 5, 2020
Messages
1,097
Reaction score
721
I just recently got my truck, and it’s set at +5 on the Bass EQ and it’s not “boomy” at all, it’s surprisingly no better than my factory Alpine was in my 2017 Ram 2500. I’m surprised because I remember reading on the forums that the bass was very notable on the HK system? Some people said even too much so.
My Alpine system shakes the rear view mirror. It hits harder than the HK system in my exes 300.

Sent from my SM-G988U using Tapatalk


fossy007

Member
Joined
Dec 15, 2020
Messages
10
Reaction score
12

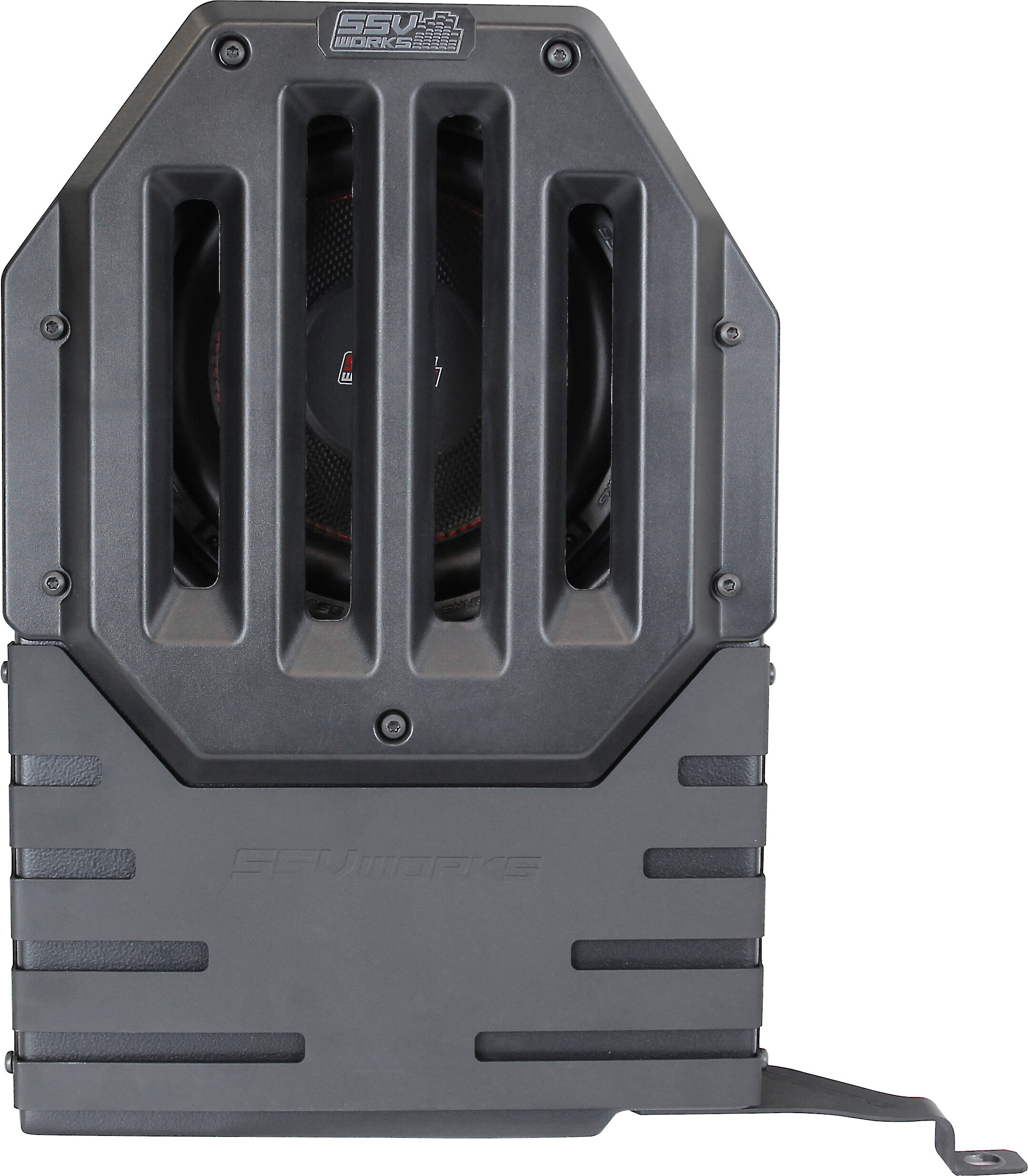

I just posted a review of the ground shaker box made for our trucks. I think it’s a pretty modest bass upgrade. I have the H/k system as well.


Sent from my iPhone using Tapatalk

Joined
Nov 20, 2018
Messages
19
Reaction score
4
My Alpine system shakes the rear view mirror. It hits harder than the HK system in my exes 300.

Sent from my SM-G988U using Tapatalk
That’s crazy because I remember when these trucks with the Rebel 12 package first came out how many people were mentioning that if anything they didn’t like the HK because it was too Bass heavy.

Joined
Nov 20, 2018
Messages
19
Reaction score
4
I just posted a review of the ground shaker box made for our trucks. I think it’s a pretty modest bass upgrade. I have the H/k system as well.


Sent from my iPhone using Tapatalk
Great! I’ll check that out, I just was hoping for a relatively easy solution with not much altering to the HK system.

Joined
Nov 20, 2018
Messages
19
Reaction score
4
I was really hoping more of a solution of either changing out the factory sub using the same factory enclosure with another maybe JL “shallow” 10” Sub or going down the route with the dealer that a software update may be needed were my thoughts? Let me know what you guys think thanks


fossy007

Member
Joined
Dec 15, 2020
Messages
10
Reaction score
12
Too be honest I would try the update first. I took my back seat out to disable the stock sub and the enclosure is much smaller then I thought. It may be too small to get any good bass out of it. Also the amount of rattle coming from the back wall with stock would only get worse.


Sent from my iPhone using Tapatalk


Silent Bob

Well-Known Member
Joined
Nov 20, 2020
Messages
464
Reaction score
477
I was really hoping more of a solution of either changing out the factory sub using the same factory enclosure with another maybe JL “shallow” 10” Sub

Bass in your Ram 1500

The sub, which is part of the Alpine and Harman Kardon systems, is found behind the rear seat. This 8" triple voice coil subwoofer (each voice coil has a 2.2-ohm impedance) is mounted to a polymer enclosure. It’s not terribly hard to get to, but you will need to fabricate a mounting bracket to secure your aftermarket 8" sub in the enclosure. You’ll also need to splice or solder the sub wires to the vehicle’s speaker wires, because there's no wiring harness adapter that will work here.

You will have to fiddle with the seats, which is challenging, but not too bad. Once they’re handled. All you need to do is pry out the rear wall trim enough to get to the sub enclosure, then remove the six Torx T25 screws securing subwoofer to the enclosure. Disconnect the harness and remove the subwoofer.

As with all other Alpine speakers in the Ram, replacing this low-impedance factory speaker with a 4-ohm aftermarket speaker will result in lower volume levels.

Tools Required: Panel tool, 10mm and 18mm sockets, ratchet and extension, Torx T25 driver

or


Last edited:

aswetich

Member
Joined
Dec 26, 2020
Messages
12
Reaction score
6
I'm not sure what year your truck is, but I came across a YouTube video a while back of a guy with a similar problem that was a software fix.



Sent from my moto g(7) using Tapatalk

Joined
Nov 20, 2018
Messages
19
Reaction score
4
Too be honest I would try the update first. I took my back seat out to disable the stock sub and the enclosure is much smaller then I thought. It may be too small to get any good bass out of it. Also the amount of rattle coming from the back wall with stock would only get worse.


Sent from my iPhone using Tapatalk
I appreciate the reply man! That’s good to know. I added a JL 10W3V3 to my last truck that had the alpine system and it was truthfully a lot more than I needed. I ended up having my bass gain knob at 1/4 only lol.

Joined
Nov 20, 2018
Messages
19
Reaction score
4
Bass in your Ram 1500

The sub, which is part of the Alpine and Harman Kardon systems, is found behind the rear seat. This 8" triple voice coil subwoofer (each voice coil has a 2.2-ohm impedance) is mounted to a polymer enclosure. It’s not terribly hard to get to, but you will need to fabricate a mounting bracket to secure your aftermarket 8" sub in the enclosure. You’ll also need to splice or solder the sub wires to the vehicle’s speaker wires, because there's no wiring harness adapter that will work here.

You will have to fiddle with the seats, which is challenging, but not too bad. Once they’re handled. All you need to do is pry out the rear wall trim enough to get to the sub enclosure, then remove the six Torx T25 screws securing subwoofer to the enclosure. Disconnect the harness and remove the subwoofer.

As with all other Alpine speakers in the Ram, replacing this low-impedance factory speaker with a 4-ohm aftermarket speaker will result in lower volume levels.

Tools Required: Panel tool, 10mm and 18mm sockets, ratchet and extension, Torx T25 driver

or

Thanks for the detailed reply! Seems extremely doable, have you had any experience seeing how much of a noticeable improvement was had in changing out that factory 8” HK Subwoofer in the original enclosure?

Joined
Nov 20, 2018
Messages
19
Reaction score
4
I'm not sure what year your truck is, but I came across a YouTube video a while back of a guy with a similar problem that was a software fix.



Sent from my moto g(7) using Tapatalk
I just recently got it’s a 2020 Rebel. That looks interesting to almost try that avenue first! Of course providing I could twist my local dealer’s arm to try it even if doesn’t apply to my VIN lol
