Toggle Switches

[pwrain]

Will be using this, may be overkill for just 1 set of lights, however also utilizing it for emergency lighting setup

https://www.feniex.com/themes/custom/feniex/images/Product_Hero_Slideshows/Sirens&Controllers/4200-mini/4200_mini_controller_2.jpg

That link didn't work for me.



[2019REBEL]

That link didn't work for me.

That link has jpg on the end try this one.

Feniex 4200 Mini Controller

These are more made for emergency lights. I use a STL wireless remote for my little lightbar,

Wireless Remote Switch Box - C-RSB | SpeedTech Lights

The Wireless Remote Switch Box contains 6 10 Amp inputs allowing for wireless control of any device with a range of up to 150 feet.

www.speedtechlights.com



[Rhinosoul]

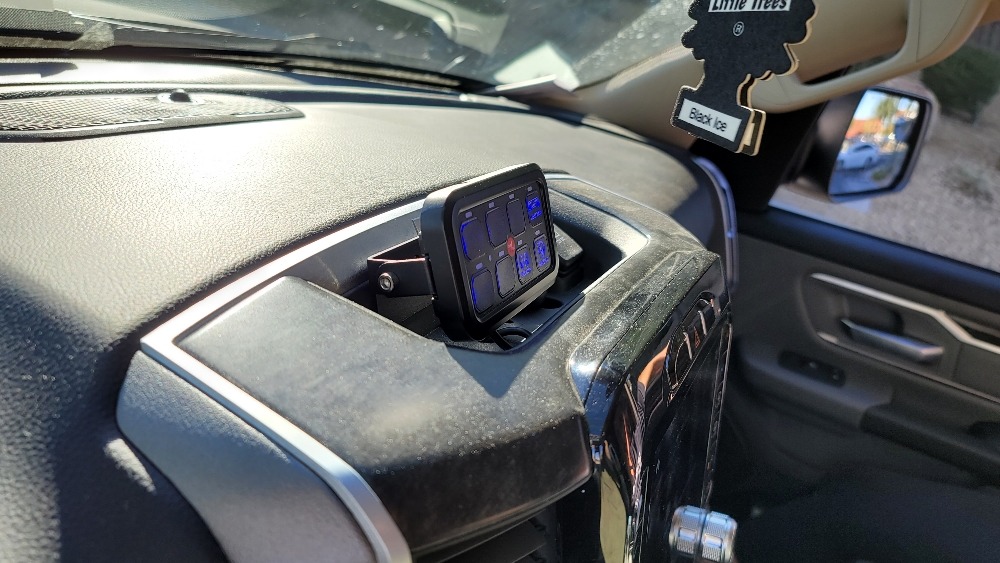

Here is how I handled the mounting of switches.

I 3D modeled a switch pro mount that uses the CD player as a mount.



[ramButz]

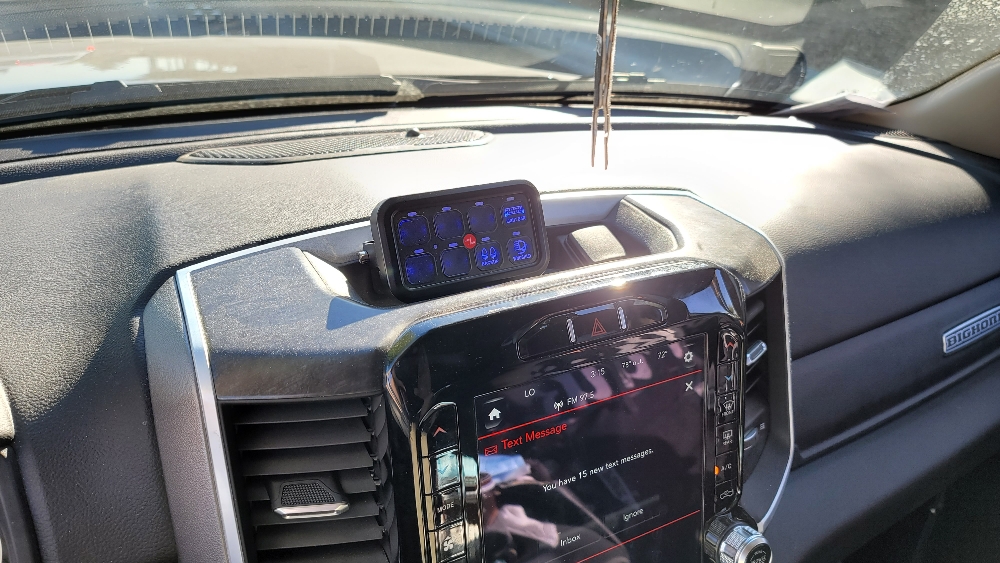

103-1645 hosted at ImgBB

Image 103-1645 hosted in ImgBB

ibb.co



[brawler1588]

103-1645 hosted at ImgBB

Image 103-1645 hosted in ImgBB

ibb.co

What switch is that?

Sent from my SM-G965U using Tapatalk



[Ramn'at]

Finally found a solution for switches that I am happy with! Did not use the CD player at all so I removed it, cut a piece of black ABS to fit into the hole and wired up a push button switch.



[ramButz]

What switch is that?

Sent from my SM-G965U using Tapatalk

Amazon.com: SWATOW 4x4 6 Gang Switch Panel, Universal On/Off LED Switch Panel Relay System Circuit Control Box Touch Switch Box for Car Truck Marine Boat ATV UTV: Automotive

Buy SWATOW 4x4 6 Gang Switch Panel, Universal On/Off LED Switch Panel Relay System Circuit Control Box Touch Switch Box for Car Truck Marine Boat ATV UTV: Light Bars - Amazon.com ✓ FREE DELIVERY possible on eligible purchases

www.amazon.com



[Spaz86]

That's how I did mine. I found that spot to be useless for anything else.

Sent from my SM-N986U using Tapatalk



[FishOn]



[CharlieP]

Here is where mine are mounted



[Stuartu11]

Just finished setting up my swithpros. I mounted the switch panel to the proclip cell phone mount that clips onto the vent and ran the wire in behind the center screen. No drilling any dash panels so all is reversible.



[Rich51]

This was a great read. I was wondering those with the multi switch panels, do you have it tapped in somehow to turn off when the truck is off? If so where did you tap into? I am looking to add some lights soon and want to be ready to go once I start. Thank you really enjoy this group for all the help.



[Scmil]

This was a great read. I was wondering those with the multi switch panels, do you have it tapped in somehow to turn off when the truck is off? If so where did you tap into? I am looking to add some lights soon and want to be ready to go once I start. Thank you really enjoy this group for all the help.

I am running the Voswitch UV-100. Its another 8 button switch panel. It is however programable (each button can be momentary, strobe, emergency flash, normal on/off) I have mine currently running into the ACC on fuse so it will shut off when the truck is off. Currently have two lights, compressor, and horn connected. It is a little more than amazon boxes, but less than switchpros. The only reason I went with this was for the ability to program for momentary.



[Rich51]

I am running the Voswitch UV-100. Its another 8 button switch panel. It is however programable (each button can be momentary, strobe, emergency flash, normal on/off) I have mine currently running into the ACC on fuse so it will shut off when the truck is off. Currently have two lights, compressor, and horn connected. It is a little more than amazon boxes, but less than switchpros. The only reason I went with this was for the ability to program for momentary.

Do you happen to know which one, the ACC is?



[Scmil]

Do you happen to know which one, the ACC is?

Hard-wire Dash Cam Install

I had this setup on my F150 and just finished the install on my RAM. I run a Viofo A129 dual dash cam, with the rear cam mounted on the passenger side of the sliding rear window (cable tucked up inside the headliner on the passenger side. Dash cam -...

5thgenrams.com



[Rich51]

Hard-wire Dash Cam Install

I had this setup on my F150 and just finished the install on my RAM. I run a Viofo A129 dual dash cam, with the rear cam mounted on the passenger side of the sliding rear window (cable tucked up inside the headliner on the passenger side. Dash cam -...

5thgenrams.com

Thank you very much I appreciate the help.



[LoNeStAr]

Ram 1500 Switch. Instrument panel - 68309266AD | Libertyville IL

Switch. Instrument panel. Ram 1500. Genuine Ram Part - 68309266AD (68309266AA, 68309266AB, 68309266AC). Ships from Libertyville IL

www.mymoparpart.com

This could possibly work if you can access the back of the buttons



[tazam80]

Here is how I handled the mounting of switches. View attachment 59161

I 3D modeled a switch pro mount that uses the CD player as a mount.

Can you share that stl?

Sent from my SM-S908U1 using Tapatalk



[Adrianp89]

Finally found a solution for switches that I am happy with! Did not use the CD player at all so I removed it, cut a piece of black ABS to fit into the hole and wired up a push button switch.

Any tips to make this a perfect size? your's looks pretty good.



[ramButz]

update...
