License Plate Reverse light
- Thread starter dad2steph
- Start date

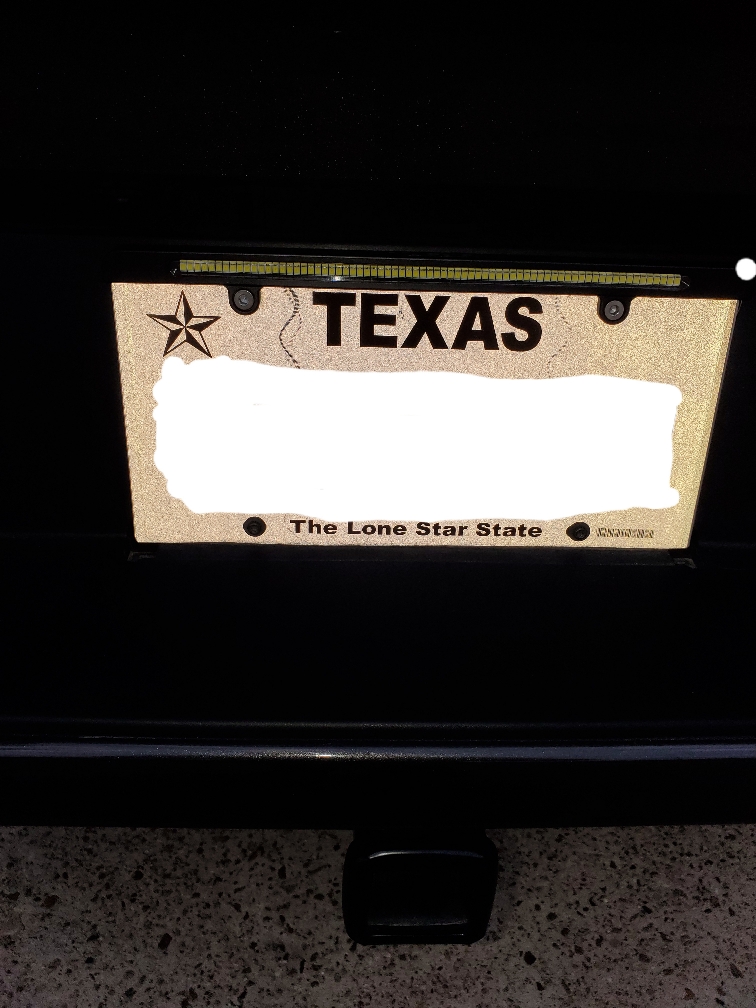

Installed my VLED kit tonight and can't be happier; what a difference. Extra LED completely eliminates and brake light red hue. That was my biggest issue before, if I did not ride the brake light there was "almost" enough illumination. Now I can see my exhaust fumes like I did on my Gen4!
Trimmed the plate along the bottom edge, lower the holes from top 3/8" and also drilled a hole for the grommet in the upper right corner for the power lead towards the harness. I chose to clip the Curt T-harness and wire up maybe a foot of the VLED female wire to it (Blue to Black-White and White to solid black). A lot less wire to deal with!
NOW, if I could somehow install a manual switch to crank these light on-demnd, that would be great! That would be priceless for backup up on a boat ramp, loading deer carrier, setting up the camp site, etc, etc...any thoughts on this would be very much appreciated!
Trimmed the plate along the bottom edge, lower the holes from top 3/8" and also drilled a hole for the grommet in the upper right corner for the power lead towards the harness. I chose to clip the Curt T-harness and wire up maybe a foot of the VLED female wire to it (Blue to Black-White and White to solid black). A lot less wire to deal with!
NOW, if I could somehow install a manual switch to crank these light on-demnd, that would be great! That would be priceless for backup up on a boat ramp, loading deer carrier, setting up the camp site, etc, etc...any thoughts on this would be very much appreciated!
Jako
Spends too much time on here
This is how I wired up my reverse lights and a set of lights for my tailgate (states bed lights in note). It enables me to work on my tailgate area and also lights up the path behind the truck. I have a separate set of LED strip lights mounted to my bed rails for inside the bed on a separate switch. As you can see from the pictures it is mounted to the cover hole for the factory OEM bed lights. The center position of the switch shuts off power to the lights all together. I purchased the DPDT switch on ebay and very carefully cut out the hole for the switch.
You can set up additional lights from your trailer harness utilizing the white wire and a ground and put those where you see fit. BE CAREFUL not to leave them on though. I'm still planning on putting some sort of timer on my LED strips to prevent leaving them on due to CRS condition.
