Adding Passive Entry: How-to

vincentw56 said:
Yes, the door panels need to be removed. And yes, you can install on both front doors.
Click to expand...
Thanks. I was wondering if you HAVE TO install on both front doors or if you can just do drivers side?

Also, bummer to know interior panels have to be removed. I'm gonna be worried if they have to remove them to repaint. The last time I had body work done where the panels were removed, I had some rattles afterwards. Drove me nuts and wasn't worth the headache that would be asking the shop to fix an occasional rattle. I'd almost rather have exterior scratches to be honest.

swing4terps said:
I've read through this whole thing once, albeit many months ago. Had a couple questions; was hoping I could get some quick answers rather than scanning the whole thread again.

Was side-swiped at slow speed unfortunately and the repair MIGHT require a full repaint of the driver side of the truck. Figured if there was ever a time to do this mod, it might be now. Especially because I have a BTS and would need to replace all the handles (likely painted Tank Green) since textured aren't available in PE variety.

1) Body shop said they would remove all trim and handles to repaint. Does removing the handles require removal of the interior door panel? If it does, might as well do the harness at the same time. Even if it doesn't, it would be a good time to get four handles painted to match and I know I can relatively easily swap them myself if I want to do the harness later.

2) Can you only install PE on the driver's side? Or does it have to be both front doors to work properly?

Thanks in advance!
Click to expand...

Removal of just the door handles/caps does not require removal of anything on the interior. It’s all done via the screw behind the small plug on the striker side of the door.

You can install PE on just the drivers door and it will function, however you will have a fault in the fobiksafe system which is discussed in this thread.


Sent from my iPhone using Tapatalk

MayhemMOORE said:
Removal of just the door handles/caps does not require removal of anything on the interior. It’s all done via the screw behind the small plug on the striker side of the door.

You can install PE on just the drivers door and it will function, however you will have a fault in the fobiksafe system which is discussed in this thread.


Sent from my iPhone using Tapatalk
Click to expand...
Just went outside and took a peek. Saw the plug on the front door. The rear door appears to be different. Do you know off hand the process for that?

swing4terps said:
Just went outside and took a peek. Saw the plug on the front door. The rear door appears to be different. Do you know off hand the process for that?
Click to expand...

The rear doors are the same process, the hole is just hidden behind the weather stripping straight back from the handle/cap.


Sent from my iPhone using Tapatalk

Jimmy07 said:
If anybody doesn’t want to spend the money for the entire door harnesses and rear facia harness, and doesn’t feel like building the add on harnesses with the parts, let me know and I can build them for you-
Click to expand...
These still being built?? Id like pricing if so!

Hi, I would be interested to add a Passive Entry. my VIN: 1C6RRFFG5KN694170 I already have to start with the button.
is it possible to finish only the front handles without the loading door handles?
will i have to replace fobik?
I would like to make sure what I need to buy

Thank you

Last edited:
Why are the handle caps left/right?
is it the key for the driver side?
which is the driver side? Left or right?
curious because i might do back doors too.

J-barcarp said:
Why are the handle caps left/right?
is it the key for the driver side?
which is the driver side? Left or right?
curious because i might do back doors too.
Click to expand...

Left should be the driver’s side and has the key hole. You need to swap the internals from yours into the new one. The remaining 3 caps on the truck are all the same since they don’t have the hole and come ready to install.


Sent from my iPhone using Tapatalk

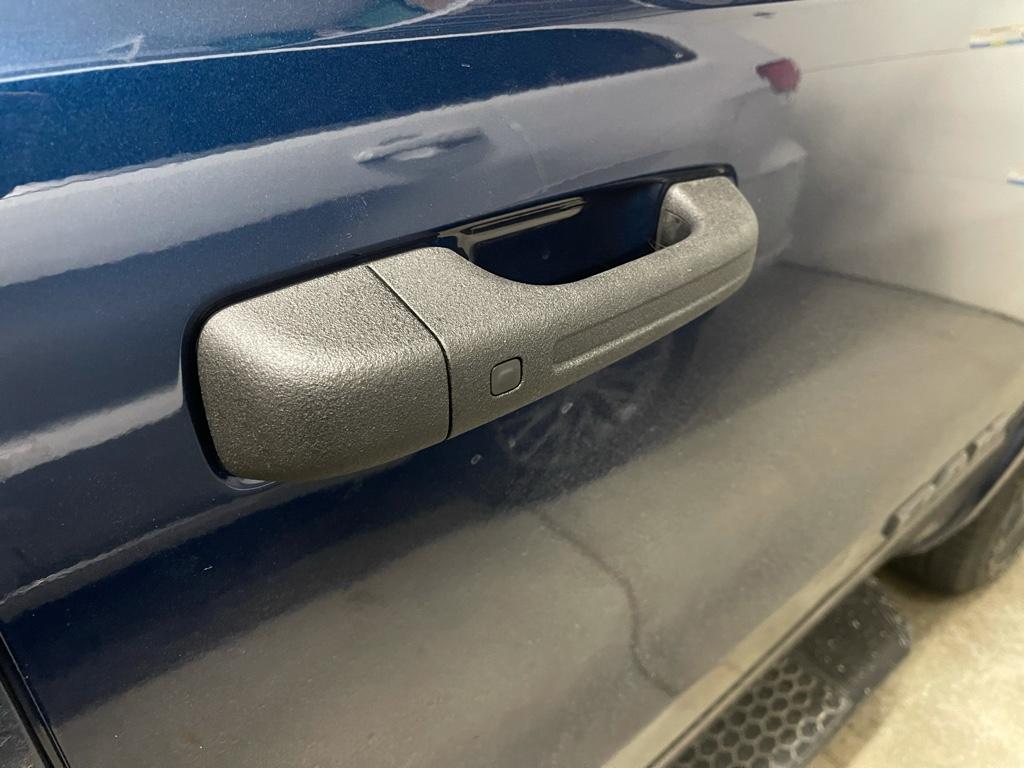

Finally finished my install. I have a 2020 BTS, and I actually liked the way the matte handles looked. I ordered the patriot blue handles just in case I had second thoughts on what I was about to do.
I scuffed up the handles and started with Duplicolor’s bed armor. The texture was good, but the coverage was bad. After 4 coats, I could still see color through the texture. I ended up hitting it with a light coats of Rustoleum textured black. I’m not sure how it will hold up, but if it doesn’t, it won’t take much to sand down and respray it. I think it turned out decent.



Jimmy07’s harnesses made this an easy install.


Sent from my iPhone using Tapatalk

scoobee001 said:
Finally finished my install. I have a 2020 BTS, and I actually liked the way the matte handles looked. I ordered the patriot blue handles just in case I had second thoughts on what I was about to do.
I scuffed up the handles and started with Duplicolor’s bed armor. The texture was good, but the coverage was bad. After 4 coats, I could still see color through the texture. I ended up hitting it with a light coats of Rustoleum textured black. I’m not sure how it will hold up, but if it doesn’t, it won’t take much to sand down and respray it. I think it turned out decent.



Jimmy07’s harnesses made this an easy install.


Sent from my iPhone using Tapatalk
Click to expand...

Can you snap a picture with the new and original handles together?


Sent from my iPad using Tapatalk

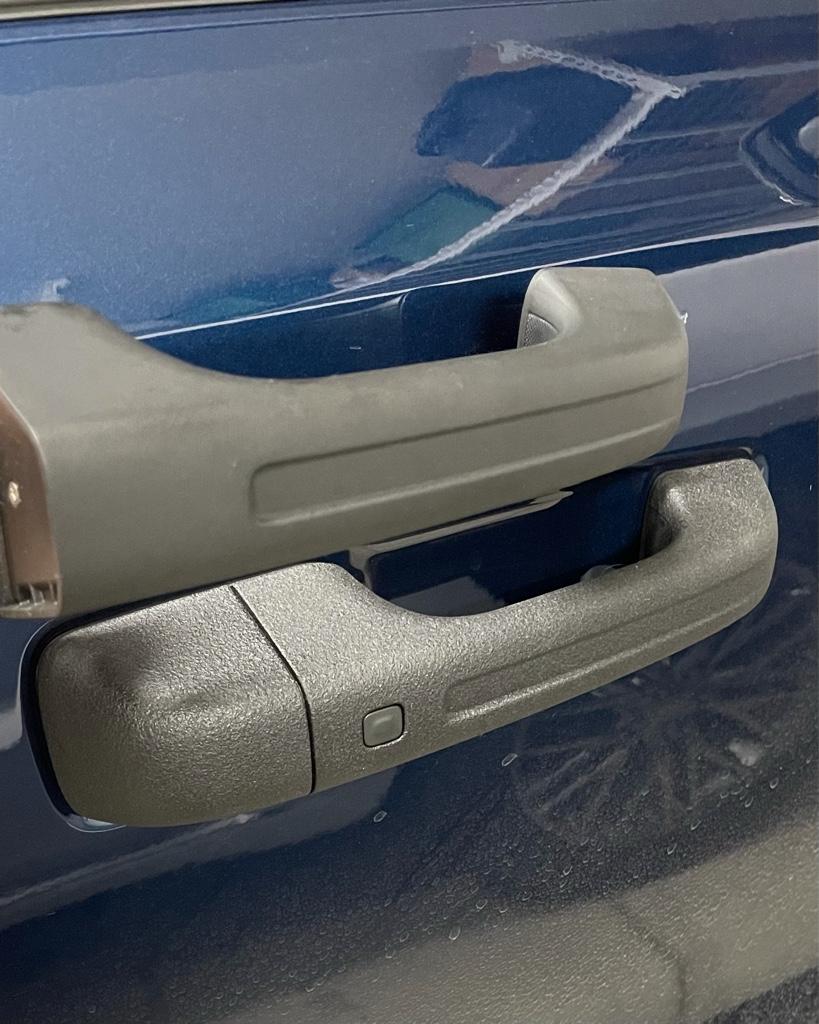

Side by side mine have a bit more texture because of the bed armor, but if you wanted a close match, the rustoleum textured black is close on its own. It fits with my truck as I have the Lomax bed cover which has a bed liner coating too.



Sent from my iPhone using Tapatalk

scoobee001 said:
Side by side mine have a bit more texture because of the bed armor, but if you wanted a close match, the rustoleum textured black is close on its own. It fits with my truck as I have the Lomax bed cover which has a bed liner coating too.



Sent from my iPhone using Tapatalk
Click to expand...

Thank you sir. I know which direction I'm going with my bts.


Sent from my iPad using Tapatalk

I’ve made it through many pages of this thread and haven’t found what I’m looking for. I’m interested in adding passive entry to the rear doors on my truck. It’s already equipped with passive entry on the front. Is there a post somewhere in here that details how to tap in and wire this up for the rear?

on a side note, it drives me nuts that the truck doesn’t have it on all doors. My 10 year old Audi and my wife’s Honda minivan even have it on all doors…

JDHarris said:
I’ve made it through many pages of this thread and haven’t found what I’m looking for. I’m interested in adding passive entry to the rear doors on my truck. It’s already equipped with passive entry on the front. Is there a post somewhere in here that details how to tap in and wire this up for the rear?

on a side note, it drives me nuts that the truck doesn’t have it on all doors. My 10 year old Audi and my wife’s Honda minivan even have it on all doors…
Click to expand...

I was going to add it to the write up once I got it accomplished. @Jimmy07 were you ever able to track down the terminal pins for this? It’s still on my to-do list as well.


Sent from my iPhone using Tapatalk

MayhemMOORE said:
If you are going to use the numbers below to order parts, double check them as things can change over time, so it's going to be up to you to verify you're getting the correct part when ordering. If you find a mistake please let me know so I can correct it.

5th Gen 1500 Handle and Cap Part Numbers
These should work on any of the 2019 and newer 5th gen 1500 trucks. Harnesses are going to be more specific based on your options, or you can just add the 2 wires and plugs to your existing stuff and save a good bit of money.

COLORBODY COLOR HANDLE, L & RBODY COLOR/CHROME HANDLE L & RHANDLE CAP, LEFTHANDLE CAP, RIGHT
Bright White6CV64GW7AD6CV361W7AD6CV50GW7AC6CV52GW7AB
Ivory White6CV64KGZAD6CV361WDAD6CV50JWDAC6CV52JWDAB
Diamond Black Crystal6CV64KXJAD6CV361XJAD6CV50KXJAC6CV52KXJAB
Maximum Steel Metallic6CV64KARAD6CV361ARAD6CV50KARAC6CV52KARAB
Granite Crystal Metallic6CV64LAUAD6CV361AUAD6CV50LAUAC6CV52LAUAB
Billet Silver Metallic6CV64JSCAD6CV361SCAD6CV50JSCAC6CV52JSCAB
Patriot Blue Pearl6CV64RPXAD6CV361PXAD6CV50RPXAC6CV52RPXAB
Blue Streak Pearl6CV64KCLAD6CV361CLAD6CV50KCLAC6CV52KCLAB
Flame Red6CV64PR4AD6CV361R4AD6CV50PR4AC6CV52PR4AB
Olive Green6CV64KFPAD6CV361FPAD6CV50KFPAC6CV52KFPAB

Replacement Clips for the 1500 door panels
Door Interior Trim Panel Retainer (Yellow): 6510747AA
Door Interior Trim Panel Retainer (White): 6510359AA

HD Part Numbers
The part numbers for the HD's were sourced using a 2020, 6.7L Cummins 4WD Bighorn Crew Cab, but should be the same for all the newer HD's. If anyone has numbers for the body color/chrome handles, please let me know so I can update the list. This is just what I have been able to easily find so far.

COLORBODY COLOR HANDLE, LEFTBODY COLOR HANDLE, RIGHTBODY COLOR/CHROME, LEFTBODY COLOR/CHROME, RIGHT
Hydro Blue
1UJ81MBJAI
1UJ86MBJAI
Olive Green Pearl Coat
1UJ81KFPAI
1UJ86KFPAI
Diamond Black Crystal
1UJ81KXJAI
1UJ86KXJAI
Black Forest Green Pearl Coat
1UJ81KGZAI
1UJ86KGZAI
Bright Silver Metallic
1UJ81WS2AI
1UJ86WS2AI
Maximum Steel Metallic
1UJ81KARAI
1UJ86KARAI
True Blue Pearl Coat
1UJ81KBUAI
1UJ86KBUAI
Blue Streak Pearl Coat
1UJ81KCLAI
1UJ86KCLAI
Dark Garnet Read Pearl Coat
1UJ81NRVAI
1UJ86NRVAI
Billet Silver Metallic
1UJ81JSCAI
1UJ86JSCAI
Bright White Clear Coat
1UJ81GW7AI
1UJ86GW7AI
Brilliant Black Crystal Pearl Coat
1UJ81AXRAI
1UJ86AXRAI
Flame Red Clear Coat
1UJ81PR4AI
1UJ86PR4AI
Patriot Blue Peal Coat
IUJ81RPXAI
1UJ86RPXAI
6NV571PXAD6NV561PXAC
Pearl White Pearl Coat
1UJ81PWQAI
1UJ86PWQAI
Granite Crystal Met. Clear Coat
1UJ81LAUAI
1UJ86LAUAI

The following is a breakdown of the parts you will need to assemble your own 2-wire harnesses for the doors, as well as the rear antenna. All of the connectors and terminals can be found at Mouser or Digikey, except for the Yazaki stuff.

Rear Antenna Wiring Parts
22AWG wire (2 colors to make it easy)
Heat shrink tubing (recommended)
Braided wire sleeve (recommended)
Rear PE Antenna: 52112204AA or 56046957AA should work in this location
2019 & 2020 Rear Fascia Connector Terminals: TE Connectivity 1241380-1
2019 & 2020 Rear Fascia Connector Wire Seals: TE Connectivity 828904-1
2021 Rear Fascia Connector Terminals:
2021 Rear Fascia Connector Wire Seals:
2019+ Rear Antenna Connector Shell: TE Connectivity 1-1438608-5
2019+ Rear Antenna Connector Shell Terminals: TE Connectivity 1355717-1
2019+ Wire Seals for Antenna Terminals: TE Connectivity 963530-1

Door Handle Wiring Parts
18AWG wire (2 colors to make it easy)
Heat shrink tubing (recommended)
Braided wire sleeve (recommended)
Door Connector Terminals: Aptiv 10762775
Door Handle Connector Shell: Yazaki 7283-6079-30
Door Handle Connector Shell Terminals: Yazaki 7116-4720-02

Yazaki parts are hard to find without ordering minimum quantities. One option is to call SMD Inc, and see if they’ll send you free samples (2 connectors, 4 terminals).
Click to expand...
Just wanted to update the HD door handle list. I was able to pull these from an electronic parts catalogue (@MayhemMOORE: feel free to delete this post and update the original):

COLORBODY COLOR, FRONT LEFTBODY COLOR, FRONT RIGHTBODY COLOR, REAR LEFTBODY COLOR, REAR RIGHTBODY COLOR/CHROME, FRONT LEFTBODY COLOR/CHROME, FRONT RIGHTBODY COLOR/CHROME, REAR LEFTBODY COLOR/CHROME, REAR RIGHT
BILLET SILVER METALLIC1UJ81JSCAI1UJ86JSCAI1GH19JSCAF1GH18JSCAF6NV571SCAD6NV561SCAC6NV591SCAC6NV581SCAC
BLACK FOREST GREEN PEARL1UJ81KGZAI1UJ86KGZAI1GH19KGZAF1GH18KGZAF6NV571GZAD6NV561GZAC6NV591GZAC6NV581GZAC
BLUE STREAK PEARL1UJ81KCLAI1UJ86KCLAI1GH19KCLAF1GH18KCLAF6NV571CLAD6NV561CLAC6NV591CLAC6NV581CLAC
BRIGHT SILVER METALLIC1UJ81WS2AI1UJ86WS2AI1GH19WS2AF1GH18WS2AF6NV571S2AD6NV561S2AC6NV591S2AC6NV581S2AC
BRIGHT WHITE1UJ81GW7AI1UJ86GW7AI1GH19GW7AF1GH18GW7AF6NV571W7AD6NV561W7AC6NV591W7AC6NV581W7AC
BRILLIANT BLACK PEARL1UJ81AXRAI1UJ86AXRAI1GH19AXRAF1GH18AXRAF6NV571XRAD6NV561XRAC6NV591XRAC6NV581XRAC
DELMONICO RED1UJ81NRVAI1UJ86NRVAI1GH19NRVAF1GH18NRVAF6NV571RVAD6NV561RVAC6NV591RVAC6NV581RVAC
DIAMOND BLACK CRYSTAL PEARL1UJ81KXJAI1UJ86KXJAI1GH19KXJAF1GH18KXJAF6NV571XJAD6NV561XJAC6NV591XJAC6NV581XJAC
FLAME RED1UJ81PR4AI1UJ86PR4AI1GH19PR4AF1GH18PR4AF6NV571R4AD6NV561R4AC6NV591R4AC6NV581R4AC
GRANITE CRYSTAL METALLIC1UJ81LAUAI1UJ86LAUAI1GH19LAUAF1GH18LAUAF6NV571AUAD6NV561AUAC6NV591AUAC6NV581AUAC
MAXIMUM STEEL METALLIC1UJ81KARAI1UJ86KARAI1GH19KARAF1GH18KARAF6NV571ARAD6NV561ARAC6NV591ARAC6NV581ARAC
PATRIOT BLUE PEARL1UJ81RPXAI1UJ86RPXAI1GH19RPXAF1GH18RPXAF6NV571PXAD6NV561PXAC6NV591PXAC6NV581PXAC
PEARL WHITE1UJ81PWQAI1UJ86PWQAI1GH19PWQAF1GH18PWQAF6NV571WQAD6NV561WQAC6NV591WQAC6NV581WQAC
TRUE BLUE PEARL1UJ81KBUAI1UJ86KBUAI1GH19KBUAF1GH18KBUAF6NV571BUAD6NV561BUAC6NV591BUAC6NV581BUAC
WALNUT BROWN METALLIC1UJ81RUWAI1UJ86RUWAI1GH19RUWAF1GH18RUWAF6NV571UWAD6NV561UWAC6NV591UWAC6NV581UWAC
HYDRO BLUE METALLIC1GH19MBJAF1GH18MBJAF6NV571BJAD6NV561BJAC
OLIVE GREEN METALLIC1GH19KFPAF1GH18KFPAF6NV571FPAD6NV561FPAC

MayhemMOORE said:
I was going to add it to the write up once I got it accomplished. @Jimmy07 were you ever able to track down the terminal pins for this? It’s still on my to-do list as well.


Sent from my iPhone using Tapatalk
Click to expand...
I can’t find them, or anything that will work as a substitute for them. The manufacturer won’t tell me the part numbers because “an OEM owns the drawings”.
I’ve done quite a few, but for now, the wires get pulled straight through the main door connector instead of terminating on each half of the door connector.

Jimmy07 said:
I can’t find them, or anything that will work as a substitute for them. The manufacturer won’t tell me the part numbers because “an OEM owns the drawings”.
I’ve done quite a few, but for now, the wires get pulled straight through the main door connector instead of terminating on each half of the door connector.
Click to expand...

Thanks for following up on it. I’ll probably reach out soon for some harnesses for the rear and just pull the wires through and tap into the trigger wires as you said. It’s not like I’m taking my doors off all the time and would really need the ability to unplug the harness.


Sent from my iPhone using Tapatalk
