Retrofitting the 33 gallon tank

Dixit

Active Member
Joined
Mar 20, 2019
Messages
81
Reaction score
126
Would the cost have been less if you were upgrading from a 26gal to 33gal(additional brackets, sensors, harness, etc)?

Yes. Biggest ticket item that wouldn’t be needed would be the fuel pump assembly. That runs like $600 at the dealer depending on discounts.

As mentioned in this thread, going from 26 to 33 you can reuse your fuel pump assembly. 23 to 33 you need a new one as it’s not compatible.


PorBoy

Spends too much time on here
Joined
Jun 15, 2018
Messages
4,554
Reaction score
2,692
Location
Millville NJ
Meaning sadly I really don’t drive unless I am going from here to North Carolina. Most of my current driving is in my turbocharged Accord.


Attachments

  • 0BFF9838-7A54-448A-8F02-4355B9F45C7E.jpeg
    145.2 KB · Views: 110
  • A8FCE15E-1BF6-4F04-9883-404D1DB10BC0.jpeg
    81.8 KB · Views: 111
  • 522D6124-4FF1-46B4-9A61-1988047B24EE.jpeg
    205.7 KB · Views: 108
  • F1AF53AE-A8DE-4A09-A666-3A0B45DFB670.jpeg
    158.4 KB · Views: 111

jsandgren10

Member
Joined
Oct 29, 2018
Messages
18
Reaction score
11
yes it would be less, i had replace everything

did your truck have the brace already built into the frame for the third fuel strap? That’s been my hang up for not installing mine yet, I don’t have the cross member that is on the frame to mount the last strap so have been waiting for time to figure out a fix.


Rammo83

Member
Joined
Jan 21, 2020
Messages
16
Reaction score
4
did your truck have the brace already built into the frame for the third fuel strap? That’s been my hang up for not installing mine yet, I don’t have the cross member that is on the frame to mount the last strap so have been waiting for time to figure out a fix.

i am not sure if there is bracket for the strap i have attached the invoice what parts i paid for. i have not had a chance to look under the truck to see where the straps or gas tank installed. i was told by them that those are all the parts needed to retro a 33 g tank from 23.


Attachments

  • tank.jpg
    94.2 KB · Views: 301

jsandgren10

Member
Joined
Oct 29, 2018
Messages
18
Reaction score
11
S
i am not sure if there is bracket for the strap i have attached the invoice what parts i paid for. i have not had a chance to look under the truck to see where the straps or gas tank installed. i was told by them that those are all the parts needed to retro a 33 g tank from 23.
o yea looks like they didn’t add the third strap to support the tank since they didn’t have you buy the extra strap. Tells me you don’t have the mount either


Dr. Jim

Ram Guru
Joined
Aug 16, 2018
Messages
756
Reaction score
553
PorBoy, that's a real nice looking Accord. I do not know much about Hondas. Is that a new model and did you just get it? Or did you have it before getting your 2019 Ram? How much horsepower? It looks quick!


PorBoy

Spends too much time on here
Joined
Jun 15, 2018
Messages
4,554
Reaction score
2,692
Location
Millville NJ
Thank you it’s a 10Th gen version and I picked it up in January of 2018. It’s fully equipped with all of their bells/ whistles. It’s wild as it’s a 10 speed electronic transmission paired with turbo. It’s pushing 300HP sadly through fwd and 19” ultra high performance tires. It’s a beast but you have to use both hands when accelerating that’s for sure lol.


Jako

Spends too much time on here
Joined
Sep 8, 2018
Messages
2,797
Reaction score
1,702
Location
Borough of Parks
Thank you it’s a 10Th gen version and I picked it up in January of 2018. It’s fully equipped with all of their bells/ whistles. It’s wild as it’s a 10 speed electronic transmission paired with turbo. It’s pushing 300HP sadly through fwd and 19” ultra high performance tires. It’s a beast but you have to use both hands when accelerating that’s for sure lol.
Why Ford stopped making sedans!
Wife's 2017 Civic, 6 speed manual, 175 hp, dual turbo got 47 mpg with 100% gas high test on eco mode. Honda impresses me.


Trooper4

Ram Guru
Joined
Feb 14, 2019
Messages
1,560
Reaction score
1,633
Location
Ellensburg, Washington

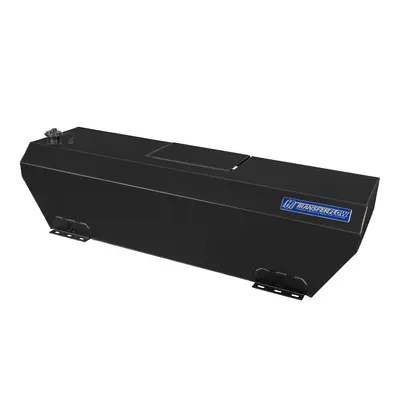

For those in need of serious fuel capacity, Transferflow makes in bed auxiliary tanks that transfers to the OEM tank automatically

Only problem I see is the closed system on the Ram, and some state and federal regulations concerning a transfer tank being connected directly to the vehicle fuel tank. Also, some state and federal parks will not allow you to park in any covered parking areas.


Rammo83

Member
Joined
Jan 21, 2020
Messages
16
Reaction score
4
just to provide an update. i got the required equipment was getting to do update the past weekend the dealership called me on friday saying they have a fix and i need just to bring in the truck to make update. Basically they contacted chrysler and they added the sales code for 33 gal tank and made it a dealer installed option specifically for my vin. and it added around 120 miles to the range. one thing i noticed the fuel light turns on now with about 5 gal fuel in the tank which seems normal from researching.


Dixit

Active Member
Joined
Mar 20, 2019
Messages
81
Reaction score
126
Remember the fuel pump and level unit is identical. The tank is basically identical in height and shape except it’s just extended.

On the programming side they have the same fuel empty and fuel marks. So when you elongate the tank you going to end up with more fuel even when the level unit senses fuel is low.


jsandgren10

Member
Joined
Oct 29, 2018
Messages
18
Reaction score
11
Remember the fuel pump and level unit is identical. The tank is basically identical in height and shape except it’s just extended.

On the programming side they have the same fuel empty and fuel marks. So when you elongate the tank you going to end up with more fuel even when the level unit senses fuel is low.

the 23 gallon tank has a different fuel pump than the 26/33 gallon tank


Dixit

Active Member
Joined
Mar 20, 2019
Messages
81
Reaction score
126
the 23 gallon tank has a different fuel pump than the 26/33 gallon tank

Yes forgot to mention they identical on 26/33. 23 a different pump. Thanks for adding this.


Sent from my iPhone using Tapatalk


Rammit

Ram Guru
Joined
Aug 21, 2018
Messages
719
Reaction score
643
Location
SE Michigan
Ever get a chance to add a third strap?
Not yet. I’ve been filling up only about 2/3 full. Once the weather turned, I put it on hold. How to get to it soon, now that spring is hopefully getting closer. I will update this as soon as I get it figured out.
