That's the main reason I went 48 inch no spacers so it doesn't stick out and rub the tailgate.
I used spacers on mine, but I mounted the bar a little too low and had to move it up a little. With the right location and spacers because of the back up cam harness, I still have about 1/8" between the tailgate and the LED bar when the tailgate is lowered. It's tighter than skin on a weenie as my father-in-law would say.


franklobs

New Member
Messages
1
Reaction score
0
Points
1
hey anyone know the color of the reverse wire for the led tailgate light 2020 Laramie 1500


dts828

Well-Known Member
Messages
433
Reaction score
240
Points
43
Location
Atlanta, GA
hey anyone know the color of the reverse wire for the led tailgate light 2020 Laramie 1500

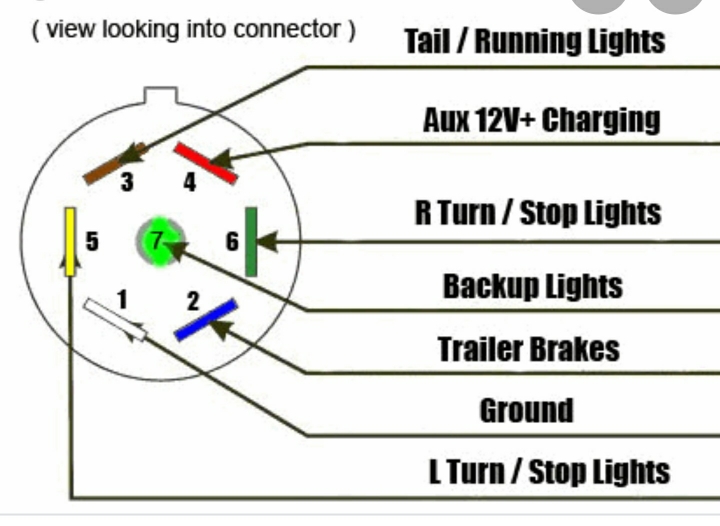

Don't know the color as I used the Curt adapter but I can tell you it is the center pin of the 7 pin trailer wiring plug if that helps.



Sent from my GM1917 using Tapatalk


kilcher

Active Member
Messages
61
Reaction score
35
Points
18
Dumb question, what's the point of the spacers? Just so it's not set back so far under the tailgate? I'm thinking of ordering this but using magnets to stick it on.


Bootleg

Member
Messages
23
Reaction score
25
Points
13
Dumb question, what's the point of the spacers? Just so it's not set back so far under the tailgate? I'm thinking of ordering this but using magnets to stick it on.
The whole piece under the tailgate is plastic on the new Rams. The light bar will not lay flat with the 3M tape due to the molding of the plastic. Plus, there is the reverse camera wiring harness that is close to the center. So, to clear the molded protrusions and the wiring harness, spacers were needed. The clips are screwed with spacers into the plastic shroud.


bribout

Member
Messages
14
Reaction score
12
Points
3
I hooked up the same light bar last week and mounted it the same. But I wired the reverse light part to the bed light switch on the left side. Now I can turn on the white light anytime from the cab, even when driving forward. Coolest feature ever.


Sent from my iPhone using Tapatalk
does it come on when you put the truck in reverse as well, or just when you turn on the bed lights?


ppowell1983

Well-Known Member
Messages
289
Reaction score
218
Points
43
does it come on when you put the truck in reverse as well, or just when you turn on the bed lights?
It does not. I would assume that you could wire a connecting wire to your reverse lights too, but I don't think that the reverse lights are dim, so I didn't worry about it. If for some reason I need them, I can activate the light bar with the switch in the cab.


bribout

Member
Messages
14
Reaction score
12
Points
3
It does not. I would assume that you could wire a connecting wire to your reverse lights too, but I don't think that the reverse lights are dim, so I didn't worry about it. If for some reason I need them, I can activate the light bar with the switch in the cab.
nice, I like that Idea. I really only bought it for my reverse, turn signals, and maybe the brake lights... was thinking about just wiring those up to start with. but if I can add it to the bed light switch and then use it as needed. might be a better solution. I don't think the reverse lights are that dim either, especially since I have LED flood lights in my driveway that are motion activated. ha. plus I can hit that switch when the people behind me drive with their high beams on. ;)


ppowell1983

Well-Known Member
Messages
289
Reaction score
218
Points
43
nice, I like that Idea. I really only bought it for my reverse, turn signals, and maybe the brake lights... was thinking about just wiring those up to start with. but if I can add it to the bed light switch and then use it as needed. might be a better solution. I don't think the reverse lights are that dim either, especially since I have LED flood lights in my driveway that are motion activated. ha. plus I can hit that switch when the people behind me drive with their high beams on. ;)
Yeah, using the LED light bar for the idiots that have their bright lights on is awesome. Especially the cars, the angle of the light bar is perfect for some good payback.


Jayturk

Active Member
Messages
95
Reaction score
83
Points
18
Location
Dacula, GA
Don't know the color as I used the Curt adapter but I can tell you it is the center pin of the 7 pin trailer wiring plug if that helps.



Sent from my GM1917 using Tapatalk
What adapter is this? I want to hook up tailgate LED with no cutting. Would like to have reverse, turn signals and brake lights operate. Will I be able to accomplish with this adapter? Thanks for your input.


dts828

Well-Known Member
Messages
433
Reaction score
240
Points
43
Location
Atlanta, GA
What adapter is this? I want to hook up tailgate LED with no cutting. Would like to have reverse, turn signals and brake lights operate. Will I be able to accomplish with this adapter? Thanks for your input.
I used the one linked below. No cutting or splicing on the truck or opt7 side. , it is a 5 pin so you can use a bullet terminal on the white wire(reverse wire) of the opt7 light bar and plug right in to the 5 pin harness of the above curt adapter I speced below.

CURT 56584 Replacement Vehicle-Side Custom USCAR 5-Pin Trailer Wiring Harness https://www.amazon.com/dp/B007EA6WQU/ref=cm_sw_r_em_apa_i_tBCMEbJW57VWF

I also posted below a not so great pic of the 4 pin opt7 plug connected to the 5 pin curt plug with reverse wire plugged in separately.



Sent from my GM1917 using Tapatalk


Jayturk

Active Member
Messages
95
Reaction score
83
Points
18
Location
Dacula, GA
I used the one linked below. No cutting or splicing on the truck or opt7 side. , it is a 5 pin so you can use a bullet terminal on the white wire(reverse wire) of the opt7 light bar and plug right in to the 5 pin harness of the above curt adapter I speced below.

CURT 56584 Replacement Vehicle-Side Custom USCAR 5-Pin Trailer Wiring Harness https://www.amazon.com/dp/B007EA6WQU/ref=cm_sw_r_em_apa_i_tBCMEbJW57VWF

I also posted below a not so great pic of the 4 pin opt7 plug connected to the 5 pin curt plug with reverse wire plugged in separately.



Sent from my GM1917 using Tapatalk
I think I have the wrong harness Curt 55384


dts828

Well-Known Member
Messages
433
Reaction score
240
Points
43
Location
Atlanta, GA
I think I have the wrong harness Curt 55384
That one will work it just will have to splice/tap the opt7 white reverse wire to the reverse wire on the Curt adapter. At least it won't be a tap on the factory wiring.

Sent from my GM1917 using Tapatalk


Jayturk

Active Member
Messages
95
Reaction score
83
Points
18
Location
Dacula, GA
That one will work it just will have to splice/tap the opt7 white reverse wire to the reverse wire on the Curt adapter. At least it won't be a tap on the factory wiring.
I can’t seem to get the reverse to work.
Sent from my GM1917 using Tapatalk


Jayturk

Active Member
Messages
95
Reaction score
83
Points
18
Location
Dacula, GA
Where did you splice the reverse into?

Sent from my GM1917 using Tapatalk
I got it, everything is working as it should. As I look at it, I think I will mount an aluminum bar and then mount the light strip on to it. The tailgate harness and the other non-level areas is not clean enough for me, spacers were used but still too wavy. Thanks for your assistance.


2020 Limited

Member
Messages
6
Reaction score
22
Points
3
I used the one linked below. No cutting or splicing on the truck or opt7 side. , it is a 5 pin so you can use a bullet terminal on the white wire(reverse wire) of the opt7 light bar and plug right in to the 5 pin harness of the above curt adapter I speced below.

CURT 56584 Replacement Vehicle-Side Custom USCAR 5-Pin Trailer Wiring Harness https://www.amazon.com/dp/B007EA6WQU/ref=cm_sw_r_em_apa_i_tBCMEbJW57VWF

I also posted below a not so great pic of the 4 pin opt7 plug connected to the 5 pin curt plug with reverse wire plugged in separately.



Sent from my GM1917 using Tapatalk
Do you have any issue with the Ram thinking a trailer is connected ? I've read you need to install a module for the light bar to function without interference .


dts828

Well-Known Member
Messages
433
Reaction score
240
Points
43
Location
Atlanta, GA
Do you have any issue with the Ram thinking a trailer is connected ? I've read you need to install a module for the light bar to function without interference .
No issues at all with trailer/blind spot warnings. The module that is talked about is required on Ford trucks.

Sent from my GM1917 using Tapatalk


Mreid12000

Member
Messages
6
Reaction score
0
Points
1
Im sorry but not very machanicly inclined does the redline come with clips or do u have to buy something alse and what are you using for spacers?


dts828

Well-Known Member
Messages
433
Reaction score
240
Points
43
Location
Atlanta, GA
Im sorry but not very machanicly inclined does the redline come with clips or do u have to buy something alse and what are you using for spacers?
It comes with the clips, you can pick up the 1/4" and 1/2" plastic spacers at home depot as well as approximately 1" long sheet metal screws.

Sent from my GM1917 using Tapatalk
