K&N Drop in filter with Carbon filter delete vs Vararam

[RAM Patriot]

All but two. I left the top and middle ones. If I can remember tomorrow, I'll snap some pictures. I just received my replacement Vararam today actually so I'm going to install that tomorrow anyway.

Sent from my Pixel 2 XL using Tapatalk

That would be great.

I have the RAM Airflow so same concept.



[Stony0604]

Did you unplug the negative terminal of your battery during the install so that the PCM would go back into learn mode?

Yes, I also don't have that many miles on it yet. I'll know next week after our long trip



[popcenator]

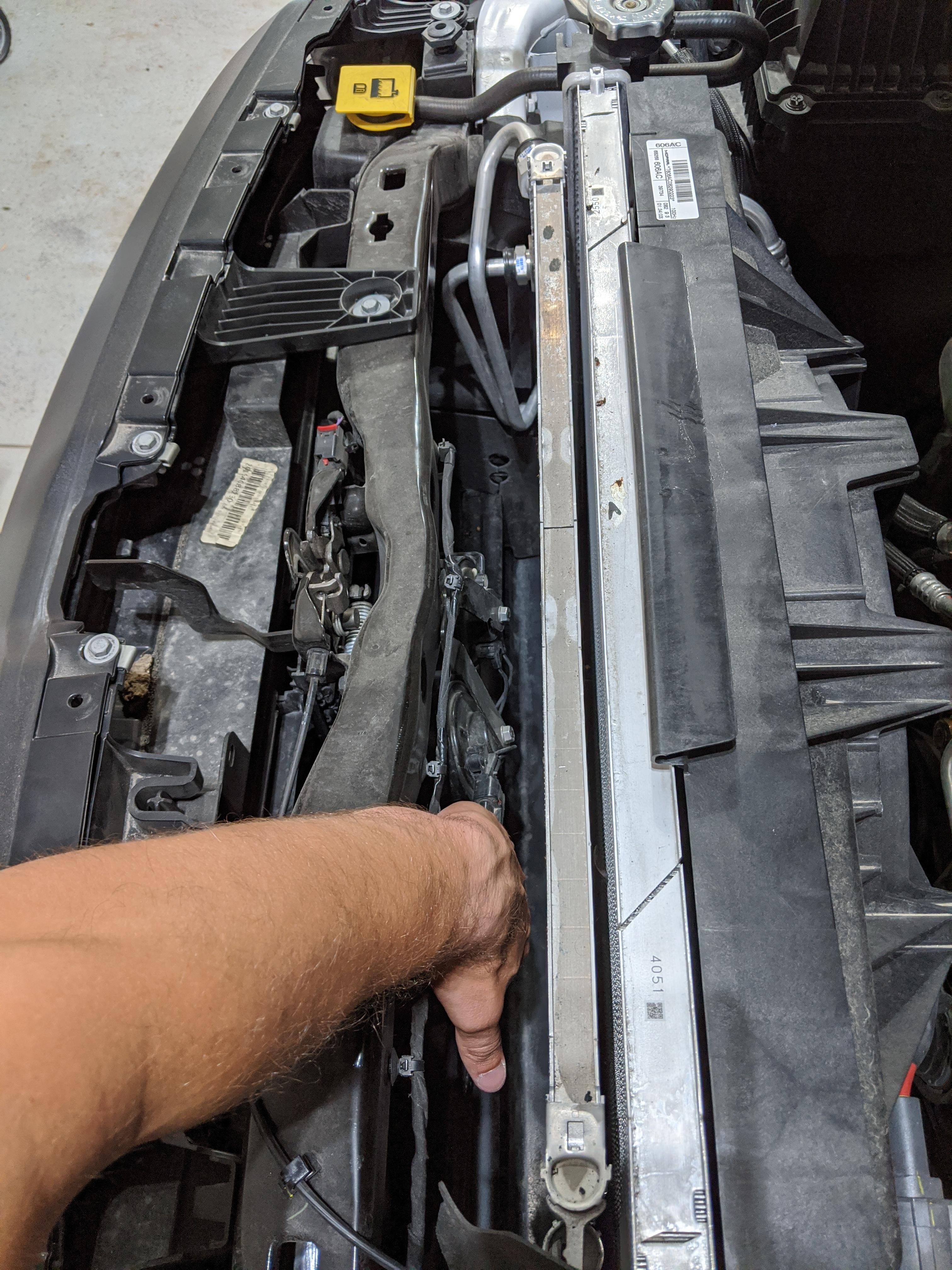

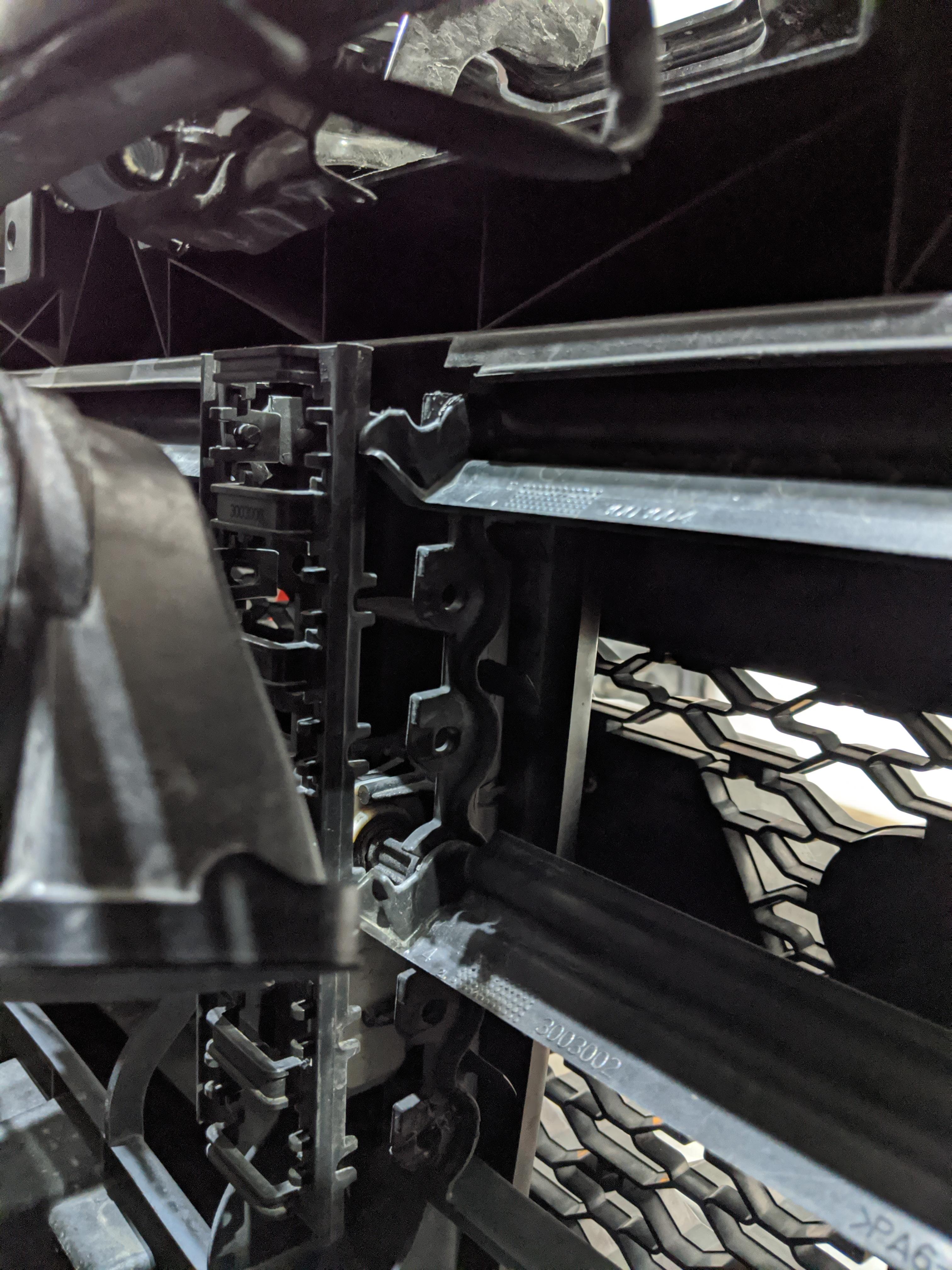

Here are a few pictures of how it looks and the route I went to remove the shutters. When you remove the plastic piece that says RAM covering the radiator, there was enough room to get my arm pretty much all the way down.

Sent from my Pixel 2 XL using Tapatalk



[popcenator]

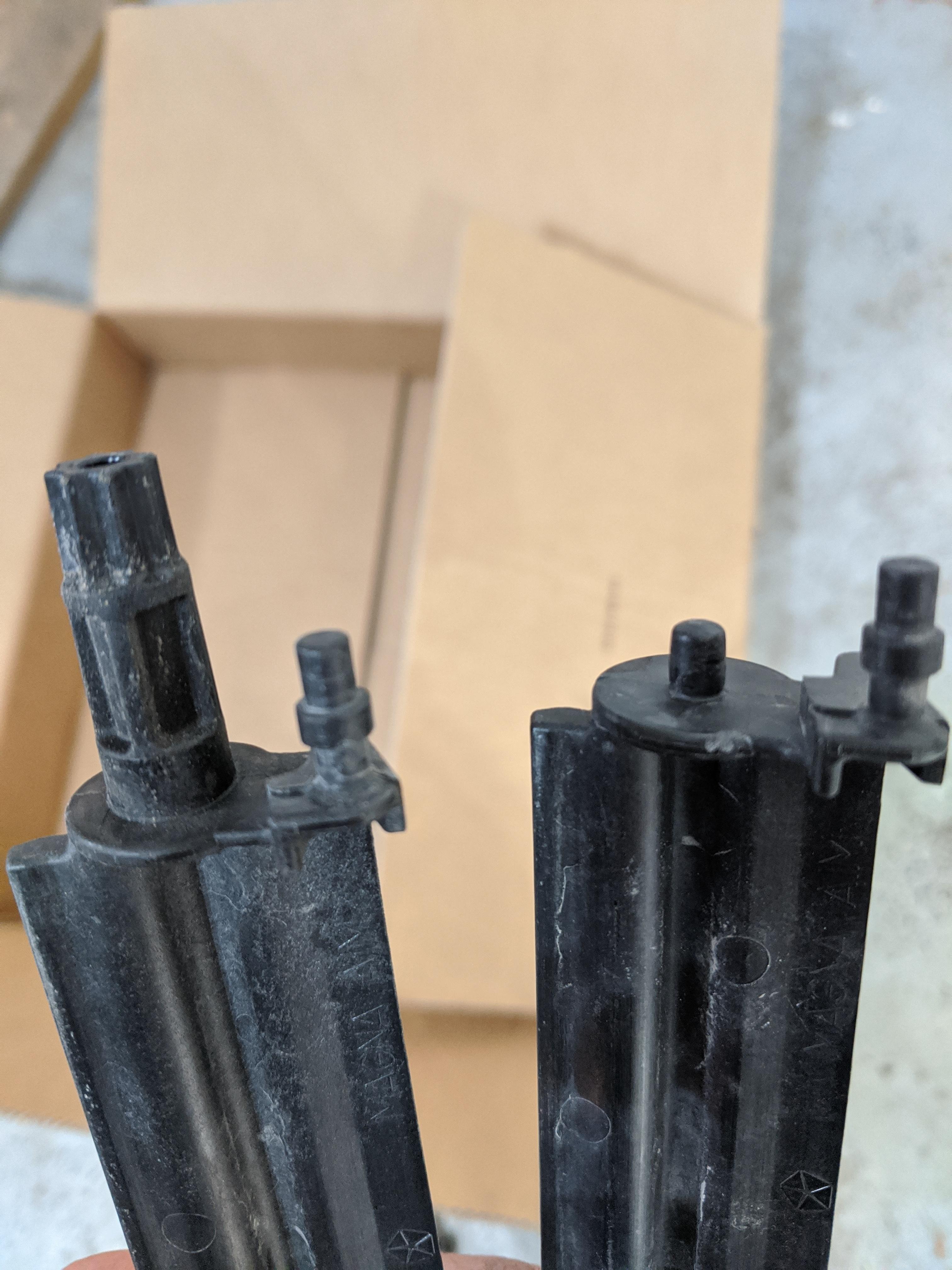

Here's a picture of the middle shutter vs the others. It doesn't look like the motor has an arm, rather the middle shutter has what looks like a gear end so that when the motor opens and closes, the middle shutter is what powers the rest. Point being, I think the middle shutter needs to stay on in order to keep the CEL off. I'm just guessing though.

Sent from my Pixel 2 XL using Tapatalk



[Hez]

Any updates??



[Cheebie]

So when you say drop in carbon filter, what does that mean? I had the K&N full cold air intake in my 2014 and I want to put the same in my 21 the 77 model with larger throttle body. So please fill me in between that and the Vararam. I really dont want to mess with the shutters, is that the only way to get strong air flow into the intake?



[securityguy]

So when you say drop in carbon filter, what does that mean? I had the K&N full cold air intake in my 2014 and I want to put the same in my 21 the 77 model with larger throttle body. So please fill me in between that and the Vararam. I really dont want to mess with the shutters, is that the only way to get strong air flow into the intake?

If you remove the stock intake cover, you will see a carbon filter physically attached to the top section (like a thin screen). You can either cut it out with a utility knife or melt the sonic welds to release it. I just cut mine out and called it a day.



[Cheebie]

So does cutting it out provide the same type of airflow as a k&n or vararam kit?



[Cheebie]

And do I replace it with another filter, sorry to be ignorant to this method but I have not heard of it before



[securityguy]

And do I replace it with another filter, sorry to be ignorant to this method but I have not heard of it before

You cut out the carbon and put a replacement drop in filter. I like the AEM dry filters.

2021 Ram 1500 5.7L V8 Gas Performance Parts | AEM

Shop K&N product that is compatible with the 2021 Ram 1500 5.7L V8 Gas.

www.aemintakes.com



[HSKR R/T]

Fwiw, I installed the vararam on my truck in November. I got it mostly for looks. If you are buying it for performance, you will be disappointed. As for the shutters, I don't think it will make much difference. Looking through the grill on my BTS, there is still a 3-4" gap under the shutters that still let's air flow through to radiator. And driving in the winter, my filter is ice cold if I pop the hood after driving, so it's getting good airflow.

I chose to trim my radiator cover to keep the RAM as I like the look of it. I then used a heat gun to warm up the plastic and flattened out the bend a little so I don't have to use spacers to keep it up.



[securityguy]

Fwiw, I installed the vararam on my truck in November. I got it mostly for looks. If you are buying it for performance, you will be disappointed. As for the shutters, I don't think it will make much difference. Looking through the grill on my BTS, there is still a 3-4" gap under the shutters that still let's air flow through to radiator. And driving in the winter, my filter is ice cold if I pop the hood after driving, so it's getting good airflow.

I chose to trim my radiator cover to keep the RAM as I like the look of it. I then used a heat gun to warm up the plastic and flattened out the bend a little so I don't have to use spacers to keep it up.

They do look awesome, but thanks for your honesty in that it does very little to enhance performance.



[popcenator]

I definitely noticed a difference with the Vararam installed especially mid-range in the RPMs, especially when it's cooler outside. It's not huge, but it's more noticeable than any intake I've had before.

Sent from my SM-N986U using Tapatalk



[arod412]

Hello...just reviving this thread a little. So ordered my Vararam from summit racing. Question in regards to the Plastic ram covering. Did you guys leave it off, or cut some of it out, or what other options I can do with it, so I can get max airflow into the cai, without cutting the plastic trim.


Thx


Owner of a 2020 Ram Laramie, 16 Dodge Charger scat pack and my wife 21 Jeep Wrangler Unlimited Sahara



[Mountain Whiskey]

Since the thread is an old one being revived, I thought I would throw in a question rather than start a new one...

What is the purpose of the shutter system?



[arod412]

Since the thread is an old one being revived, I thought I would throw in a question rather than start a new one...

What is the purpose of the shutter system?

My understanding is that it’s less drag and wind resistance at higher speeds. It pushes the air up and over the hood, or pushes it dow to the bottom and under the truck.


Owner of a 2020 Ram Laramie, 16 Dodge Charger scat pack and my wife 21 Jeep Wrangler Unlimited Sahara



[HSKR R/T]

Hello...just reviving this thread a little. So ordered my Vararam from summit racing. Question in regards to the Plastic ram covering. Did you guys leave it off, or cut some of it out, or what other options I can do with it, so I can get max airflow into the cai, without cutting the plastic trim.


Thx


Owner of a 2020 Ram Laramie, 16 Dodge Charger scat pack and my wife 21 Jeep Wrangler Unlimited Sahara

Trimmed mine and bent it up do as to not block air
