Backup LED Light bar Bracket

Sascwatch

Well-Known Member
Joined
Feb 17, 2020
Messages
366
Reaction score
183
Alot of guys are running the VLED license plate reverse light along with a curt harness adapter so there is no need to splice into the factory harness.

This light is not compatible with the multi function tailgate.




Bruins5515

Active Member
Joined
May 1, 2020
Messages
30
Reaction score
13
Ended up ordering the Brackets, Install was 100% play and play no drilling or splicing factory wires the way I ended up doing it. Part numbers are below for products used and some pictures of the lights on the truck. High quality Product from ZroadZ. Only issue with bracket and using rough country lights is the lights are a little short as shown in the picture, simple fix installing a few washers or a spacer.

ZRoadz Bracket: Z384821
Rough Country Light: 70706BL
Curt Trailer Adapter Harness: 56584
Curt Trailer Harness (not nessasary but cleaner install) : 58550


Attachments

  • IMG_1830.jpg
    88.4 KB · Views: 117
  • IMG_1833.jpg
    138.4 KB · Views: 109
  • IMG_1834.jpg
    133.9 KB · Views: 112
  • IMG_1835.jpg
    121 KB · Views: 114
  • IMG_1836.jpg
    110.9 KB · Views: 125
  • IMG_1841.PNG
    264.2 KB · Views: 128

Jako

Ram Guru
Joined
Sep 8, 2018
Messages
1,280
Reaction score
583
Location
NYC unfortunately

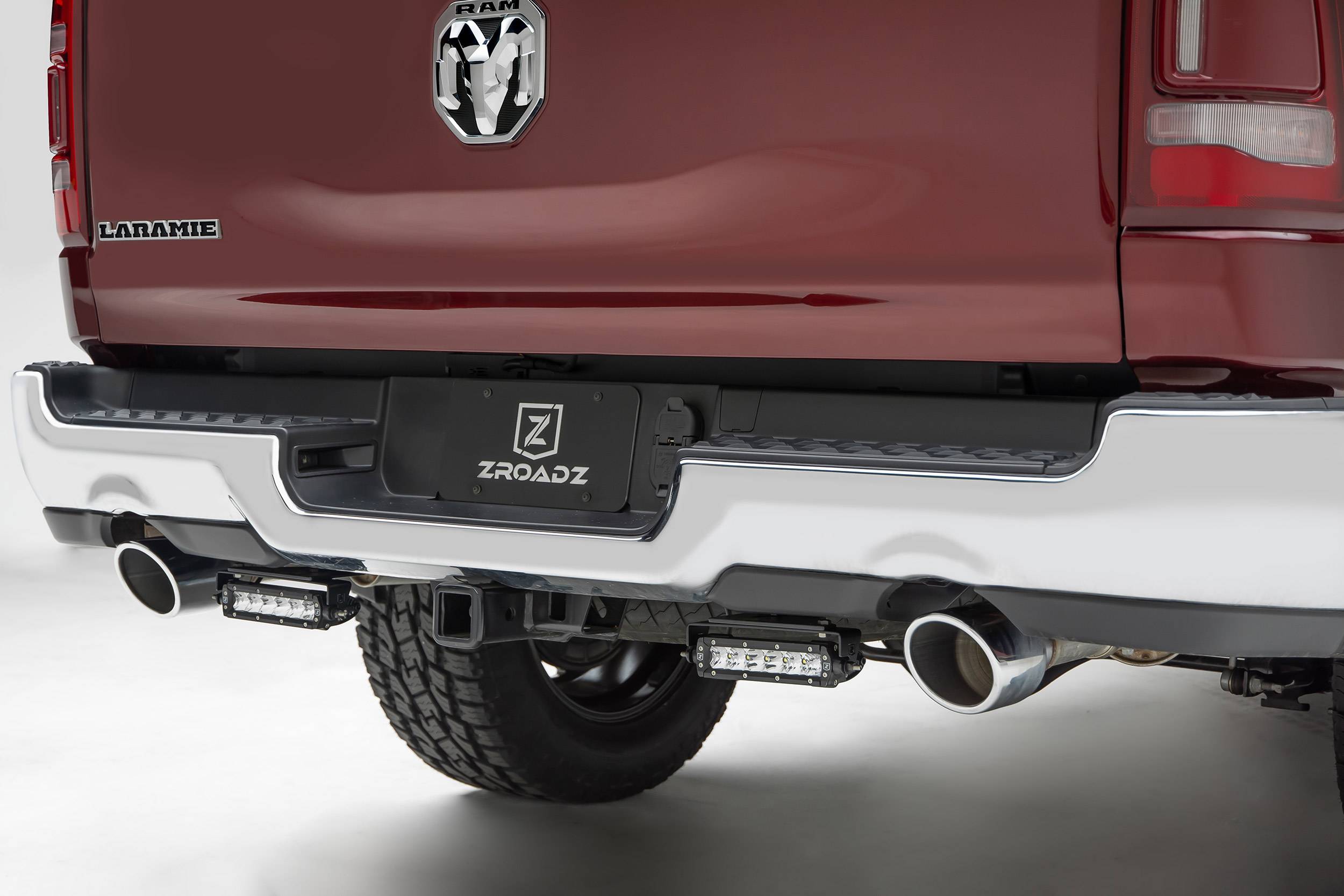

Has anyone tried out the Zroadz Backup light bracket below? Looking for a way to mount some lights without drilling any holes, so everything is reversible.
FYI, lot of options. Unless Vleds were updated there are issues with rubbing on the tailgate.


JCLAYTON13

Member
Joined
May 28, 2020
Messages
5
Reaction score
1
Alot of guys are running the VLED license plate reverse light along with a curt harness adapter so there is no need to splice into the factory harness.

This light is not compatible with the multi function tailgate.


I did this MOD super easy! I was done with in an hour and only spent $120 on everything needed for the job( light, T-harness, and 5 way plug) I now have an option to use a trailer that is wired with a 5 way flat harness.


Attachments

  • D2D6BE5D-D9A7-417A-A901-C2E3421A19A1.jpeg
    56.5 KB · Views: 64
  • BB1B02CC-CF12-488E-A590-ED2AF8424897.jpeg
    49.4 KB · Views: 66
  • 5BAD413C-B179-4F51-8DE9-D5B7EEB0254E.jpeg
    54.2 KB · Views: 69
  • AEFEC1EB-3B72-41D4-8528-F769C8EEC2EA.jpeg
    55 KB · Views: 66

firemedic10584

Active Member
Joined
Jun 25, 2019
Messages
93
Reaction score
74
I also have the VLED, I just tapped into my reverse signal though. In case any of you don't know, the tailgate on our trucks will make contact with the VLED light when it's all the way down. I put a small strip of black foam across the top of my light to pad it. Don't notice it's there and helps protect the paint on the tailgate.


Puddin414

New Member
Joined
Sep 11, 2020
Messages
3
Reaction score
0
I also have the VLED, I just tapped into my reverse signal though. In case any of you don't know, the tailgate on our trucks will make contact with the VLED light when it's all the way down. I put a small strip of black foam across the top of my light to pad it. Don't notice it's there and helps protect the paint on the tailgate.
Do you have LED tail lights?


Paultg

Well-Known Member
Joined
May 27, 2020
Messages
373
Reaction score
179
Location
Southern, NH
I bought the Vled plate lamp too. Haven’t installed it yet. I plan to just mount it upside down on the bottom of the plate to avoid issues with the tailgate.
