Amber lights in grille

[Ram Man 727]

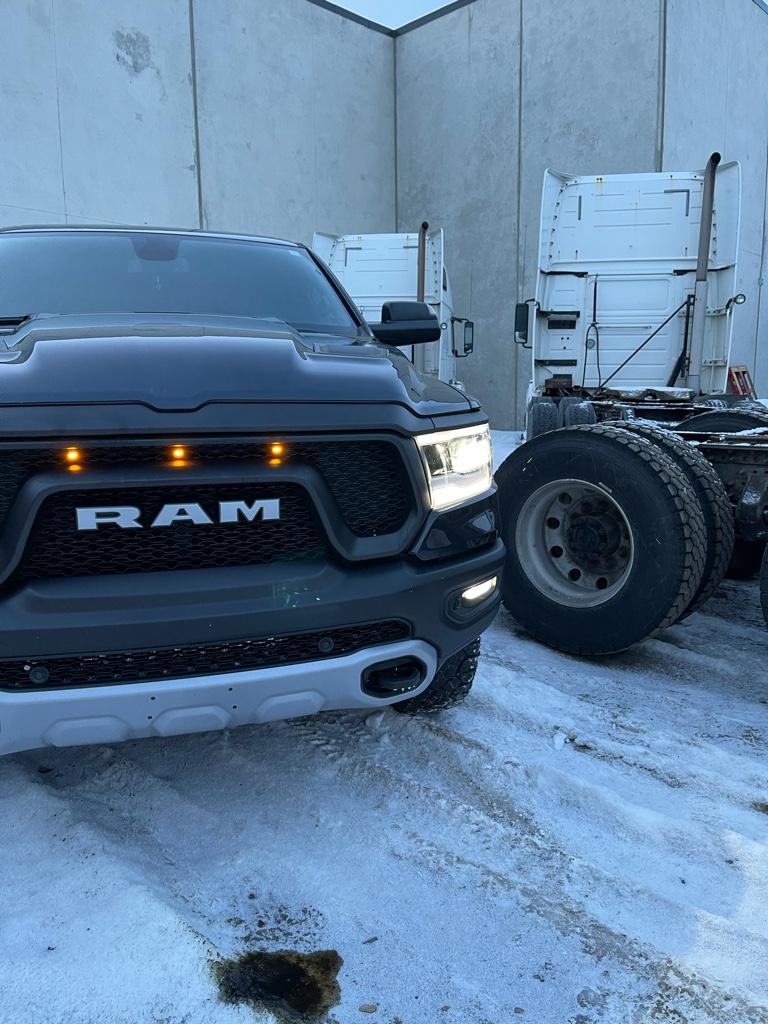

View attachment 79934

Looks great.. what lights did you use?



[2019GRamRebel]

Here are the ones I used, I did dremel off side tabs and inserted through front of grill. Held in with double sided tape wrapped around barrel of light. I used the smoked lense but amber lense is also available on Amazon.

BASIKER Auto Front Grille Lights for 2004-2019 Ford F150 Raptor F250 External White LED Lights Decoration | 3 Pack Black Lens https://www.amazon.com/dp/B07VCQ9PD1/ref=cm_sw_r_em_apa_i_GeqGEbF0WVCJZ

Sent from my GM1917 using Tapatalk

I actually used your grill as inspiration when I was doing mine!

I used these amber lights. Did my own and did a buddy’s F350. Only downside is the pack comes with SO MANY LIGHTS.

PEAKTOW PTL0212 Round 3/4 Inch 12V LED Submersible Clearance Marker Taillight Brake Stop Lights Indicators For Car Truck Van Trailer RV Boat Pack of 10 (Amber), Side Marker Assemblies - Amazon Canada

PEAKTOW PTL0212 Round 3/4 Inch 12V LED Submersible Clearance Marker Taillight Brake Stop Lights Indicators For Car Truck Van Trailer RV Boat Pack of 10 (Amber) in Side Marker Assemblies.

www.amazon.ca

The 3/4inch rubber grommet fit perfectly in the opening of the grill, my lights haven’t moved at all.


Sent from my iPhone using Tapatalk



[securityguy]

I actually used your grill as inspiration when I was doing mine!

Having just the 3 lights looks a TON better...less is more. Looks great!



[2019GRamRebel]

Having just the 3 lights looks a TON better...less is more. Looks great!

Thanks, appreciate it!



[Aarons_Ram]

anyone have an update on how to mount these in the grille of a bighorn?



[FishOn]

Looks great.. what lights did you use?

anyone have an update on how to mount these in the grille of a bighorn?

The 3/4" LEDs from Amazon push right in and don't move. Like the ones @2019GRamRebel used. The 3 across the top are pre-installed in the Raptor/Rebel aftermarket grill i got ebay for $200. I added a couple "pop ins"... Gotta be different, ya know?



[Nickv1214]

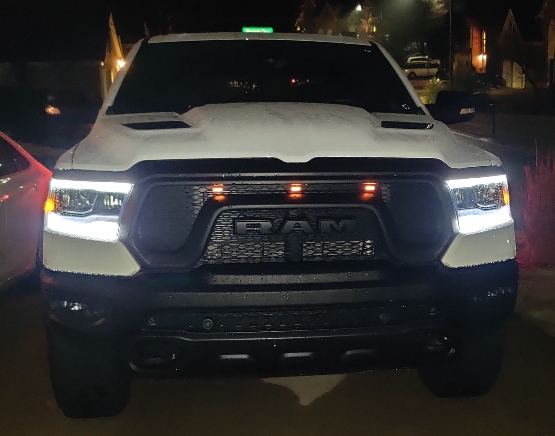

Did these a while back.

How did you end up mounting those ?



[Moestavern33]

I was told by the dealership that unless I install these with a toggle switch to turn them on that I would void my warranty. Has anyone else been told the same.
I really want to tie them in with the parking lights to come on automatically when the other lights come on. But not at the expense of my warranty.
Thanks,
Matt



[saylor]

tell your dealership to go get bent

DONT cut your wiring

go get a curt adapter like it says on pg 1

do the needful



[Jeffjad]

tell your dealership to go get bent

DONT cut your wiring

go get a curt adapter like it says on pg 1

do the needful

Love this guy



[Moestavern33]

tell your dealership to go get bent

DONT cut your wiring

go get a curt adapter like it says on pg 1

do the needful

I’ll go read install tips and check out the curt adapter. I just saw the thread and posted what I was told. Thx for the tip



[saylor]

get a curt 7 pin adapter with 5 pin harness - its covered in these forums under adding reverse lights - it all steals connections off the trailer feeds.
but the post on pg 1 - dude says:

"All the lights are daisy chained together and I ran the ground of the led's to the driver side fender where there are a couple of ground bolts. For the 12v power I initially wanted to tap into the parking lamp wire behind the headlight but found it hard to get to(not a lot of room to probe for correct wire) and thought it was quicker and easier just to run a wire back to my from my curt T harness that I used for my tailgate bar in the back and tap in the parking lamp wire of t-harness to supply the 12 volts when the parking lamps are turned on."
...

the trailer feeds off the 5 pin or 7 pin are strong enough to run some lights. if you are gonna run BIG lights, i suggest only using the trailer feed as a trigger wire for a relay and use fused battery power if you are gonna power some big *** lamps. if you are gonna actually hook up a trailer ever you may want to unhook any adds you have added also, so the trailer gets the full juice.

you could toggle switch it, but if you use the trailer pin feed, it will be on via whenever your usual lights are on. im about to do this myself to my own rig.

front license plate holder



[saylor]

View attachment 79934

i fknig love this i think it looks like alien vs predator ****



[Moestavern33]

Thx Saylor, appreciate you taking the time to give me some detailed information.



[Boost Monkey]

Thx Saylor, appreciate you taking the time to give me some detailed information.

Unless your dead set on tapping them into the parking lights, the fuel pump fuse tap route mentioned in the Youtube vid was about as easy as it gets for me.



[securityguy]

I used the CURT harness on my reverse lights. It will be the best $30 you spent.



[Neurobit]

I used the CURT harness on my reverse lights. It will be the best $30 you spent.

View attachment 83698

Ditto. Great accessory.



[saylor]

x3



[Ccm12]

these the same under a new link? How did you mount them? I've seen plenty on wiring and even mounting the round ones that fit in the honeycomb of the grill, but these obviously won't fit like that.

https://smile.amazon.com/Partsam-Indicator-Waterproof-Trailer-Utility/dp/B07Q2QHXHC/ref=sr_1_10?dchild=1&keywords=Partsam%2B4Pcs%2B4%2BInch%2BAmber%2BLed&qid=1610940312&sr=8-10&th=1

Did you ever try these???



[Katana]

Not Amber, I went with red instead. I originally ordered Amber but got Red in the package so red it was.
