Rebel hood vent.

[Godscountryrider]

Has anyone noticed on the 19+ rebel hood the hood vents are open.? If you pull back hood insulation you could cut the plastic backer and allow air into engine bay. And water etc.... but could be an extra air option. Or add back light under vents just my observation



[CaptainCJ35]

Back when these trucks first came out some discovered that. I think one guy was looking into 3d printing replacement vents. Another had just cut away the cap piece with a Dremel and carved the insolation away.

It blows my mind that FCA went thru the trouble of making the hood with the vent holes, but then closed them off.



[HeavyRotation]

Back when these trucks first came out some discovered that. I think one guy was looking into 3d printing replacement vents. Another had just cut away the cap piece with a Dremel and carved the insolation away.

It blows my mind that FCA went thru the trouble of making the hood with the vent holes, but then closed them off.

I bet they sealed them to meet noise standards.



[SD Rebel]

On the GT500 for example, you have functional vents but there is a plastic piece that covers them from underneath to prevent water & debris from entering during normal use. However, on a track day for example, you can remove them and allow more air for better cooling.

Maybe something like that can be done here?



[LaxDfns15]

Did someone say 3D print? I can look into it. Although more air isn't always better. They may have closed them after they determined the engine performed better without them.



[HeavyRotation]

On the GT500 for example, you have functional vents but there is a plastic piece that covers them from underneath to prevent water & debris from entering during normal use. However, on a track day for example, you can remove them and allow more air for better cooling.

Maybe something like that can be done here?

Can't track my pickup, doesn't meet their roll over Calc standard haha. Would need to do a full lowering kit just to do Autocross.



[SD Rebel]

Did someone say 3D print? I can look into it. Although more air isn't always better. They may have closed them after they determined the engine performed better without them.

As an air intake for sure, it needs to be metered accurately with proper tuning. But for venting hot air, especially in static conditions like idling in the summer while off-roading, it could help a bit.



[SD Rebel]

Can't track my pickup, doesn't meet their roll over Calc standard haha. Would need to do a full lowering kit just to do Autocross.

Lol, get some Pilot Sport tires and a sway bar and hope for the best.



[LaxDfns15]

As an air intake for sure, it needs to be metered accurately with proper tuning. But for venting hot air, especially in static conditions like idling in the summer while off-roading, it could help a bit.

Very true. I'll take a look.



[Godscountryrider]

I just did my driver side vent. Cut it open with a dremal. Cut insulation back. Not pretty but works. Doesn’t effect outside looks any. Gotta wait on new crown clips before I try passenger side. Those things suck.....



[CaptainCJ35]

FYI - IIRC there maybe concern on the drivers side that if rain/water comes thru the vent, it could spill out on something electrical... fuse box I think. Might want to check before you make that cut.



[Jeeper]

As an air intake for sure, it needs to be metered accurately with proper tuning. But for venting hot air, especially in static conditions like idling in the summer while off-roading, it could help a bit.

100%
We do this with Jeep hoods all the time. The water was never an issue and the heat dissipation was huge.

Sent from my SM-G781W using Tapatalk



[ferrari94]

Are there cutouts for the center bezel? If there are I wonder if it could be used with the Mopar Ramair intake for more/colder air



[Biga]

I believe the Durango's have open hood vents at least on the V8's. I guess rain water is not a problem?



[LaxDfns15]

Are there cutouts for the center bezel? If there are I wonder if it could be used with the Mopar Ramair intake for more/colder air

At least for the MOPAR one it's enclosed. Opening the vents wouldn't do anything for the intake. The Vararam is open, but I doubt opening those would help force more air in. Might be the opposite depending on what it does to the air flow in the engine bay. If it creates more turbulence (most likely) it would decrease flow.



[350TX]

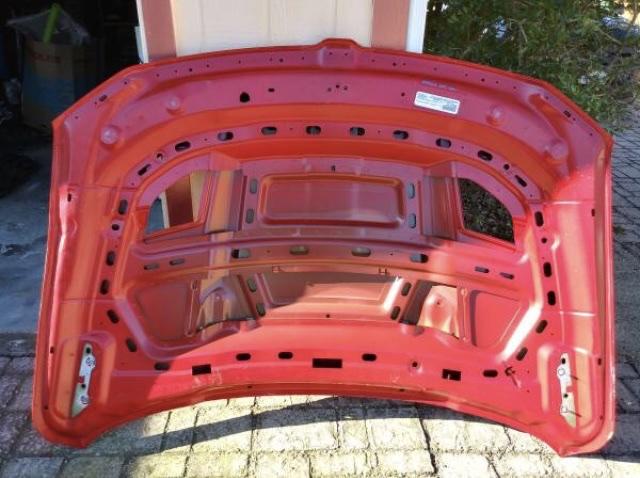

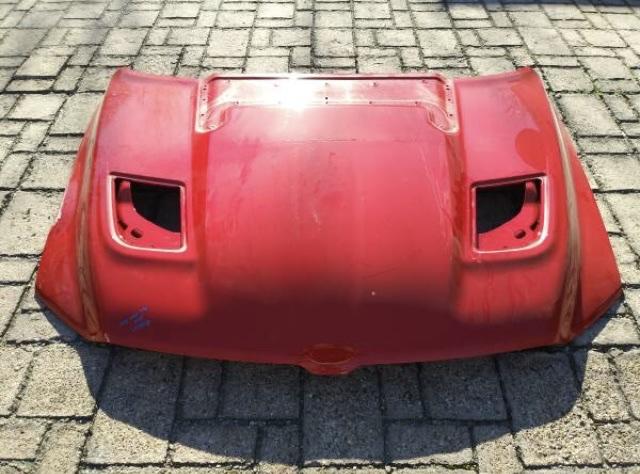

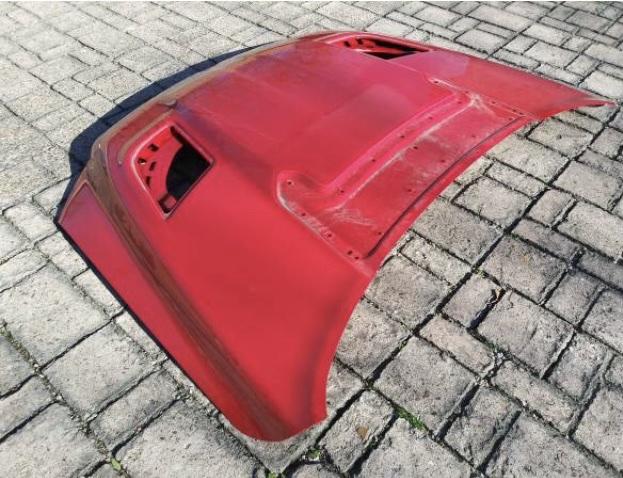

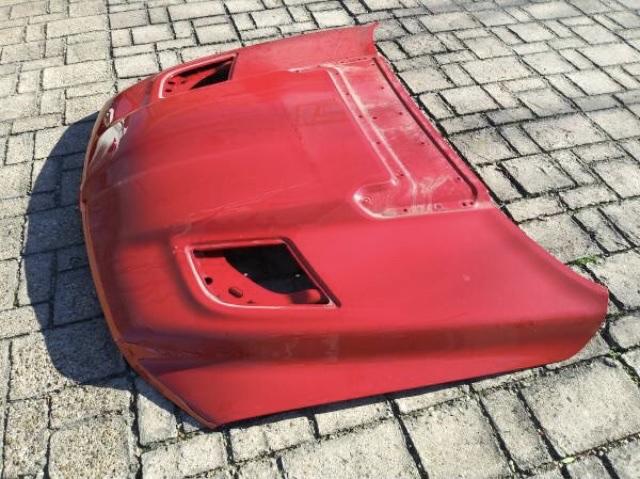

Here’s a few pics for reference. I pulled these from a Craigslist post awhile ago.

Sent from my iPhone using Tapatalk



[CaptainCJ35]

Here’s a few pics for reference. I pulled these from a Craigslist post awhile ago.

Sent from my iPhone using Tapatalk

Still boggles my mind that FCA/Stellantis manufactures the hoods with functional cut outs only to complete them with sealed louvers.

This pic proves definitively that you can make the vents functional with a sharp knife and a Dremel. Good find.



[MARTY]

Why mess with it.If it aint broke don't fix it.This is why engineers get the big bucks,



[CopterDoctor]

I opened mine up and you can see and feel the heat venting during idle.



[Crotalus]

Any long term updates on this mod, would love to try it on my Rebel.


Sent from my iPhone using Tapatalk
