Hi folks. Just picked up a new 2019 Rebel. A couple of hundred miles in, and I finally decided to look underneath the truck.

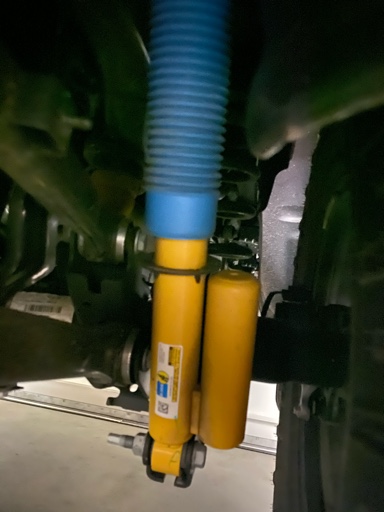

Are the rear Bilsteins supposed to have that ring where it is (arrow in picture)? Both of my shocks are set up like this, so I would assume it is normal. Just looks out of place, or like the dirt boot should be attached.

I consider myself very proficient with the Google Machine; but I could not find a part # nor a solid picture reference for these shocks to make myself feel better. Thus, relying on smarter people than myself. (y)

Thanks for helping!


Attachments

Mustangmike66

Active Member
Messages
53
Reaction score
72
Points
18
Not sure if it’s normal but I looked at my Rebel and it has the same ring.




Sent from my iPhone using Tapatalk


kapinallinen2

Active Member
Messages
60
Reaction score
21
Points
8
Different shocks than I have but looks like it is intended to keep the dust-boot from going into the space between the shock and the reservoir.


Catrep

New Member
Messages
3
Reaction score
1
Points
3
Hi folks. Just picked up a new 2019 Rebel. A couple of hundred miles in, and I finally decided to look underneath the truck.

Are the rear Bilsteins supposed to have that ring where it is (arrow in picture)? Both of my shocks are set up like this, so I would assume it is normal. Just looks out of place, or like the dirt boot should be attached.

I consider myself very proficient with the Google Machine; but I could not find a part # nor a solid picture reference for these shocks to make myself feel better. Thus, relying on smarter people than myself. (y)

Thanks for helping!
Mine look like your photo.


mikerbahn

Member
Messages
12
Reaction score
2
Points
3
Thanks for the diagram. If you click on part #23 and look at the zoomed-in view of the shock itself, you can clearly see the part in question. Makes me feel better.
