Fog light terminal size/number

[User_21361]

Does anyone know what size terminal the fog lights use? I tried searching but I know very little about automotive electrical connectors themselves.

I am preparing to wire a rough country light bar that has a DRL feature in the ADD bumper. The bumper doesn’t support fog lights so I thought about running the DRLs as fogs and using the stock housing to control the light. Then I can run a separate switch to operate the high beam. I would need a female adapter to the fog light terminal to wire to the harness so I don’t cut any factory lines. Any pointers would be appreciated.



[Chanyote66]

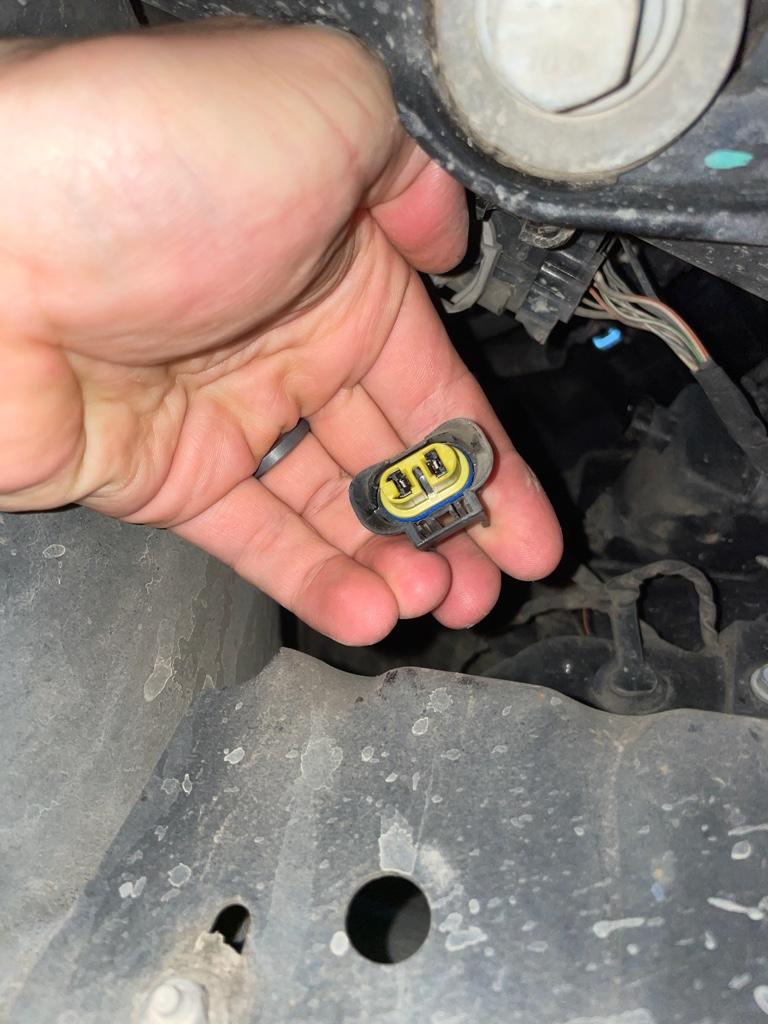

These might help



[Chanyote66]

and these:

https://www.mouser.com/ProductDetail/Kostal/22140492060050-L?qs=%2Fha2pyFaduj8oGXoX7vSDezsCEh%2FTeFPHxy2z8Kh8Nv44XLlKWlO4Q%3D%3D



[Chanyote66]

Does anyone know what size terminal the fog lights use? I tried searching but I know very little about automotive electrical connectors themselves.

I am preparing to wire a rough country light bar that has a DRL feature in the ADD bumper. The bumper doesn’t support fog lights so I thought about running the DRLs as fogs and using the stock housing to control the light. Then I can run a separate switch to operate the high beam. I would need a female adapter to the fog light terminal to wire to the harness so I don’t cut any factory lines. Any pointers would be appreciated.

Hmm,
Are you wanting to connect into the factory fog light harness? or install wires from the BCM?



[User_21361]

Hmm,
Are you wanting to connect into the factory fog light harness? or install wires from the BCM?

Factory harness



[Chanyote66]

you can get an adapter for 9005/9006
that should be the correct socket.

Amazon.com: iJDMTOY (2) 9005/9006/H10 Male Adapter Wiring Harness Sockets Wire Compatible With Headlights, Fog Lights Retrofit or Installing Cubic LED Pod Lights, LED Light Bar, LED Work Lamps, etc: Automotive

Buy iJDMTOY (2) 9005/9006/H10 Male Adapter Wiring Harness Sockets Wire Compatible With Headlights, Fog Lights Retrofit or Installing Cubic LED Pod Lights, LED Light Bar, LED Work Lamps, etc: Wiring Harnesses - Amazon.com ✓ FREE DELIVERY possible on eligible purchases

www.amazon.com
