Dash Insert Removal

mjhughes06

New Member
Joined
Jun 7, 2019
Messages
3
Reaction score
2
I am wanting to paint/vinyl the gold dash/center console inserts that come in the Laramie edition, but I can't find any information on how to do so. Does anyone have any information how to remove these things? Any recommendations on a paint/vinyl? I love everything about this truck, I just hate this random gold accent.


TruckDriver

Ram Guru
Joined
Dec 18, 2018
Messages
656
Reaction score
399
Location
California
I think there's instructions floating around for the wireless cellphone charger install - they show how to remove the center stack area; might help you get nearly there in pulling the stack off

*Edit*

Found it


Attachments

  • Center Stack Removal Wireless Charger Install.pdf
    544.1 KB · Views: 833

Love2driveRAM19

Well-Known Member
Joined
Dec 13, 2018
Messages
442
Reaction score
326
Location
Fort Myers, Florida
Just pulled the center piece off couple of hours ago that TruckDriver provided documentation. 2 philip screws at top and the entire piece pops off. Do not pull it straight away!!! there is a yellow plug that allows you to pull the panel away approx 6" towards you.

-Start at the bottom underneath the trailer brake (or blank) and the other side where the piano looking buttons are location. Place your thumbs on each side and your fingertips underneath and pull outward with your fingertips while letting your thumbs be the brace points. It will sound ugh but they are the snap in type of clips.

-I then went around from bottom upward popping the snap-ins on each side up to the top. I used my fingertips and try to keep even force spread out to pop the snap-ins kinda like one at a time so as not to torque the center piece too much.

27567

27572


Attachments

  • 20190607_142135.jpg
    134 KB · Views: 469
  • 20190607_142141.jpg
    98.1 KB · Views: 491
  • 20190607_142126.jpg
    119.3 KB · Views: 502
  • 20190607_142141.jpg
    98.1 KB · Views: 484
Last edited:

mjhughes06

New Member
Joined
Jun 7, 2019
Messages
3
Reaction score
2
Thanks everyone. I was able to easily get the center stack out using the instructions provided. I guess my only question now is how to detach the gold inserts?


Hoythews71

Active Member
Joined
Jun 2, 2019
Messages
40
Reaction score
27
Had the same thing on my Laramie. No idea how the gold made it past the design team, but it looked like trash. I had mine wrapped in a carbon fiber look 3M “leather”. Night and day difference.


Sent from my iPhone using Tapatalk


jloops

Well-Known Member
Joined
Jan 15, 2019
Messages
467
Reaction score
424
Location
Florida
Had the same thing on my Laramie. No idea how the gold made it past the design team, but it looked like trash. I had mine wrapped in a carbon fiber look 3M “leather”. Night and day difference.


Sent from my iPhone using Tapatalk

Pics please?


Hoythews71

Active Member
Joined
Jun 2, 2019
Messages
40
Reaction score
27
Pics please?

Sure!




Sent from my iPhone using Tapatalk


mjhughes06

New Member
Joined
Jun 7, 2019
Messages
3
Reaction score
2
Has anyone figured out how to get the gold pieces off of center stack? I’ve pulled the center stack out and see that they’re held on with white clips, but I can’t figure out how to get them off?


sandrinm68

Member
Joined
Jan 20, 2019
Messages
18
Reaction score
10
Had the same thing on my Laramie. No idea how the gold made it past the design team, but it looked like trash. I had mine wrapped in a carbon fiber look 3M “leather”. Night and day difference.


Sent from my iPhone using Tapatalk

That looks great. DIY? Did the wrap install without removing the lower console?


Sent from my iPhone using Tapatalk


Hoythews71

Active Member
Joined
Jun 2, 2019
Messages
40
Reaction score
27
That looks great. DIY? Did the wrap install without removing the lower console?


Sent from my iPhone using Tapatalk
Took it to the dealership and showed them. They hadn't noticed it either. They were like "wth...", and gave me a voucher to their custom shop. Think it was $120 in total, but with the voucher I only paid $20.


jloops

Well-Known Member
Joined
Jan 15, 2019
Messages
467
Reaction score
424
Location
Florida
Took it to the dealership and showed them. They hadn't noticed it either. They were like "wth...", and gave me a voucher to their custom shop. Think it was $120 in total, but with the voucher I only paid $20.

What did they do for $120? Pictures please?


Hoythews71

Active Member
Joined
Jun 2, 2019
Messages
40
Reaction score
27
What did they do for $120? Pictures please?

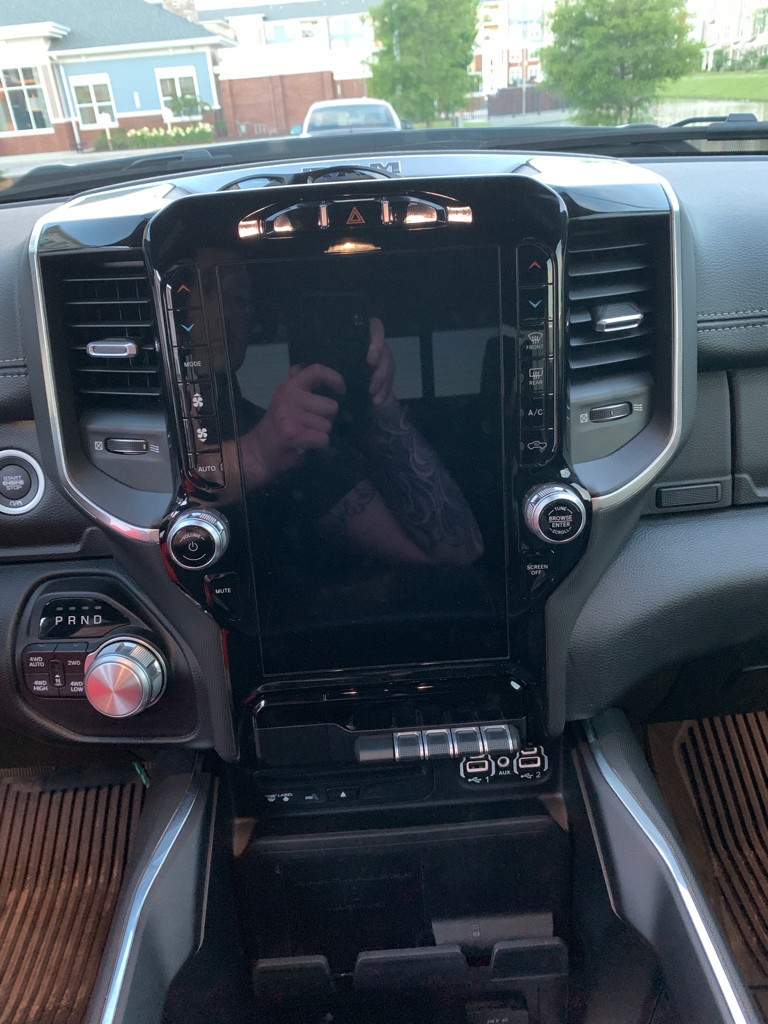

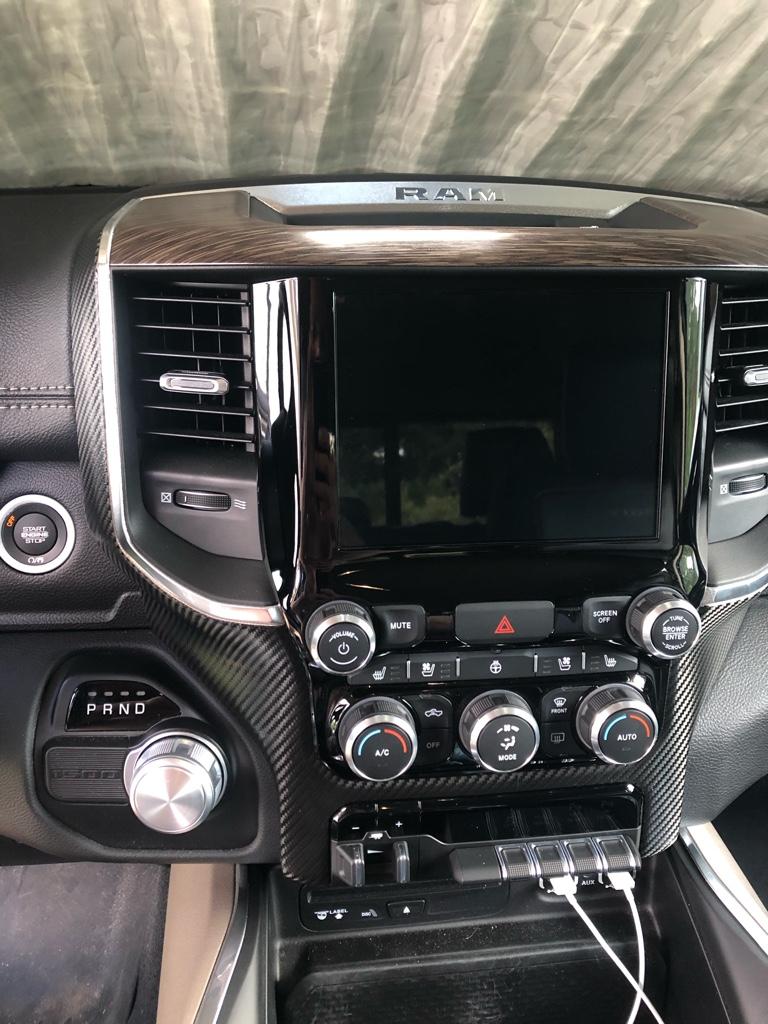

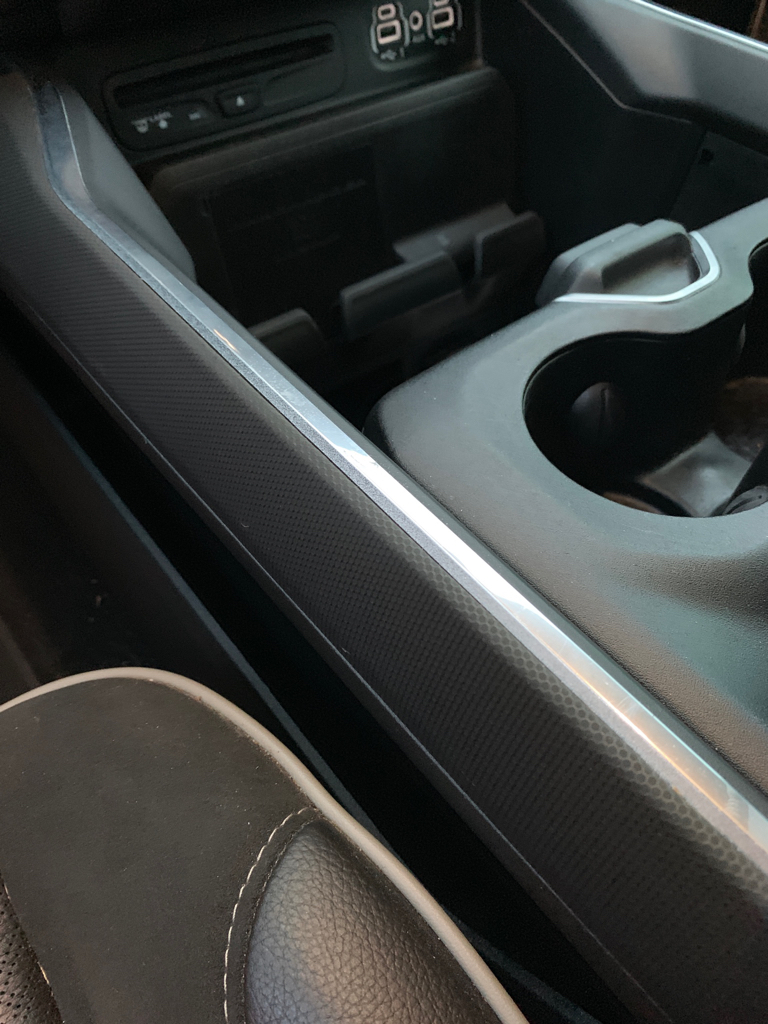

Scroll up a few posts. I posted a few pictures. One is of the trim pieces around the touchscreen and the other is the pieces that run along the center console. Used to be that odd gold color, but the wrap I had installed is a pseudo-fabric that has a carbon fiber appearance.


tcrutch

Member
Joined
Feb 17, 2019
Messages
16
Reaction score
12
Yeah that looks awesome. The gold is terrible. I did some searches and haven’t been able to find that wrap. Do you have any other details of what you used?


Sent from my iPhone using Tapatalk


tcrutch

Member
Joined
Feb 17, 2019
Messages
16
Reaction score
12
This one looks pretty cool and has that texture I think you were talking about.




Sent from my iPhone using Tapatalk


Hoythews71

Active Member
Joined
Jun 2, 2019
Messages
40
Reaction score
27
This one looks pretty cool and has that texture I think you were talking about.


Pretty sure that’s the one.


Sent from my iPhone using Tapatalk


cgmars

New Member
Joined
Sep 16, 2019
Messages
2
Reaction score
0
Has anyone figured out how to get the gold pieces off of center stack? I’ve pulled the center stack out and see that they’re held on with white clips, but I can’t figure out how to get them off?
Did you figure it out?


sandrinm68

Member
Joined
Jan 20, 2019
Messages
18
Reaction score
10
Well I covered the ugly gold plastic in my center instrument panel today. I used 3M 1080 carbon fiber. I did it by removing the panel and then removing the screen and lower controls, which are held on with multiple torx screws.

Unfortunately, the gold plastic is fused to the chrome vent bezels. Rather than trying to seemed it apart, I opted to run the vinyl right up to the chrome, then carefully trim it away. It’s not perfect but pretty close.



Sent from my iPhone using Tapatalk
