Clunk over bumps

jabara572

Active Member
Joined
Oct 28, 2019
Messages
178
Reaction score
97
Location
Atlanta, GA
Searched and this is definitely not the clunk while turning issue.

Truck makes a soft clunk that is audible and able to be felt through the body of the truck going over slow speed bumps or rough roads.

I checked all sway bar bolts and they are tight as can be, it really doesn't seem to be suspension to me, more of a body issue.

Definitely somewhere underneath the truck. I tightened all frame to cab bolts and they were also tight. Has anyone had to have their can mounts tightened? It's not a super loud clunk but it does drive me crazy, it's almost more of a rattle but everything appears to be tight. Any issues of motor mounts or body mounts going bad? 19 rebel with 14k on it


renzo2213

Active Member
Joined
Sep 15, 2019
Messages
191
Reaction score
104
Searched and this is definitely not the clunk while turning issue.

Truck makes a soft clunk that is audible and able to be felt through the body of the truck going over slow speed bumps or rough roads.

I checked all sway bar bolts and they are tight as can be, it really doesn't seem to be suspension to me, more of a body issue.

Definitely somewhere underneath the truck. I tightened all frame to cab bolts and they were also tight. Has anyone had to have their can mounts tightened? It's not a super loud clunk but it does drive me crazy, it's almost more of a rattle but everything appears to be tight. Any issues of motor mounts or body mounts going bad? 19 rebel with 14k on it

I’ve got the same noise. It feels like the wheel goes down too far on a bump and it extends the shocks to the limit even though it’s not a big whole at all. It feels like the suspension doesn’t have a lot of give. I hear it coming from the two front wheels. Almost like a bad strut sound like thing. Curious to see if anyone has had this issue and has had it resolved

19 larimie 6k on the dash


Sent from my iPhone using Tapatalk


jabara572

Active Member
Joined
Oct 28, 2019
Messages
178
Reaction score
97
Location
Atlanta, GA
I’ve got the same noise. It feels like the wheel goes down too far on a bump and it extends the shocks to the limit even though it’s not a big whole at all. It feels like the suspension doesn’t have a lot of give. I hear it coming from the two front wheels. Almost like a bad strut sound like thing. Curious to see if anyone has had this issue and has had it resolved

19 larimie 6k on the dash


Sent from my iPhone using Tapatalk
Mine is mostly passenger side for sure but can't tell if it's coming from the front or middle or bed. I've checked every bolt I can get to under there and all seem tight,.it's driving me crazy. Even my dad who was outside the truck as I drove off asked me what that clunk was

I used to be able to get it to clunk sawing the wheel back and forth driving down the road which made.me think sway bars like everyone else but I could not manage to budge any of the swaybar or link bolts they are tight as can be


renzo2213

Active Member
Joined
Sep 15, 2019
Messages
191
Reaction score
104
Mine is mostly passenger side for sure but can't tell if it's coming from the front or middle or bed. I've checked every bolt I can get to under there and all seem tight,.it's driving me crazy. Even my dad who was outside the truck as I drove off asked me what that clunk was

It could be the mounts to some thing. I highly doubt a dealer would fix it. FCA is a bunch of lazy people. I’ve had a rattle on my speaker since the day I bought it. I told them it’s not blown, just sounds like something is loose in there. They run all sorts of sound tests and say the speaker is okay. like, I just want them to open it up to take whatever it is out or tighten whatever bolt needs to be tightened. But no, speaker test shows it’s good. I love the truck, but my God, dealing with the dealership is a pain.

I think whoever gets this fixed will be someone who has their own shop and knows what they’re doing, unfortunately


Sent from my iPhone using Tapatalk


jabara572

Active Member
Joined
Oct 28, 2019
Messages
178
Reaction score
97
Location
Atlanta, GA
It could be the mounts to some thing. I highly doubt a dealer would fix it. FCA is a bunch of lazy people. I’ve had a rattle on my speaker since the day I bought it. I told them it’s not blown, just sounds like something is loose in there. They run all sorts of sound tests and say the speaker is okay. like, I just want them to open it up to take whatever it is out or tighten whatever bolt needs to be tightened. But no, speaker test shows it’s good. I love the truck, but my God, dealing with the dealership is a pain.

I think whoever gets this fixed will be someone who has their own shop and knows what they’re doing, unfortunately


Sent from my iPhone using Tapatalk


That's exactly why I haven't taken it in yet. I know it will be a battle even getting them to hear anything let alone getting them to fix it. Been trying to find this damn clunk for 2 months and I have no idea so I rate their chances as slim at best


Zeeya

Well-Known Member
Joined
Jun 21, 2019
Messages
319
Reaction score
205
Location
Lafayette, LA
Last oil change I took service manager for a ride over the rattle/clunk/ drives me ape s—— sound. They tightened the spare. Still have the rattle/clunk.

Joined
Jun 24, 2019
Messages
17
Reaction score
24
Just a thought. .... I thought I had a clunk and it turned out to be my ***** I left in my receiver .... with no load there was play obviously so going over bumps was causing a clunk sound . Took the hitch out and it’s gone..... I know it seems super easy but worth a thought if you leave a hitch in your receiver .


jabara572

Active Member
Joined
Oct 28, 2019
Messages
178
Reaction score
97
Location
Atlanta, GA
i thought for sure that was mine too, wrapped the hitch in duct tape to take out the play and even drove with it removed but no dice.


jabara572

Active Member
Joined
Oct 28, 2019
Messages
178
Reaction score
97
Location
Atlanta, GA
Last oil change I took service manager for a ride over the rattle/clunk/ drives me ape s—— sound. They tightened the spare. Still have the rattle/clunk.


*%&$&$*# its driving me bananas. I will try tightening the spare though thanks for the tip.


ErikNJ

Member
Joined
Jul 19, 2019
Messages
10
Reaction score
8
For whatever it’s worth, my June 2019 build Laramie needed new swaybar links for a clunking sound. They old ones were tight but defective. It was most noticeable at lower speeds on washboard pavement.


popcenator

Well-Known Member
Joined
Jul 28, 2019
Messages
470
Reaction score
297
Location
Omaha, NE
For whatever it’s worth, my June 2019 build Laramie needed new swaybar links for a clunking sound. They old ones were tight but defective. It was most noticeable at lower speeds on washboard pavement.
Do you mind posting pictures of your end links? I don't think mine look right and I get clunking when going over bumps occasionally.

Sent from my Pixel 2 XL using Tapatalk


ErikNJ

Member
Joined
Jul 19, 2019
Messages
10
Reaction score
8
Do you mind posting pictures of your end links? I don't think mine look right and I get clunking when going over bumps occasionally.

Sent from my Pixel 2 XL using Tapatalk

Sure thing. I’ll snap some when I get some daylight and better than the current weather.


Zeeya

Well-Known Member
Joined
Jun 21, 2019
Messages
319
Reaction score
205
Location
Lafayette, LA
For whatever it’s worth, my June 2019 build Laramie needed new swaybar links for a clunking sound. They old ones were tight but defective. It was most noticeable at lower speeds on washboard pavement.
Thanks for info. Will bring it up next week


Zeeya

Well-Known Member
Joined
Jun 21, 2019
Messages
319
Reaction score
205
Location
Lafayette, LA
Sure thing. I’ll snap some when I get some daylight and better than the current weather.
Thanks. I took pictures of mine and posted. It looks like the rubber boot is coming off.
it’s under post “looking for noise in front end and found this”
I have pictures of my links on that post


Zeeya

Well-Known Member
Joined
Jun 21, 2019
Messages
319
Reaction score
205
Location
Lafayette, LA
Just a thought. .... I thought I had a clunk and it turned out to be my ***** I left in my receiver .... with no load there was play obviously so going over bumps was causing a clunk sound . Took the hitch out and it’s gone..... I know it seems super easy but worth a thought if you leave a hitch in your receiver .
Tried that. My son brought it and a light went off in my head, but it was not that


ErikNJ

Member
Joined
Jul 19, 2019
Messages
10
Reaction score
8
Do you mind posting pictures of your end links? I don't think mine look right and I get clunking when going over bumps occasionally.

Sent from my Pixel 2 XL using Tapatalk

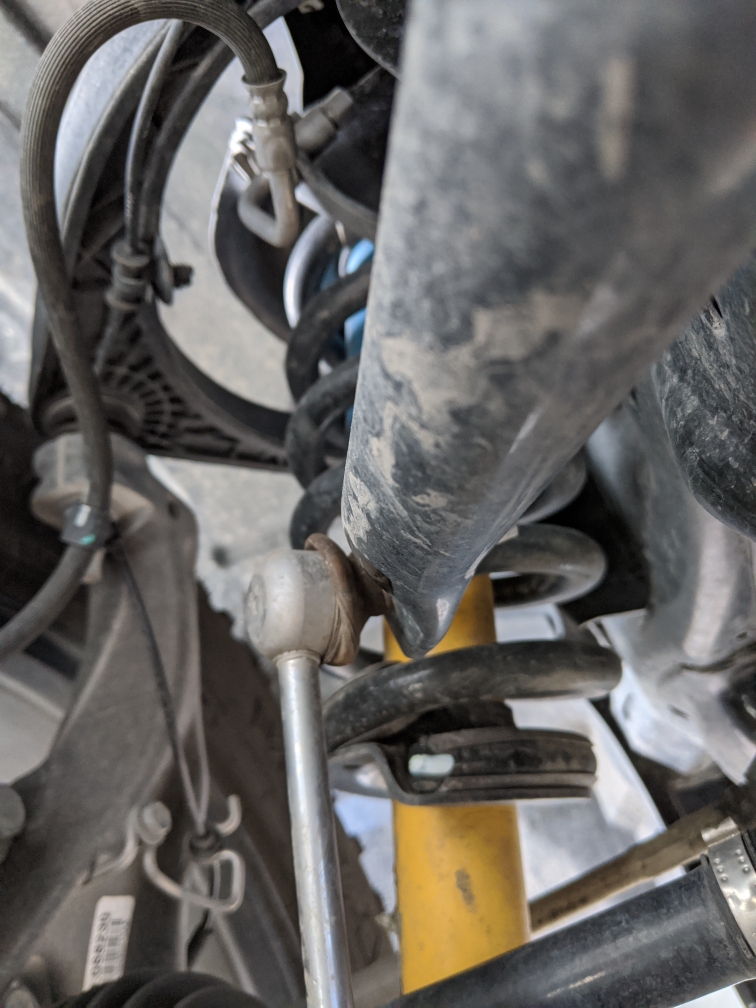

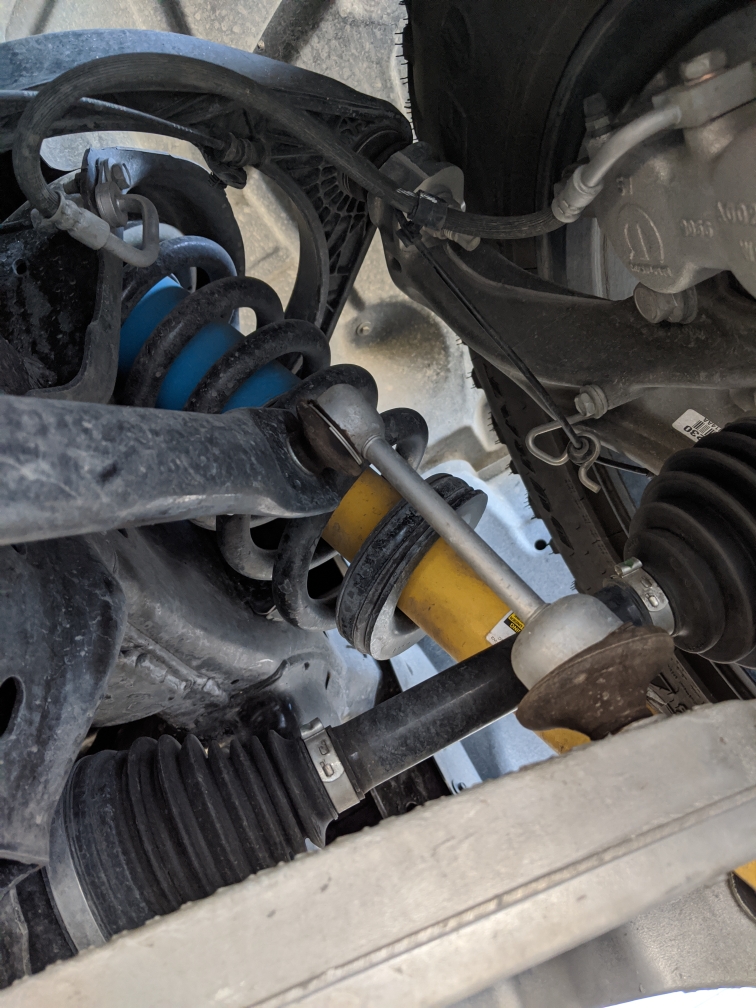

Here are a few snaps from each side of the front. I can’t really see the difference between the newer, good links and what was there though. However, I have no more clunking sound.

7585eea9e6df565feaad713e8c50e642.plist
d0c87a9c1ddb610d48cad6619d428b0e.plist


Brisoup1

Active Member
Joined
Jun 10, 2019
Messages
161
Reaction score
135
Tried that. My son brought it and a light went off in my head, but it was not that
My 2014 Jeep Grand Cherokee did the same thing. Haven't tried towing with the Ram yet. I've been able to use my bed for hauling.


popcenator

Well-Known Member
Joined
Jul 28, 2019
Messages
470
Reaction score
297
Location
Omaha, NE
Pretty similar to mine, did they say what exactly was defective about it?


Sent from my Pixel 2 XL using Tapatalk


ErikNJ

Member
Joined
Jul 19, 2019
Messages
10
Reaction score
8
They didn’t really say what was defective. They further tightened the old ones but that didn’t work on their road test. They had new links in stock and after replacing the old links, the clunk went away. If I had to guess, there may have been some issue with how the old ones fit - maybe there was some play in the fitting.

Also, I’ve driven a few thousand miles since the fix and all has been good since.


popcenator

Well-Known Member
Joined
Jul 28, 2019
Messages
470
Reaction score
297
Location
Omaha, NE
Thanks for posting those pictures. I'll take a closer look at mine and see if maybe there is some play.

Sent from my Pixel 2 XL using Tapatalk
