CDT Audio center channel speaker

[djevox]

I talked to CDT Audio today about swapping out the center channel on my Alpine system to one of their 3” speakers. They suggested the ES-03DVC, which (on paper) looks like a great solution. The only thing they couldn’t tell me was whether the depth of the speaker fits the space in the dash. Below are the mounting specs and a link. Does anybody know if this speaker will work without cutting brackets in the dash because of the depth?

Specs:

• Mounting depth: 1.69”(43mm)
• Cut-out diameter: 2.90” (73.7mm)
• Cast frame: OD 3.70” (94mm)

CDT Audio ES-03DVC



[Ldc2335]

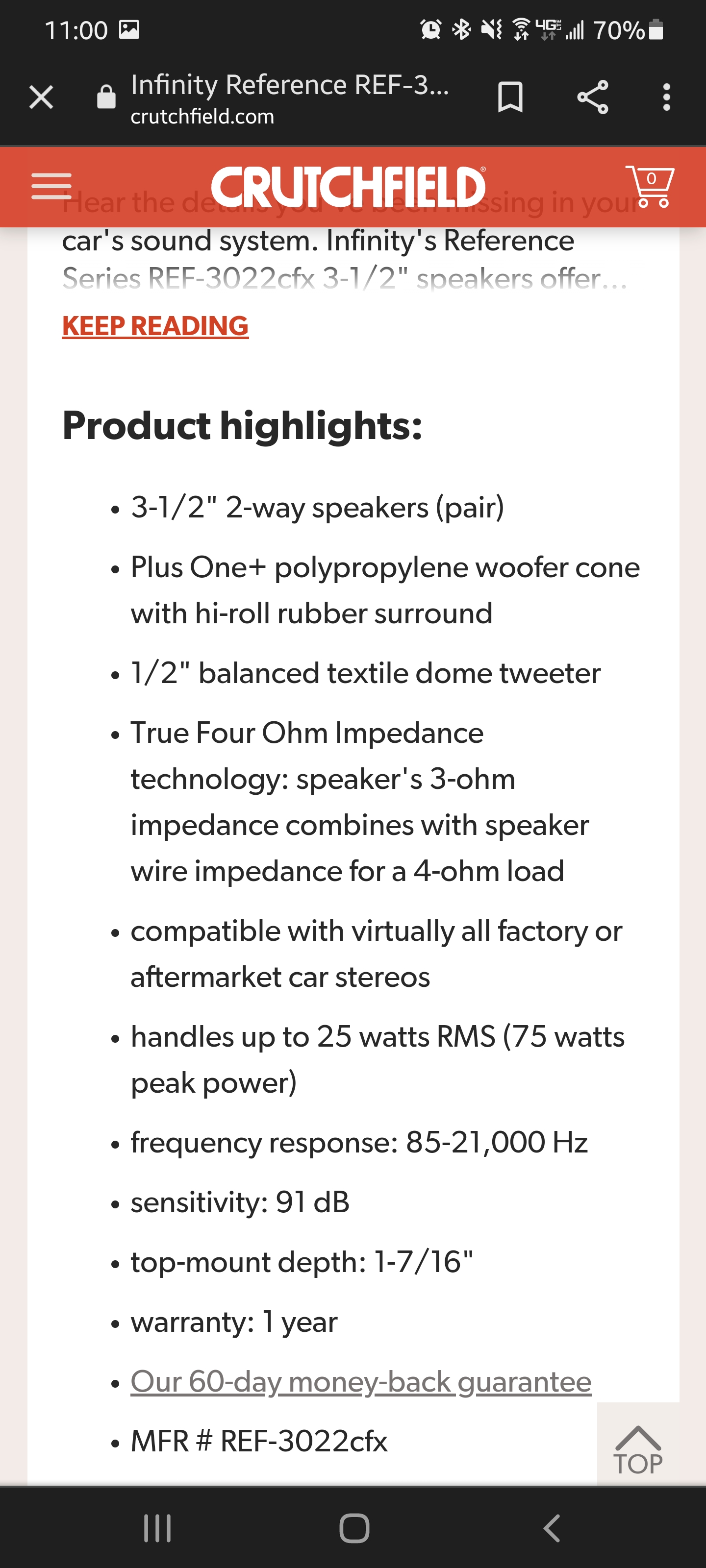

They are about the same depth as the infinity (36.5mm) that for sure fit, so I don't see why not.

I don't remember it coming close when I installed the infinity. Worst case, a strip of foam gasket or a washer would get you there.

Sent from my Galaxy S21 Ultra using Tapatalk



[Ldc2335]

Looking at them more, I'd be more worried about the mounting points. Stock speaker and infinity have tabs sticking out and the CDT do not.



Sent from my Galaxy S21 Ultra using Tapatalk



[djevox]

Looking at them more, I'd be more worried about the mounting points. Stock speaker and infinity have tabs sticking out and the CDT do not.



Sent from my Galaxy S21 Ultra using Tapatalk

That’s a really good catch, I was so concerned about mounting depth that I didn’t notice that. That means I have to at a minimum fab some ears. I don’t think it’ll be that easy though, so I guess I will have to pull the stock speaker and do some measuring.



[CRAIG4FSU]

That’s a really good catch, I was so concerned about mounting depth that I didn’t notice that. That means I have to at a minimum fab some ears. I don’t think it’ll be that easy though, so I guess I will have to pull the stock speaker and do some measuring.

What'd you end up with?



[djevox]

What'd you end up with?

Nothing yet. I like the system how it sounds right now
