Bed Rack Options with Rambox

O Captain My Captian

Active Member
Joined
May 2, 2020
Messages
55
Reaction score
101
Oh, wow, thanks for reaching out to them. Their answer makes sense too. I may just be stuck waiting to see if anyone makes more options for rambox trucks.

Sent from my SM-N950U using Tapatalk
I am going all in with Dethloff. Gave a deposit for the new build (6-8 weeks). He says it is similar to what is seen on their website which features a Rebel, but the new rack will have some different contours along the rear window.
No pics to share as yet. Will fit RamBoxes with MFT.


tomilee78

New Member
Joined
Sep 6, 2019
Messages
3
Reaction score
2

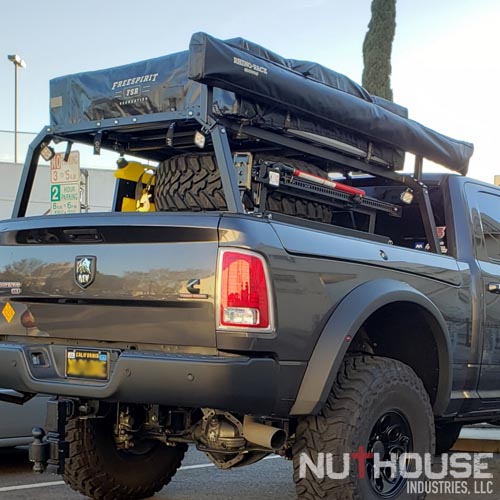

It's a bit pricey, but Nutzo rack might work better, it doesn't require drilling.
And, you can get OEM cross bars for the utility rail if you have.
I bought the Mopar OEM cross bars, much cheaper option.


smcleod417

Member
Joined
Jan 16, 2020
Messages
23
Reaction score
27
Nice work! How did you attach it?
The rack sits on some flat plates that sit right on the bedside. Welded to the flat plate (at ~90 degrees) is 1/8" flat bar. The flat bar is sandwiched between the utility group rails (which the tonneau mounts to) and the bed side. The flat bar has holes drilled to match the utility group rails bolt holes. Spacing the utility rails in 1/8" on each side doesn't impact operation of the tonneau.


Softballcoach805

New Member
Joined
Feb 17, 2020
Messages
2
Reaction score
0
View attachment 59605
I built my rack out of 2" square tubing. It bolts to each corner by removing the plastic caps at each corner and utilizing existing factory holes. Allows full use of the ramboxes and a backflip mx4 cover.
Would it be possible to get a couple of close up pics of the mounting plates? Have 2019 rambox and was thinking of having something fabricated, thx


todfhunt

Member
Joined
Apr 16, 2020
Messages
14
Reaction score
14
Location
FL
I’ll upload pics later but wanted to share this with the group.

I just finished the install of Rhinorack Pioneer platform to create a custom bed rack.

Vehicle:
2020 Rebel with Rambox and the OEM bed utility track system.

The Rhinorack:
“In bed” rack using a Pioneer tray (52x56), RLT600 legs, and Pioneer height spacers.

First, the legs fit great onto to the top of the trucks OEM utility track. It did require grinding the width of track nuts down by 1/16” to fit into the utility track, which was easy enough, and you can find smaller track nuts if needed.

Second, the Pioneer tray at 56” is a bit wider than I wanted as it does interfere slightly with the full opening of the Rambox, but they open plenty enough to access them. A more narrow tray option of 52” wide would be ideal.

Lastly, a Pioneer height spacer of 10mm is needed (edit: go for the 25mm spacers QMHD25. RamBox will open better). I used the 5mm height spacer and it was difficult to get the leg covers back on due to the tight space between the bottom of the Pioneer tray and top of the Rambox. But I was able to get it on with a bit of muscle work.

So a more narrow platform and larger height spacer would allow the Rambox to open fully or near fully.

Anyway, I now have a useable and good looking bed rack platform for my tent and other stuff. Will post more pics later.


Attachments

  • A061BB63-610B-4437-BD6B-D739E8656D5B.jpeg
    104.7 KB · Views: 464
  • 64A96DCF-DA4F-47BA-89F6-F0C1A644BB0A.jpeg
    156 KB · Views: 417
  • 0AD68C39-8A69-4789-AC4C-ABB108100E33.jpeg
    113.1 KB · Views: 386
  • 33E63A67-90E1-45D4-BDB5-F584FE755220.jpeg
    239.1 KB · Views: 402
  • 82346A1E-3418-4B56-8F98-EE588801AADF.jpeg
    90.5 KB · Views: 404
  • 11A884CA-DD1F-4592-9AEF-9ED843C85DC0.jpeg
    55.1 KB · Views: 420
  • 033E39BD-D6CD-4DE0-A85A-8C972594A883.jpeg
    102.1 KB · Views: 440
  • 3F9A14EF-05D7-4CA2-B4AD-5C4EAC72A996.jpeg
    82.4 KB · Views: 471
  • 4090E3D6-4E7C-44C1-9746-ACEC3A6F16F5.jpeg
    149.9 KB · Views: 496
Last edited:

todfhunt

Member
Joined
Apr 16, 2020
Messages
14
Reaction score
14
Location
FL
More pics... C234E925-2A75-40E5-903A-55B7DBEF0B97.jpeg F698786C-F7EC-4FA4-BAF8-D9EFCEA8F90F.jpeg 53F15AF1-D882-46C0-B238-7CEA05B6D1D3.jpeg 89E9C103-3ADA-4BE9-9D75-9F299EB4D709.jpeg 62FD101A-53FA-478A-B04C-B63425E81624.jpeg


Attachments

  • 94A854AA-464C-4AFA-B7B0-5D47A923CC34.jpeg
    180.7 KB · Views: 370
  • 8DBA11CA-A2F0-4C12-8A4E-625E6D99F3A3.jpeg
    134 KB · Views: 347
  • 8C648EFD-8053-4A8E-82B1-824B6BFD253D.jpeg
    160.7 KB · Views: 342
  • 9BB9F1E2-1E1B-4A8F-B862-669A726AE6D6.jpeg
    146 KB · Views: 342
  • 9CE7EBE4-63E8-4326-B274-382C61946A41.jpeg
    139 KB · Views: 363
Last edited:

smcleod417

Member
Joined
Jan 16, 2020
Messages
23
Reaction score
27
Anyway of getting the plans off you so i can make one for my Power Wagon? have a MX4 Backflip and would like to be able to continue using it
Don't have any plans as I just built it by measuring on the truck, then cutting and welding as I went. I will gladly send you pictures or take measurements of anything you'd like. FYI-I've used it a couple times now with my roof top tent and it's worked great. It's plenty sturdy, I have access to the RAMBOX's and the backflip cover. I'm also able to put it on and take it off by myself.


w0bbles

Member
Joined
Feb 25, 2019
Messages
8
Reaction score
1
Location
Northern VA
I ended up using some Yakima control towers mounted on the utility rails. I ran that with my roof top tent for a year and a half. Worked out great! But I was limited to the height space in the bed. I recently sold my RTT and am shopping for a hard shell, so I decided I take this opportunity to figure out how to build a taller rack. I want to go the same route as others with having a plate rest on the bed top rails and a long tube running across the top of the utility rail. I have not had a chance to think too much about it, though.

I really like the simplicity of the Front Runner rail mount racks, but I wish they had a bit taller legs!


Attachments

  • 30E7132E-21C4-4D60-A3F5-2A76166535A6.jpeg
    145.1 KB · Views: 501
  • C056B5F6-A4E3-4160-B592-25A544E5D0EF.jpeg
    328.3 KB · Views: 461
  • 143C4F28-8B6E-4592-8F7C-542F3FAE1839.jpeg
    152.6 KB · Views: 473

bgc42169

New Member
Joined
Jul 16, 2020
Messages
2
Reaction score
1
Don't have any plans as I just built it by measuring on the truck, then cutting and welding as I went. I will gladly send you pictures or take measurements of anything you'd like. FYI-I've used it a couple times now with my roof top tent and it's worked great. It's plenty sturdy, I have access to the RAMBOX's and the backflip cover. I'm also able to put it on and take it off by myself.

I would like to see how you made the mounts connections. My dimensions will be different since i have a 6.5ft bed. But i like to have some ideas on what size tube and general mesurements. i will have to adjust them.


ElJoe

Member
Joined
Apr 19, 2020
Messages
22
Reaction score
5
I would like to see how you made the mounts connections. My dimensions will be different since i have a 6.5ft bed. But i like to have some ideas on what size tube and general mesurements. i will have to adjust them.
I'm actually curious myself. Came out legit.


zerophi

New Member
Joined
Feb 28, 2019
Messages
4
Reaction score
2
I’ll upload pics later but wanted to share this with the group.

I just finished the install of Rhinorack Pioneer platform to create a custom bed rack.

Vehicle:
2020 Rebel with Rambox and the OEM bed utility track system.

The Rhinorack:
“In bed” rack using a Pioneer tray (52x56), RLT600 legs, and Pioneer height spacers.

First, the legs fit great onto to the top of the trucks OEM utility track. It did require grinding the width of track nuts down by 1/16” to fit into the utility track, which was easy enough, and you can find smaller track nuts if needed.

Second, the Pioneer tray at 56” is a bit wider than I wanted as it does interfere slightly with the full opening of the Rambox, but they open plenty enough to access them. A more narrow tray option of 52” wide would be ideal.

Lastly, a Pioneer height spacer of 10mm is needed. I used the 5mm height spacer and it was difficult to get the leg covers back on due to the tight space between the bottom of the Pioneer tray and top of the Rambox. But I was able to get it on with a bit of muscle work.

So a more narrow platform and larger height spacer would allow the Rambox to open fully or near fully.

Anyway, I now have a useable and good looking bed rack platform for my tent and other stuff. Will post more pics later.


DUDE!!! This is perfect!! Thanks for posting this, It solves a lot of problems for me. THANK YOU


Maurice262

New Member
Joined
Oct 22, 2020
Messages
1
Reaction score
0
Does anyone know whether the Dethloff rack/bars accommodate a Yakima skybox? In other words, what is the diameter of the tubes versus the "claw" capacity of the skybox? Also, how difficult is it to install the Dethloff rack?


Ram Ranch

Active Member
Joined
Oct 5, 2020
Messages
50
Reaction score
42
Location
Rocket City
I am going all in with Dethloff. Gave a deposit for the new build (6-8 weeks). He says it is similar to what is seen on their website which features a Rebel, but the new rack will have some different contours along the rear window.
No pics to share as yet. Will fit RamBoxes with MFT.
Captain, how is it? have any pictures?
