2019 Ram gauge cluster / evic upgrade

Jonathan Dison

New Member
Joined
Jun 19, 2020
Messages
1
Reaction score
0
I swapped out the EVIC on my 2019 2500 big horn today and was able to reset the mileage using Alpha but it was a process. The goal mileage was 26,159.1 after the first attempt the odometer reset to 16218.6. After several iterations 42,112.7 yielded the desired 26,159.1. Don't understand why it worked but it did and that's good enough for me.


NorthStar

Ram Guru
Joined
Oct 2, 2020
Messages
1,290
Reaction score
1,294
Location
Texas
I had the same issue trying to install a cluster into my Ram. However, when I went into AlfaOBD, it would let me choose between the 3.5” EVIC and the 7” EVIC. Likewise, I’d enter my mileage and it would come back with a different mileage than what I entered. Also, I looked and could not find where it would let me reset the hours. I watched the video online of how it is done but I don’t have the option to choose to set the hours in the menu. Anyone else have these problems and any thoughts on how to rectify?

Thanks in advance for any recommendations.


NorthStar

Ram Guru
Joined
Oct 2, 2020
Messages
1,290
Reaction score
1,294
Location
Texas
FYI...Navrepair no longer offers the service of updating your cluster.


NorthStar

Ram Guru
Joined
Oct 2, 2020
Messages
1,290
Reaction score
1,294
Location
Texas
I did find a guy online who does excellent work and has the equipment to reprogram the 2020 Ram 1500 clusters. Contact Frank at [email protected] and he can do it for you. He charges $125 plus shipping which total was $175 but has lightening fast turnaround/shipping, and does very good work. At the moment, he is about the only option those of us with 2020's have and doesn't take advantage of that fact. Very reputable and trustworthy.

www.4thgenmods.com (don't let the name fool you as he does 5th gen mods too!)


Jude

New Member
Joined
Mar 21, 2021
Messages
1
Reaction score
0
I had the same issue trying to install a cluster into my Ram. However, when I went into AlfaOBD, it would let me choose between the 3.5” EVIC and the 7” EVIC. Likewise, I’d enter my mileage and it would come back with a different mileage than what I entered. Also, I looked and could not find where it would let me reset the hours. I watched the video online of how it is done but I don’t have the option to choose to set the hours in the menu. Anyone else have these problems and any thoughts on how to rectify?

Thanks in advance for any recommendations.
I'm experiencing the same issue, was able to upgrade my mileage no problem but also trying to figure out how to fix the hours. I don't even see an option to change the hours nor to enter My vehicle's four-digit PIN.


NorthStar

Ram Guru
Joined
Oct 2, 2020
Messages
1,290
Reaction score
1,294
Location
Texas
I'm experiencing the same issue, was able to upgrade my mileage no problem but also trying to figure out how to fix the hours. I don't even see an option to change the hours nor to enter My vehicle's four-digit PIN.
No pin required. Just need the eventual update from AlfaOBD or contact Frank to have him utilize whatever software he is using. I decided not to wait on an update and Sent mine to Frank. Problem solved and everything is perfect.


PCT

Member
Joined
Apr 8, 2020
Messages
9
Reaction score
0
Where are you guys finding these clusters? i cannot find a 2500 1 to save my life, and i refuse to pay nearly 2 grand for infotainment


NorthStar

Ram Guru
Joined
Oct 2, 2020
Messages
1,290
Reaction score
1,294
Location
Texas
That is where mine came from…a junk yard advertising on eBay. It was from a wrecked 2019 but cluster was fine.

I checked and Houston now has several junk yards with them available. They run between $450 to $735 for the 7” EVIC. The smaller EVIC is always easier to find and less money.


PCT

Member
Joined
Apr 8, 2020
Messages
9
Reaction score
0
Maybe its too late, but could you post there website links here so i can try and purchase?


Georgf

Active Member
Joined
Aug 21, 2020
Messages
150
Reaction score
61
Location
Russia
I read the whole thread and still did not understand, is swap to premium Cluster plug-and-play, except mileage/hours programminr, ot not?


NorthStar

Ram Guru
Joined
Oct 2, 2020
Messages
1,290
Reaction score
1,294
Location
Texas
I read the whole thread and still did not understand, is swap to premium Cluster plug-and-play, except mileage/hours programminr, ot not?
Yes. Find a premium cluster, get it programmed to the mileage hours you need, pull out the old one, install the upgraded cluster and that is it. It works perfectly with no other reprogramming, wiring, or alterations.


Georgf

Active Member
Joined
Aug 21, 2020
Messages
150
Reaction score
61
Location
Russia
Yes. Find a premium cluster, get it programmed to the mileage hours you need, pull out the old one, install the upgraded cluster and that is it. It works perfectly with no other reprogramming, wiring, or alterations.

Thanks a lot! I don’t care about mileage/hours, so I don’t need programming.


Redfour5

Well-Known Member
Joined
Jun 24, 2021
Messages
363
Reaction score
236
I am about to do the same, bought a 1500 one off ebay, and they programmed the miles for me. But I am struggling to find instructions on how to remove the cluster to begin with. Any info you have would be greatly appreciated :)
This company sells OEM but aftermarket stuff for lots of vehicles. They do have stuff for the DT Rams. Here is the one you are looking for. It goes into detail on taking it off and putting it back on.


Bigboss954

Member
Joined
Apr 27, 2021
Messages
11
Reaction score
1
Do we even need the idle/engine hours or will the mileage suffice. Because I remember cars never had idle/engine hours you can check. So that’s the one thing that’s kind of giving me pause with installing my premium cluster.


bigdodge

Happy Ram Owner
Site Supporter
Joined
Aug 25, 2021
Messages
2,545
Reaction score
1,634
Location
Southern Ca.
Thanks a lot! I don’t care about mileage/hours, so I don’t need programming.
don't bring it back to the states. when they check the computer and it does not show that same as the cluster there might be an issue.


Georgf

Active Member
Joined
Aug 21, 2020
Messages
150
Reaction score
61
Location
Russia
don't bring it back to the states. when they check the computer and it does not show that same as the cluster there might be an issue.
I paid customs tax the same amount as for truck itself, so it will drive in Russia forever 😉


Dbartosh86

Member
Joined
Oct 9, 2021
Messages
5
Reaction score
0
I have a 2022 ram 2500 diesel bighorn and looking to upgrade to the 7” cluster, I found a cluster for a 2020 1500 eco diesel limited, it looks the same as a cluster for a 2500 diesel other the. The rpm redline is alittle higher, hopfully it works 🤞has anybody done this? Wounder if I am gonna have to reprogram it


Attachments

  • B778E55F-3F3F-4A67-98A6-46DD40AF269F.png
    603.2 KB · Views: 10

Dbartosh86

Member
Joined
Oct 9, 2021
Messages
5
Reaction score
0

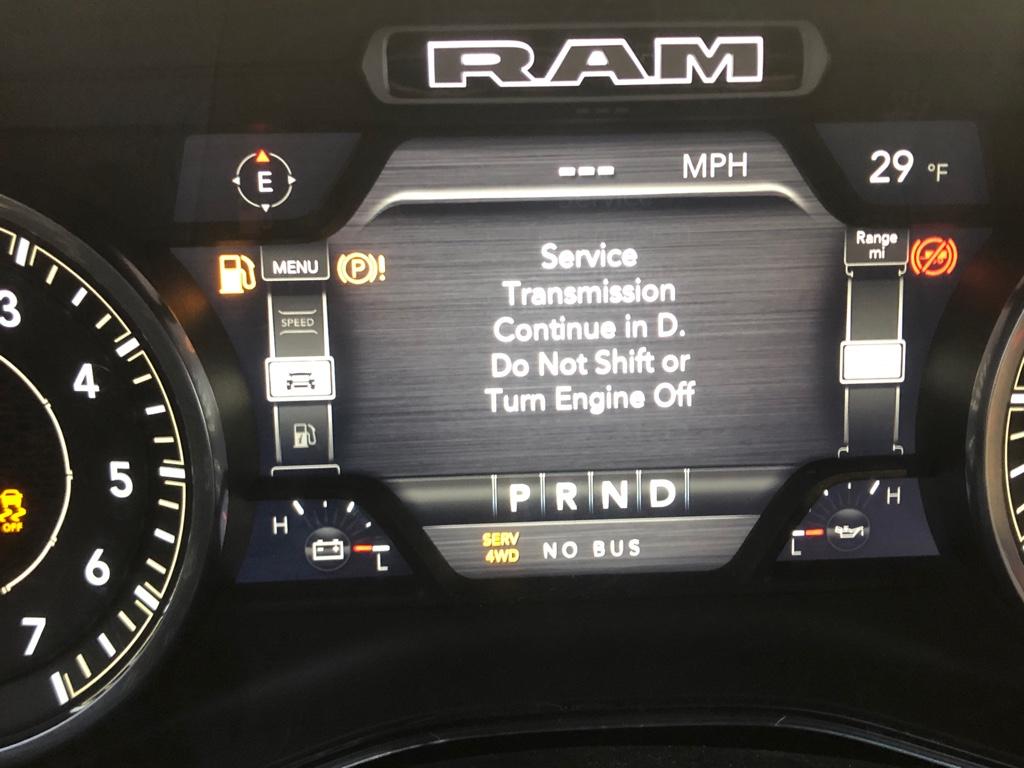

Well a 1500 cluster will not work in 2500







Sent from my iPhone using Tapatalk
Did you ever figure this out and get it working?
