Slight brake pedal vibration

[NorthernArea51]

So I’ve noticed a slight vibration in the pedal when I’m decelerating with my foot on the brake pedal. Happens right at 15mph and continues until the truck stops.

Anyone have any idea what this could be? No squeals of squeaks during braking


Sent from my iPhone using Tapatalk



[Dusty1948]

So I’ve noticed a slight vibration in the pedal when I’m decelerating with my foot on the brake pedal. Happens right at 15mph and continues until the truck stops.

Anyone have any idea what this could be? No squeals of squeaks during braking


Sent from my iPhone using Tapatalk

Without knowing the vehicles miles and your driving style, it is likely that the front rotors have developed hard spots, high spots, or the rotor(s) have been warped.

Generally, if you feel the brake pedal pulsating, ie: a feeling of the brake pedal force pushing back on your foot, the rotor has a warp or high spots.

Best regards,
Dusty
2019 Ram 1500 Billet Silver Laramie Quad Cab 2WD, 5.7 Hemi, 8HP75, 3.21 axle, 33 gallon fuel tank, factory dual exhaust, 18” wheels. Build date: 03 June 2018. Now at: 038037 miles.



[NorthernArea51]

Without knowing the vehicles miles and your driving style, it is likely that the front rotors have developed hard spots, or the rotor(s) have been warped.

Generally, if you feel the brake pedal pulsating, ie: a feeling of the brake pedal force pushing back on your foot, the rotor has a warp.

Best regards,
Dusty
2019 Ram 1500 Billet Silver Laramie Quad Cab 2WD, 5.7 Hemi, 8HP75, 3.21 axle, 33 gallon fuel tank, factory dual exhaust, 18” wheels. Build date: 03 June 2018. Now at: 038037 miles.

It’s a 2020 with only 4500mi on it. You think the rotors could do that that fast?


Sent from my iPhone using Tapatalk



[Dusty1948]

It’s a 2020 with only 4500mi on it. You think the rotors could do that that fast?


Sent from my iPhone using Tapatalk

I've edited my previous message to include high spots, which can be caused by pad material melting and embedding into the surface of the rotor, or in the case of vehicles not driven every day, rust forming a high spot or an outline of the brake pad on the rotor surface.

Can it happen on a vehicle within 4500 miles? Yes, it can depending on moisture/humidity conditions, or excessive braking or other conditions leading to overheating the brake rotors (driving in hilly country, towing, high speed operation, etc.). I could relate a personal experience, but do not wish to embarrass anyone!

Sometimes a visual inspection of the rotor surface can give you a clue as to what the condition is.

Best regards,
Dusty
2019 Ram 1500 Billet Silver Laramie Quad Cab 2WD, 5.7 Hemi, 8HP75, 3.21 axle, 33 gallon fuel tank, factory dual exhaust, 18” wheels. Build date: 03 June 2018. Now at: 038037 miles.



[Ziggy2]

I concur, it's probably the rotor surface or they are warped already. I would bet the dealer will cover this one time under warranty with such low mileage. If you were at 8-10k miles, it would be considered wear and tear. Good luck!



[NorthernArea51]

I concur, it's probably the rotor surface or they are warped already. I would bet the dealer will cover this one time under warranty with such low mileage. If you were at 8-10k miles, it would be considered wear and tear. Good luck!

Great lol

Thanks guys


Sent from my iPhone using Tapatalk



[NorthernArea51]

Check out the rotors best I could when I got home from work. Driver side front rotor looks like this...couldn’t see great but it almost felt like it was a crack

Sent from my iPhone using Tapatalk



[FastBlackRam]

Check out the rotors best I could when I got home from work. Driver side front rotor looks like this...couldn’t see great but it almost felt like it was a crack

Sent from my iPhone using Tapatalk

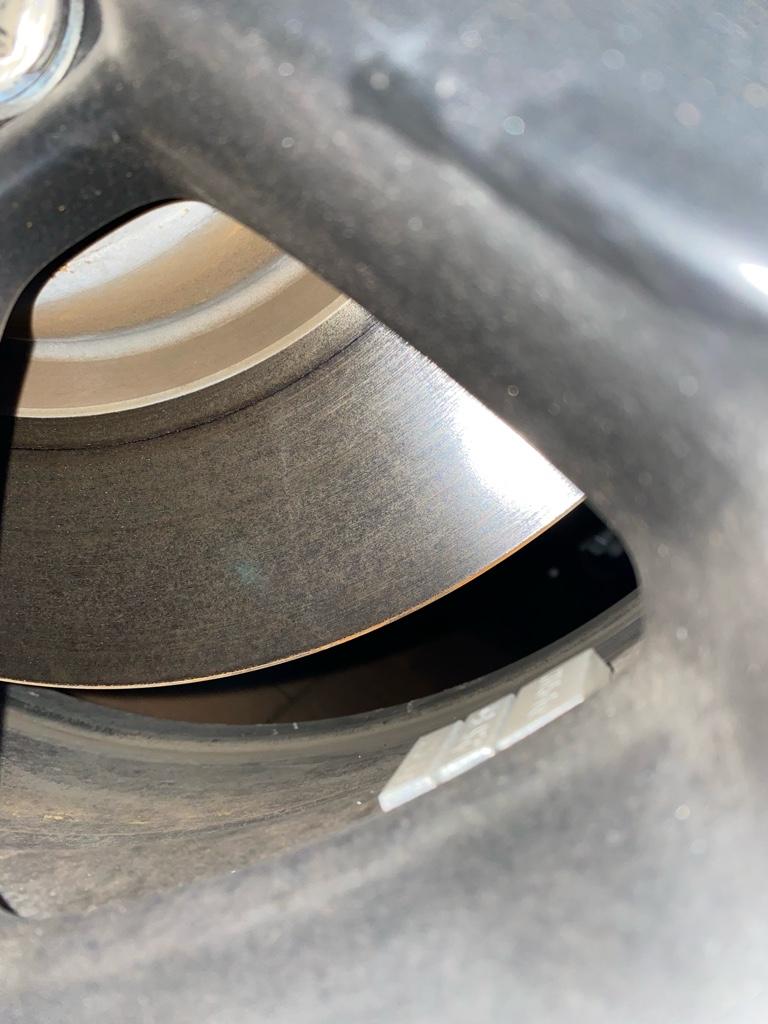

This is what my front rotor looks like. Yours definitely has a crack in it.
