"Raptor" Style Grill Lights?

[ZonaRam44]

The Raptors have the 3 amber colored lights in the grill. I'm thinking about doing the same but with white LED lights to match the running lights. Has anyone done something similar? Any guidance would be appreciated.



[dts828]

The Raptors have the 3 amber colored lights in the grill. I'm thinking about doing the same but with white LED lights to match the running lights. Has anyone done something similar? Any guidance would be appreciated.

Can't help with white but here is a pic of amber

Sent from my GM1917 using Tapatalk



[ZonaRam44]

Can't help with white but here is a pic of amber

Sent from my GM1917 using Tapatalk

Looks good! Where did you get the lights?



[dts828]

Looks good! Where did you get the lights?

BASIKER Auto Front Grille Lights for 2004-2019 Ford F150 Raptor F250 External Amber LED Lights Decoration | 3 Pack Black Lens https://www.amazon.com/dp/B07VCQ9PD1/ref=cm_sw_r_em_apa_i_C9bBEbYNWHS5Q

I dremel off the screw tabs and secured with double sided tape around the round part of light and inserted into grill. Hasn't moved since done.



Sent from my GM1917 using Tapatalk



[shktrk]

Can't help with white but here is a pic of amber

Sent from my GM1917 using Tapatalk

Can you describe your install and how you wired them?



[dts828]

Can you describe your install and how you wired them?

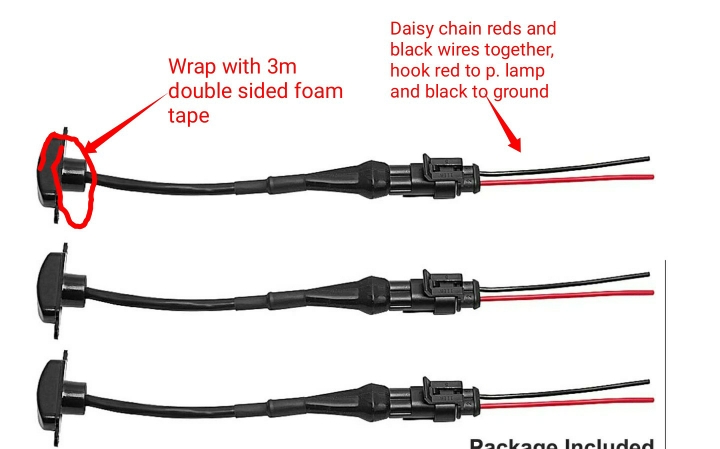

Wire is positive to parking lamp and negetive to ground. I don't care for splicing into oem wires and honestly to get to wire on the back of the headlamp was just a pain so I chose just to run the positive wire to the back bumper where I installed curt trailer harness adapter and spliced into the parking /rubbing wire of the Curt harness. I know it's the most ideal wiring location but pretty easy considering you have ample room underneath. For the light install in to grill I wrapped 3M double-sided foam tape around the barrel(you are just building the barrel diameter so it is a hair larger than grill opening)of each led light and then insert into grill and the double-sided tape secures them to the grill. They may appear a little loose(thjs is good as it gives you a chance to adjust) but give it overnight and foam tape will re-expand(it pushed down slightly when inserting into the grill) and adhere to the grill. The wires or each light are daisy chained together behind the grill. Word of caution be careful running the wires behind so they don't interfere with grill shutters. I also removed the screw tabs off the sides of each light cutters and sanded flat with dremel.

Sent from my GM1917 using Tapatalk
