Please help! 5100 reassembly spring reinstallation position

[JOzzz]

Was installing 5100’s and after the battle with the top nut on the strut, I lost my markings. After re-assembling, spring is definitely not squared. Any tips or photos to help me out would be greatly appreciated. Thank you in advance!


Sent from my iPhone using Tapatalk



[HSKR R/T]

Was installing 5100’s and after the battle with the top nut on the strut, I lost my markings. After re-assembling, spring is definitely not squared. Any tips or photos to help me out would be greatly appreciated. Thank you in advance!


Sent from my iPhone using Tapatalk

As long as it's seated in the rubber isolators properly shouldn't be an issue



[JOzzz]

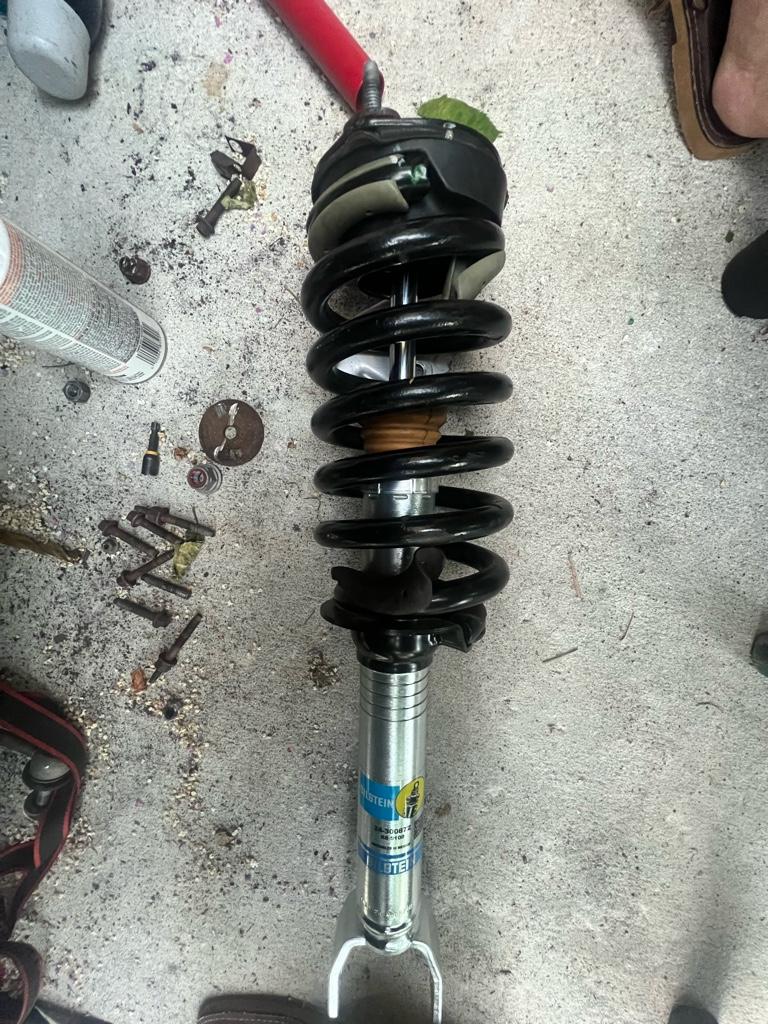

Does this look right? Realized I didn’t line up the bolt with the center so I need to fix that but the isolators seem where they should be. I’m assuming the scrunching of the spring just causes it to not be perfectly centered like before. Is this correct?


Sent from my iPhone using Tapatalk
