Muzzys AC hack.

[victor1829]

This are the 2 hoses that comes out of the water pump one is thicker than the other one



[theblet]

This are the 2 hoses that comes out of the water pump one is thicker than the other one

I would think the big hose goes to the radiator. Any other small hoses? My Jeep has the 3.6. When my son comes home with it I’ll take a look



[victor1829]

Thanks



[theblet]

Thanks

I only see the one small hose and the big radiator hose as well. Not sure if the small one is outlet or inlet because it goes underneath. The skid plate blocks my view



[Nstoolman1]

Thanks Theblet, I had no pictures for him.



[HSKR R/T]

If you go to the firewall where the heater hoses connect to heater core inlet kit follow them back to the first section of rubber hose. It makes zero difference when heater hose the valve goes on



[theblet]

Thanks

Thanks @HSKR R/T Try it on this hose and see how it works.



[HSKR R/T]

Thanks @HSKR R/T Try it on this hose and see how it works.

View attachment 184941

I mean, that's not where I said.



[theblet]

I mean, that's not where I said.

Oh sorry i misunderstood. So you’re saying to follow the heater hose back from the firewall to see where it originates?



[HSKR R/T]

Oh sorry i misunderstood. So you’re saying to follow the heater hose back from the firewall to see where it originates?

You can put the valve anywhere in the line where it's just the rubber hose. Just have to cut the rubber hose. Which means either hose coming off the firewall



[HSKR R/T]

Oh sorry i misunderstood. So you’re saying to follow the heater hose back from the firewall to see where it originates?

Here is a picture shared by someone else in the "what did you do to your RAM" thread. Shows where he put the valve, but it could have been installed in either of the hoses in the picture that are for the heater core



[theblet]

Here is a picture shared by someone else in the "what did you do to your RAM" thread. Shows where he put the valve, but it could have been installed in either of the hoses in the picture that are for the heater core View attachment 184972

Yes I see. That’s how I did my hack on my hemi. The question is where to do it on the pentastar 3.6.



[HSKR R/T]

Yes I see. That’s how I did my hack on my hemi. The question is where to do it on the pentastar 3.6.

The heater hoses are in the same spot on the firewall. Shouldn't be hard to figure out



[Threesuns1]

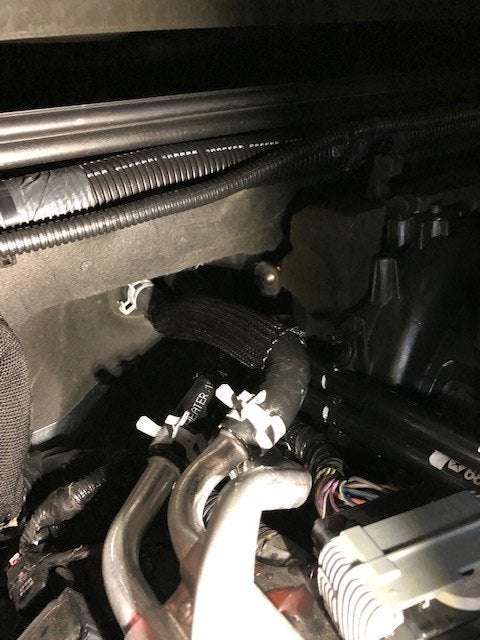

These are the two hoses coming off the heater core on my 2022 3.6. The top arrow shows the hose going into water pump behind MGU. The bottom arrow shows the hose connecting to a double tee in the lower radiator hose.

Edit: There are more rubber hoses on this engine than I've seen on any other engine



[theblet]

I see this hose on my 2012 Jeep. Can’t really see the firewall side. Everything is jammed in there.



Also found this post on a Jeep forum

2015-2018 3.6L Heater Core Hose Routing Image Request

www.wranglerforum.com

Ram hoses are probably different



[vinnieloo]

What coolant do you use to top of after installing?
Is this one OK?

Prestone® MAX All Vehicles Antifreeze + Coolant

prestone.com

Thanks in advance



[HSKR R/T]

What coolant do you use to top of after installing?
Is this one OK?

Prestone® MAX All Vehicles Antifreeze + Coolant

prestone.com

Thanks in advance

Get the Mopar antifreeze listed in owners manuals



[theblet]

What coolant do you use to top of after installing?
Is this one OK?

Prestone® MAX All Vehicles Antifreeze + Coolant

prestone.com

Thanks in advance

You shouldn’t actually lose that much. I only lost a few tablespoons, so I topped it off with distilled water.



[vinnieloo]

My coolant is at the "min" level on the dipstick. Thought about adding more.



[Gren71]

wth is the point of the this bypass?
