LED TAILIGHT BAR

[Bcryan]

Has anyone installed these on a 2019-2020 1500? The position you would normally install these with 3M backing is not flat on our trucks. Are there models out there that have brackets or screw in that are decent quality?



[dts828]

Most use opt7 redline triple or putco light bars. They will be installed with spacers due to non flat surface. Do a search and you will find a few large threads with plenty of info and pics.

Sent from my GM1917 using Tapatalk



[2019REBEL]

I went with Opt7(48 inch version) and it mounts perfectly, no spacers or extra parts.



[Snicklefritz_76]

I just ordered this one:

Amazon.com: Wigbow 60" LED Tailgate Light Bar Double Row Running Brake Reverse Turn Signal Tail Lights Strip with 4 Way Flat Y-Splitter and Clean Cloth for Trucks Pickup SUV RV Van Jeeps Trailer: Automotive

Buy Wigbow 60" LED Tailgate Light Bar Double Row Running Brake Reverse Turn Signal Tail Lights Strip with 4 Way Flat Y-Splitter and Clean Cloth for Trucks Pickup SUV RV Van Jeeps Trailer: Light Bars - Amazon.com ✓ FREE DELIVERY possible on eligible purchases

www.amazon.com

I wanted one that was flexible so I could mount it flat side down and not against the bed. I have the MFT so traditional mounting would be messy. I went with the Wigbow based on Amazon reviews.



[Bcryan]

I just ordered this one:

Amazon.com: Wigbow 60" LED Tailgate Light Bar Double Row Running Brake Reverse Turn Signal Tail Lights Strip with 4 Way Flat Y-Splitter and Clean Cloth for Trucks Pickup SUV RV Van Jeeps Trailer: Automotive

Buy Wigbow 60" LED Tailgate Light Bar Double Row Running Brake Reverse Turn Signal Tail Lights Strip with 4 Way Flat Y-Splitter and Clean Cloth for Trucks Pickup SUV RV Van Jeeps Trailer: Light Bars - Amazon.com ✓ FREE DELIVERY possible on eligible purchases

www.amazon.com

I wanted one that was flexible so I could mount it flat side down and not against the bed. I have the MFT so traditional mounting would be messy. I went with the Wigbow based on Amazon reviews.

i don’t think that will work on your truck because the adhesive will not cover the surface correctly... thanks guys for the input



[Tred's]

I read a while ago, on this site or another Ram site, a member used Velcro on the bed with matching Velcro on the back of the light bar. He stated it made it easy to remove (& replace) when needed.



[BobbyLeeSniper]

I read a while ago, on this site or another Ram site, a member used Velcro on the bed with matching Velcro on the back of the light bar. He stated it made it easy to remove (& replace) when needed.

That would work with a light bar that is flexible. That wont work with a solid/straight light bar as the points of contact between the velcro and the bed would be extremely minimal.
That is, unless they modified the rear panel, which I believe is also possible.



[Snicklefritz_76]

i don’t think that will work on your truck because the adhesive will not cover the surface correctly... thanks guys for the input

Just finished my install, it came out just as I hoped.


Quick vid, overall not bad for a $23 Tailgate Light Bar



[Bcryan]

Like the graphics and dam your tails are bright!!!



[Bighorned]

w

Just finished my install, it came out just as I hoped.
View attachment 62237

Quick vid, overall not bad for a $23 Tailgate Light Bar

which bar did you get? is it plug and play or do you have to splice?



[Snicklefritz_76]

Like the graphics and dam your tails are bright!!!

Thanks! I went with LASFIT LEDs for my break lights. Very bright, even with the smoke tint I added to the light cover.


which bar did you get? is it plug and play or do you have to splice?
[/QUOTE]

Wigbow 60" LED Tailgate Light Bar and used the CURT 55384 Trailer Wiring Harness to power it.

The CURT plugs in to the back or the back of the trailer power plug and gives you a 4-pin connector to power the light bar so no splicing. The light bar has an additional red wire used for the reverse light. I used a yellow POSI-TAP to connect the light bar's red wire to the middle white wire on the CURT. I didn't have to remove the break light and tap into the factory wiring (which I think is what most folks have been doing).



[wrcrallysport]

how did you guys get around the wire harness for the back up cam coming out the bottom of the tailgate and into where you need to mount the light bar?



[dts828]

how did you guys get around the wire harness for the back up cam coming out the bottom of the tailgate and into where you need to mount the light bar?

You need to use spacers underneath the mounting clips. IIRC I used 1/2" spacers on outside clips and 1/4"spacers on the inside clips. You also need to mount bottom of the light bar flush to top of bumper to avoid clearance issues when opening tailgate.

Sent from my GM1917 using Tapatalk



[Babs]

how did you guys get around the wire harness for the back up cam coming out the bottom of the tailgate and into where you need to mount the light bar?

You need to use spacers underneath the mounting clips. IIRC I used 1/2" spacers on outside clips and 1/4"spacers on the inside clips. You also need to mount bottom of the light bar flush to top of bumper to avoid clearance issues when opening tailgate.

Sent from my GM1917 using Tapatalk

Hello,
Can you show a picture of the iirc mounting clip or include link to purchase them.
thanks Jeff



[dts828]

Hello,
Can you show a picture of the iirc mounting clip or include link to purchase them.
thanks Jeff

Clips are included with the opt7 bar. Purchased 1/4 and 1/2" spacers at home depot

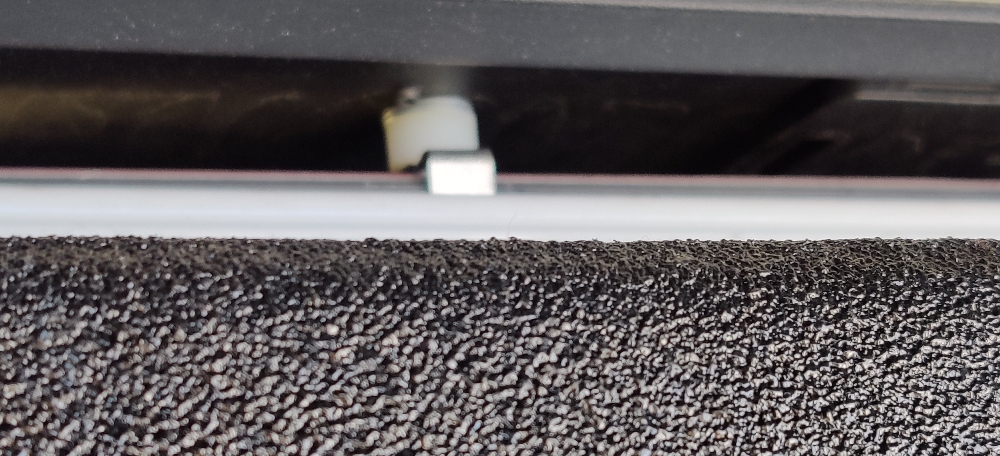

Here is up close picture of clip with spacer on back of light bar.

Sent from my GM1917 using Tapatalk



[Bcryan]

I went with Opt7(48 inch version) and it mounts perfectly, no spacers or extra parts.

How?



[2019REBEL]

How?

It's only 48 inches so it doesn't have to curve as much as the 60 inch at the ends so it sits flat on the plastic piece under the tailgate. I used these about 6-8 inches from the end. Put a drywall screw through the middle to hold them on with the adhesive and then used a small cable tie to hold the bar in place that way it's easy to remove if need be. Also used my curt adaptor from my previous Ram and wired the reverse lights in with a bullet connector again for easy removal if required.

Kable Kontrol® Adhesive Backed Cable Tie Mounts | Adhesive Zip Tie Mounts

Secure wire bundles to any surface with Kable Kontrol adhesive backed cable tie mounts. Adhesive zip tie mounts can also be secured with a self-tapping screw.

www.cabletiesandmore.ca

Pics of the bar are on my thread, Post 25.
