Amp Research Bed Step

[Sv250]



[Sv250]

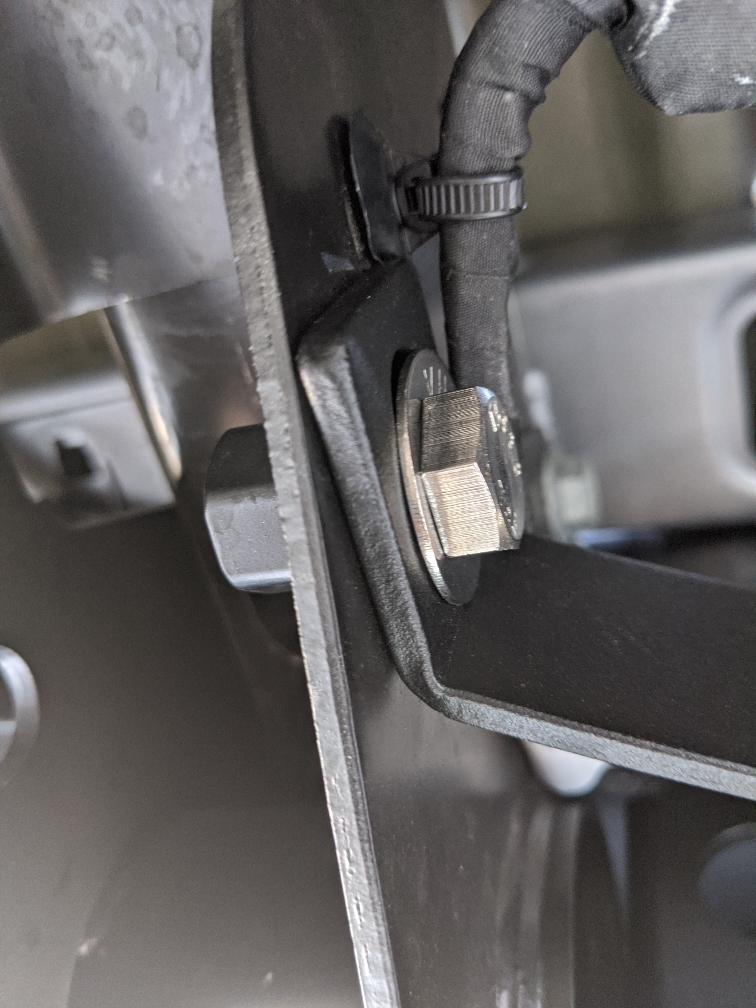

Thats the mopar bracket. Guessing its the same



[Tvk999]

Thanks SV250. However the Amp step is installed differently. It is bolted on the back bumper mounts and then a support bracket also needs to be bolted on the frame/hitch. However the holes in the bracket don't align with those in the frame ...



[dpdsurf]

Everything on mine aligned. However they are still providing the wrong bolt to connect the bracket to the frame with the welded nut in place. I ended up getting a 1/2 x 1" bolt to thread into the factory nut.
