Adding heat/cool to rear Laramie seats

[brental1]

@brental1 .... I finally got the 2 connectors posted above, the harness isn't going to take long to make but finding the time is--- will update once complete--

-=F45=-

Did you have to buy a minimum quantity of the connectors? If so, do you have any to sell; and do you also have the pins?



[brental1]

I was wrong. I though you were asking about front; not rear.



[brental1]

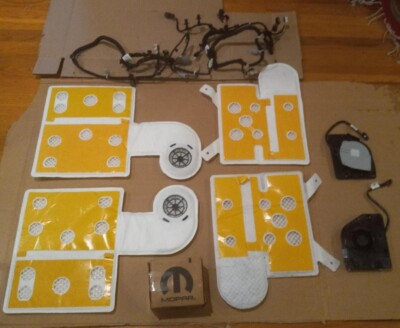

Has anyone been able to make this work on 22 and up? I have all the parts to add venting; but I do not have the wire harnesses. Before I pursue harnessess, I want to make sure it's possible to add this option through computers.



[brental1]

I've made a lot of progress; but have one issue remaining. My truck, 2022 BH with Level 1 EQ, had none of the wires for the rear (also had none for the front) seats. I built a harness with XY430 and XY435A. 6 wires interconnect these 2 connectors. Also had to run 3 Fused Ignitions, 3 Grounds, and a pair for CAN IHS. New console harness (plus some additional wires including Fused Ignition and LIN BUS, I had to run from the truck to it). Added Rear seat heat/vent switches.. Then programming.. As of today, the Right Heat and Vent work.. Nothing on the Left works.. Seems I've narrowed it down to a bad Left switch. Strange because I both both switches new.

Open to any ideas on why the Left side doesn't work.
