2019 Rebel. Check it Out - Custom skid and bash plates fabricated.

[Derek Dredger]

Hi'yall,

So after much research on aftermarket parts I went and got a custom bash plate and skid plates fitted to my 2019 Ram Rebel. All made from mild steel:

Front bash plate 8mm
Skid plates underneath 6mm

This setup keeps the stock bumper with all parking sensors, fog lights and air grills.

The trucks has the following suspension/tire mods:

Bilstein 6112 up front (notch 7).
TOTAL FAB UCAs
34 inch tires (Cooper AT3 XLT3) 295 / 70R / 18

Total lift is 2 3/4 inches.

Am going to put the 6112's on notch 8 now as I feel the front of the truck has dropped slightly due to the extra weight.

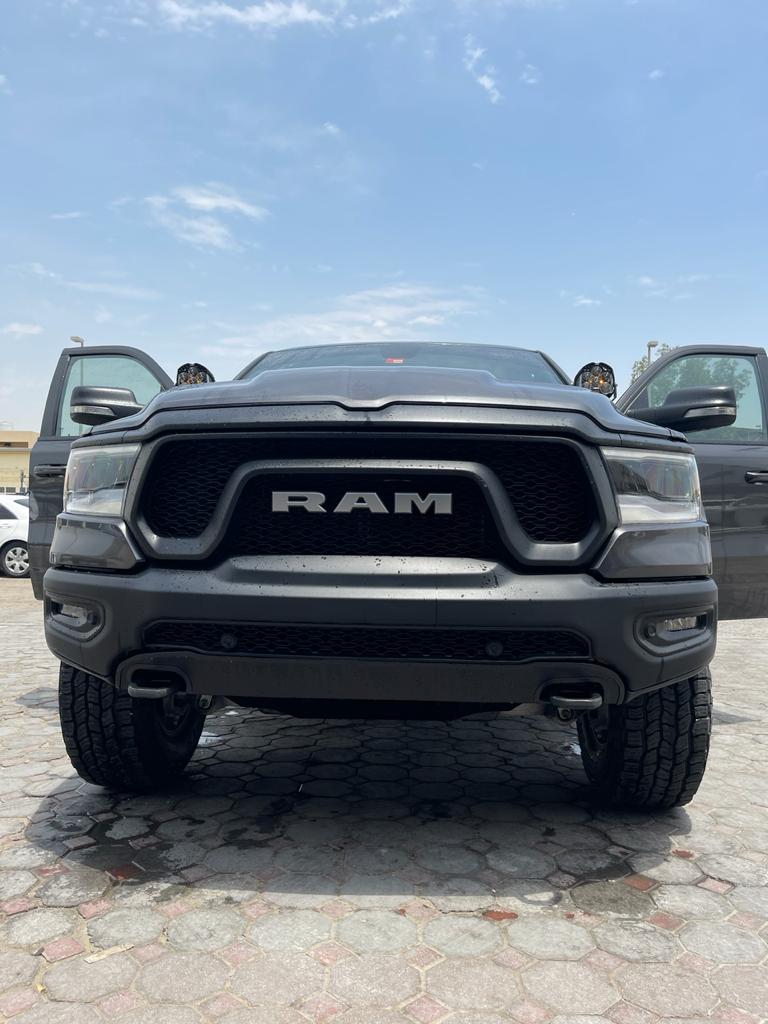

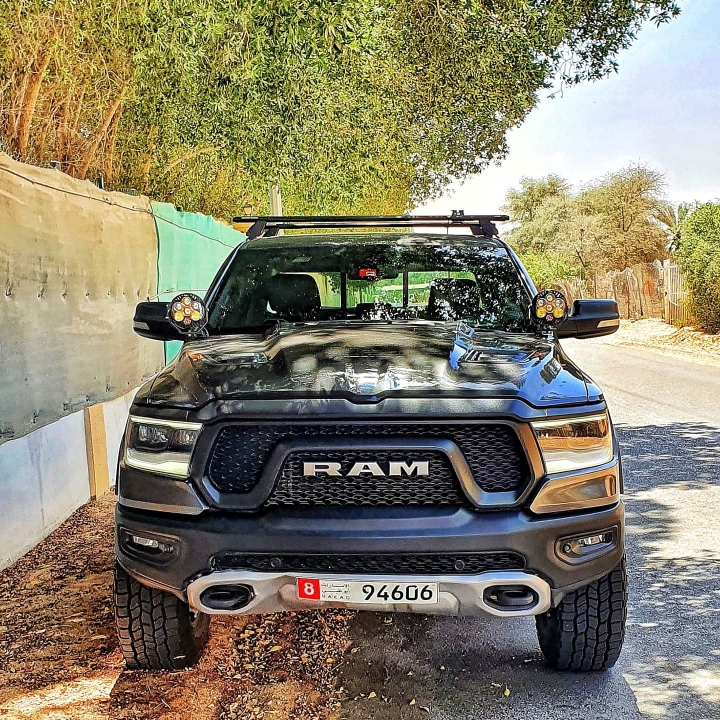

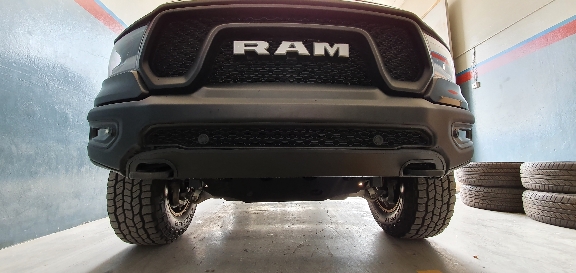

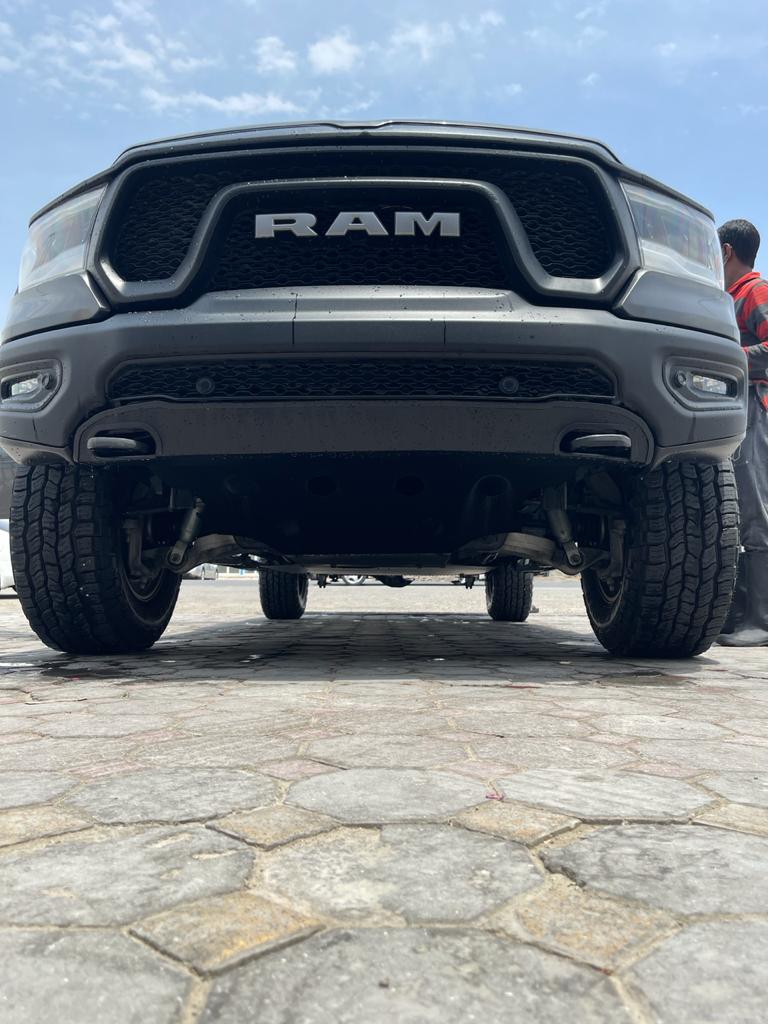

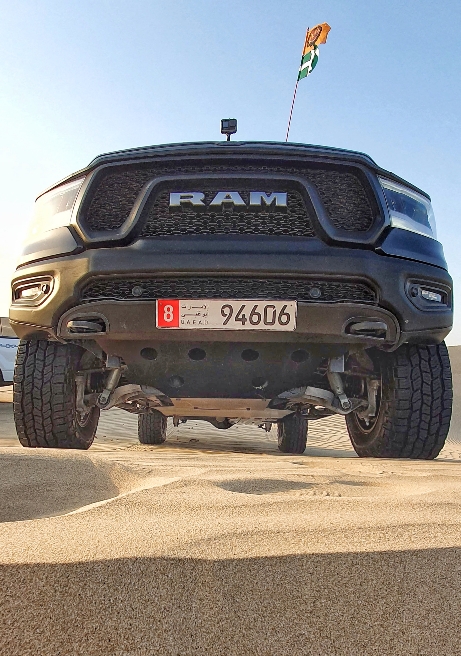

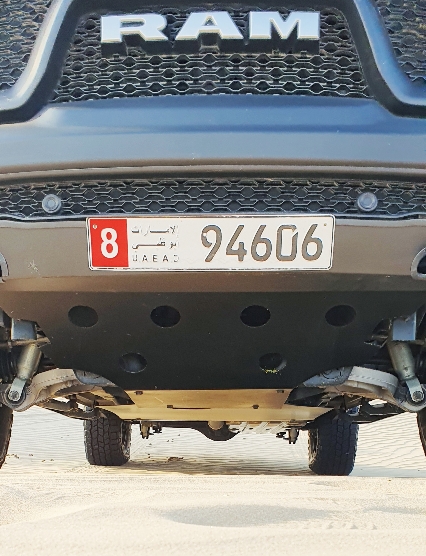

Enjoy the pictures.

Sent from my SM-G973F using Tapatalk



[ayoslickxd]

looks good. how much of a lift did the 6112 give you? on the top notch



[JD300WM]

What was the price of that?



[Derek Dredger]

What was the price of that?

Was $600 in total. That includes bash plate up front and skid plates underneath...almost as far back as where you sit as a driver.

Sent from my SM-G973F using Tapatalk



[Derek Dredger]

looks good. how much of a lift did the 6112 give you? on the top notch

I'm on notch 7 and it gave me 1-3/4 inches lift. I'm pretty sure notch 8 would give me a full 2 inches.

Sent from my SM-G973F using Tapatalk



[Mirowpl]

Question. How do you change the oil?



[Derek Dredger]

Question. How do you change the oil?

The custom shop cut out a circular hole for access.



[JD300WM]

Was $600 in total. That includes bash plate up front and skid plates underneath...almost as far back as where you sit as a driver.

Sent from my SM-G973F using Tapatalk

I want one for my 2021 1500 North Edition



[Derek Dredger]

I want one for my 2021 1500 North Edition

Well I guess take the pictures to a fabrication shop and ask to make something similar....if thats possible? I could get a second one made but the cost of shipping something this heavy long distance would not make it value for money. Which city do you live in?
