Subs and Amps install please help

[Tony B]

Hey everyone and anyone who can help, please advise. Here's my issue: I'm a proud owner of a new 2025 Ram 1500 Big Horn crew cab SST with the Alpine factory system. I'm trying to do a complete overhaul of the factory speakers by adding a new dash speaker, as well as new speakers for all four doors and subs. However, here's my problem: I'm being told that I will need a T-harness to complete my installation at one of my local car audio shops here in upstate SC. Here is a complete list of items I have already purchased.

Please help if anyone here in the upstate of South Carolina can assist. 1:Optima Yellow Battery: H7 Group Size, 880 CCA, 1000 CA, 155 Minute Reserve Capacity, Deep-Cycle 2:

Skar Audio Dual 12" Loaded Sealed Subwoofer Enclosure 3:Skar Audio RP-2000.1D Monoblock Class D MOSFET Amplifier with Remote Subwoofer Level Control, 2000W 4:Rockville RWK0CU 0 AWG 100% Copper Amp Installation Wire Kit, OFC 5:Taramps TS 800x4 2 Ohms Black Multichannel Stereo Amplifier 800 Watts 6:Metra 72-6514 Speaker Harness for Select Chrysler/Dodge Vehicles 7:KICKER 46KISLOC K-Series Interconnect, Speaker to RCA W/Line-Out Converter 8: Cerwin-Vega V69: 6x9​

T-Spec V8-3DDC 4 F capacitor
Belva BAK44 4 gauge wire kit

Axxess ANC-CHH2 ANC Bypass Harness​

ANC bypass harness for select 2015-up Chrysler, Dodge, Jeep, and Ram vehicle

​



[toejam]

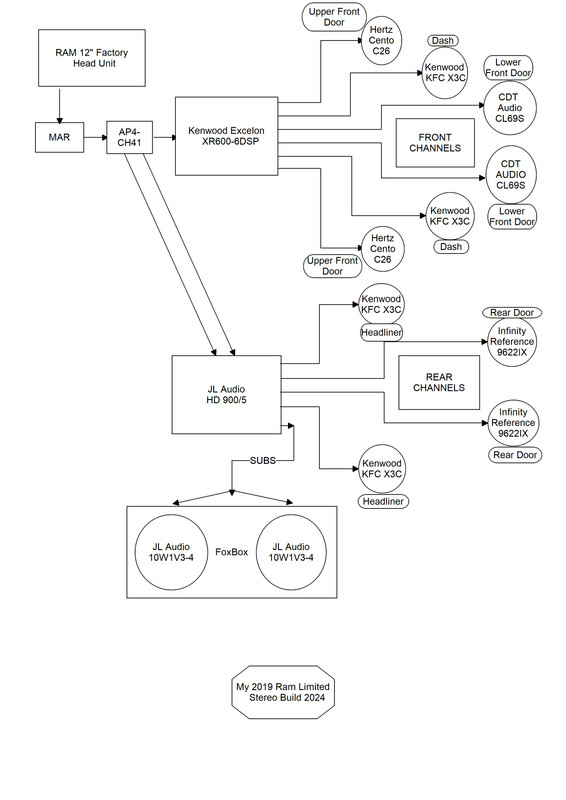

Here's a diagram of my 19' Limited - I know it's not the same, but should give you an idea of whats involved.



[RichInMN]

@toejam - I bet that sounds real nice

I don't know how far that cheap LOC is going to get the OP - with all the $$$ spent on equipment that looks like the weak link (as opposed to an AmpPro or equivalent)



[Tony B]

#toejam thanks for your help i haven't had anything installed yet im being told I would need that T- harness before I get anything done smdh I love my music I need my music
