This is my first thread on this forum, so I'll try and make it count. I installed a Diamondback SE cover on my 2019 RAM 1500 Limited.
I snapped a bunch of pictures to share with anyone else who might be interested in this product.

A liftback delivery truck dropped off this pallet of parts. The bottom box contains all three panels that make up the tonneau cover.
The top box is Diamondback's "drop in" storage bin.


Here's what's in the box. Two large panels and the center pivot/hinge panel and a box of fasteners and gas struts.


The instructions are in here. Very simple stuff.


I got the front panel installed and checked the gap to the cab. As you can see, the truck bed has a slight curve in it. So you want to make sure that the weather-striping seal on the front panel is fully seated on the bed of the truck.


Next I aligned the panels to the sides of the truck. Looking for equal distance from tailgate to the cab.

Here's a shot of the front panel opened up.


...and a shot of the truck with both panels opened. Plenty of room for getting what you need out of the bed.


The truck is absolutely filthy right now. (it's a truck after all) Here's what the Diamonback SE cover looks like installed.
Overall, I think I spent two hours putting it on by myself. It would have gone quicker with a little help.
I spent most of the time adjusting the locking rods to get a good weatherproof seal all around the cover.



[.45 ACP]

Now that I was happy with the installation of the cover it was time to drop the storage bin. ( LINK )
The bin has two shallow bins closest to the side of the beds and a deeper/wider storage are in the middle.


Like an idiot, I dropped the bin in backwards on the first try. Note that the "notches" are supposed towards the cab, not facing the tailgate.
The notches are cut out so that locking rods can engage. I suppose reading the directions might have helped me here.

The bins are just 13" deep. So there's plenty of room to slide lumber and smaller cargo underneath the storage bin.


With the storage bin in the CORRECT position - notches forward - I've snugged it up to forwardmost part of the cab.
I popped the front cover panel back on and reconnected the gas struts; job done.



[KcRay]

So the storage bin is covered by the tonneau, I like it.



[2019REBEL]

Very nice write up. I was going to get one but they want close to 3 grand for them up here in Canada so I went with a Bakflip MX4 for $1150.
I see the cover doesn't quite cover the rear stake pockets, maybe get some of those. I got some for mine off of ebay, very happy with them.



[Drewsky510]

This is my first thread on this forum, so I'll try and make it count. I installed a Diamondback SE cover on my 2019 RAM 1500 Limited.
I snapped a bunch of pictures to share with anyone else who might be interested in this product.

A liftback delivery truck dropped off this pallet of parts. The bottom box contains all three panels that make up the tonneau cover.
The top box is Diamondback's "drop in" storage bin.
View attachment 23221

Here's what's in the box. Two large panels and the center pivot/hinge panel and a box of fasteners and gas struts.
View attachment 23222

The instructions are in here. Very simple stuff.
View attachment 23223

I got the front panel installed and checked the gap to the cab. As you can see, the truck bed has a slight curve in it. So you want to make sure that the weather-striping seal on the front panel is fully seated on the bed of the truck.
View attachment 23224

Next I aligned the panels to the sides of the truck. Looking for equal distance from tailgate to the cab.
View attachment 23225
Here's a shot of the front panel opened up.
View attachment 23226

...and a shot of the truck with both panels opened. Plenty of room for getting what you need out of the bed.
View attachment 23227

The truck is absolutely filthy right now. (it's a truck after all) Here's what the Diamonback SE cover looks like installed.
Overall, I think I spent two hours putting it on by myself. It would have gone quicker with a little help.
I spent most of the time adjusting the locking rods to get a good weatherproof seal all around the cover.
View attachment 23228

They are sweet! Are you able to open/close your tailgate without releasing the lock on the rear panel? Just got mine installed yesterday and I’m hoping the weather stripping is just tight and needs to break in.


Sent from my iPhone using Tapatalk



[.45 ACP]

Are you able to open/close your tailgate without releasing the lock on the rear panel? Just got mine installed yesterday and I’m hoping the weather stripping is just tight and needs to break in.

Not yet. I intentionally made the cover snug so that I’d guarantee a watertight seal. So I do have to open the latch to drop the gate



[j517]

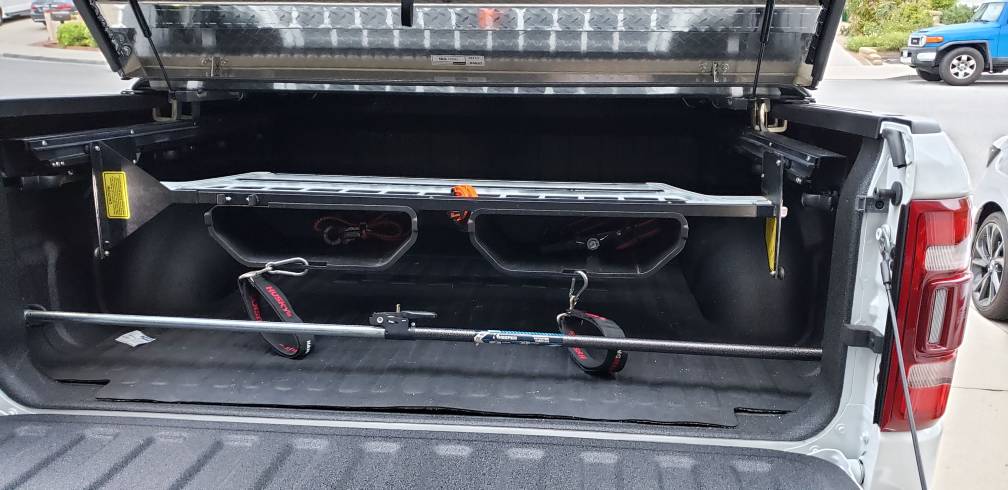

My set up

Sent from my SM-T830 using Tapatalk



[Rampat]

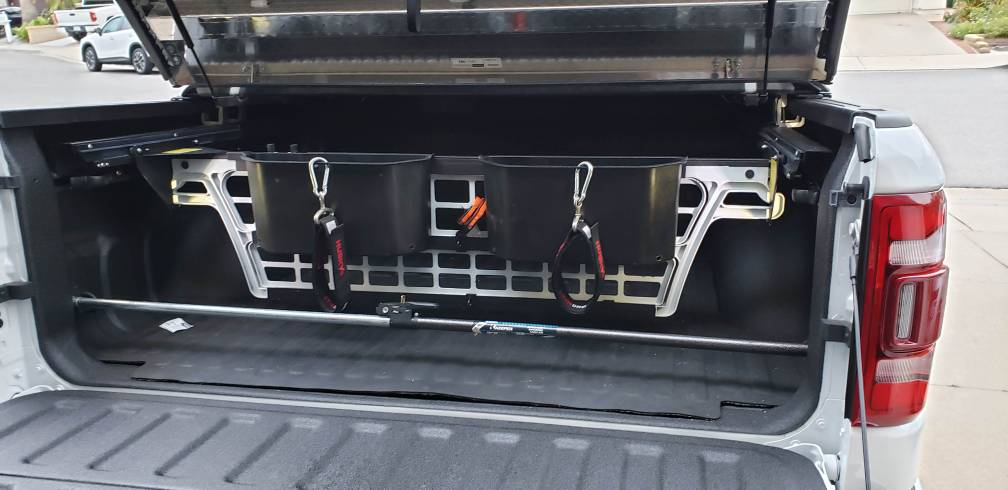

My set up

Sent from my SM-T830 using Tapatalk

Did those seals come with it?



[.45 ACP]

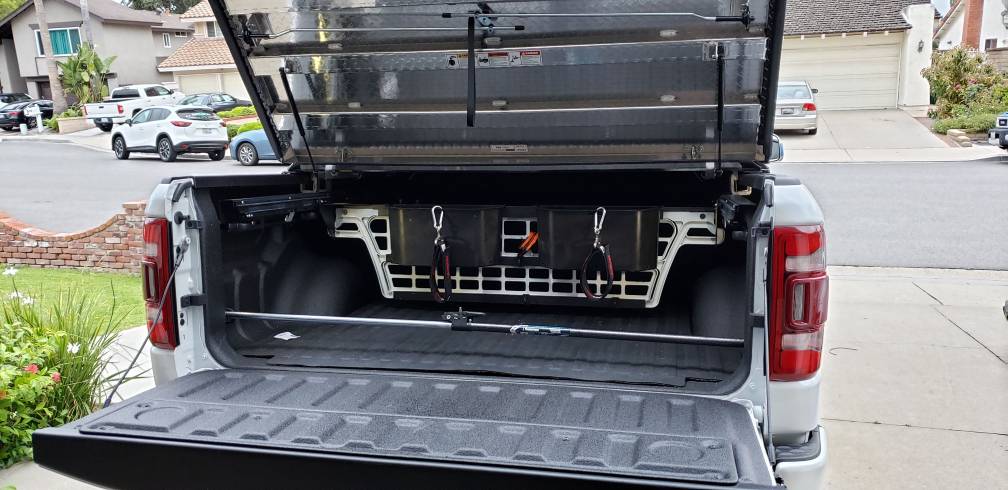

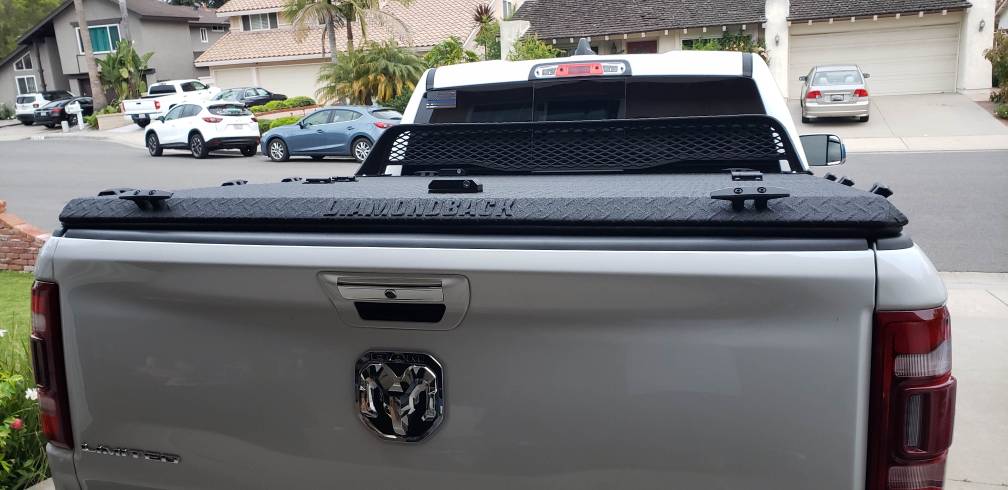

I've got the truck cleaned up an looking good - so I thought I'd snap a couple of beauty pix to share while its still clean.
