2022 Ram 1500 Laramie 12" Screen - Backup camera guidelines not adjusting with tire

[Adoutrej]

I just got a 2022 Ram 1500 Laramie with the 12" screen and I noticed while backing up that the guideline lines on the rear view camera do not curve as I turn my wheel. Is there a specific setting to fix this?

See picture for reference. In the picture, my wheel is all the way turned to back up into the box. With my wheel turned, the rear view backup camera guidelines stay straight (they should curve as I turn my wheel).



[Bigbags85]

I believe there is a setting you have to turn on to have the lines turn with you.



[kapinallinen2]

There is.
That 700 plus pages of owners manual makes for some heavy reading.



[Fatherof3]

It's in the settings I just can't remember off the top of my head where in settings it is .



[MoreOvalteenPlz]

On Uconnect 4, it’s under Settings - Camera - ParkView Backup Camera - Camera Active Guidelines - On. It should be very similar if not the exact same on Uconnect 5.



[Bigbags85]

On Uconnect 4, it’s under Settings - Camera - ParkView Backup Camera - Camera Active Guidelines - On. It should be very similar if not the exact same on Uconnect 5.

Yeah it's the same, idk what it looks like on the 12".



[Adoutrej]

On Uconnect 4, it’s under Settings - Camera - ParkView Backup Camera - Camera Active Guidelines - On. It should be very similar if not the exact same on Uconnect 5.

Thanks for sharing. I finally found the setting. My screen display looks a little different from yours also.



[Adoutrej]

Yeah it's the same, idk what it looks like on the 12".

Thanks for sharing!



[Casey B]

There is.
That 700 plus pages of owners manual makes for some heavy reading.

Naw. Most of it is "don't drink the battery acid" type stuff.



[kapinallinen2]

Naw. Most of it is "don't drink the battery acid" type stuff.

Yeay, most of the "don`t drink the acid" gets covered by page 160 or so and after that, if one has the stamina to stick with it, there is some useful info about your truck... YMMW.



[Casey B]

I read the manual three times; BEFORE the truck was delivered. LOL



[VictorK]

I just got a 2022 Ram 1500 Laramie with the 12" screen and I noticed while backing up that the guideline lines on the rear view camera do not curve as I turn my wheel. Is there a specific setting to fix this?

See picture for reference. In the picture, my wheel is all the way turned to back up into the box. With my wheel turned, the rear view backup camera guidelines stay straight (they should curve as I turn my wheel).
View attachment 124873

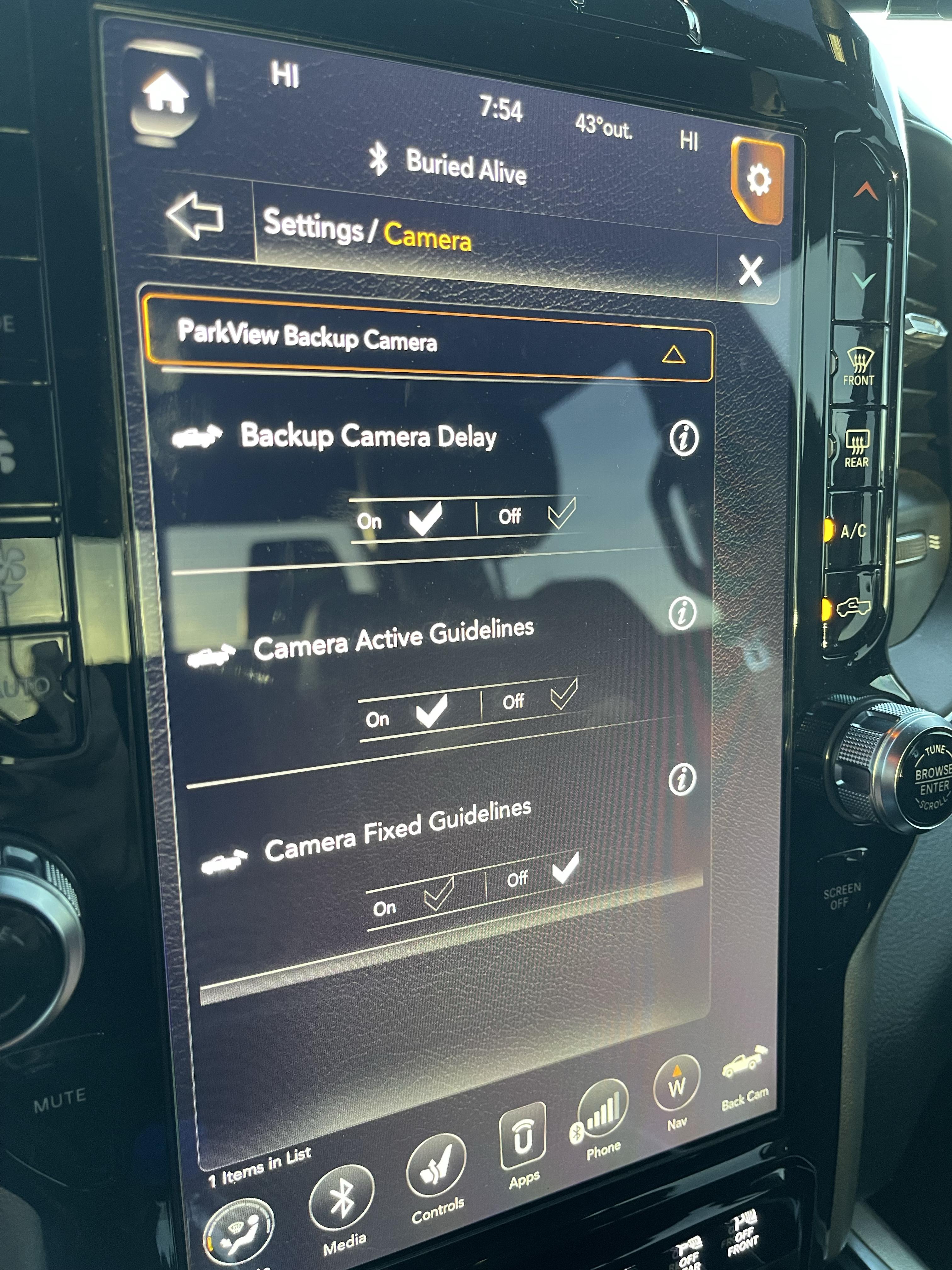

Upper right hand hit setting gear cog > Camera > ParkView Backup Camera > Camera Active Guidelines should be ON. I think you have fixed ON now.
