2021 EcoDiesel Security Gateway Bypass Location

[sheepdogtrail]

I have a 2021 Bighorn EcoDiesel and I am unsure of where the bypass module is. I have seen some videos on YT that show it near the radio and ones that show it up above the OBDII port.

I have that red dongle with a 8 pin and 12 pin connectors as well as the OBDII connector.

Does anyone have any ideals on just where I need to plug my bypass cable in?



[dts828]

I believe all 1500`s have it under dash near the obd port, left of steering column

Sent from my GM1917 using Tapatalk



[sheepdogtrail]

Thanks. There are several wiring blocks/busses in that area. Do you know what size and color I am looking for?



[sheepdogtrail]

I see a green and a white wiring bus. It looks like the 8 pin and 12 pin connectors will not fit in those. Maybe I need a different bypass cable. I have the augocom adapter.

Amazon.com: AUGOCOM FCA 12+8 Universal Adapter Cable Adapter : Automotive

Buy AUGOCOM FCA 12+8 Universal Adapter Cable Adapter: Code Readers & Scan Tools - Amazon.com ✓ FREE DELIVERY possible on eligible purchases

www.amazon.com



[dts828]

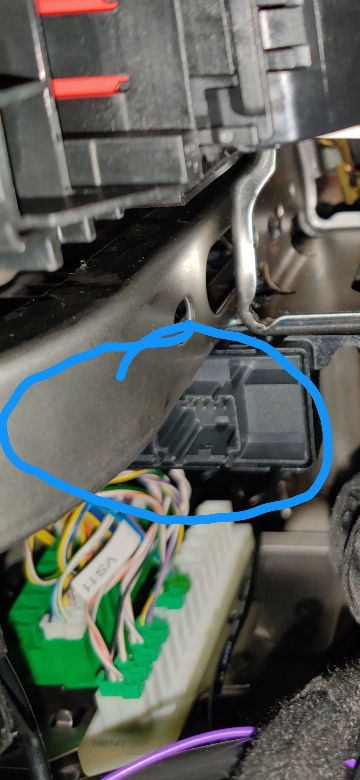

It's a black module mounted to silver bracket with the 2 square plugs that would unplug. and plug into your bypass cable. Look to left of steering column more or less behind odb port but a little higher up. I think your looking at the data bus bars next to BCM on firewall if I had to guess (much smaller connectors)

I attached a pic but my plugs are unplugged because I have them plugged into tazer.

Sent from my GM1917 using Tapatalk



[sheepdogtrail]

Thanks man. I will have a closer look tonight. I owe you a beer.



[sheepdogtrail]

Found the black box with the two plugs where you said it would be and my pigtail does not fit.

I am guessing that my connectors on my pigtail are x2 the size of the ones there from the factory. I will need to get another pigtail bypass or find a spot where it fits.



[sheepdogtrail]

Made a rookie mistake. The wires from the truck plug into the bypass pigtail. I was trying to plug the pigtail bypass into the black box.
