Air Compressor Mounting Locations

[Fatherdeath]

Right now I have a Air compressor I use for airing up after a trail, and right now its just simple battery connected and loose. Im looking to hard mount the compressor some where on the engine pay or frame and possibly even a 1-2 gallon tank as well. Any one have any good locations they have found?



[jan_riefkohl]

Right now I have a Air compressor I use for airing up after a trail, and right now its just simple battery connected and loose. Im looking to hard mount the compressor some where on the engine pay or frame and possibly even a 1-2 gallon tank as well. Any one have any good locations they have found?

If your truck has ram boxes then you could mounted in there and route the 12V cables through the drain plug. There’s a video on YouTube of somebody installing a ARB Dual Compressor in that spot.



[fartsonunicorns]

I’m looking at doing the same thing, but lately it’s been way too hot outside for projects. But I think it could fit pretty easily on the passenger side of the engine pay. I’m possibly thinking about swapping to the ram air intake and mounting it where the stock air box lives.


2020 Big Horn Quad Cab 4x4
De-badged and chrome delete
Rockford Fosgate P600x4 pushing stock 6 speakers, P1000x1bd pushing two 10” subs



[jan_riefkohl]

I’m looking at doing the same thing, but lately it’s been way too hot outside for projects. But I think it could fit pretty easily on the passenger side of the engine pay. I’m possibly thinking about swapping to the ram air intake and mounting it where the stock air box lives.


2020 Big Horn Quad Cab 4x4
De-badged and chrome delete
Rockford Fosgate P600x4 pushing stock 6 speakers, P1000x1bd pushing two 10” subs

That honestly sounds perfect, I never considered it there since I’m think if switching to an S&B since the ram air intake (if its the mopar one) is a bit rich for my blood haha.



[jan_riefkohl]

Right now I have a Air compressor I use for airing up after a trail, and right now its just simple battery connected and loose. Im looking to hard mount the compressor some where on the engine pay or frame and possibly even a 1-2 gallon tank as well. Any one have any good locations they have found?

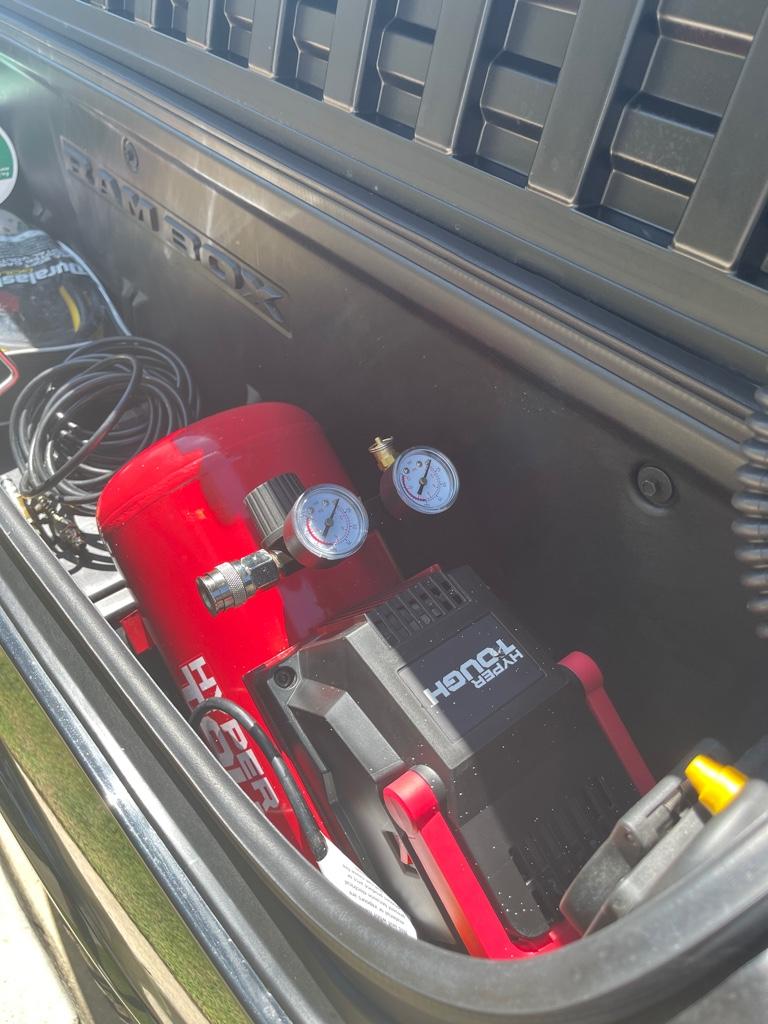

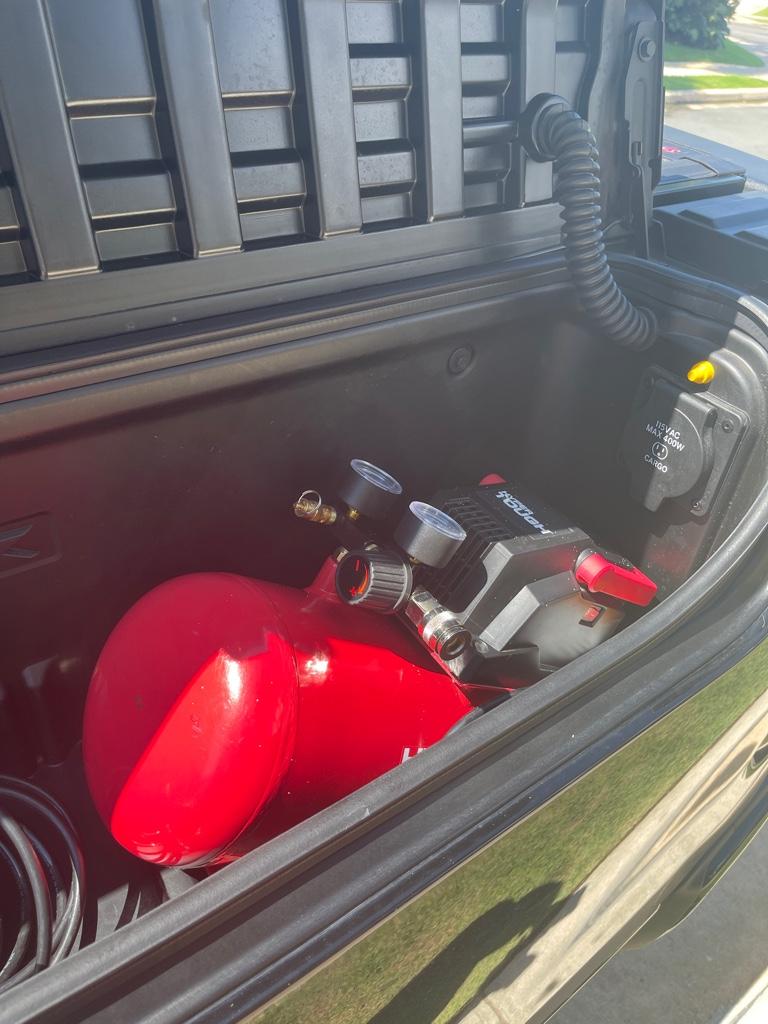

Ended up buying a Hyper Tough 3 gallon compressor that I saw out of coincidence, got it from the dad of a buddy of mine for 40 bucks at it fits perfectly in the RamBox where my AC plug is at.

Sent from my iPhone using Tapatalk



[Malodave]

I have plans to put an Extra Sanden AC Compressor on the
Engine for OBA. Finding a Place for the Train Horns is a little Tougher.

I used a York 210 from a '73 Mercedes on my 2008 Big Horn.

Malodave



[Fishstixs22]

Right now I have an Air compressor I use for airing up after a trail, and right now its just simple battery connected and loose. Im looking to hard mount the compressor some where on the engine pay or frame and possibly even a 1-2 gallon tank as well. Any one have any good locations they have found?

So I have mine where your air intake filter would be I installed a ram air which opens up that entire side of the engine bay and installed a 2-1/2 gallon tank with the compressor since I don’t have ram boxes , works out great because of the ram air which isn’t a an insane amount of money to get and fairly easy to install

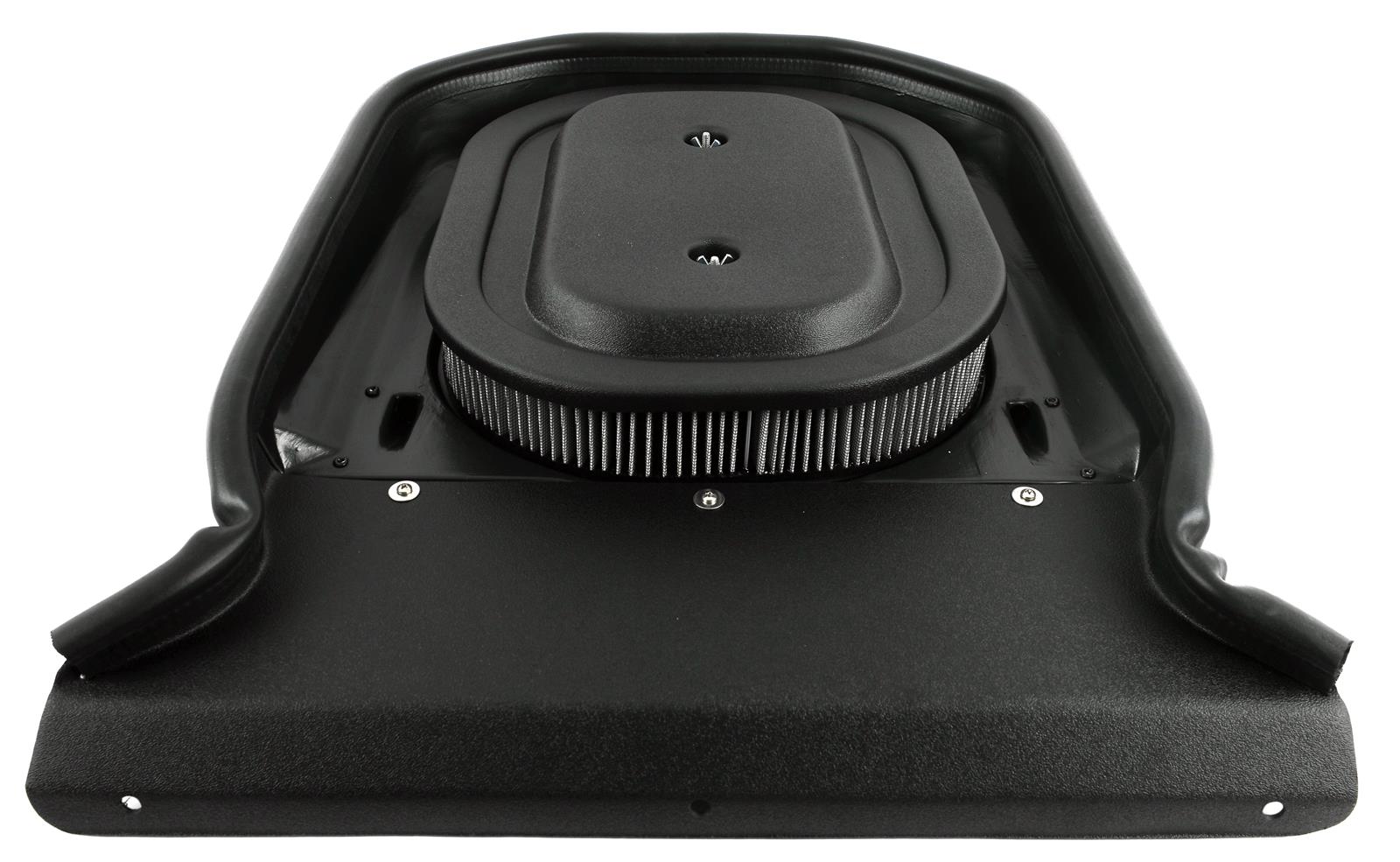

Vararam VR-HEMI-T VaraRam VR Air Grabber Ram Air Induction Systems | Summit Racing

Free Shipping - VaraRam VR Air Grabber Ram Air Induction Systems with qualifying orders of $109. Shop Air Intake Kits at Summit Racing.

www.summitracing.com



[boogielander]

19+ 5th Generation RAM 1500 Engine Bay Compressor Mount

Passenger side engine bay compressor mount for 5th Gen 5.7L Hemi powered 1500 trucks with or without eTorque. New configuration for ARB Dual Compressor, ARB Single Compressor. Whether you are off-roading and need to air up/down or out at the lake with the family and need to blow up those floats...

www.nhoverland.com

just want to give a shoutout to @NH Overland.



Mine's the test fit so it probably looks slightly different, but the production kit fits perfectly fine.



[Whodeysrt]

Installed Ram Air system and took top off old air box and put a floor in it for this. Other side has quick connect to use for normal air compressor stuff……oh yeah it makes train noises also!



[scottmoyer]

I'm new to this concept but was thinking about adding two aired requirements, rear airbags and train horns. I leveled my truck and was thinking about doing a self leveling set up by adding airbags inside the springs to automatically level when I load the bed.

Also, living in Florida with all of the bad drivers, the standard horn doesn't appear to be loud enough as people ignore the horn and continue with their stupid movements even after nailing the horn.

Can a single compressor be used for both? What type of compressor will I need? Is self leveling even something I should look into, or will it cost more than it's worth?



[grimreefer]

Installed Ram Air system and took top off old air box and put a floor in it for this. Other side has quick connect to use for normal air compressor stuff……oh yeah it makes train noises also!

Cleanest install I've seen... I'm jealous. Is that floor custom or can it be bought?



[Whodeysrt]

Cleanest install I've seen... I'm jealous. Is that floor custom or can it be bought?

Custom…just scraps around garage put together



[Trooper4]

That honestly sounds perfect, I never considered it there since I’m think if switching to an S&B since the ram air intake (if its the mopar one) is a bit rich for my blood haha.

Got mine on craigslist/facebook market place



[Rock Crawler]

I have an on-board air kit from Timber Grove for my air bags that fits inside the front bumper. Probably would not be hard to fab up something similar with your own compressor and small air tank.



[Rock Crawler]

I'm new to this concept but was thinking about adding two aired requirements, rear airbags and train horns. I leveled my truck and was thinking about doing a self leveling set up by adding airbags inside the springs to automatically level when I load the bed.
Is self leveling even something I should look into, or will it cost more than it's worth?

You can have one compressor that feeds a single air tank with multiple bungs for different outputs. Airbags that go inside the springs only expand to keep the spring from compressing. They will not raise the back of the truck. Now, if you air them up first, and then add the weight, the spring will not compress as much. If you want the ability to actually raise the rear of your truck after the weight has been added, you will need real air bags like the Timber Grove bags. You can add his on-board air kit so you can remotely adjust ride height, or you can just run the airlines somewhere convenient where you can air them up with a hose. All of his stuff is stainless, high quality and bolt-on. You’re going to pay a premium price, but it’s the only way to do it right. As far as self-leveling goes, it’s pretty much a fantasy. I won’t go into it here, but you can check out my build page to read about it.

Bags


19'-20' RAM 1500 — Timber Grove Enterprises, LLC


On-Board Air

Air Solutions — Timber Grove Enterprises, LLC

timbergroveenterprises.com



[Rock Crawler]

Timber Grove has a compressor setup that goes in the floor bins, if you have them.

09'-UP RAM Storage Bin (Single PSI) Air System (SQ3464880) — Timber Grove Enterprises, LLC

Designed to fit 09’-UP RAM 1500, 2500 and 3500 Crew Cab trucks with in floor storage bins. Will fit several other cab configurations and manufacturers. Please contact us for additional information. Wireless key fob (2 included) control for air up/down. A 10% duty cycle, 12 amp Viair 96C-IG compress

timbergroveenterprises.com



[Qrr]

Home made mount
