Rear wheel well liner

gatorrage

Member
Joined
Aug 30, 2020
Messages
5
Reaction score
2
Location
Bagdad
I have searched numerous websites looking for a wheel well liner. It looks as though there is a piece missing. I have noticed this on pics of other Bighorn models. Any idea where I could find this piece?


Attachments

  • 20200830_094454.jpg
    124.7 KB · Views: 302

jastevenson

Well-Known Member
Joined
Oct 9, 2018
Messages
321
Reaction score
172
If you paid to buy them, and they forgot to install part of it, ask the dealer to fix it for free.


jdefoe0424

Ram Guru
Joined
Aug 2, 2019
Messages
555
Reaction score
297
Location
Illinois
The upper part is optional on most of our trucks, $195... Parts are roughly the same from the dealer if it concerns you that much. Living in the snow belt, I found it necessary to add to my truck

Sent from my Moto Z (2) using Tapatalk


arod412

Ram Guru
Joined
Jun 26, 2020
Messages
1,155
Reaction score
919
Location
NJ
Check that build sheet to confirm I know its something close to a $200 add on. Its not factory.

Sent from my SM-G973U using Tapatalk


gatorrage

Member
Joined
Aug 30, 2020
Messages
5
Reaction score
2
Location
Bagdad
Bought with 5000 miles on it.
It bothers me now because once I noticed it wasn't there that's all I can focus on now. I might just paint it with Herculiner.


GregHBNA

Spends too much time on here
Joined
Nov 1, 2018
Messages
3,212
Reaction score
1,927
There is no "upper" part missing on your truck. that is a part of the base configuration unless your truck optioned for the $195 FULL WHEELHOUSE LINERS. A totally stupid move by FCA to make them like that, but it a gain on their side for "accessories/add-ons".
The replacement part comes in the FULL wheelliner, and is $195 for the set.
You have to remove the ones that are there, and replace them with the full liner. this is a video about how to replace them. I had the part #'s but can't locate them. There is a different part number for the left and right.



mikeru82

5thGenRams Supporter
Site Supporter
Joined
Nov 18, 2019
Messages
5,390
Reaction score
5,013
Location
The Palouse
I have searched numerous websites looking for a wheel well liner. It looks as though there is a piece missing. I have noticed this on pics of other Bighorn models. Any idea where I could find this piece?
As the others have said, it's an option. The original buyer of this truck didn't opt for the rear wheelhouse liners, so it only has the smaller front and rear pieces. The full wheelhouse liners are one piece, so you'd need to remove the pieces you have in order to install them. Seems like a silly thing to make an option, and should have been standard.

Edit: looks like Greg beat me to it LOL


dts828

Ram Guru
Joined
Dec 28, 2019
Messages
874
Reaction score
495
Location
Atlanta, GA
If it bothers you spray it with some undercoating material until you pickup the full liners. Unfortunately the contrast on white trucks really makes it stick out.

Sent from my GM1917 using Tapatalk


GregHBNA

Spends too much time on here
Joined
Nov 1, 2018
Messages
3,212
Reaction score
1,927
If you go with the full liners as a set, when you remove the ones in place, remember you have to seperate the back one and keep it during reinstallation because it has the clips. I think you will need two additional screws as well.
There are TWO video's on youtube that will take you step by step.


GregHBNA

Spends too much time on here
Joined
Nov 1, 2018
Messages
3,212
Reaction score
1,927
That is what I did on a previous truck. I just got some of that Rustoleum undercoating.
I scratched the paint on the wheelwell before it sprayed so it would stick better.

If it bothers you spray it with some undercoating material until you pickup the full liners. Unfortunately the contrast on white trucks really makes it stick out.

Sent from my GM1917 using Tapatalk


mikeru82

5thGenRams Supporter
Site Supporter
Joined
Nov 18, 2019
Messages
5,390
Reaction score
5,013
Location
The Palouse
Krylon Flat-Black...and you're done! lol
Not sure Krylon will hold up well over the long term. If you ever drive on gravel you might want to use something a little more durable like bed liner. Any spray coating can make a mess so you'll want to do a good job of masking off anything you don't want to possibly get over spray on.


Sacredgrooves

Member
Joined
Aug 27, 2020
Messages
5
Reaction score
5
I just bought mine Friday and it did not have the liners. I made the dealer install them as part of the negotiation. They cost around $90 and take about an hour to put in. Salesman tried to tell me labor was $800 lol. I believe someone on this forum made a video on YouTube showing how to install, pretty easy job really (and thanks for that!). With that said, full liners should come stock on trucks period imo. Fluid film will be next, used that on my Wrangler and after 17,000 miles when sold, undercarriage was absolutely perfect (I am in the south though).


GregHBNA

Spends too much time on here
Joined
Nov 1, 2018
Messages
3,212
Reaction score
1,927
They're like $90 each if you were to buy one. The window sticker said $195 for the set.

I posted the YOUTUBE video link above. There are two of them that I seen.


NorthernArea51

Ram Guru
Joined
Jul 30, 2020
Messages
660
Reaction score
500
Location
NY

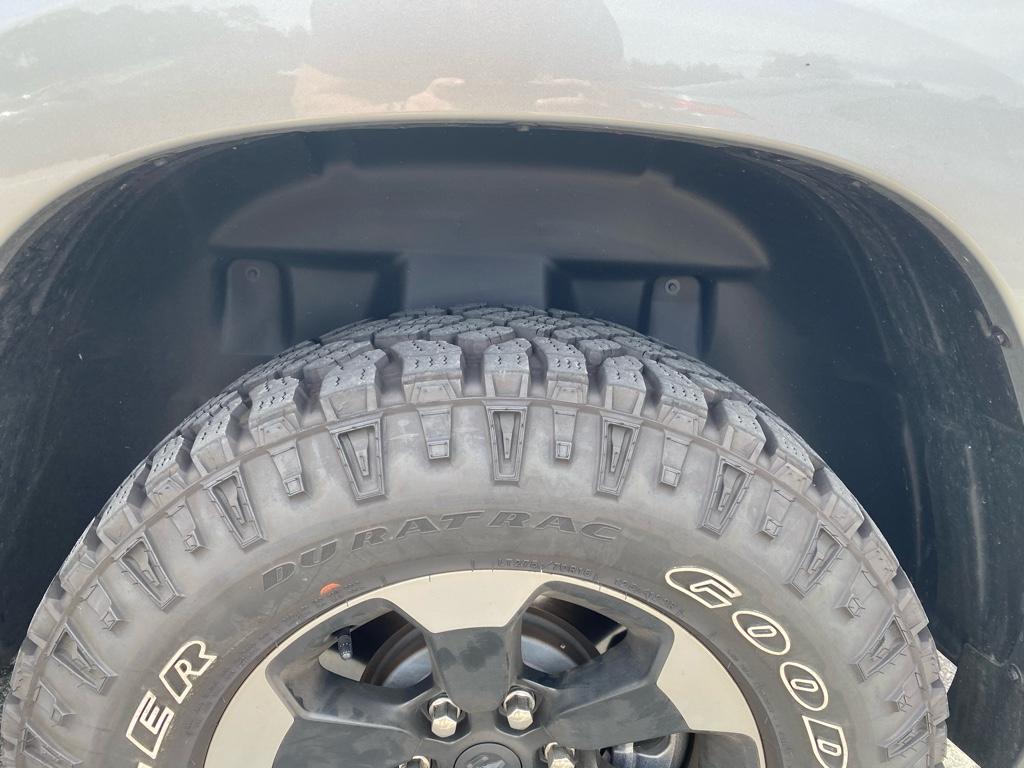

Read this post and had to go look for myself...mine is a big horn (‘20) and it looks like it’s one solid piece



Sent from my iPhone using Tapatalk


GregHBNA

Spends too much time on here
Joined
Nov 1, 2018
Messages
3,212
Reaction score
1,927
Did you put the Duratrac's on yourself?

Oddly enough, those liners look like the ones on the Classic models.


Read this post and had to go look for myself...mine is a big horn (‘20) and it looks like it’s one solid piece


Sent from my iPhone using Tapatalk


Finn5033

Ram Guru
Joined
Apr 2, 2020
Messages
622
Reaction score
468
Location
MN
I bought them from Rock Auto here are the part #’s
68275910AB liner
68275911AB liner
6510175AA this is the extra hardware you need

I believe I paid just under $160 all in with shipping
